A York electric furnace blowing without heating: a thorough HVAC diagnosis in a very tight mechanical space
In Saint-Vincent-de-Paul, in the Laval area, our AirGreen team was called for a York electric furnace repair installed in a compact mechanical space, between a water heater, metal ducts, and household storage. The customer contacted us because the central system still seemed to be running but was no longer producing enough heat. The fan started, air came out of the vents, the thermostat indicated a heating demand, but the house remained uncomfortable, especially in the morning and evening.

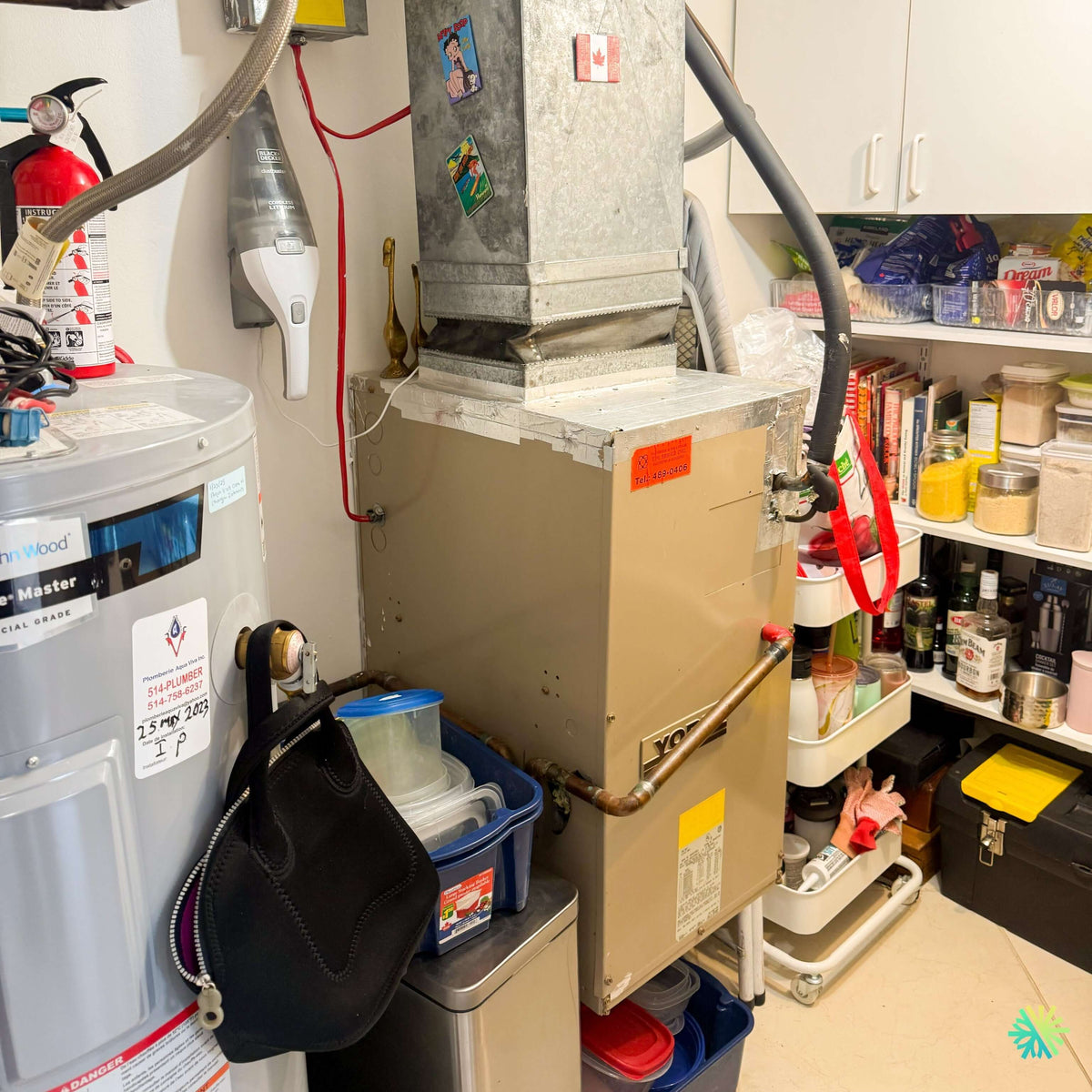

The photo shows a York electric furnace connected to a galvanized duct network, with an upper plenum, visible piping, and limited access around the unit. This type of installation is common in homes in Laval and the North Shore: a central system installed in a narrow mechanical room, often shared with the water heater, valves, tools, and storage spaces. Access may seem secondary, but in HVAC service, it directly influences the quality of the diagnosis, the safety of the intervention, and the ability to properly check internal components.
In this particular case, the failure was not dramatic. No loud noise, no circuit breaker constantly tripping, no strong burnt smell. Yet, the heating could no longer keep up. This is often the most deceptive type of problem: the furnace is not completely stopped, but it operates at reduced power.
Symptoms reported by the customer
The customer described a progressive situation. At first, they simply noticed that the house was taking longer to warm up. Then, a few days later, the air blowing from the vents became lukewarm, even when the thermostat setting was increased. The furnace ran longer than before without producing the expected result.
The observed symptoms corresponded to a partial heating system failure:
- blowing lukewarm air instead of clearly hot air;
- extended heating cycles;
- indoor temperature rising very slowly;
- fan running, but insufficient heat;
- discomfort in the more distant rooms;
- no clearly visible code for the customer;
- feeling that the furnace was only operating at part of its capacity.
On an electric furnace, these signs can indicate several problems: a burnt heating element, a defective sequencer, a weakened relay, a safety limit that cuts off too quickly, an overheated electrical connection, an overly restrictive filter, or a blower that does not move enough air.
Our role was therefore not to stop at the first symptom. A running fan does not confirm that the heating elements are working. Conversely, elements in good condition can be disabled by a protection if the airflow is insufficient. The real cause had to be isolated.
Limited technical access requiring a structured approach
Before opening the device, we secured the workspace. The furnace was located in a storage area, near the water heater and several household items. To work properly, we first cleared immediate access around the front panel and visible components.
This step may seem simple, but it is essential. An electric furnace contains high-power circuits. Current measurements, voltage checks, and connection inspections must be done in a stable environment, without objects obstructing access, pulling on wires, or blocking panel removal.
We then cut the appropriate power supply before the visual inspection, then proceeded to open the device. Inside, the goal was to check the condition of the main components: wiring, relays, sequencer, heating elements, blower motor, ventilation compartment, temperature limit, and low voltage control.
Thermostat and low voltage control diagnosis
The first check focused on the heating demand. The thermostat was correctly sending the signal to the furnace. The low voltage control was stable, which allowed us to rule out a simple thermostat failure or a broken control wire.
This step is important because many customers immediately think of a major breakdown when the heating becomes weak. However, a poorly configured thermostat, a loose wire, or an intermittent control can create similar symptoms. In this case, the furnace was indeed receiving the order to heat. The problem was therefore further down the chain of operation.
Checking the heating stages
The York electric furnace operated with heating stages controlled by sequencing components. When a heat demand is sent, the stages do not necessarily have to activate all at once. The sequencer allows a gradual startup of the elements to avoid a sudden electrical demand.
Our tests showed that one of the heating stages was not activating reliably. The fan started normally, but full heating power was not available. This explained why the blown air felt lukewarm: the system was distributing air, but with reduced thermal capacity.
We then measured the electrical behavior of the heating circuits. The values confirmed incomplete activation. The problem came from a weakened sequencer, accompanied by a connection showing signs of heating and contact resistance.
A weakened connection causing an intermittent failure
In an electric furnace, a slightly loose or oxidized connection can cause a disproportionate problem. At low power, an imperfect contact may sometimes seem acceptable. But when the unit demands several kilowatts of heating, this resistance becomes a hot spot. The component may then operate intermittently, cut off too early, or fail to engage a full stage.
That’s exactly what was happening here. The sequencer no longer delivered a consistent response, and a terminal associated with the heating stage showed signs of fatigue. The system was not completely out of service, but it could no longer provide the necessary power to heat the house properly.
Blower and airflow check
Even though the main cause was electrical, we also checked the ventilation part. On an electric furnace, airflow is as important as the heating elements. A weak blower motor, a dirty wheel, a filter that is too dense, or a blocked return air can cause internal overheating and trigger safety limits.
In this residence in Saint-Vincent-de-Paul, the airflow was acceptable, but the compartment around the furnace required special attention. The storage environment should not block access to the unit or hinder circulation around the panels. We advised the client to maintain reasonable clearance around the furnace, especially in front of the service panels.
We also checked the filter and the main registers. A filter that is too restrictive on an older furnace can reduce airflow and make the system less stable. The right filter is not always the thickest one; it’s the one that protects the equipment while respecting its ventilation capacity.
Repair performed on the York electric furnace
The repair consisted of replacing the faulty sequencer component and restoring the affected connections. We installed a part compatible with the furnace’s operation, then redid the necessary wiring to ensure a clean, tight, and secure contact.
The service included:
- Replacement of the faulty heating sequencer;
- Correction of the weakened connection on the stage circuit;
- Inspection of accessible electrical terminals;
- Verification of thermostat signal;
- Control of progressive activation of elements;
- Inspection of airflow and filter;
- Complete operational test after service.
We then restarted the furnace on heating demand. The stages activated correctly, the fan maintained stable ventilation, and the air at the registers became noticeably warmer again. The system no longer operated at partial capacity only.
Final result: restored heat and a furnace better secured for future cycles
After the repair, we let the York electric furnace run long enough to confirm heating stability. The output temperature was consistent, the stages remained active as needed, and no premature shutdowns were observed. The customer immediately noticed that the blown air was warmer and the house returned to a normal temperature rise.
This service call in Saint-Vincent-de-Paul shows the importance of a complete HVAC diagnosis. Replacing an entire furnace without checking the stages, sequencers, and connections would have been premature. Conversely, ignoring the intermittent fault could have led to more serious damage to electrical components.
Why an electric furnace may blow air without heating properly
One of the most common symptoms in service is a furnace that “runs” but does not heat enough. In most cases, the customer hears the fan and assumes the system is active. However, several scenarios can explain the lack of sufficient heat:
An inactive heating stage
An electric furnace can contain several elements. If only one stage works, the air will be less warm and the house will take much longer to reach the set temperature.
A faulty sequencer
The sequencer controls the activation of the elements. When weakened, it can engage a stage irregularly, too late, or not at all.
A safety limit that cuts off the heating
If the furnace overheats due to insufficient airflow, the safety limit can shut off the elements to protect the unit.
A loose electrical connection
A loose terminal can cause intermittent failure, local overheating, and power loss.
An overly restrictive filter
An unsuitable filter can reduce airflow and harm overall operation, even if the components are in good condition.
Mistakes to avoid before a service call
When an electric furnace heats poorly, certain reactions can complicate the situation.
Avoid constantly raising the thermostat to a very high temperature. If the furnace operates at reduced capacity, increasing the setting will not fix the faulty stage. Also, avoid repeatedly resetting a circuit breaker if it trips. Repeated electrical tripping indicates a problem to diagnose, not a nuisance to bypass.
It is also not recommended to remove panels and operate the device open. Panels often contribute to proper air circulation and system safety. Finally, do not pile objects against the furnace. Access to panels, ducts, and components must remain clear for maintenance and repairs.
AirGreen, a local team for HVAC repairs in Laval and Saint-Vincent-de-Paul
At AirGreen, we work on heating, ventilation, and air conditioning systems throughout Greater Montreal, including Montreal, Laval, Longueuil, the North Shore, and the South Shore. Our approach is based on precise diagnosis, measurable checks, and repairs adapted to the actual condition of the equipment.
For this York electric furnace in Saint-Vincent-de-Paul, our team identified a partial failure that reduced heating power without completely stopping the system. Replacing the sequencer, correcting connections, and validation tests restored reliable operation.
When to request an electric furnace repair
A service call is recommended when you observe:
- warm air blowing despite a heating demand;
- a fan running without sufficient heat;
- a house that no longer reaches the requested temperature;
- very long heating cycles;
- a persistent hot smell;
- a circuit breaker that trips;
- a furnace that seems to operate at reduced power;
- parts that remain cold despite a central system running.
These symptoms can have several causes, but a structured diagnosis helps target the real source of the problem and avoid unnecessary replacements.
