An electric furnace that was still ventilating but no longer heating at full capacity
In Saint-Vincent-de-Paul, in the eastern sector of Laval, our AirGreen team was called for a Carrier electric furnace installed in a residential mechanical room in the basement. The client had noticed a worrying behavior: the fan was running, air was circulating in the ducts, but the heat was no longer sufficient to maintain stable comfort in the house. The system seemed to respond to the thermostat, but did not produce the expected heating power.
This situation is typical of a partial failure on a central electric furnace. Unlike a complete failure where nothing starts, this type of problem can go unnoticed for several days. The client only feels that the house takes longer to warm up, that some rooms remain cool, or that the air blown seems lukewarm rather than hot.

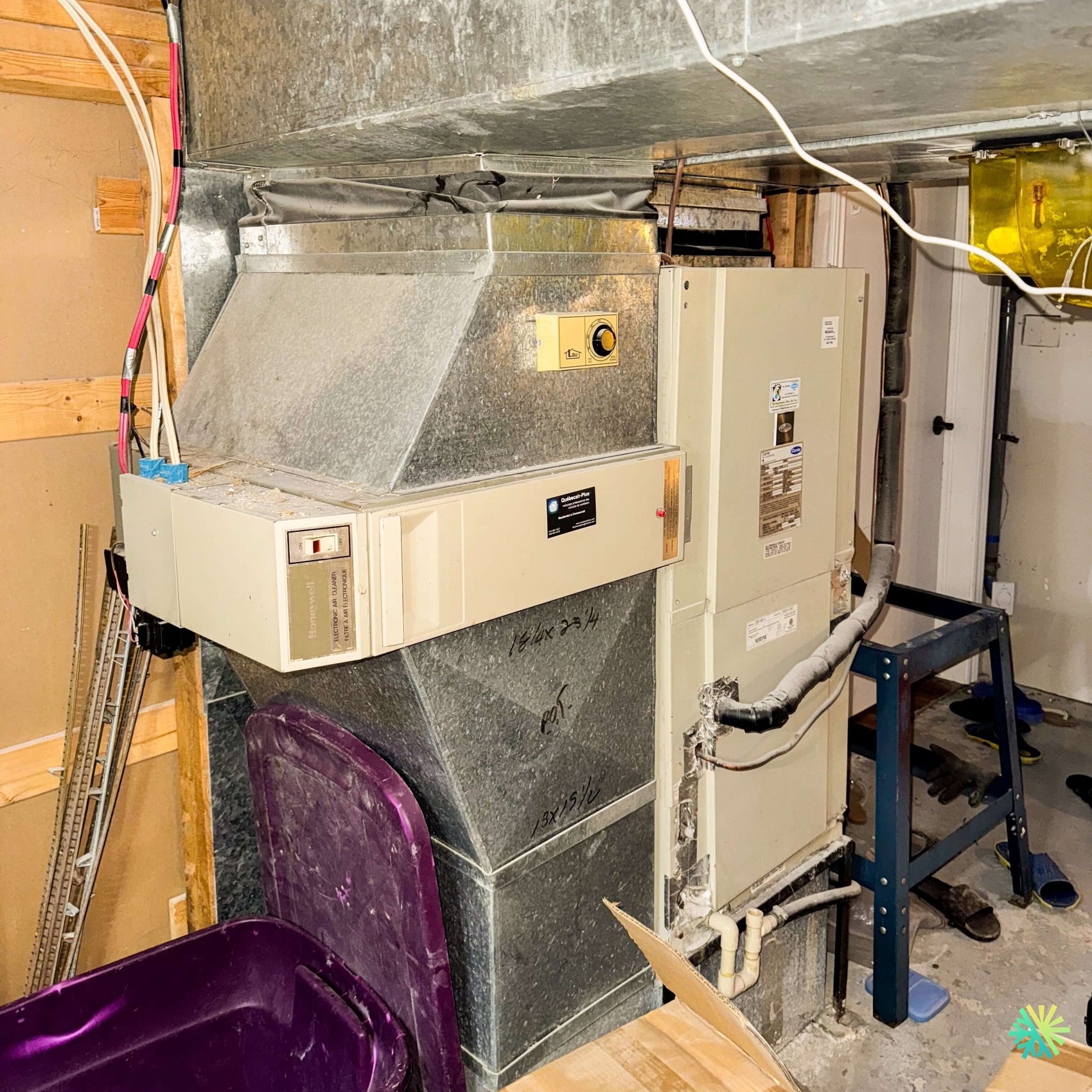

The observed installation included a Carrier electric furnace connected to an existing network of metal ducts, a Honeywell electronic filtration box, a central plenum, refrigerant connections associated with a central air conditioning or heat pump system, as well as a PVC condensate drain. The mechanical environment was compact, with limited access due to storage items, a low ceiling structure, and several closely spaced ducts. This type of space requires precise intervention: work must be done cleanly, access secured, and the entire system checked rather than focusing on a single component.
A central installation with several elements to check
In several residences in Laval, Montreal, Longueuil, on the North Shore and the South Shore, central systems have evolved over time. An electric furnace may have originally been installed as the main heating source, then later connected to a central air conditioner or a central heat pump. This combination can be very effective when properly configured, but it makes diagnosis more complex.
On this installation in Saint-Vincent-de-Paul, we observed:
- a Carrier electric furnace connected to the existing ducts;
- a Honeywell electronic filtration box integrated into the return air;
- a large metal plenum above the unit;
- insulated refrigerant lines;
- a condensate drain connected to the bottom of the unit;
- a reduced service space in front of and around the furnace;
- old but still functional ducts;
- a configuration where air circulation had to be carefully validated.
Every detail mattered. An electric furnace does not just produce heat: it must also move the right volume of air, at the right time, through a duct network that imposes its own resistance. If a filter is dirty, if a relay does not engage properly, if a heating element no longer activates, or if a safety limiter cuts part of the system, the result at the register can be very different from what the thermostat requests.
Symptoms reported by the client
The client did not mention a total shutdown. The system continued to blow, which could give the impression that the furnace was still working normally. Yet, the comfort in the house was no longer the same.
Lukewarm air instead of truly hot air
The first symptom was weaker blowing air temperature. The registers still distributed air, but this air did not provide the usual heat. This is often a sign that one or more electric heating stages are no longer activating.
Longer heating cycles
The furnace stayed on demand longer. The thermostat called for heat, the fan ran, but the indoor temperature rose slowly. This behavior can increase electricity consumption since the system works longer to produce a less efficient result.
Uneven comfort in the house
Some rooms seemed colder than others. In a house equipped with a central system, this can come from the ducts, registers, filter, or ventilation motor. In this specific case, we first had to confirm whether the furnace was producing its full heat capacity before blaming the distribution.
Slightly stronger ventilation noise
The client had also noticed that the system seemed to “work harder.” This type of perception can come from a restrictive filter, a clogged electronic filtration housing, a worn-out ventilation motor, or higher static pressure in the return air.
Our HVAC diagnosis: isolate the real cause before replacing parts
An electric furnace repair must begin with a logical sequence. Replacing a thermostat or condemning a device without complete tests can lead to unnecessary expenses. At AirGreen, we check the heating demand, electrical sequence, elements, relays, airflow, safety features, and the condition of the filtration system.
Checking the thermostat and heating demand
We first confirmed that the thermostat was indeed sending a heating demand to the furnace. The command arrived correctly, which allowed us to rule out a simple programming error, a faulty thermostat, or incorrect mode configuration.
The furnace was therefore receiving the demand. The problem was further down the chain: relay activation, element power supply, ventilation sequence, or internal safety.
Inspection of the Honeywell filtration housing
The system was equipped with a Honeywell electronic filtration housing. These filters can be very effective when clean, but they can become restrictive when neglected. An overly restricted return airflow can reduce flow, cause local overheating, and trigger safety limits.
We inspected the filter, the housing, the internal surfaces, and the general condition of the air return. Dust buildup was present. It did not completely block the system, but it contributed to less smooth airflow. This observation was important because an electric furnace needs a stable airflow to properly dissipate the heat produced by the elements.
Checking the heating elements
We then tested the heating elements. A Carrier electric furnace can operate with multiple heating stages. Depending on the installed capacity, a single faulty stage can significantly reduce performance without completely shutting down the system.
Tests showed that one heating stage was not activating properly. The fan was running, some heat was produced, but the full capacity was not available. This explained the lukewarm air and prolonged cycles.
Inspection of relays, contactors, and connections
The electrical section was carefully inspected. On this type of unit, relays and contactors are critical components. They support significant loads and sometimes become intermittent. A worn contact can prevent an element from powering properly, create abnormal resistance, or cause unstable activation.
We found a worn heating relay, responsible for a stage that did not engage reliably. Some connections also showed signs of normal aging. No major damage suggested a catastrophic failure, but the whole required targeted correction.
Checking the safety limiters
The temperature limiters were checked to ensure they were not triggered or weakened. A safety limit that opens too early can interrupt a heating stage even if the elements and relays are in good condition. In this case, the main problem came from the relay, but checking the safety devices was essential to validate the reliability of the unit after repair.
Checking the condensate drain and refrigerant connections
Even though the call was about heating, we also visually checked the condensate drain and refrigerant lines, as the unit was integrated into a central system that could be used for air conditioning. A poorly positioned drain or a dirty condensate pan can cause problems in the summer season. This preventive check helps avoid a heating service turning later into a water leak problem.
The repair carried out on site
After isolating the cause, we proceeded with targeted system repair.
Replacement of the faulty relay
The relay responsible for the unstable activation of the heating stage was replaced with a part compatible with the Carrier configuration. This step restored the complete heating sequence.
Tightening accessible connections
We checked and tightened the accessible connections in the electrical section. On an electric furnace, this step is important to prevent abnormal heating. Repeated heating cycles can, over the years, contribute to the loosening of certain connections.
Cleaning and checking the air return
The filtration housing was inspected and cleaned at the accessible level. We explained to the client the importance of keeping this component clean. A poorly maintained electronic filtration system can become an obstacle to airflow rather than an advantage.
Functionality test over several cycles
The furnace was restarted and tested over several cycles. We observed the thermostat demand, stage activation, the rise in blown air temperature, and ventilation stability.
The change was clear: the blown air was warmer, cycles became more efficient, and the furnace regained performance consistent with its central heating function.
Heat restored and central system confidence regained
At the end of the intervention, the Carrier electric furnace in Saint-Vincent-de-Paul was operating much more stably. The client noticed an immediate improvement in the blowing temperature. The system was no longer just moving air: it was producing real and sufficient heat again.
Why this breakdown was easy to misinterpret
An electric furnace that still blows air can give a false impression of proper functioning. However, the fan and heating elements are two different functions. The fan can be in perfect condition while a heating stage is completely inactive.
This is precisely why a professional diagnosis is necessary. Without electrical tests, it would have been possible to wrongly conclude that the problem came from the thermostat, ducts, house insulation, or even a lack of capacity of the unit. In this case, the real cause was much more specific: a heating relay that no longer allowed the furnace to use its full power.
Mistakes to avoid with a central electric furnace
Do not ignore lukewarm blowing air
When the air seems less warm than before, it needs to be investigated. Even if the house eventually reaches the temperature, the system may be operating at reduced capacity.
Do not rely solely on the thermostat to compensate
Increasing the setpoint does not fix a faulty heating stage. It only forces the furnace to run longer.
Do not neglect the filtration system
A dirty filter or electronic box can reduce airflow, strain the motor, and cause internal temperature problems.
Do not store items too close to the equipment
A cluttered mechanical room complicates access and can slow down interventions. Reasonable clearance around the furnace allows for safer and more efficient service.
Do not wait for a complete breakdown
A partial failure often costs less to fix than a major breakdown. A worn relay, a loose connection, or an intermittent element must be taken seriously.
An intervention representative of central systems in Laval
Homes in Laval, including Saint-Vincent-de-Paul, often have central systems installed for many years. Some have been modified, maintained by different technicians, or adapted to new equipment. This reality requires practical field knowledge.
AirGreen regularly works on electric furnaces, central heat pumps, central air conditioners, multi-zone systems, wall units, and HVAC accessories in Montreal, Laval, Longueuil, on the North Shore and the South Shore. Our experience allows us to quickly recognize signs of partial failure while taking the time to validate each hypothesis with concrete measurements.
A lasting result thanks to precise repair
This intervention prevented an unnecessary furnace replacement. The unit showed signs of aging, but its functional base was still valid. By replacing the right component, checking connections, and improving air circulation conditions, we restored reliable heating without burdening the client with disproportionate expenses.
The system regained:
- better supply air temperature;
- a more stable heating sequence;
- full activation of the floors;
- consistent ventilation;
- safer operation;
- more consistent comfort in the home.
The AirGreen approach to electric furnace repairs
A successful HVAC repair relies on precision. It’s not enough to hear the fan running or see the thermostat display a demand. You need to understand how the furnace actually responds, check the electrical components, analyze the airflow, and confirm the result after the intervention.
In this project in Saint-Vincent-de-Paul, our team followed this approach from start to finish. The client had a system that was partially working but no longer heating properly. After diagnosis, relay replacement, electronic filter check, and complete testing, the Carrier electric furnace regained its primary role: reliably, steadily, and efficiently heating the home.
