A central heating failure that required a complete HVAC diagnosis, from the electrical panel to the duct network
In Auteuil, in the northern sector of Laval, our AirGreen team was called for a service call on a central electric furnace connected to a duct network. The system in place was located in a compact mechanical room, surrounded by metal ducts, PVC drainage piping, a wall control module, and HVAC accessories integrated into the air network. This type of installation requires a rigorous approach: when central heating no longer responds properly, the cause may come from the furnace itself, the thermostat, an electrical sequence, a relay, a heating element, a safety sensor, the fan, or even an air circulation problem.
The client had noticed a drop in comfort in the house. The temperature requested on the thermostat was difficult to reach, the system seemed to run longer than usual, and the air blown at the registers seemed less warm. In some cases, an electric furnace may appear to be running because the fan starts, while the heating elements do not all engage, or an internal protection cuts part of the available power.
Our intervention in Auteuil was therefore aimed at answering a simple but technically important question: was the furnace actually producing the expected heat, and if not, where was the heating sequence interrupted?
A central installation with several components to check

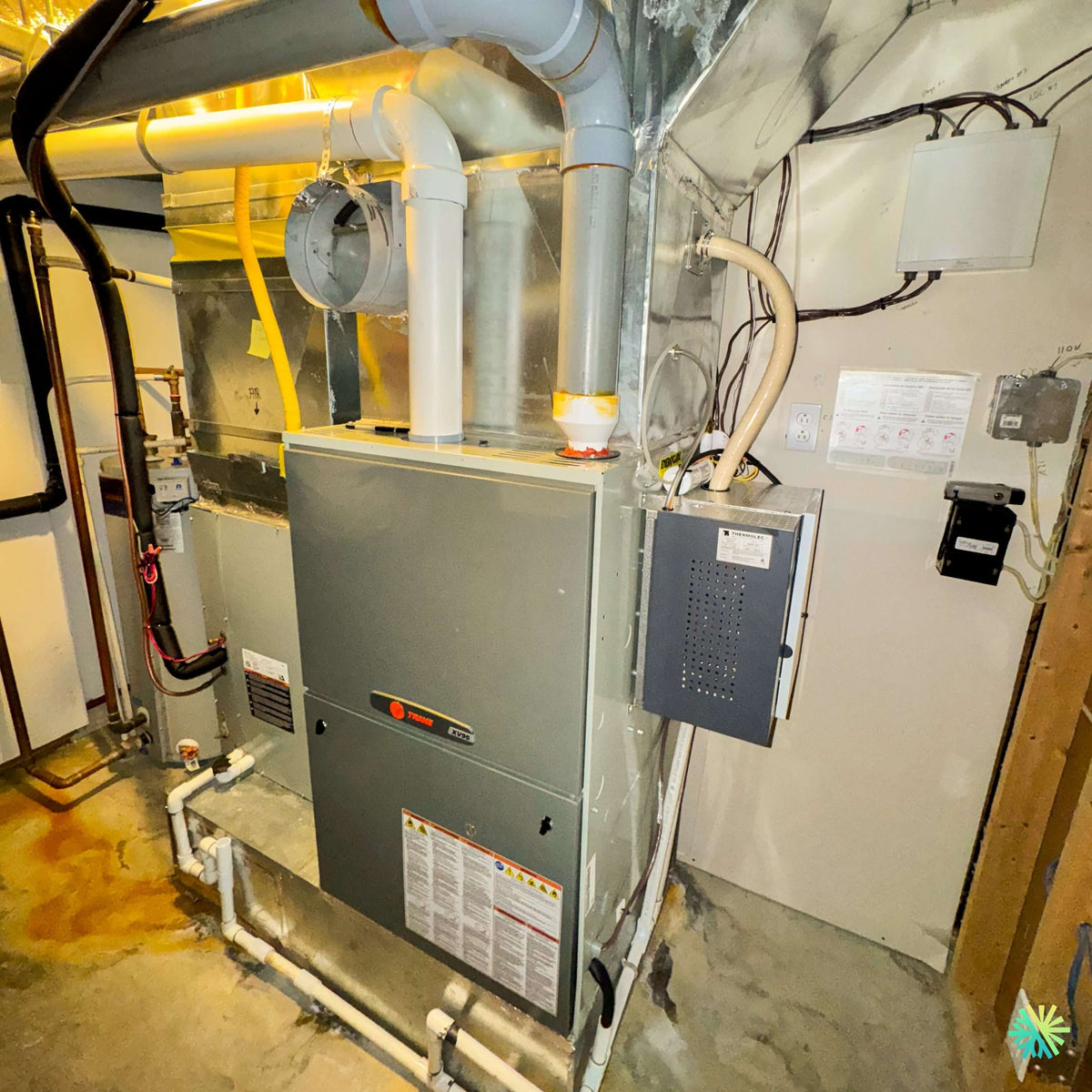

The service photo shows a typical installation of a residential mechanical room: a large furnace cabinet connected to a distribution plenum, main ducts, PVC ducts, a condensation drain, electrical connections, and an auxiliary module installed on the side of the network. In this type of configuration, the diagnosis cannot be limited to opening the furnace's front panel. The entire HVAC system must be understood.
We paid attention to several visible and functional elements:
- the central furnace and its blower compartment;
- the metal duct network;
- the return air and the filter;
- the exhaust and drainage ducts;
- the side electrical module;
- the low voltage connections;
- the safety protections;
- the startup sequence between the thermostat, the control board, and the heating elements.
In a house in Auteuil, especially during cold periods, a furnace that does not deliver its full capacity can quickly create significant discomfort. The diagnosis had to be precise, but also quick and structured.
Symptoms reported by the customer
The main problem was insufficient heating performance. The system started, but the heat produced did not match the demand. This kind of symptom can be misleading because an electric furnace can have several heating levels. If only one element works out of two or three, the air may feel lukewarm, the fan may run normally, but the house does not warm up properly.
The customer had also noticed that the cycles seemed longer. This information is important: when a furnace runs longer, it can indicate a loss of capacity, an overly restrictive filter, a thermostat misreading, a safety cutoff, or partial power supply.
First step: check the power supply and controls
Our technician started by validating the basic elements: power supply, circuit breakers, thermostat demand, and control sequence. On an electric furnace, a simple anomaly at the electrical panel can reduce the available power. It is possible that one circuit powers the fan, while another circuit powers the heating elements. If a portion of the circuit is open, the furnace may blow air without producing enough heat.
So we checked:
The thermostat demand
The thermostat had to send a clear heating signal. Poor programming, an incorrect mode, or a poorly connected low voltage wire can prevent the furnace from receiving the correct command. In this case, the demand was present, but the system's behavior indicated that part of the sequence was not following correctly.
Low voltage connections
The visible control wires near the system were inspected. Low-voltage connections are often overlooked, but they are essential. A slightly loose wire can cause intermittent operation, especially when there is vibration or humidity in a mechanical room.
Circuit breakers and available power
An electric furnace must receive a stable and sufficient power supply. We checked that the necessary circuits were available and that the system was not limited by a partial outage. This step helps avoid unnecessarily replacing parts when the problem simply comes from an open circuit or a triggered protection.
Second step: inspection of the furnace and airflow
After the initial electrical checks, we inspected the airflow. An electric furnace produces heat, but it depends on the fan and duct network to distribute it. If the airflow is too low, the elements can overheat and trigger a safety limit. Result: the furnace cuts its power, then restarts, causing long cycles and unstable heat.
Filter and return air
The filter was checked to confirm that it was not blocking the airflow. A filter that is too dirty, too dense, or improperly installed can cause significant restriction. In several service calls in Montreal, Laval, Longueuil, on the North Shore and the South Shore, we see electric furnaces operating in protection mode simply because the airflow is insufficient.
Fan and blower compartment
The fan had to start properly, without abnormal noise or slowing down. We checked its behavior during the heating demand. A weakened motor, a defective capacitor, or a dirty blower wheel can reduce the volume of air distributed throughout the house.
Plenum and ducts
The metal plenum above the furnace and the main ducts were also inspected. A significant air leak, a closed damper, or a network modification can affect the performance felt at the registers. In this case, the network was sufficiently accessible to allow a useful visual inspection.
Third step: diagnosis of heating elements and safety devices
The most important part of the diagnosis concerned the heating elements and internal safety devices. An electric furnace uses resistors that must activate in a precise sequence. If a relay does not close, if an element is open, if a temperature limit triggers too early, or if a control board does not properly command the stages, the total capacity decreases.
Heating stage verification
We tested the response of the different stages. The goal was to confirm whether all available power was activated or if only part of the system was heating. This type of test helps distinguish a control problem from a component problem.
Relay inspection
Relays play a central role in activating components. A worn relay can remain open, stick, produce intermittent responses, or fail to transmit power properly. When a customer reports variable heating, relays are among the first components to check.
Temperature safety devices
Safety limits protect the furnace from overheating. If they trigger, it’s not an issue to bypass: it’s a signal to understand. A safety device can shut off because it is faulty, but also because the airflow is insufficient. Our approach is always to identify the real cause before replacing a part.
On-site intervention performed
Once the diagnosis was completed, we proceeded with targeted furnace restoration. The problem stemmed from partial operation of the heating sequence, combined with air circulation elements that needed adjustment and verification.
Connection correction and sequence validation
The control connections were secured and the heating sequence was validated. The system had to respond correctly to the thermostat demand, activate the correct stages, and maintain stable operation without premature shutdown.
Inspection and cleaning of critical areas
We checked the areas where dust could impair airflow and system operation. A mechanical room often accumulates fine particles, especially when surrounded by ducts, piping, and accessories. Targeted cleaning can improve system stability and reduce the risk of overheating.
Temperature test at the registers
After the intervention, we validated the temperature of the blown air and the system’s response in real operation. The client needed a concrete result: warmer air, more stable temperature rise, and a furnace that doesn’t strain unnecessarily.
Result: heating restored and more stable operation
At the end of the service call, the electric furnace was operating more consistently. The thermostat’s request was better followed, the heating sequence responded correctly, and the client regained better comfort in the home. We also explained the signs to watch for: cycles that are too long, lukewarm air, tripping circuit breaker, unusual odor, fan noise, or temperature that no longer rises despite a constant demand.
Why an electric furnace in Auteuil must be diagnosed methodically
An electric furnace may seem simple because it doesn’t rely on an outdoor compressor like a central heat pump. Yet, it remains a complete HVAC system, with powerful electrical components, safety devices, a fan, ductwork, and low-voltage controls. A diagnostic error can lead to unnecessary part replacements or a failure that returns a few days later.
Common mistakes to avoid
Replacing the thermostat without checking the furnace
A thermostat may be the cause, but it should never be assumed. If the thermostat is sending the request properly, the problem may be in the furnace, the relays, the elements, or the power supply.
Ignoring the filter
A clogged filter can create a chain reaction: less air, overheating, limit switch trips, irregular cycles, discomfort. It’s a simple but very common cause.
Believing that the fan means the heating is working
The fan may blow even if one or more elements are not heating. Air circulates, but the actual capacity is insufficient. This is exactly why a temperature test and stage verification are necessary.
Resetting without understanding
Turning a circuit breaker off and on can temporarily restore the system, but if a safety device trips or a component is unstable, the problem will return. A reset is not a repair.
The importance of professional HVAC service
At AirGreen, we work on central systems throughout the greater metropolitan area: Montreal, Laval, Longueuil, North Shore, and South Shore. Homes in Auteuil often have compact mechanical rooms where several pieces of equipment intersect: furnace, ducts, drain, air exchanger, humidifier, control panels, and sometimes a central heat pump. This equipment density makes diagnosis more demanding.
Our method is based on clear logic:
- Confirm the heating demand;
- Check the power supply;
- Control the sequence;
- Measure performance;
- Inspect airflow;
- Validate safety features;
- Fix the cause, not just the symptom.
This approach restores comfort while protecting the equipment’s durability.
Practical advice for homeowners
To avoid electric furnace breakdowns, certain habits are particularly useful.
Replace or clean filters regularly
A clean filter is essential for comfort, efficiency, and system safety. An overly restrictive filter can cause more problems than a worn part.
Keep the space around the furnace clear
A cluttered mechanical room complicates maintenance and can hinder air circulation. Access to panels must remain clear for inspections.
Have the system inspected before the coldest weather
A furnace that operates partially in autumn can become insufficient in the middle of winter. Preventive maintenance helps detect weak relays, loose connections, and airflow problems before critical periods.
Do not ignore lukewarm air
If the blown air seems less warm than before, action must be taken quickly. An electric furnace can continue to operate at reduced capacity, but this increases consumption and reduces comfort.
An intervention representative of AirGreen’s expertise in Laval
This repair of a Trane electric furnace in Auteuil demonstrates the importance of a complete system assessment. The problem was not limited to a single visible part. It was necessary to analyze the control, power supply, airflow, heating elements, safety features, and integration with the duct network.
The client received a clear response, a structured intervention, and a more reliable system. For AirGreen, this is exactly what defines a good HVAC service call: not settling for approximate operation, but restoring stable, safe performance tailored to the real needs of the home.
