A York electric furnace that no longer distributed heat consistently
In Duvernay, in the Laval area, our AirGreen team responded to a service call for a York electric furnace integrated into a residential duct network. The client had contacted us because the system was no longer responding as before: some rooms remained cold, ventilation seemed irregular, and the temperature requested on the thermostat took far too long to be reached.
In a house equipped with a central system, a electric furnace plays an essential role. It is not limited to producing heat: it also ensures air circulation through the ducts, even distribution in the rooms, and sometimes integration with a central heat pump, central air conditioner, humidifier, or air exchanger. When the furnace starts to lose performance, the problem can come from several areas: electrical elements, relays, sequencer, thermostat, control board, fan motor, capacitor, power supply, filters, return air, or ducts.

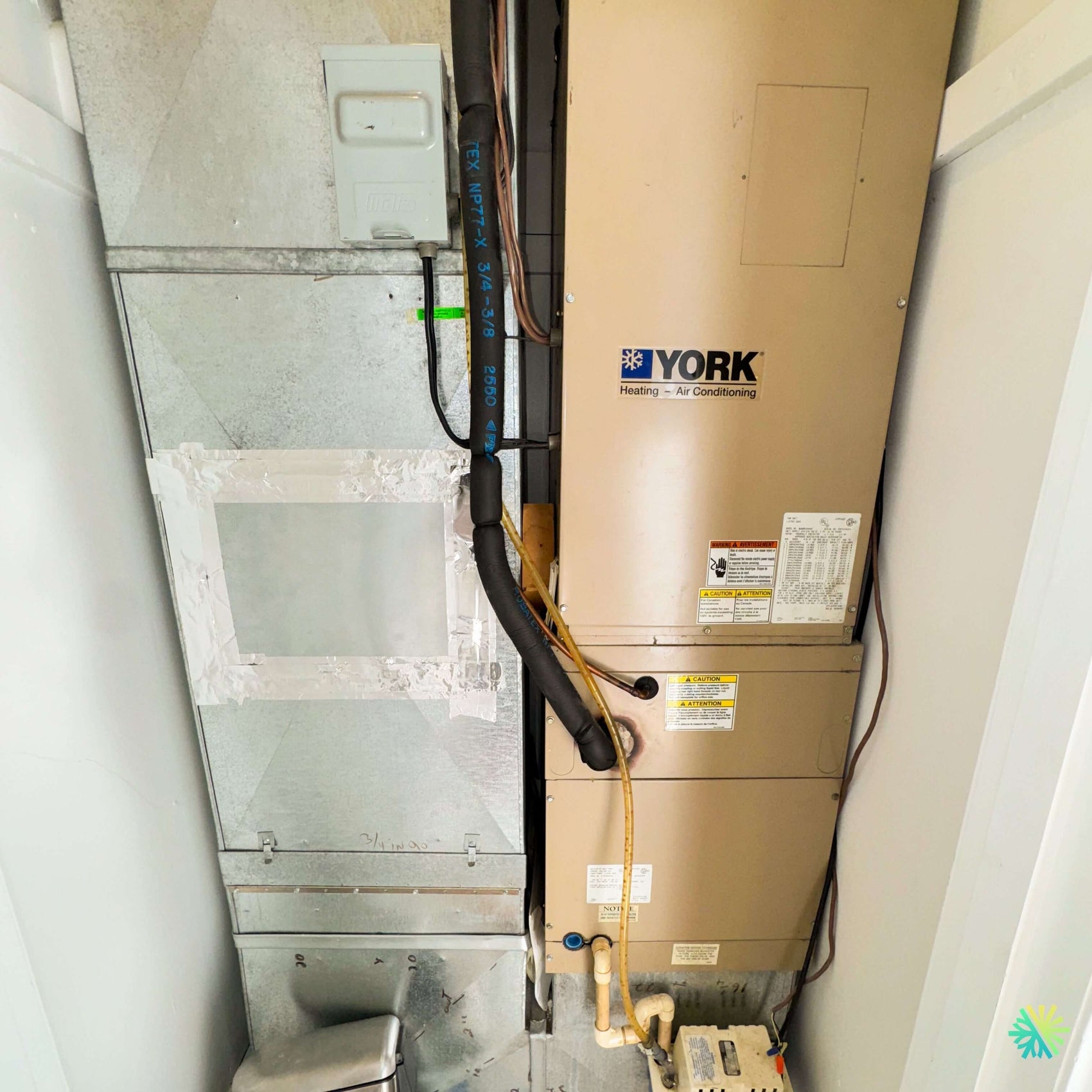

In this specific case, the unit was a York electric furnace, installed in a tight mechanical space, connected to a sheet metal duct network. The vertical York cabinet, insulated refrigeration connections, drainage piping, and an adjacent control box were clearly visible. This type of setup requires a thorough intervention, as access to components is sometimes limited and each test must be performed precisely.
Symptoms reported by the client
Before our arrival, the client had noticed several worrying signs. The house was still heating, but inconsistently. At times, the air coming out of the vents was at the correct temperature; at other times, the airflow seemed weak or lukewarm. This type of symptom is common when an electric furnace is only partially working, for example when a heating element does not activate, when a relay sticks, or when the fan does not provide the necessary airflow.
The main symptoms observed were as follows:
- Insufficient heating in certain rooms.
- Air blown less warm than usual.
- Intermittent ventilation.
- Longer operating times.
- Difference between the requested temperature and the actual temperature.
- Concern about the overall efficiency of the central system.
An electric furnace can sometimes seem to operate normally because the fan starts. However, if one or more heating elements do not engage, or if the electrical sequence is incorrect, the home receives only a fraction of the expected heating capacity. That is why a complete diagnosis is essential before randomly replacing a part.
Initial inspection of the York electric furnace
Our technician began with a visual inspection of the installation. The York cabinet was connected to an existing duct network, with relatively tight access on the sides. The front panel provided access to the main internal components, while the return and supply ducts had to be inspected to ensure that air restriction was not the main cause of the problem.
We first checked the overall condition of the system:
- Cleanliness of the blower compartment.
- Presence of dust or obstruction.
- Condition of the filter and air return.
- Visible electrical connections.
- Condition of low voltage wires.
- Thermostat response.
- Operation of the indoor fan.
- Activation sequence of the electric elements.
- Air temperature at return and supply.
In an electric furnace, safety is a priority. The heating elements operate at high intensity, and a poor electrical contact can cause overheating, intermittent shutdowns, or complete failure. We therefore proceeded methodically, isolating possible causes one by one.
Diagnosis: proper power supply, but a faulty heating sequence
After the initial tests, the furnace’s main power supply was present. The thermostat was indeed sending a heating demand, and the fan responded. The problem was more likely in the activation sequence of the electric heating.
In an electric furnace, the heating elements do not always activate all at once. They are often controlled by relays, sequencers, or a control board that triggers them in stages to avoid a sudden spike in electrical demand. When this sequence is interrupted, the furnace may blow air but without providing the expected full heat.
Our tests identified a problematic area in the control circuit of the elements. Some components responded correctly, while part of the sequence did not activate reliably. This situation perfectly explained the client’s symptoms: the furnace produced heat, but not consistently or fully.
Airflow and duct inspection.
An electric furnace diagnosis should never be limited to the heating elements. Poor airflow can cause very similar symptoms: overheating, safety shutdown, noise, reduced performance, or discomfort in distant rooms.
We therefore checked the air return, accessible ducts, and fan behavior. The duct network had some old sections, with certain joints sealed with aluminum tape. This type of installation can still work very well, but it is necessary to ensure there is no significant air loss, improperly closed panels, or return restrictions.
In this case, the airflow was acceptable, but the system needed adjustment and careful inspection. An electric York furnace like this must maintain a balance between heat produced and air volume moved. Too little air can cause overheating. Too little heating activated can result in lukewarm air even if the fan is working properly.
On-site intervention performed.
Once the cause was isolated, our intervention focused on restoring electrical operation and validating the heating sequence. We cleaned accessible areas, tightened checks on relevant connections, and tested components involved in the heating demand.
The main steps of the intervention included:
- Complete check of the thermostat demand.
- Control of the furnace power supply.
- Test of the indoor fan.
- Verification of electrical components.
- Testing of relays and heating sequence.
- Inspection of thermal safety devices.
- Measurement of outlet air temperature.
- Air return check.
- Operation validation after restarting.
After correction and adjustment, the furnace regained a more stable heating sequence. The air at the outlet was warmer, the operation more predictable, and the house could raise its temperature more efficiently. The client also received clear explanations about what had been checked and the signs to watch for in the coming days.
A repair that improves comfort and avoids premature replacement
This intervention in Duvernay clearly illustrates the importance of a serious HVAC diagnosis. An electric furnace that heats less should not automatically be replaced. In many cases, the problem comes from a control component, an electrical contact, a relay, a thermostat, insufficient airflow, or neglected maintenance.
Why an electric furnace may seem to be working while being defective
A peculiarity of electric furnaces is that they can give the impression of normal operation even when heating is partial. The fan starts, air circulates, the thermostat shows a demand, but the actual power is not full. The customer then feels discomfort without necessarily understanding why.
The most common causes are:
- Defective heating element.
- Relay or sequencer not activating.
- Weakened control board.
- Safety limit triggered.
- Airflow too low.
- Filter too dirty.
- Incorrectly configured thermostat.
- Unstable low voltage connection.
- Power supply problem.
In a residence in Laval, Montreal, Longueuil, on the North Shore or the South Shore, this type of failure becomes particularly uncomfortable during periods of intense cold. An electric furnace must be able to maintain the indoor temperature even when heating demand rises quickly.
Mistakes to avoid with an electric furnace
When an electric furnace starts to heat poorly, many homeowners first think of the thermostat. Although the thermostat can be the cause, this part should not be replaced without checking the rest of the system. A new thermostat will not fix a faulty relay, a broken element, or insufficient airflow.
Another common mistake is to keep the furnace running for several weeks despite reduced performance. This can increase electricity consumption without improving comfort. The system runs longer, puts more strain on the fan, and can mask a worsening failure.
It is also important to avoid closing too many vents in the house. On a central system, closing multiple air outlets can increase static pressure in the ducts and reduce overall performance. An electric furnace needs sufficient airflow to dissipate the heat produced by its elements.
When to call AirGreen for an electric furnace
A service call is recommended as soon as any of the following signs appear:
- The house no longer reaches the requested temperature.
- The air comes out lukewarm even in heating mode.
- The fan starts, but the heat is weak.
- The system runs much longer than before.
- Some parts remain cold.
- Electrical noises or vibrations occur.
- The circuit breaker trips.
- An overheating smell is noticeable.
- The thermostat calls for heat, but the furnace does not respond properly.
At AirGreen, we work on electric furnaces, central heat pumps, central air conditioning systems, ducts, thermostats, and HVAC accessories. Our approach aims to find the real cause of the problem, repair what can be fixed, and recommend replacement only when the equipment’s condition justifies it.
A central system restored with confidence in Duvernay
At the end of our intervention, the York electric furnace of this client in Duvernay offered more reliable operation. The heating responded better to demand, the ventilation was more consistent, and the client clearly understood the origin of the problem. This type of repair not only restores comfort but also extends the lifespan of the central system.
For homeowners in Montreal, Laval, Longueuil, the North Shore, and the South Shore, a well-diagnosed electric furnace can often be effectively put back into service. The key is not to focus only on the visible symptom. It is necessary to test the power supply, controls, elements, fan, safety features, and air network.
A York electric furnace remains a durable piece of equipment when properly maintained. With professional inspection, precise testing, and appropriate intervention, it can continue to provide reliable heating for many seasons.
