An outdoor unit confined under a structure that caused shutdowns and significant performance loss
In Ville Mont-Royal, our AirGreen team was called for a HVAC service call on a central heat pump installed in a particularly restrictive space: under a low structure, near a foundation wall, surrounded by gravel, dead leaves, and low walls. The outdoor unit, of residential central size, was connected to the home's duct system and served both summer comfort and heating during the shoulder seasons.
The client contacted us because the system could no longer maintain a stable temperature. In cooling mode, air came out of the registers but was not cold enough. In heating mode, the heat pump seemed to work for a long time before producing a satisfactory result. The thermostat did initiate the demand, the outdoor unit started, then the system sometimes stopped before reaching the setpoint. This behavior worried the client, especially because the house relied on this central system to distribute air to several rooms.

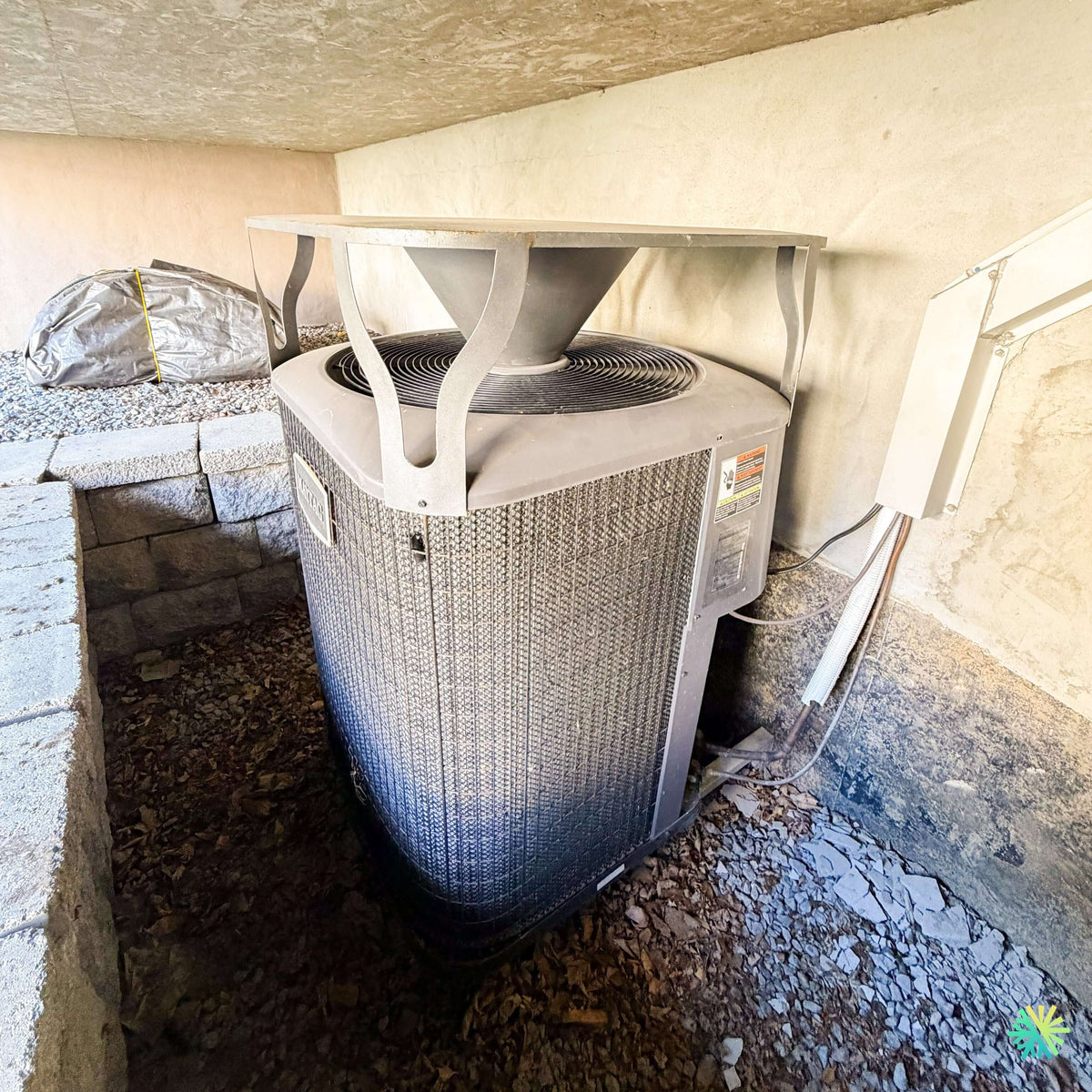

From the moment we arrived, the environment around the unit caught our attention. A central heat pump needs sufficient air volume to exchange heat. However, this machine was installed under a slab or a low terrace, with limited vertical space above the fan. The top fan had to expel air upwards, but the clearance was tight. On the sides, the coil was also exposed to the accumulation of dust, leaves, and organic debris. This combination can turn an apparently complex failure into a heat exchange problem: the machine runs, but it no longer breathes properly.
A residential central heat pump in a challenging location
The outdoor unit observed on site was a large-capacity central heat pump, typically associated with a duct network and an indoor unit including a coil, a furnace fan, and sometimes auxiliary electrical components. This type of equipment is very common in homes in Ville Mont-Royal, where many properties have central systems rather than simple wall units.
The unit was placed on the ground, on a gravel base, near the exterior wall. A rigid structure above strongly limited vertical air discharge. A metal guard had been added on top of the unit, probably to prevent objects, ice, or debris from falling directly into the fan. This guard could be useful in some contexts, but it also added a restriction to the air outlet.
The outdoor coil, visible on the side panels, showed a notable buildup of dirt. The fins were clogged, especially in the lower part, where dead leaves, dust, and moisture naturally accumulate. The bottom of the unit also showed more pronounced signs of dirt, indicating that the unit had operated for several seasons in a humid and poorly ventilated environment.
Symptoms reported by the client
The client described a problem that had gradually worsened. At first, the house simply took longer to cool down. Then, the unit started producing longer cycles, with louder outdoor noise. Finally, the system sometimes shut off before reaching the requested temperature.
The main symptoms were as follows:
- insufficiently cold air at the registers in cooling mode;
- prolonged cycles and discomfort in some rooms;
- normal start-up, then premature shutdown under certain conditions;
- louder than usual outdoor noise;
- functional top fan, but limited air discharge due to clearance;
- dirty outdoor coil;
- presence of leaves and debris around the base of the unit;
- risk of high pressure due to insufficient heat exchange.
These clues pointed us toward a problem with outdoor air circulation and heat rejection, but a complete diagnosis was still necessary. A central heat pump repair cannot be based solely on the unit’s appearance. It is essential to check the electricity, ventilation, operating pressures, the indoor side, and the system’s behavior under real demand.
Initial diagnosis: understanding why the machine was struggling
We started by securing the power supply and inspecting the outdoor unit. The first technical observation concerned the upper clearance. A central heat pump with a vertical fan must be able to expel a large volume of air upwards. If the hot expelled air remains trapped under a low structure, it can be re-aspirated by the coil. This phenomenon, called air recirculation, greatly reduces the unit’s ability to evacuate heat.
In air conditioning, the heat pump extracts heat from the house and releases it outside. If the outside cannot properly release this heat, system pressure increases. The compressor works harder, efficiency drops, and some protective devices may shut down the equipment. In heating mode, the same heat exchange problem can also affect system stability, especially when the outdoor coil is dirty or defrosting becomes less effective.
Outdoor coil inspection
The coil was one of the most problematic elements. The visible part showed an accumulation of dust, small particles, and organic residues. The lower area was particularly affected, probably due to moisture retained by gravel and leaves. When a coil is dirty, the fins can no longer allow air to pass properly. Even if the fan runs, the actual volume of air through the condenser decreases.
This blockage can cause several symptoms:
- reduced air conditioning capacity;
- compressor overheating;
- higher discharge pressure;
- longer cycles;
- increased electrical consumption;
- intermittent shutdowns;
- premature wear of the fan motor and compressor.
In this case, the coil was not just dirty on the surface. It was sufficiently loaded to compromise heat exchange, especially given the poor clearance around the unit.
Outdoor fan inspection
We then checked the upper fan. The motor started, but the airflow seemed disturbed by the guard above and the limited available height. The fan did not produce any major mechanical noise, but it was operating in an environment where the expelled air could not disperse freely.
We inspected the blades, the grille, the fastenings, and signs of vibration. A slight vibration was present, probably amplified by the structure around the unit and the resistance to airflow. In a central installation, this kind of vibration should not be ignored, as it can eventually fatigue the joints, supports, and some electrical connections.
Electrical checks
The electrical compartment was inspected to check the contactor, capacitor, connections, and signs of overheating. The contactor showed signs of wear but was still functioning. The capacitor was tested to confirm it could properly support the start-up of the fan and compressor. The readings indicated moderate weakness, without complete failure.
In a context like this, a weakened capacitor can worsen problems caused by a dirty coil and poor clearance. The motor starts less efficiently, the compressor works harder, and the system becomes more sensitive to hot conditions. We therefore recommended its preventive replacement during the intervention to avoid a repeated breakdown shortly after cleaning.
Indoor side inspection
A central heat pump also depends on air circulation inside the house. We therefore checked the filter, the air return, the indoor fan, and the temperature at the registers. A dirty filter or a weak indoor fan can also reduce performance and skew the diagnosis.
In this house in Ville Mont-Royal, the filter needed to be replaced, but it was not the main cause of the breakdown. The indoor fan was working properly. The temperature difference between the return air and the supply air was initially insufficient, but it improved after the intervention on the outdoor unit. This confirmed that the main problem was indeed the heat rejection outside.
Complete coil cleaning
We performed a technical cleaning of the outdoor coil. This step requires a controlled method, especially when the fins are already clogged and access is limited by the structure above. Excessive pressure should not be used as it could bend the fins. We removed debris around the base, cleared dead leaves, and cleaned the exchange surfaces to restore airflow.
Special attention was given to the lower part of the coil, often neglected during quick cleanings. Yet, this is where debris accumulates the most. After cleaning, air flowed much better through the unit. The fan expelled a more stable airflow, and the operating noise was less strained.
Replacement of the weakened capacitor
We replaced the capacitor with a compatible part meeting the device’s required specifications. This intervention stabilized the startup and reduced the risk of intermittent shutdowns. A weak capacitor can sometimes mimic a more serious failure, as the system may start once but then refuse to restart properly after a cycle.
After replacement, the compressor and fan started more decisively. The system responded better to the thermostat’s demand.
Correction of the immediate environment
Beyond the technical repair, we also explained to the client the importance of the environment around the unit. Leaves, displaced gravel, debris, and lack of space above the machine directly contributed to the problem. We cleared the base and recommended keeping a clean area around the coil.
The top clearance remained a significant constraint. Ideally, a vertical discharge unit should not be stuck under a structure that is too low. When future replacement is considered, the location will need to be reassessed to ensure better air circulation and easier maintenance access.
A restart that restored comfort and clarified the next decisions
After cleaning, replacing the capacitor, and running tests, the central heat pump showed much more stable behavior. The air at the registers became cooler, cycles normalized, and the outdoor unit no longer seemed to be straining unnecessarily. The client noticed a rapid improvement in home comfort.
We let the device run long enough to observe the compressor’s stability, the thermostat’s response, and the quality of the outdoor air discharge. The readings were consistent with a successful restart. No major replacement, such as the compressor or fan motor, was justified at this stage.
Why this repair was preferable to an immediate replacement
In this specific case, the system had clear but repairable problems. The compressor was working, the fan was running, the indoor unit was distributing air, and the symptoms mainly corresponded to reduced heat exchange. Replacing the entire heat pump without correcting or analyzing these causes would have been premature.
Our approach at AirGreen is to make a clear distinction between an end-of-life machine and a poorly maintained or poorly ventilated machine. This unit needed targeted restoration. Cleaning the coil, replacing the capacitor, and making corrections around the unit were enough to restore acceptable performance.
Risks of a central unit installed in a too confined space
This intervention in Ville Mont-Royal illustrates an important point for owners of central systems in Montreal, Laval, Longueuil, on the North Shore and the South Shore: the location of the outdoor unit matters as much as the machine itself.
A unit installed under a low structure may experience:
- recirculation of hot air;
- loss of cooling efficiency;
- faster accumulation of dust and leaves;
- maintenance difficulties;
- increased system pressure;
- premature compressor wear;
- intermittent shutdowns during hot days.
Even a heat pump with good capacity cannot operate properly if air does not circulate freely. The HVAC system must be considered as a whole: equipment, ducts, clearances, supports, electrical supply, and maintenance habits.
Mistakes to avoid with a central heat pump
Assuming that a running fan means everything is fine
An outdoor fan can run without sufficient heat exchange. If the coil is dirty or the expelled air is blocked, performance will be low despite apparent operation.
Neglecting to clean the bottom of the coil
The lower part of the condenser is often the dirtiest. It collects leaves, dust, and moisture. A superficial cleaning does not always solve the problem.
Adding refrigerant without diagnosis
A drop in performance does not automatically mean a refrigerant shortage. In this case, the main cause was the exchange of outside air. An unnecessary recharge would have been costly and ineffective.
Ignore the unit’s location
If the outdoor unit is stuck, too close to a wall, or placed under a structure, it may break down more often. When replacing it in the future, the choice of location should be reassessed.
Recommendations given to the client
At the end of the service, we recommended the client keep the area around the unit clean, regularly remove leaves, and have the system inspected before periods of high heat. We also recommended monitoring the location, especially due to limited top clearance.
To extend the lifespan of a central heat pump, annual maintenance is strongly recommended. This maintenance should include:
- cleaning of the outdoor coil;
- fan inspection;
- capacitor testing;
- inspection of the contactor;
- replacement or cleaning of the indoor filter;
- checking of discharge temperatures;
- inspection of drainage;
- validation of operation in cooling and heating modes.
AirGreen service for central heat pumps in Ville Mont-Royal
AirGreen regularly services central heat pumps, central air conditioners, electric furnaces, wall systems, and residential HVAC equipment in Greater Montreal. In Ville Mont-Royal, central systems are often installed in particular environments: narrow side yards, spaces under balconies, low foundations, flat roofs, or landscaped areas. Each configuration requires serious analysis.
Our intervention restored the client's comfort, protected the compressor from unnecessary overload, and extended the system's lifespan. The client also received a clear explanation of the real cause of the problem: not an immediate major failure, but a combination of dirt buildup, insufficient clearance, and a weakened electrical component.
For owners of central heat pumps in Montreal, Laval, Longueuil, on the North Shore or the South Shore, this case demonstrates the importance of a thorough diagnosis before deciding between repair and replacement. A central unit can sometimes regain solid performance with precise, well-executed intervention tailored to its actual environment.
