A Fujitsu wall-mounted heat pump leaving marks on the ceiling: our HVAC service call in Oka

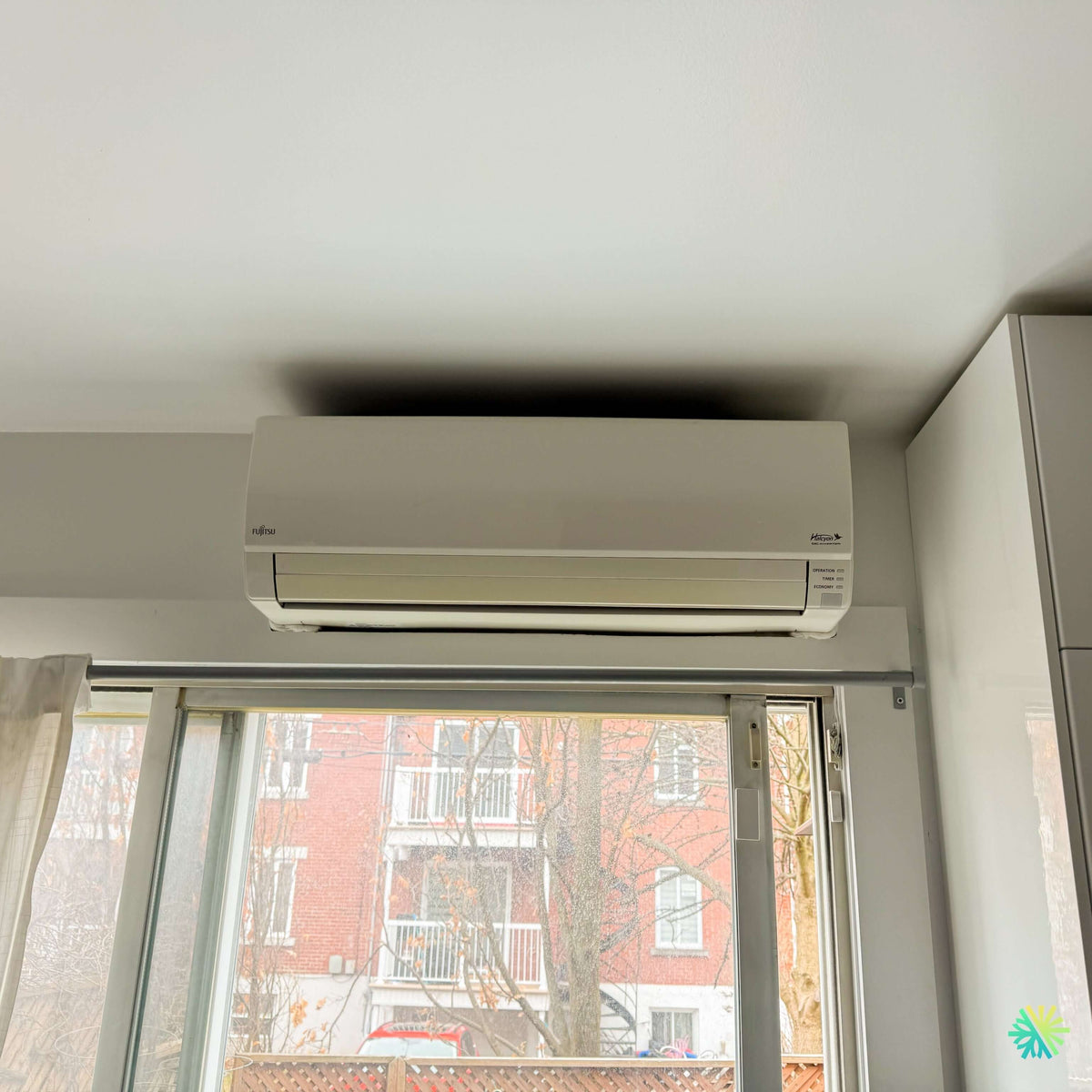

In a residence located in Oka, our AirGreen team was called to inspect and restore a Fujitsu wall-mounted heat pump, installed above a large patio door. The indoor unit, from the Fujitsu Halcyon series, showed a visual sign impossible to ignore: a dark area marked above the unit, directly on the wall and ceiling. For the client, this mark raised several legitimate concerns: filtration problem, projected dust, poor airflow, condensation, internal leak, or advanced unit clogging.
This type of situation is common with older or poorly maintained wall-mounted heat pumps. The unit may still produce cooling or heating, but its internal operation becomes less clean, less quiet, and less efficient. In this specific case, the goal was not just to eliminate a visible symptom. It was necessary to understand why this buildup had formed, check the actual condition of the unit, and ensure the system could operate safely and sustainably.
The observed machine was a Fujitsu Halcyon wall-mounted heat pump, residential size, installed high in a bright room with a large glazed surface. The exact BTU capacity was not readable on the indoor unit from the visual inspection, but the size matched a typical residential wall installation used to cool and heat a living area, bedroom, or small to medium open space. At AirGreen, when a nameplate is not immediately accessible or readable, we avoid rough estimates: we verify the capacity and components directly when opening the unit or from the outdoor unit.
Symptoms reported by the client
Before our intervention, the client had noticed several concerning elements:
- presence of a dark mark above the wall unit;
- gradual decline in the quality of the blown air;
- operation less discreet than at initial installation;
- feeling of less uniform airflow;
- concern about possible dust or moisture buildup inside the unit;
- less stable performance during seasonal changes.
Even if the heat pump was still starting, these signs justified a service call. A HVAC repair does not only begin when the device completely stops working. Marks around a wall unit, odors, noises, irregular cycles, and airflow variations are often the first signs of a problem that worsens over time.
What the device’s location revealed
The Fujitsu unit was installed above a patio door, in an area where air constantly circulates between the window, ceiling, curtains, and the interior of the room. This type of location is common in residences in Montreal, Laval, Longueuil, the North Shore, and the South Shore, but it requires special attention.
When a wall-mounted heat pump blows treated air near a glass surface, several factors can influence its behavior:
Air circulation at the ceiling
The blown air can carry fine particles toward the top of the unit, especially when the filters are saturated or the internal turbine is dirty. Over time, these particles can settle on the wall or ceiling and create a dark mark.
Temperature differences near a window
A patio door sometimes creates a colder area in winter and warmer in summer. When the treated air meets a colder surface or a less ventilated area, dust can more easily stick to slightly damp or statically charged surfaces.
The limited space above the unit
The heat pump was installed quite close to the ceiling. This is not necessarily a problem in itself, but limited clearance can increase dust accumulation, especially if the device lacks maintenance or if the return air is not perfectly free.
Our initial diagnosis on the Fujitsu wall-mounted heat pump
The inspection was carried out in several stages. On a Fujitsu wall-mounted heat pump, the possible causes of such a problem can be numerous: dirty filters, clogged evaporator coil, dirty turbine, partially blocked condensate drain, poorly oriented air louvers, mispositioned sensor, previous poor maintenance, or inadequate air circulation.
We first checked the external condition of the device: front panel, louvers, grilles, filters, condensation marks, hood alignment, and signs of leakage. Then, the unit was opened to inspect the accessible internal components.
Filters and dust accumulation
The filters were loaded with fine dust, which reduced the unit’s ability to breathe properly. A wall-mounted heat pump works by drawing ambient air from the top or front of the device, then passing it through the coil before redistributing it into the room. When the filters are clogged, airflow decreases, the fan strains more, and particles can bypass some filtration areas.
A dirty filter not only causes a loss of performance. It can also promote dust accumulation on the turbine, coil, and surfaces around the unit.
Indoor coil inspection
The indoor coil showed an accumulation of dust and surface deposits. On a Fujitsu wall-mounted heat pump, the coil must remain clean to allow effective heat exchange. When it is blocked, the device can:
- cool less quickly;
- heat less efficiently;
- produce more condensation;
- generate odors;
- create a drop in air pressure;
- strain the fan;
- increase electrical consumption.
In this case, the coil was not completely blocked, but it required thorough cleaning to restore adequate air exchange.
Ventilation turbine inspection
The turbine, often called the blower wheel, was an important point in the diagnosis. When this part accumulates damp dust, it can project particles into the airflow and contribute to dark marks around the device. It can also create imbalance, generate slight noise, and reduce airflow.
We observed an accumulation consistent with a device that had operated for several seasons without a complete internal cleaning. This is not uncommon, especially in rooms where windows are frequently opened, where there are curtains, textiles, pets, or simply natural circulation of outdoor dust.
Condensate drain inspection
Even though the client had not reported an active water leak, the condensate drain needed to be checked. A partial blockage can cause residual moisture in the unit, promote deposits, and create odors. In some cases, it can also cause visible overflow on the wall or near the window.
We inspected the condensate tray and the drainage line. The drain was not completely blocked, but it showed signs of slowing down. Preventive cleaning was therefore necessary to avoid a future leak, especially during intensive air conditioning periods.
Intervention carried out by AirGreen
Our intervention was structured to address the problem at its source, not just to clean the visible facade of the device.
Filter and front panel cleaning
Filters were removed, cleaned, and inspected. The front panel was carefully opened to avoid damaging plastic clips, often more fragile on older wall units. The air louvers were also checked to confirm they moved properly.
Coil cleaning
We cleaned the indoor coil using a method suited for residential wall units. The goal was to remove dust and deposits without damaging the fins or saturating electronic components. This work requires precision: overly aggressive cleaning can damage the unit, while too superficial cleaning lets the problem return quickly.
Fan wheel cleaning
The fan wheel was cleaned to remove accumulations affecting airflow. This step is often overlooked but makes a noticeable difference. A clean fan wheel improves airflow, reduces certain noises, and limits dust projection onto surfaces around the unit.
Drain clearing and testing
The condensate line was cleared and tested to confirm proper drainage. We also checked that the pan was not retaining water abnormally. This precaution is essential, especially for a unit installed above a patio door, where a leak could damage the framing, moldings, or wall.
Operation mode verification
After cleaning and corrections, we tested the device in ventilation mode, air conditioning, and, when conditions allowed, heating mode. We paid special attention to startup, fan behavior, louver movement, noise, airflow, and operational stability.
Result: cleaner airflow, a more stable unit, and a reassured customer
After the intervention, the Fujitsu wall-mounted heat pump operated with a more consistent airflow and a better feeling of coolness in the air output. The ventilation noise was more stable, the louvers responded correctly, and the drain evacuated normally. The mark on the ceiling obviously could not disappear from mechanical repair alone, since it was due to a deposit already fixed on the surface, but the probable cause of the accumulation had been addressed.
We explained to the customer that the darkened area needed to be cleaned or repainted separately, but that the unit no longer had the same conditions favoring rapid new accumulation. This distinction is important: an HVAC repair fixes the operation of the device, while existing marks on the wall sometimes require cleaning or finishing work.
Why this repair in Oka is a good example of preventive maintenance
This service shows that a wall-mounted heat pump may need intervention even if it is not completely broken. Visual signs around a unit are often an opportunity to act before the situation turns into a more costly problem.
A dirty wall unit can lead to:
- reduced cooling performance;
- loss of heating efficiency;
- increased operating time;
- moisture buildup;
- unpleasant odors;
- fan noise;
- premature wear of the ventilation motor;
- a risk of condensate leakage.
In a region like Oka, with significant seasonal variations, a wall-mounted heat pump works as much in hot periods as in cold periods. Maintenance therefore becomes a key performance factor, especially for systems that serve as supplemental heating or main air conditioning.
Mistakes to avoid with a Fujitsu wall-mounted heat pump
Waiting for a water leak
A partially clogged drain does not always cause an immediate leak. It can first create stagnant moisture, odors, or internal deposits. Waiting for water to run down the wall increases the risk of damage.
Cleaning only the filters
Filters are important, but they do not replace internal cleaning. The coil, fan, and condensate tray can remain dirty even when the filters appear clean.
Closing or blocking the space around the unit
High furniture, curtains, shelves, cabinets, or insufficient clearances can hinder air circulation. In this installation, the proximity of the ceiling and patio door made maintaining free airflow even more important.
Using unsuitable products
Some household products can damage plastics, fins, or internal components. A wall unit should be cleaned using methods compatible with HVAC equipment.
Practical tips for homeowners in Oka and Greater Montreal
To extend the lifespan of a Fujitsu wall-mounted heat pump, we recommend regularly monitoring several simple signs:
- clean the filters according to usage;
- check for the absence of abnormal noise;
- watch for any marks on the wall or ceiling;
- look for water appearing under the unit;
- note any odors at startup;
- check if the airflow seems weaker;
- have the unit inspected before periods of heavy use.
These tips apply equally to residences in Oka as well as houses and condos in Montreal, Laval, Longueuil, the North Shore, and the South Shore. Wall units are compact but contain several sensitive components that must remain clean to function efficiently.
The AirGreen approach to wall-mounted heat pump repairs
At AirGreen, we approach every service call with a comprehensive method: symptom observation, installation inspection, mechanical check, targeted cleaning, operational tests, and clear recommendations. A wall-mounted heat pump repair is not just about opening the cover and cleaning a filter. It requires understanding the interaction between the device, its location, humidity, dust, drainage, and usage habits.
This service on a Fujitsu Halcyon in Oka allowed us to fix a visible problem while improving the overall operation of the unit. The client regained better airflow quality, greater peace of mind, and clear instructions to prevent the situation from recurring quickly.
AirGreen, your HVAC team for Fujitsu wall-mounted heat pumps
Our technicians work on Fujitsu wall-mounted heat pumps, wall air conditioners, multi-zone systems, central heat pumps, and many other HVAC equipment in Greater Montreal. Whether the call concerns a leak, a drop in performance, noise, an electrical failure, ice buildup, a condensate problem, or a device that no longer responds properly, our priority remains the same: to establish an accurate diagnosis and restore the system to the best possible condition.
For a Fujitsu wall-mounted heat pump repair in Oka, in Montreal, in Laval, in Longueuil, on the North Shore or on the South Shore, AirGreen offers a thorough, accessible service focused on lasting results.
