An aging wall unit that no longer distributed air properly
In Sainte-Marthe-sur-le-Lac, on the North Shore, our AirGreen team was called for a very common problem on older wall installations: a wall-mounted heat pump still running but unable to provide the expected comfort. The indoor unit, installed near the ceiling above a storage space, showed typical signs of a unit with several years of service: yellowed casing from age, less responsive air flaps, visible dust accumulation in the air outlet, and reduced airflow despite a normal demand at the thermostat or remote control.
The client contacted us because the unit seemed to operate "at times," but did not satisfactorily cool or heat the room. The air output was weak, some areas of the room remained uncomfortable, and a slight rubbing noise appeared when the indoor fan changed speed. In this type of situation, it is important to avoid quickly concluding a major compressor failure or refrigerant shortage. On a wall-mounted heat pump, a performance drop can come from either the indoor or outdoor unit: clogged filters, dirty turbine, miscalibrated temperature sensor, partially blocked drain, worn electronic board, weakened fan motor, or loss of communication between components.
In this intervention, our goal was to perform a complete diagnosis, restore airflow, check the controls, and determine if a targeted repair could extend the system's lifespan.
An old wall unit, but still recoverable

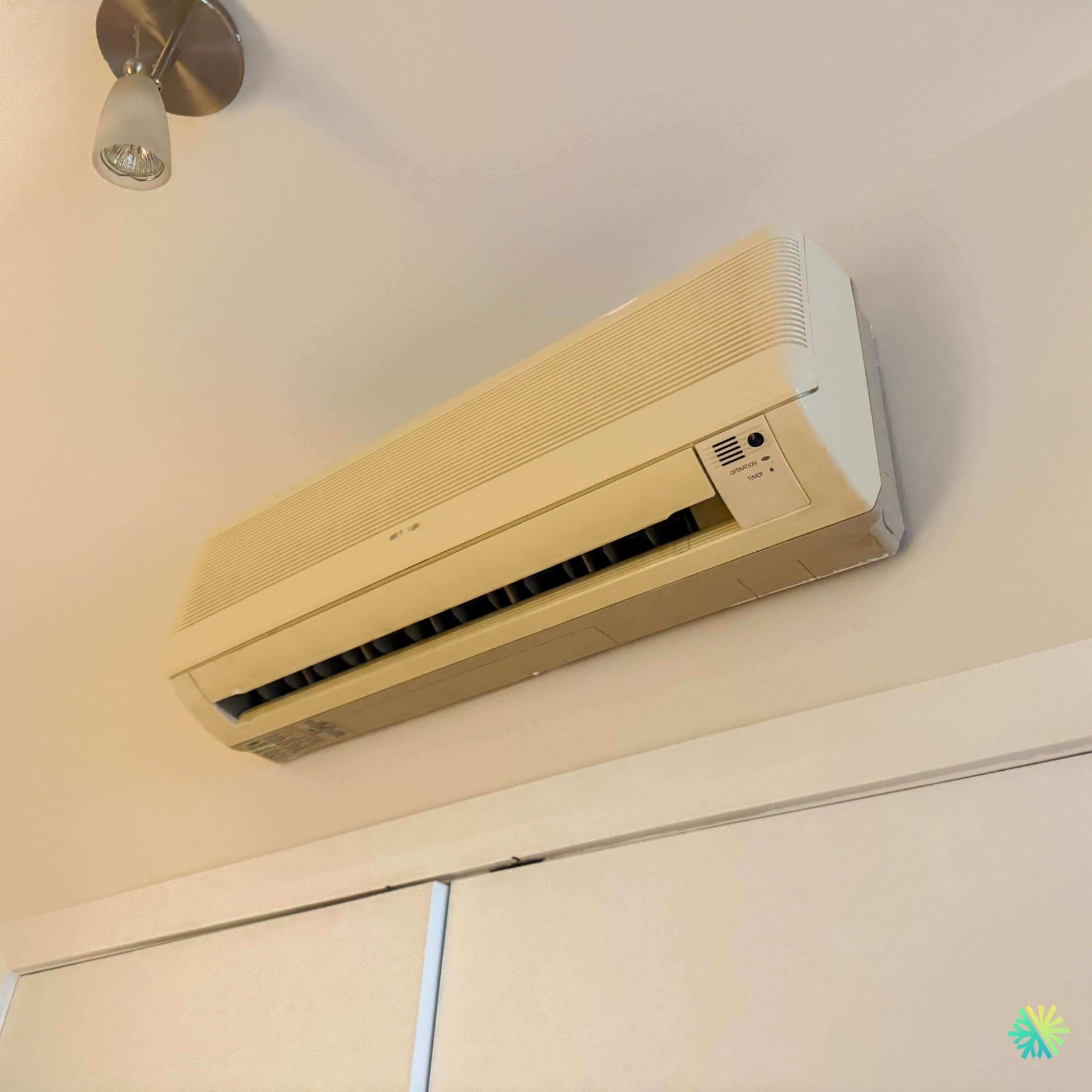

The service photo shows an older design wall-mounted indoor unit, with a top suction grille, a horizontal air outlet, and a side control panel indicating operation and timer lights. The exact brand was not clearly readable from the image, but the format corresponds to a residential wall-mounted heat pump of the mini-split type, probably installed for several years. The exact capacity had to be confirmed on the nameplate, but this type of unit is often found in powers of 9,000, 12,000, or 18,000 BTU/h depending on the room size and pairing with the outdoor compressor.
This detail is important: an older device can still be repaired if critical components are functional. At AirGreen, we don’t automatically treat an aging system as equipment to replace. We first check what can be reasonably fixed, especially when the failure comes from lack of maintenance, air blockage, or an accessible component.
Symptoms reported by the client
Before our arrival, the client had noticed several specific signs:
- Airflow was low, even at high speed.
- The room took a long time to reach the requested temperature.
- The air sometimes came out cool, sometimes almost neutral.
- A vibration or rubbing noise appeared at certain speeds.
- The air flaps no longer directed airflow as well as before.
- A dust smell was noticeable at startup.
- The device seemed to run longer for less result.
These symptoms pointed our diagnosis toward an indoor ventilation problem, possibly combined with a loss of refrigerant circuit efficiency or an incorrect temperature reading. Serious HVAC repair always starts with observing the actual behavior of the device, not just guessing based on the system’s age.
Indoor inspection: filters, turbine, and air flap
Our technician first inspected the wall unit’s filters. On mini-split systems, filters are often the first barrier against dust, pet hair, textile fibers, and airborne particles. When saturated, air circulation is poor, the indoor coil exchanges less efficiently, and the fan has to work harder.
In this case, the filters were dusty, but the problem went further. The indoor turbine, located behind the air outlet, had significant buildup. This turbine is responsible for pushing air into the room. When it’s dirty, the blades lose their original shape, air is poorly expelled, and the motor can produce irregular noise.
We also checked the air flap, because a stuck or misaligned flap can give the impression that the device is no longer working properly. Here, the flap moved, but its motion was less smooth than expected, probably due to the age of the mechanism and dust buildup in the air outlet area.
Technical cleaning of the indoor unit
Cleaning a wall-mounted heat pump is not just about wiping the front. To restore performance, you need to address the areas that actually affect airflow and heat exchange.
We carried out targeted cleaning:
Filter cleaning
The filters were removed, cleaned, and inspected to check their condition. A cracked or deformed filter can allow too much dust to pass through to the coil and fan.
Fan wheel cleaning
The indoor fan wheel was carefully cleaned to remove deposits accumulated on the blades. This step is essential to restore stable airflow and reduce vibration noise.
Indoor coil inspection
The indoor coil was checked for signs of dirt buildup, frost, excessive moisture, or partial blockage. A dirty coil can reduce heating and cooling capacity while promoting odors.
Condensate tray check
We inspected the drainage area to confirm there was no backflow or accumulation of stagnant water. A partially clogged drain can cause odors, water leaks, and sometimes unit shutdown if a protection feature is present.
Electronic check and unit controls
On an older wall unit, the controls can also be at fault. The side panel showed the operation and timer indicator lights, which allowed us to observe if the unit was correctly receiving commands and if it displayed abnormal behavior.
Our technician checked:
- Reception of commands.
- Starting of the indoor fan.
- Speed changes.
- Response of the louvers.
- Operation indicator lights.
- Stability of heating and cooling mode.
- Temperature reading from the indoor sensor.
The indoor temperature sensor was slightly influenced by the unit’s location near the ceiling, where warm air can accumulate. This phenomenon is common in rooms where the unit is installed high, near a corner, or above cabinets. If the sensor thinks the room is warmer or cooler than it actually is, the unit may reduce its power too early or operate irregularly.
Performance check after cleaning
After cleaning and basic checks, we restarted the unit to measure the change in behavior. The airflow was noticeably more consistent, and the rubbing noise had decreased. The airflow was also better directed, allowing the room to warm more efficiently.
We then observed the behavior over a full cycle to verify that the unit did not stop too quickly and that the output temperature remained consistent. A wall-mounted heat pump must be evaluated while it is actually running, as several faults only appear after a few minutes of operation: speed drop, vibration, fan stopping, frost on the coil, or unstable behavior of the electronic board.
In this case, the system regained much more satisfactory operation after cleaning and adjustment. No water leaks were observed during the test, and the device responded correctly to the main controls.
AirGreen Diagnosis: smart repair before unnecessary replacement
This service in Sainte-Marthe-sur-le-Lac illustrates an important reality in the HVAC field: a drop in performance does not always mean the device is irreparable. Many older wall systems can regain a significant part of their efficiency when airflow, filters, blower, coil, and controls are restored.
Why airflow is so important on a wall heat pump
A wall heat pump works by heat exchange. Room air passes through the indoor coil, is heated or cooled, then redistributed by the blower. If air does not pass properly, even a compressor in good condition cannot deliver the expected comfort.
Low airflow can cause:
Less effective air conditioning
Cool air stays concentrated near the unit instead of circulating throughout the room.
Uneven heating
In winter, warm air naturally rises. If the unit blows poorly or the louver is misaligned, occupant comfort becomes insufficient.
Higher consumption
The system runs longer to reach the requested temperature.
Premature wear
The fan motor, compressor, and electronic components can be unnecessarily stressed.
Mistakes to avoid with an aging wall unit
Waiting for the device to stop completely
A device that blows less strongly, smells like dust, or produces unusual noise already shows signs of deterioration. Quick intervention can prevent a more costly breakdown.
Cleaning only the filters
Filters are important, but they are not always enough. The blower, coil, and condensate tray can also be dirty.
Forcing the louvers manually
The louvers are often controlled by small motors. Forcing them by hand can break the mechanism or misalign the control.
Using unsuitable products
Some cleaners can damage the plastic, coil fins, or leave odorous residues. HVAC cleaning must be done with methods suitable for wall units.
Ignoring the outdoor unit
Even if the problem seems to come from the indoor unit, the outdoor unit must be checked when overall performance is low. A dirty condenser, a weak outdoor fan, or abnormal pressure can also reduce efficiency.
Advice given to the customer after the service
After restoring service, we explained to the customer how to monitor the unit over the next few days. We recommended cleaning the filters regularly, keeping the air outlet clear, avoiding blocking the unit with tall furniture, and scheduling more thorough maintenance if odors, noises, or performance losses return.
We also advised monitoring certain specific signs:
- Water appearing under the unit.
- Frost formation during cooling.
- Recurring turbine noise.
- Flashing indicator lights.
- Frequent shutdowns.
- Airflow becoming weak despite clean filters.
- Unusual increase in electrical consumption.
These signs allow intervention before the breakdown becomes more serious.
An intervention tailored to North Shore homes
In Sainte-Marthe-sur-le-Lac, as in many areas of the North Shore, wall-mounted heat pumps are often used to improve comfort in an open area, a bedroom, a basement, or a floor that does not receive enough air from the central system. These units work hard in both summer and winter. Over time, dust, humidity, heating cycles, and proximity to the ceiling can affect their performance.
AirGreen regularly services this type of equipment in Montreal, Laval, Longueuil, on the North Shore and the South Shore. Our approach is to view the device as a complete system: indoor unit, outdoor unit, drainage, controls, airflow, coil condition, and the customer's usage habits.
Final result: improved comfort and a more stable system
At the end of the service call, the wall-mounted heat pump was operating with a more consistent airflow, reduced noise level, and better response to controls. The customer regained more stable comfort without having to immediately replace the unit. The repair mainly helped identify the true cause of the problem: a combination of internal dirt buildup, weakened ventilation, and control issues to watch on an aging device.
A successful HVAC repair is not measured only by the device restarting. It is measured by the quality of the diagnosis, the stability of operation after the intervention, and the customer's ability to understand what they need to monitor. In this case in Sainte-Marthe-sur-le-Lac, the system still had potential, and our intervention helped restore more reliable performance.
