Installation of a built-in AMANA PTAC under a window in Châteauguay

A compact installation in Châteauguay, adapted to a narrow space and an existing opening

In this Châteauguay residence, the space available for air conditioning was particularly limited. The unit had to fit beneath a window, between substantial trim and a nearby side wall, without cluttering the room or compromising access to the controls. We therefore worked with a compact solution: an AMANA PTAC, installed directly through the wall in a suitably prepared opening.

A PTAC, or packaged terminal air conditioner, houses the main components required to cool a room in a single cabinet. Depending on the model selected, it may also provide heating. Unlike a traditional wall-mounted heat pump, it does not require a separate outdoor unit connected by refrigerant lines.

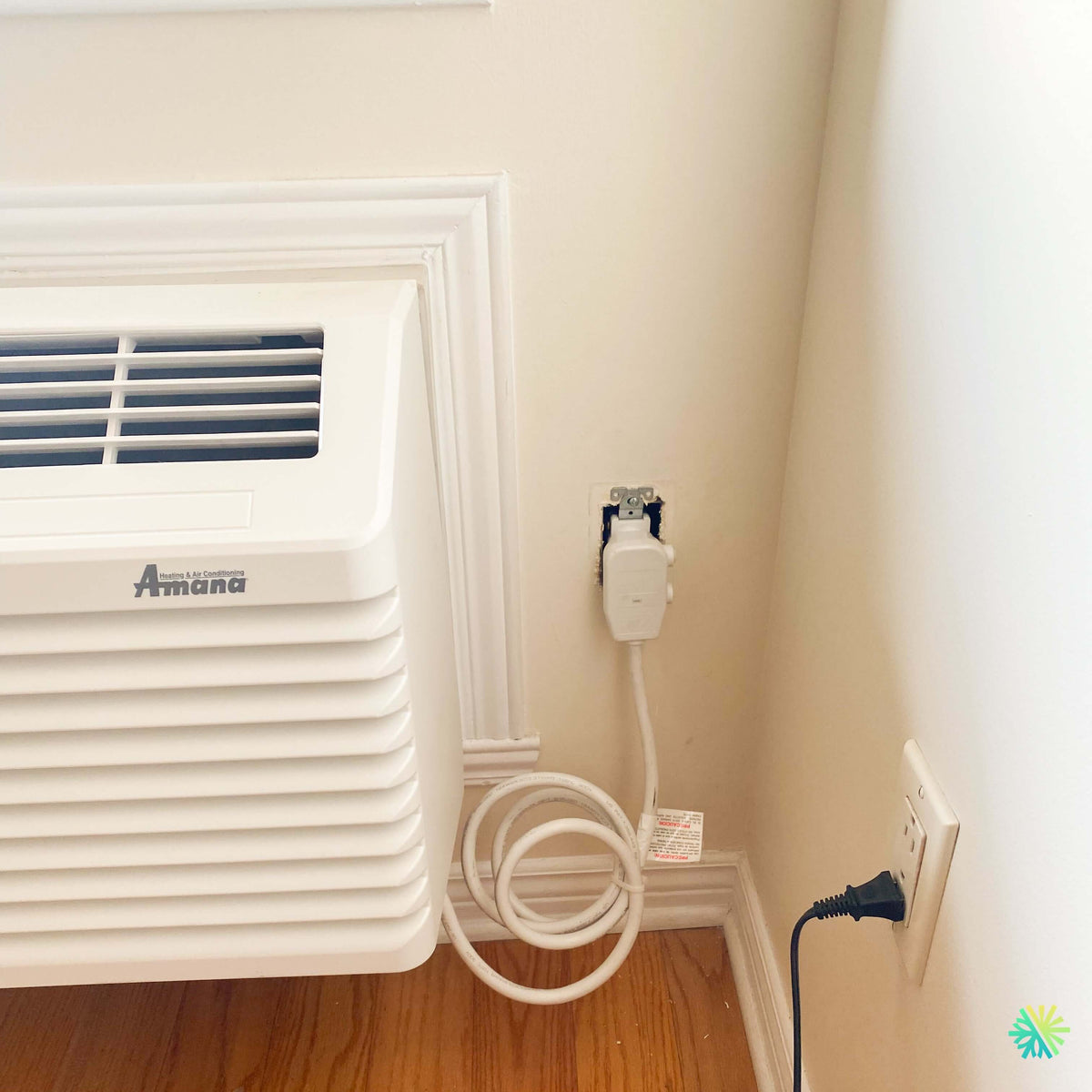

The photo of this installation clearly shows several site-specific features:

• the AMANA PTAC is positioned directly beneath the window;
• the interior grille remains accessible for maintenance;
• the air outlet is directed upward and forward;
• the unit is installed very close to decorative trim;
• a dedicated power supply is located nearby;
• the wood flooring requires special protection against water and damage;
• the space between the PTAC and the side wall is limited.

These constraints may seem modest, but they directly affect the quality of an HVAC installation. A properly sized unit can become noisy, lose efficiency, or cause condensation problems when it is improperly positioned or sealed.

Why an AMANA PTAC was suitable for this location

The PTAC's self-contained design was a logical solution for this configuration. The opening beneath the window made it possible to integrate the unit without taking up a large portion of the wall or adding exposed ductwork in the room.

This type of equipment is frequently used in:

• housing units;
• residences for seniors;
• hotels;
• small offices;
• rental buildings;
• rooms that need to be climate-controlled independently;
• buildings where installing a central system is difficult.

In this room in Châteauguay, the AMANA PTAC can directly condition the occupied area. The user can adjust the temperature in this room without necessarily changing it throughout the building.

Choosing a PTAC can also be worthwhile when a wall opening already exists. Reusing the location appropriately can reduce finishing work, provided that the sleeve dimensions, structural condition, and clearances match the new appliance.

Precise integration near the window and trim

The most visible challenge with this installation is the proximity of the window trim. The PTAC cabinet is only a few centimeters from the decorative frame.

Before positioning an appliance in such a precise space, we must check:

• the actual width of the PTAC;
• the width of the wall sleeve;
• the total depth of the appliance;
• the wall thickness;
• the space required to remove the front panel;
• the clearance needed to clean or replace the filter;
• the path of the discharged air;
• the position of the power cord;
• access to the controls.

A measurement error of a few centimeters can prevent removal of the front panel or block part of the air intake. It may also require unnecessary cutting of the trim or redoing the finishing work.

In this case, the front remains clear. The upper grille can distribute air throughout the room, while the lower section remains accessible for inspection and maintenance.

Air circulation should not be overlooked

A PTAC generally draws room air through its front panel, treats it inside the cabinet, and then redistributes it through the upper grille. Furniture, thick curtains, an improvised radiator cover, or objects placed in front of the appliance can significantly reduce its performance.

For this installation in Châteauguay, the front of the unit is unobstructed. This arrangement promotes:

• better air circulation;
• more even temperature;
• more stable operating cycles;
• a reduced risk of overheating;
• easier access to the filter;
• less demanding maintenance.

We recommend not placing furniture directly in front of a PTAC air conditioner, even if the furniture appears to leave a small opening. A partial obstruction can be enough to increase noise and extend cooling cycles.

A separate power supply suitable for the appliance

The photo shows an electrical connection installed near the PTAC. The exact outlet format, voltage, circuit amperage, and circuit-breaker characteristics must always be confirmed using the unit’s nameplate.

PTACs must not be plugged into a residential outlet at random simply because the plug appears compatible. Depending on the model, the unit may require a specific power supply and a dedicated circuit.

Before commissioning, the following must be checked in particular:

• the voltage required by the manufacturer;
• the circuit’s minimum amperage;
• the maximum protection capacity;
• the plug type;
• the presence of a ground connection;
• the condition of the outlet;
• wiring compatibility;
• the absence of an extension cord.

In the photo, a second conventional wall outlet is visible on the adjacent wall. It powers another piece of equipment with a black cord. The physical proximity of two outlets does not mean they can be used interchangeably. The AMANA PTAC connection must exactly match the manufacturer’s specifications.

An extension cord, adapter, or power strip is not an acceptable solution for powering this type of equipment. These accessories can overheat and cause a voltage drop, particularly when the compressor starts.

Treating the wall sleeve and air leaks

The most important part of a PTAC installation is often invisible from inside: the sleeve that passes through the wall.

This sleeve must support the unit, properly separate indoor air from outdoor air, and allow water produced during operation to drain away. Its positioning directly affects the installation’s durability.

We pay particular attention to the following:

The slope toward the outside

The sleeve must comply with the slope specified by the manufacturer. An improper slope can direct condensation water inward rather than outward.

In a room with a wood floor like the one shown, a recurring leak could cause:

• Swelling of the boards;
• Stains;
• Deterioration of the finish;
• Mold growth near the wall;
• Damage to the baseboard;
• Deterioration of the subfloor.

Sealing around the opening

The space between the sleeve and the structure must be insulated and sealed. A poorly sealed perimeter allows cold air, moisture, dust, and sometimes insects to enter.

An air leak around the PTAC can be mistaken for a mechanical problem. The customer may feel a draft even when the unit is turned off. The compressor then has to run longer to compensate for the losses.

Controlling exterior water

Rain, melting snow, and wind-driven water must remain outside the building. The exterior grille, sleeve, seals, and wall finish must form a cohesive system.

In Châteauguay, as elsewhere in Greater Montreal, freeze-thaw cycles put exterior seals under considerable strain. A properly completed installation must therefore account for winter conditions, not just summer operation.

The visible technical information and the information that must be confirmed

The front panel clearly identifies the AMANA brand, but the model number, BTU capacity, voltage, and energy-efficiency data are not legible in this photo.

This information must never be estimated solely from the unit’s dimensions or appearance. Two nearly identical PTACs may have very different capacities, electrical requirements, and functions.

To properly document an installation, we normally record:

• the brand;
• the model number;
• the serial number;
• the nominal cooling capacity;
• the heating capacity, when applicable;
• the type of auxiliary heating;
• the supply voltage;
• the required amperage;
• the refrigerant type;
• the sleeve dimensions;
• the recommended clearances.

Eligibility for a rebate or energy program cannot be determined from the photo alone. It depends on the exact model, equipment type, applicable certification, and program criteria in effect when the work is performed. This verification must be completed before purchase when financial assistance influences the customer’s decision.

The details that determine a PTAC’s comfort, noise level, and service life

A PTAC installation may seem simpler than a ductless heat pump installation, since there is no separate outdoor unit or visible refrigerant lines. In practice, precision remains essential.

Comfort depends as much on the unit as on its integration into the building.

The unit must be sized for the room

An undersized PTAC runs almost continuously during hot periods. It may have difficulty reaching the requested temperature and wear out prematurely.

An oversized unit can cool quickly, then stop before sufficiently reducing humidity. The room becomes cool but remains damp and uncomfortable.

Sizing must take several factors into account:

• the room's floor area;
• ceiling height;
• exposure to sunlight;
• the number and type of windows;
• the level of insulation;
• the presence of an upper floor;
• air infiltration;
• the number of occupants;
• heat-producing appliances;
• the actual use of the room.

In the Châteauguay and South Shore area, temperature differences between summer and winter are significant. A choice based solely on floor area may therefore be insufficient.

Noise must be assessed before installation

Since the compressor and fan are integrated into the same casing, a PTAC is generally more audible indoors than a wall-mounted system with an outdoor compressor.

The actual noise level depends on:

• the model;
• the fan speed;
• the quality of the sleeve;
• the wall's rigidity;
• the presence of vibrations;
• the condition of the fan;
• the cleanliness of the filter;
• the stability of the unit.

A poorly secured sleeve can transmit vibrations to the structure. The perceived noise then becomes louder than the noise produced directly by the machine.

During our HVAC services in Montreal, Laval, Longueuil, the North Shore and the South Shore, we regularly encounter functional units that seem abnormally noisy simply because the support, grille or casing vibrates against the wall.

Common mistakes to avoid with a PTAC

Several problems can be avoided during the planning stage.

Reusing an old sleeve without checking its compatibility

A unit may physically fit into a sleeve without actually being compatible. Ventilation openings, depth and the drainage system may differ.

Sealing the space around the unit with an unsuitable material

The foam, caulking and finishing materials must be suitable for the location. A finish that is too rigid may crack due to vibrations, while an unsuitable seal may deteriorate when exposed to water or temperature fluctuations.

Placing curtains in front of the grille

Curtains can be pulled against the air intake or deflect hot and cold air toward the window. This setup increases energy consumption and reduces comfort.

Neglecting the electrical circuit's capacity

Replacing an old PTAC with a newer model does not guarantee that the existing circuit is adequate. The nameplate on the new unit must be compared with the specifications of the electrical installation.

Forgetting about filter access

A panel wedged against moulding or furniture turns simple maintenance into a complex service call. In the installation shown, the front remains accessible despite the window’s proximity.

Recommended maintenance to preserve performance

A PTAC filter should be inspected regularly. In an occupied home, monthly cleaning during periods of intensive use is a good guideline, but the frequency may vary depending on dust, pets, nearby construction, and indoor air quality.

More comprehensive HVAC maintenance may include:

• cleaning the filter;
• an inspection of the blower wheel;
• cleaning the evaporator;
• an inspection of the outdoor condenser;
• a check of the condensate pan;
• clearing the water passages;
• an examination of the sleeve seals;
• a vibration check;
• a visual inspection of the electrical connection;
• a test of the operating modes.

A persistent odour, water leakage, ice formation, a noisy fan, or unusually short cycles warrants a professional inspection.

The result of this installation in Châteauguay

This installation shows that an AMANA PTAC can be integrated neatly into a room where every centimetre counts. The unit occupies the opening beneath the window, maintains front access for servicing, and uses a nearby power supply.

The project’s success depends on more than simply making sure the unit fits in the opening. It depends on sizing, the sleeve, airtightness, drainage, electricity, airflow, and finishing.

At AirGreen, we approach this type of project as a complete installation rather than simply replacing a unit. We analyze the existing opening, the structure, clearances, connection, and the room’s actual needs before recommending a solution.

Our team carries out air conditioning, heating, and HVAC installations and service calls in Châteauguay, throughout Greater Montreal, in Laval, Longueuil, on the North Shore, and on the South Shore. This local experience allows us to take into account the constraints specific to Quebec buildings, including older walls, temperature fluctuations, air infiltration, and long-term maintenance requirements.
