Installation of a GREE FLEXX Electric Air Handler Furnace in Montréal-Est – R32 Central Ducted System with Integration into Existing Ductwork

A central modernization in a tight mechanical space in Montréal-Est

This installation of a Air Handler GREE FLEXX electric furnace in Montréal-Est represents a typical project where HVAC expertise goes beyond just replacing a unit. Here, the goal was to modernize the core of the residence’s central system by integrating a GREE FLEXX air handler into a mechanical space already occupied by existing ducts, a Thermolec accessory, metal plenums, air returns, duct insulation, and several physical constraints visible on site.

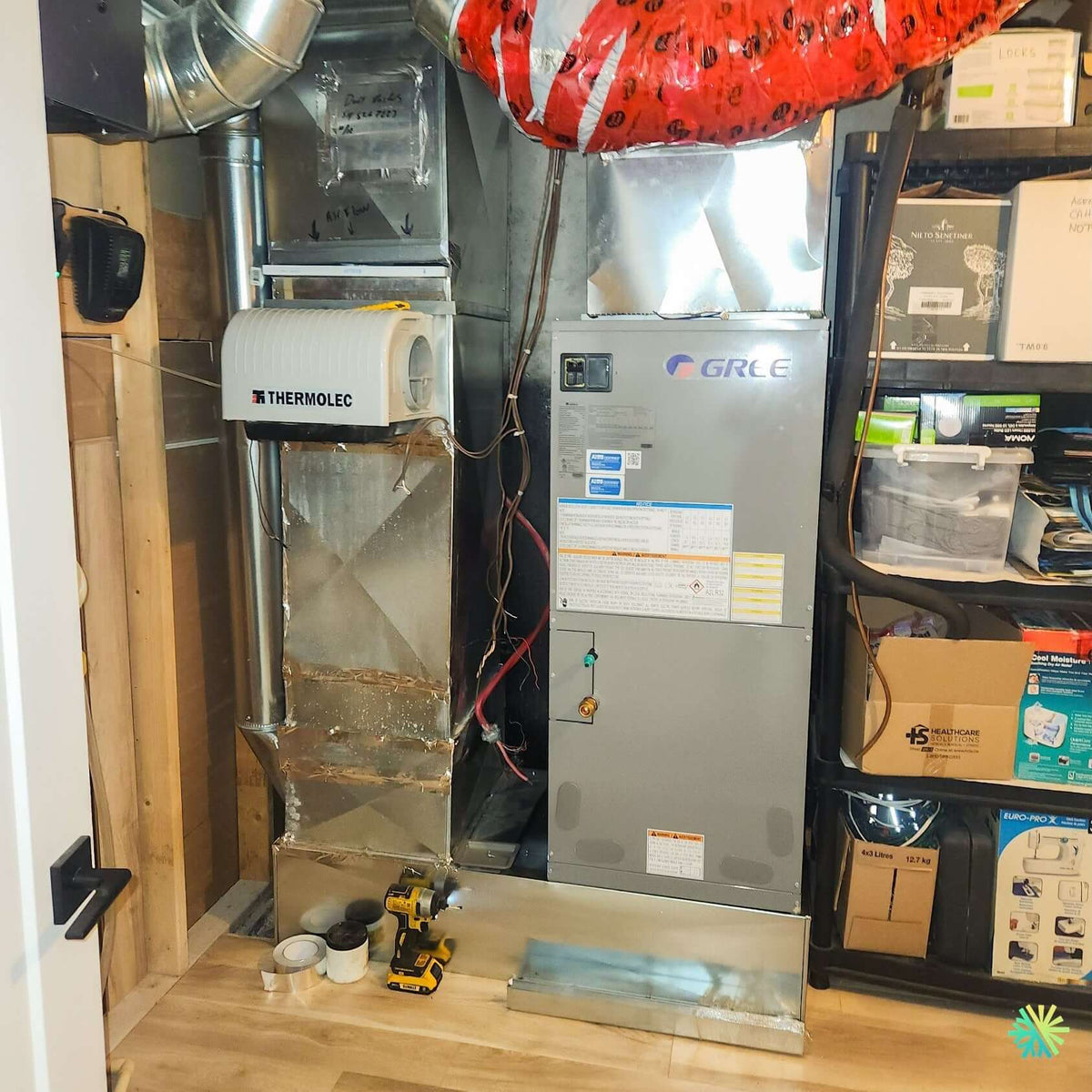

In the photo, you can clearly see the GREE indoor unit installed in a compact mechanical room, with the duct network rising toward the ceiling and a large insulated duct in red nearby. The available space was limited in both width and height. This type of environment requires careful planning: the unit must be securely positioned, connections must be accessible, duct transitions must be well fitted, and the whole setup must allow good airflow to the served rooms.

At AirGreen, we often see this kind of setup in Greater Montreal, especially in areas like Montréal-Est, Montreal, Laval, Longueuil, the North Shore, and the South Shore, where renovated houses, finished basements, and narrow mechanical rooms require precise technical decisions. A successful central HVAC installation depends on the chosen unit, but also on the quality of duct connections, sizing, airflow balance, and finishing.

Why install a GREE FLEXX Air Handler in a central system

The GREE FLEXX system is designed to meet the needs of customers who want to maintain centralized air distribution while improving their comfort and energy efficiency. Unlike a wall-mounted heat pump or a wall air conditioner, a central air handler works with a duct network. The air is treated by the indoor unit, then distributed to several rooms in the house.

For this client in Montreal East, this approach was particularly relevant because the residence already had a duct network. Rather than multiplying wall units in different rooms, installing an Air Handler GREE FLEXX allowed working with the existing infrastructure and offering more uniform comfort.

The benefits sought in this type of project are clear:

• air distribution through existing ducts;
• more uniform comfort between rooms;
• discreet integration, without a visible wall unit in living spaces;
• possibility of centralized electric heating;
• compatibility with a central heat pump configuration depending on the project;
• better comfort management in multi-room homes;
• a solution suited for owners who want to modernize without rethinking the entire air distribution.

An installation where the duct network was as important as the unit

In a central installation, choosing the equipment is not enough. An excellent unit can deliver disappointing results if the duct network is poorly connected, too restrictive, or poorly balanced. In this installation, a significant part of the work involved adapting the GREE FLEXX unit to the space already in place.

The visible metal ducts around the unit show that the installation had to respect an existing geometry. The unit had to be connected without creating excessive restriction, without forcing the transitions, and without compromising access to the service panel. The bottom of the unit rests on a fitted metal base, which helps ensure a stable and clean installation.

Our technicians paid special attention to several elements:

1. Alignment of the unit with the plenum
   Poor alignment can create turbulence, pressure losses, and noise in the ducts.
2. The quality of metal transitions
   Transitions must be designed to guide the air properly, without unnecessary constriction.
3. Access to internal components
   The unit must remain accessible for maintenance, inspections, and future interventions.
4. Managing air return and supply
   The airflow must be sufficient for the system to operate within its intended ranges.
5. Connection protection
   In a tight mechanical room, cables, pipes, drains, and fittings must be carefully organized.

The photo also shows an installation at a stage of connection and adjustment. In this type of project, several details are finalized progressively: sealing joints, adjusting panels, checking airflow, electrical tests, thermostat control, and validating operating cycles.

The role of the electric furnace in residential comfort

An electric furnace or an air handler with electric elements can play a central role in a Quebec home. It produces warm air that circulates through the ducts and supplies the different zones of the residence. When combined with a compatible central heat pump, it can also serve as auxiliary heating, depending on the chosen configuration.

In the context of Montréal-Est, where winters require a reliable system, this redundancy is important. Electricity is a common heating source in Quebec, and a properly sized furnace can ensure stable comfort during cold periods. However, the system must be chosen according to the actual thermal load of the house. Too low a capacity results in discomfort; too high a capacity can increase installation costs and create less efficient cycles.

At AirGreen, we always analyze the complete configuration before recommending a solution: serviced area, insulation, windows, duct network, number of registers, air return, old equipment, and client expectations. This analysis is essential for a durable central HVAC installation.

The GREE FLEXX and refrigerant R32: a modern configuration to be validated according to the project

The unit visible in the photo bears the GREE marking and indicates a configuration associated with the refrigerant R32, with the precautions specific to modern A2L-type systems. This point is important because installations using new generation refrigerants require a good understanding of technical requirements, manufacturer guidelines, and safe practices.

The R32 is used in several recent equipment to improve system efficiency and reduce environmental impact compared to some earlier generations of refrigerants. In a central installation like this, it means that technicians must pay close attention to fittings, clearances, manufacturer instructions, labeling, and commissioning procedures.

Exact technical data, such as BTU capacity, SEER2, EER2, or HSPF2 ratings, depend on the precise combination of the indoor unit, outdoor unit, and the associated AHRI number. For this reason, we always verify the technical sheets and the complete combination before confirming the expected performance or possible eligibility for a subsidy.

The real challenges of a successful central installation

Installing an Air Handler GREE FLEXX in a compact mechanical space requires more coordination than an open space installation. Here, the constraints were visible as soon as you entered the room: nearby shelves, existing ducts, limited access, accessories already in place, ceiling height occupied by insulated ducts, and the need to keep the equipment accessible.

Working cleanly in a busy mechanical room

The mechanical room was not empty. As in many homes in Montreal, Laval, Longueuil, on the North Shore and the South Shore, the mechanical space often also serves as storage. This complicates the work, as technicians must protect surfaces, maintain safe access, and work precisely without damaging surrounding elements.

In this installation, the GREE FLEXX unit was placed to optimize access to the front panel. This point is essential. A central unit should not be installed just to “fit” into the space; it must also be serviceable. Filters, control boards, connections, electrical components, and service panels must remain accessible.

A poorly planned installation can become problematic a few years later, when maintenance or diagnostics are required. At AirGreen, we think about future maintenance from the start, not just the initial startup.

Adjusting ducts without compromising airflow

Airflow is one of the most sensitive aspects in a central installation. If the ducts are too restrictive, if a transition is too abrupt, or if the air return is insufficient, the unit may operate with too high a static pressure. This can lead to more noise, reduced efficiency, uneven comfort, and premature wear of certain components.

In this project, the transition between the GREE FLEXX unit and the existing ducts had to be done carefully. The joints must be well sealed to limit air loss. The metal surfaces must be neatly adjusted to avoid vibrations. The ducts must be inspected to identify sections that could harm performance.

This detailed work is often invisible to the client once the panels are closed, but it directly influences daily comfort.

Integration with existing accessories

In the photo, a Thermolec accessory installed on the duct can be seen. In a central modernization, it is common to have to work with elements already in place: humidifier, controls, transformers, thermostats, relays, air treatment accessories, or old electrical components.

Our role is to check what can be kept, what needs to be adapted, and what must be replaced. The goal is to achieve a coherent, safe, and easy-to-use system. A poorly integrated accessory can create control, wiring, or performance problems. That is why each peripheral component must be evaluated in its context.

Mistakes to avoid when replacing a central furnace

Many homeowners think that replacing an electric furnace is a simple operation: remove the old device, install the new one, plug it in, and start it. In reality, a high-performance central installation requires more.

The most common mistakes are the following:

• choose a device without verifying the actual required capacity;
• keep ducts that are too restrictive without adjustment;
• neglect the sealing of metal joints;
• ignore future maintenance access;
• poorly coordinate the thermostat and controls;
• underestimate electrical needs;
• forget to check the air flow balance;
• rely solely on the brand without analyzing the complete installation.

At AirGreen, we avoid these shortcuts. A GREE FLEXX electric furnace Air Handler must be installed as a complete system, not just as a mechanical box.

Practical advice for homeowners considering a central system

Before replacing a furnace or air handler, it is useful to have the entire system inspected. A recent device can improve comfort, but the result will also depend on the quality of the ducts and air distribution.

We recommend that homeowners check the following points with their HVAC contractor:

• the condition of the existing ducts;
• the presence of air leaks;
• the quality of the air return;
• the number and location of registers;
• the available space for the unit;
• access to the service panel;
• electrical compatibility;
• the possibility of adding or keeping a central heat pump;
• the manufacturer’s installation requirements.

These checks help avoid unpleasant surprises and obtain a system better suited to the home.

Subsidies and technical documents

For central systems, eligibility for a subsidy always depends on the exact combination installed. The indoor model, outdoor unit, capacity, AHRI number, and program criteria must be validated before promising an amount. As part of a GREE FLEXX project, AirGreen supports the client with the necessary information when the configuration is eligible.

This step is particularly important for owners in Montréal-Est, Montréal, Laval, Longueuil, the North Shore, and the South Shore who are comparing several options. Two systems may seem similar on paper but may not offer the same performance or eligibility depending on the chosen combination.

An installation designed to last

The desired outcome in this project was clear: to modernize the residence’s central system with reliable GREE FLEXX equipment, properly connected and adapted to the existing mechanical room. The installation had to respect physical constraints, protect airflow, allow for future maintenance, and offer the client an effective central comfort solution.

This type of work shows why field experience is essential. Houses are never identical. A tight mechanical space, an existing duct, a transition to redo, or an accessory to integrate can completely change the installation strategy. At AirGreen, we adapt our method to the building, the equipment, and the client’s needs.

For owners who want to replace an electric furnace, install a GREE FLEXX Air Handler, convert an existing central system, or improve their comfort with a complete HVAC solution, this installation in Montréal-Est demonstrates the importance of precise, documented work carried out by a team experienced with residential central systems.
