A precise replacement in an existing wall opening, with particular attention to airtightness
In Saint-Bruno-de-Montarville, we installed an AMANA PTAC unit in a residential room with a hardwood floor. This project clearly illustrates the precision required when an air-conditioning and heating system must be integrated directly into an existing wall opening at a low height, without ventilation ducts or an indoor unit suspended near the ceiling.

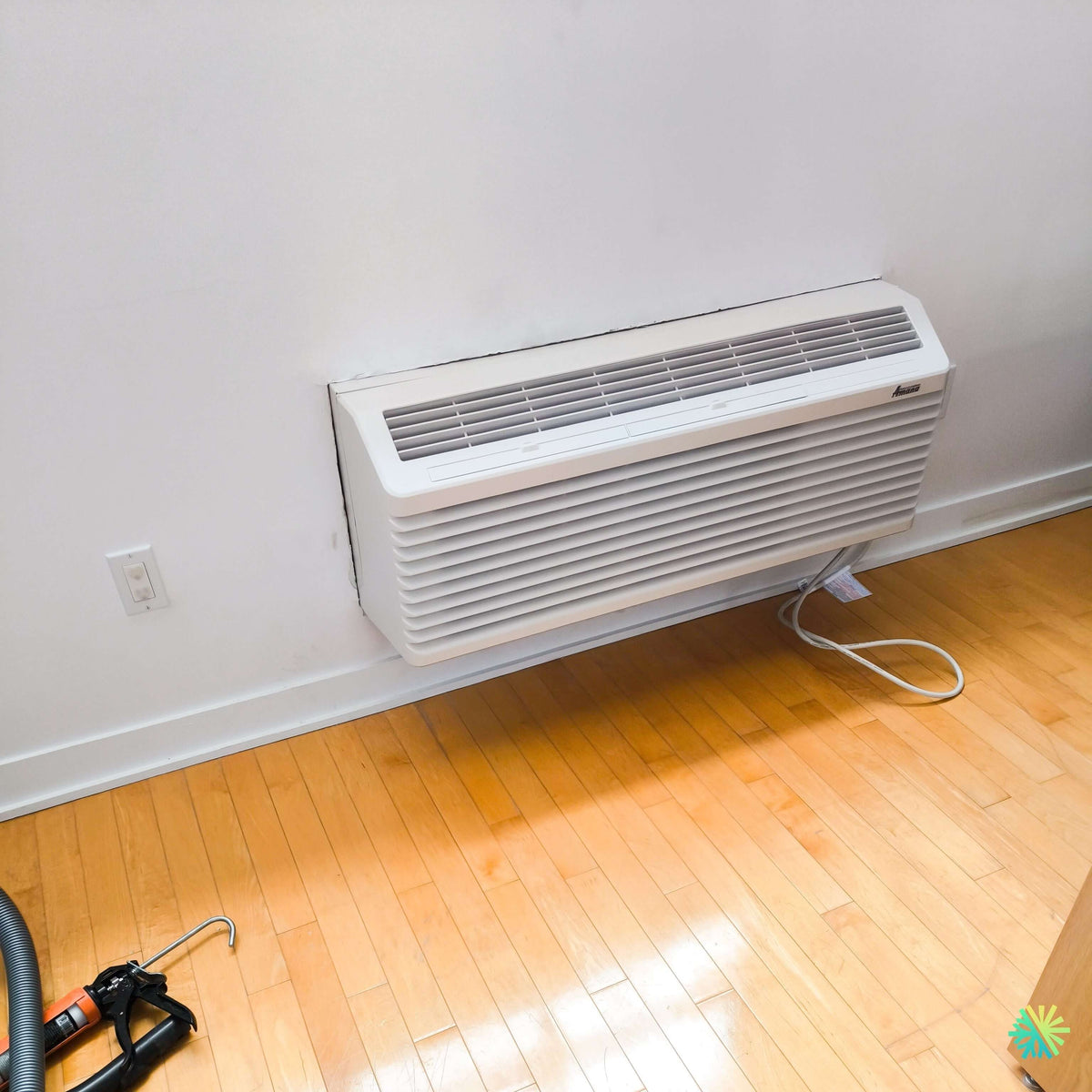

In the photo taken during the final stages of the project, we can see the AMANA PTAC securely positioned in the exterior wall. The caulking gun still on the floor indicates that the finishing and sealing work around the casing was still underway. This step is far from incidental: for a unit installed through the wall, the quality of the perimeter seal directly affects comfort, protection against air infiltration, and the durability of the installation.
Unlike a wall-mounted heat pump consisting of an indoor unit and an outdoor compressor connected by refrigerant lines, a PTAC generally houses its main components in a single unit. Part of the system is located inside the room, while the rear communicates with the outdoors through a wall sleeve. This compact configuration is particularly well suited to apartments, residences, condominiums, hotels, and buildings where installing ductwork or a ductless split heat pump is not practical.
Why an AMANA PTAC was suitable for this configuration
In this room in Saint-Bruno, the existing opening at the bottom of the wall made it possible to integrate the unit without adding a duct network or cluttering the upper part of the room. This configuration preserves the available wall space for furnishing while ensuring air distribution through the front grille.
Choosing an AMANA PTAC can be appropriate when several constraints must be met:
- presence of an existing through-wall opening;
- inability or lack of interest in installing a separate outdoor unit;
- need to control the temperature of a single room;
- limited access for routing refrigerant lines;
- desire to retain a simple local control;
- replacement of an existing unit with comparable dimensions.
The visible unit has a wide front return-air grille and an air outlet located on top. This design allows the unit to draw in room air, condition it, and then redirect it upward to promote circulation.
An important clarification regarding the model and capacity
The rating plate is not visible in the photograph. We therefore cannot arbitrarily assign this unit a capacity of 9,000, 12,000, or 15,000 BTU/h, nor confirm whether it is a heat pump model or an air conditioner with built-in electric heat.
This verification is essential in any PTAC replacement project. Two units that appear identical externally may have very different specifications:
- cooling capacity;
- heating capacity;
- supply voltage;
- required electrical current;
- plug and cord type;
- auxiliary electric heat;
- wall sleeve dimensions;
- energy efficiency;
- noise level;
- electronic or mechanical controls.
At AMANA, some PTAC families are designed primarily for cooling with electric heat, while others include a heat pump function. Before ordering the unit, we therefore verify the complete model number, the electrical rating plate, the opening dimensions, and the building’s actual needs.
The wall sleeve: the foundation of a durable installation
A PTAC should not simply be slid into an opening. It must be installed in a compatible wall sleeve that is stable and properly positioned.
The sleeve serves several functions:
- support the weight of the unit;
- separate the building structure from the mechanical components;
- facilitate future removal of the PTAC;
- protect the opening against water;
- maintain proper alignment between the interior and exterior;
- limit vibrations transmitted to the wall.
When replacing an existing unit, it may be tempting to automatically keep the old sleeve. However, this decision should be made after a thorough inspection. A deformed, rusted, improperly leveled, or incompatible sleeve can cause water infiltration, vibration noise, and poor condensate drainage.
In the project shown, the PTAC is installed at a low height above the baseboard. This arrangement requires precise measurements to avoid unnecessary contact with the floor, preserve access to the front panel, and allow filter removal.
The outward slope
The sleeve must be positioned to promote water drainage toward the outside. A PTAC may produce condensate while operating in cooling mode. Depending on the unit's design, some of this water may be drained, reused to improve heat exchange, or directed outside.
Improper angling can lead to:
- water accumulation in the cabinet;
- running-water sounds;
- odors;
- corrosion;
- a leak toward the interior floor;
- damage to the bottom of the wall.
We therefore pay particular attention to the slope, the support, and the condition of the exterior portion of the sleeve before starting the unit.
The perimeter sealing observed on this project
The photograph shows a slight gap around certain portions of the cabinet, particularly toward the top and on the left side. The sealing material visible on the floor confirms that the installation was at the finishing stage.
This area must be treated carefully. A seal applied only to the surface may look clean while still allowing air to pass behind the unit. Instead, we aim to create a continuous barrier suited to the materials present.
Proper finishing may include:
- filling excessive gaps with a suitable insulating material;
- applying a compatible sealant;
- ensuring continuity of the interior seal;
- protecting the exterior perimeter;
- checking the angles and the underside of the sleeve;
- the addition of trim when the configuration requires it.
In Saint-Bruno, as elsewhere on the South Shore, the significant temperature differences between winter and summer quickly reveal sealing defects. A small opening can create a cold draft, localized condensation, or a feeling of discomfort near the floor.
An electrical supply to be validated before replacement
The power cord is visible on the right side of the unit. This configuration is common for PTACs, but the presence of a nearby outlet does not guarantee that the circuit is compatible.
Before plugging in a new appliance, we must confirm:
- the required voltage;
- the circuit breaker rating;
- the maximum amperage;
- the type of outlet;
- the plug configuration;
- the absence of circuit overload;
- the compliance of the connection.
PTACs may be available in several electrical configurations. A unit using a 208- or 230-volt power supply cannot be installed on a 120-volt circuit simply by changing the plug. Likewise, a unit equipped with a larger electric heating element may require a different circuit capacity than the old unit.
During a HVAC installation, we also avoid leaving a cord under mechanical tension, pinched behind furniture, or exposed to frequent foot traffic. The cable must remain accessible and be routed neatly.
Air circulation in front of and above the PTAC
A PTAC needs sufficient clearance to draw in and distribute air. The large front grille visible on the unit must not be blocked by a sofa, bed, thick curtains, or furniture.
The space above the air outlet must also be kept clear. A shelf installed too close may deflect the airflow toward the unit, create recirculation, and reduce temperature uniformity.
In a room with a wood floor like this one, we also recommend monitoring for any signs of moisture beneath the unit. A periodic visual inspection can quickly identify an issue before it damages the floor or baseboard.
Checks performed during commissioning
Once the unit has been secured, sealed, and powered, commissioning involves more than simply pressing the start button. We check the unit’s overall operation.
Our checks include, among other things:
- the fan startup;
- the variation in available fan speeds;
- the production of cool air;
- the operation of the heating function, when present;
- the thermostat response;
- the absence of unusual vibration;
- the stability of the cabinet;
- the operation of the louvers;
- condensate drainage;
- the absence of air infiltration around the sleeve;
- the noise level in the room.
We also inspect the front panel to confirm that it is properly secured. A panel that was repositioned incorrectly after cleaning the filter may vibrate or produce an intermittent noise.
Energy efficiency: don’t rely solely on the number of BTUs
To choose a PTAC, capacity is only one factor among many. An oversized unit may cool quickly, but it can run in short cycles and control humidity less effectively. Conversely, an undersized unit may run almost continuously without reaching the desired temperature.
The choice must take several factors into account:
- room area;
- ceiling height;
- window orientation;
- insulation quality;
- sun exposure;
- number of occupants;
- heat-producing appliances;
- the floor of the dwelling;
- air leakage around the opening;
- Saint-Bruno’s local climate.
Performance ratings, such as EER, CEER, or heating performance data, must be confirmed using documentation corresponding to the exact AMANA model number. We avoid using data from another capacity simply because the exterior façade appears identical.
PTAC rebate eligibility
A PTAC should not be assumed to qualify for the same programs as a ductless mini-split heat pump or a central heat pump. Financial assistance programs generally impose specific criteria regarding equipment type, certification, energy reference number, and low-temperature performance.
Before presenting potential savings, the following must be verified:
- the exact equipment category;
- its complete model number;
- its certification number, when available;
- the current program rules;
- the type of building;
- the heating source being replaced;
- the purchase and installation date.
At AirGreen, we prefer to confirm eligibility before signing rather than present an uncertain rebate. This approach protects homeowners from unpleasant surprises and makes it easier to prepare the documents.
What This Saint-Bruno Installation Teaches Homeowners
Common mistakes to avoid when replacing a PTAC
Replacing a through-the-wall unit may seem simple, especially when the opening is already in place. However, several mistakes can compromise the result.
Ordering based solely on the façade width
The façade confirms neither the depth, the position of the air openings, nor the sleeve’s compatibility. The entire wall sleeve must be measured and the manufacturer’s instructions checked.
Reusing an old sleeve without inspection
Corrosion may be hidden beneath the unit. A weakened or improperly sloped sleeve must be repaired before installation.
Neglecting the exterior sealing
A flawless interior seal is not enough when water can enter behind the sleeve from the exterior façade.
Connect the unit to an incompatible outlet
The plug shape, voltage, and circuit protection must exactly match the model’s requirements.
Blocking the return air with furniture
A PTAC needs to breathe. An obstruction increases noise, reduces airflow, and can lead to a loss of performance.
Forgetting about filter access
The filter must be removable without disassembling a cabinet or moving a heavy object. This access directly affects the regularity of HVAC maintenance.
Recommended maintenance after installation
A PTAC operates in a compact space where the filter, evaporator, fan, and condensate pan are located close together. Regular maintenance is therefore essential.
The owner should:
- clean or inspect the filter every month during periods of intensive use;
- keep the front grille clear;
- watch for new noises;
- check for water on the floor;
- gently clean the front panel;
- have the unit inspected when airflow decreases;
- periodically check the seal around the sleeve.
A dust-laden filter reduces airflow and forces the system to run longer. In a home occupied by people sensitive to dust, with pets, or near a busy street, cleaning may be required more frequently.
A compact solution, but one that requires a complete installation
This project in Saint-Bruno-de-Montarville demonstrates that a compact unit does not mean an improvised installation. The performance of an AMANA PTAC depends as much on the model selected as on the preparation of the wall, sleeve, electrical connection, sealing, and operational testing.
The photo shows an installation cleanly integrated into the room, with a level unit positioned above the baseboard and an accessible front panel for maintenance. The sealing work currently underway around the cabinet is a decisive step in achieving a comfortable result during South Shore winters and the hot, humid periods of summer.
