A specific comfort challenge in a room where heat, humidity, and ventilation meet
In this Plateau-Mont-Royal space, installing a Samsung WindFree™ MaxHeat wall-mounted heat pump had to address circumstances very different from those in a residential living room. The room featured several elements typical of a food-service workspace or prep area: washable ceramic walls, professional equipment, an exterior window, protected lighting, and a ceiling ventilation diffuser.
In such an environment, the temperature can change quickly. Operating equipment releases heat, opening doors and windows causes fluctuations, while mechanical ventilation continuously extracts some of the ambient air. The heating and cooling system must therefore be positioned precisely to provide genuine comfort without disrupting daily operations.
Our AirGreen team installed the Samsung WindFree™ MaxHeat indoor unit high on a clear wall located between the window and the space’s equipment. This location allows air to circulate throughout the room while keeping work surfaces accessible. We also had to work around the existing ceiling ventilation outlet so that the two systems would not interfere with each other.
This project illustrates an essential aspect of our work in HVAC in Montreal: a successful installation depends not only on the quality of the heat pump. It also depends on how the unit is integrated with the airflow, the space’s activities, and the building’s physical constraints.
Why install a wall-mounted heat pump in a compact commercial space?
In small shops, restaurants, prep kitchens, offices, and service spaces in Plateau-Mont-Royal, existing heating is not always enough to maintain an even temperature. Conversely, in summer, heat generated by equipment can quickly make certain rooms uncomfortable.
A wall-mounted heat pump is therefore an interesting solution because it can heat and cool a specific zone without completely modifying the building’s ventilation network.
In this installation, the Samsung system offers several concrete benefits:
- independent temperature control in the room;
- a quick response when equipment increases the thermal load;
- effective cooling during hot and humid days;
- supplementary heating during Montréal winters;
- a compact installation without additional ductwork;
- capacity modulation according to actual needs;
- air distribution better suited to a space occupied for several hours.
This flexibility is particularly useful in buildings in Plateau-Mont-Royal, where commercial spaces are often located in older buildings. Masonry walls, existing ceilings, limited mechanical spaces, and nearby neighboring properties can sometimes restrict the possibilities for installing a traditional central system.
A Samsung WindFree™ MaxHeat unit suited to Montréal conditions
The Samsung WindFree™ MaxHeat range is designed to provide heating and cooling from a variable-speed wall-mounted system. The compressor gradually adjusts its output rather than operating only at full capacity or being switched off.
This modulation helps limit sudden temperature fluctuations. In a commercial space, this operation is important because requirements can change quickly depending on:
- the number of people present;
- the equipment in use;
- the mechanical ventilation airflow rate;
- sunlight through the windows;
- door openings;
- the outdoor temperature;
- preparation or cleaning periods.
In cooling mode, WindFree™ technology provides gentler air distribution after the target temperature has been reached. Cool air is then distributed through numerous micro-openings located on the front of the indoor unit, reducing the sensation of a direct cold draft.
In a work area, this feature can improve the comfort of people who occupy the same zone for long periods. However, it remains complementary to the positioning of the unit: a poorly placed heat pump can create drafts, even when it features advanced air-distribution technology.
An indoor installation above a work surface

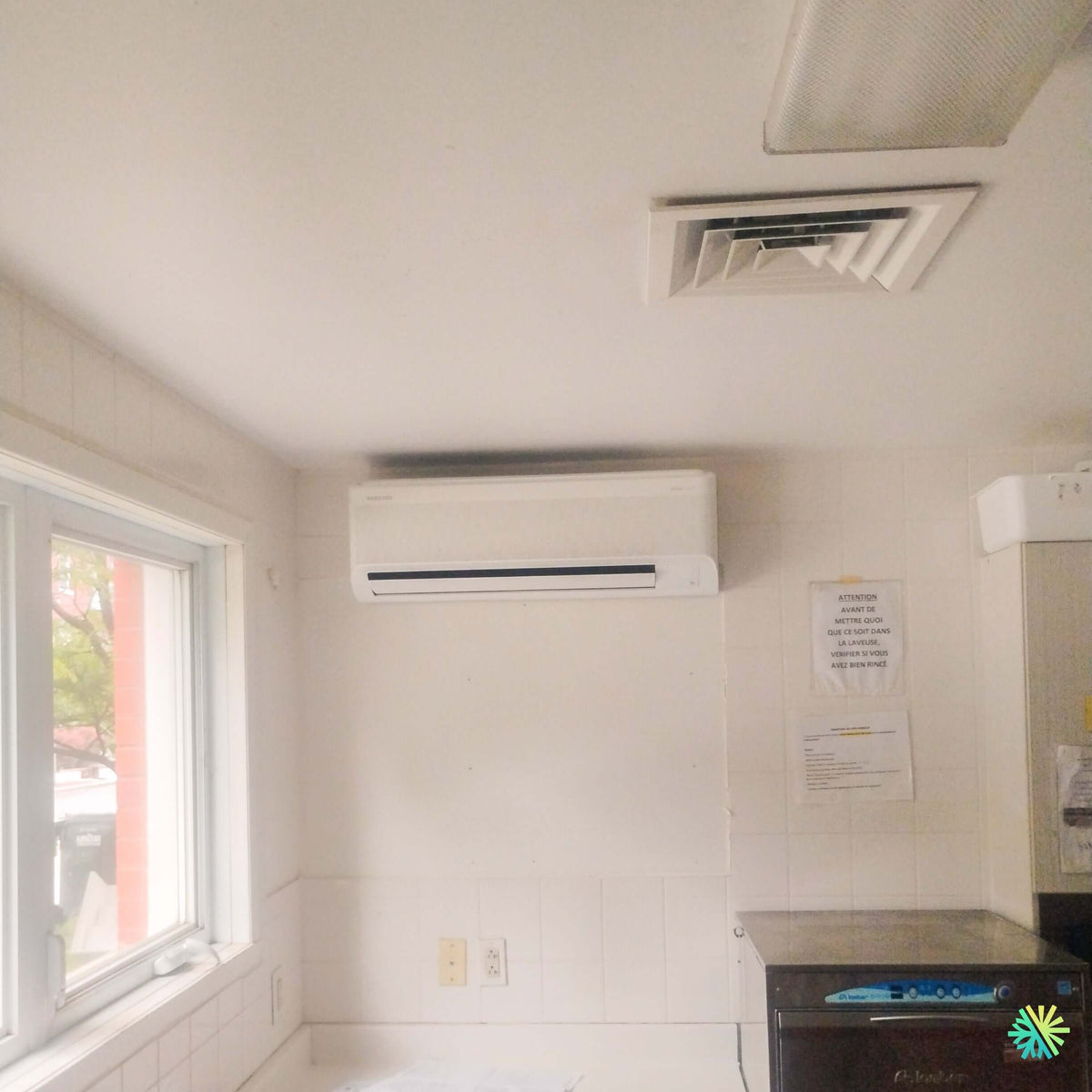

The photo shows that the indoor unit was installed in the upper part of the wall, above an unobstructed area. This location was chosen to preserve the circulation paths and equipment in the space.
Several checks are necessary before securing a wall-mounted indoor unit in this type of room.
The strength of the support
The unit must be secured to a sufficiently solid surface to remain stable despite the slight vibrations produced by the fan. The mounting plate must be perfectly level to ensure proper condensate drainage.
In a room covered with ceramic tile, drilling requires greater precision. An improper method can crack the tiles, create visible chips, or compromise the surface's watertightness.
Our technicians first determine the location of the studs or available structural support. They then use the appropriate tools to penetrate the cladding without unnecessarily damaging it.
The height of the unit
A wall-mounted heat pump generally needs to be installed high enough to distribute air throughout the room, but it should not be flush with the ceiling. The air intake located on top of the cabinet must remain unobstructed.
Insufficient space above the indoor unit can reduce airflow, make filter cleaning more difficult, and increase operating noise. In this project, the available height allows the unit to draw in ambient air while projecting the airflow above the work area.
The proximity of the window
The window to the left of the unit represents a potential source of heat gain and loss. In summer, solar radiation can quickly warm the room. In winter, a less efficient window can create a colder area.
Placing the unit near this heat load helps the system respond to fluctuations, but the air curtain must not be directed straight toward the window. The goal is to treat the entire volume of the room, rather than cool or heat only the glazed surface.
Coordination with the existing ventilation
One of the most important elements of this HVAC installation in Le Plateau-Mont-Royal is the presence of a ceiling air diffuser.
In a commercial space, the heat pump and mechanical ventilation perform different functions:
- The heat pump heats or cools the air already present;
- Ventilation renews or extracts some of this air;
- The exhaust system can control odors, steam, or contaminants;
- The fresh air supply compensates for the air exhausted outdoors.
A wall-mounted heat pump therefore does not replace a ventilation system that meets the needs of the business. It functions as a local comfort-conditioning unit.
When choosing the location, we must prevent the cold or warm air blown by the heat pump from being immediately drawn into an exhaust grille. Such a configuration would reduce comfort and force the unit to operate for longer.
We examine, among other factors:
- the direction of the wall-mounted unit’s airflow;
- the type of ceiling grille;
- the natural direction of airflow;
- the location of workstations;
- the approximate ventilation airflow;
- the main heat sources;
- openings to adjacent rooms.
In this project, the indoor unit was positioned to distribute air toward the occupied area without blowing directly into the ceiling vent.
Condensate drainage: an invisible but crucial detail
In cooling mode, the indoor unit removes some moisture from the air. This water condenses on the coil and must be discharged through a drain pipe.
An improper slope can cause:
- water running down the wall;
- water accumulating in the drain pan;
- odors;
- a gurgling noise;
- microbial growth;
- damage to the finish or equipment located beneath the unit.
In a commercial space where the unit is located above a work area, drainage must be especially reliable. We install the pipe with a continuous slope whenever the configuration allows. When gravity drainage is impossible, a suitable condensate pump may be required.
The wall penetration must also be sealed to limit air, water, and insect infiltration.
Capacity selection should not be based solely on floor area
The exact capacity of a heat pump cannot be determined accurately from a photo or floor area alone. In a commercial space, internal loads can be much higher than in a residential room of comparable size.
When sizing a system, we consider, among other factors:
- the floor area and ceiling height;
- the level of insulation;
- the type of window;
- the orientation of the space;
- the capacity of the equipment present;
- average number of occupants;
- operating hours;
- exhaust airflow;
- outdoor air intake;
- frequent door openings;
- winter heating needs.
An oversized heat pump can cool quickly without dehumidifying sufficiently. It may then run short cycles, creating a damp feeling and temperature fluctuations.
An undersized unit may run continuously during the most demanding periods without reaching the setpoint. In a commercial setting, this can also accelerate filter fouling and increase electricity consumption.
At AirGreen, we match the capacity to the actual conditions of the space rather than using an approximate BTU-per-square-foot rule.
A commercial installation that requires maintenance suited to the environment
Filters should be checked more frequently
A unit installed in a preparation room or near commercial equipment can accumulate dust, particles, and airborne residue more quickly than a residential unit installed in a bedroom.
The washable filters in the indoor unit should therefore be inspected regularly. The frequency depends on the activity in the space, but a monthly inspection is often a good starting point.
Clogged filters reduce airflow and can lead to:
- reduced capacity;
- increased noise;
- higher electricity consumption;
- ice formation on the heat exchanger;
- less effective dehumidification;
- longer compressor operation.
The filters must be removed, cleaned according to the applicable recommendations, and then completely dried before being put back in place.
Grease and vapors require special attention
A wall-mounted heat pump should not be installed directly above a significant source of grease, steam, or heat. Grease particles can adhere to the heat exchanger and tangential fan, creating a layer that is difficult to remove.
This buildup can reduce performance and produce odors. It may also require more frequent deep cleaning of the wall-mounted heat pump.
In the project presented, the unit is installed on a clear wall, away from visible appliances. This separation helps protect the cabinet and facilitates access to the filters.
Preventive maintenance should include:
- regular filter cleaning;
- inspection of the heat exchanger;
- inspection of the blower wheel;
- inspection of the condensate pan;
- flushing of the drain;
- inspection of the refrigerant connections;
- inspection of the outdoor unit;
- a test of the heating and cooling modes.
Mistakes to avoid in a commercial installation
Directing the air straight toward a workstation
A constant stream of air directed at a person can become uncomfortable, even when the overall temperature is appropriate. The louvers should be adjusted to distribute the air throughout the room.
Placing the unit too close to an exhaust vent
If the treated air is immediately discharged outdoors, the system loses a significant portion of its efficiency.
Installing the indoor unit above a very hot appliance
The heat pump may measure a temperature that does not represent the entire room. It may then overcool certain areas.
Neglecting access for maintenance
The filters must be removable, and the cabinet must remain accessible. A shelf, cabinet, or piece of equipment added after installation should not block the front panel.
Using residential capacity without analyzing internal loads
Commercial appliances can release several thousand BTUs per hour. This heat must be included in the sizing calculation.
Confusing air conditioning with ventilation
A heat pump primarily recirculates indoor air. It does not replace the supply of fresh air or the necessary exhaust in a commercial space.
A solution well integrated into a Le Plateau-Mont-Royal building
Le Plateau-Mont-Royal includes many mixed-use buildings where businesses occupy the ground floor and residences occupy the upper floors. Exterior installations must therefore take into account the surrounding properties, noise, access to courtyards, stairs, balconies, and the rules applicable to the building.
The piping route must be carefully planned to maintain a clean appearance. Vibrations transmitted to the masonry or structure must also be limited.
Depending on the site, we can use:
- a floor stand;
- a wall bracket;
- anti-vibration pads;
- an exterior pipe cover;
- gravity drainage;
- a condensate pump;
- a protected indoor route;
- a dedicated electrical supply.
The interior photo shows a discreet installation, aligned with the wall and integrated into the existing configuration. The unit remains visible and accessible without encroaching on usable space.
Commissioning is an integral part of the installation
Before handing the system over to the customer, we check several essential parameters.
The refrigeration circuit must first be tested and evacuated. This procedure removes air and moisture before the refrigerant is circulated.
We then check:
- the tightness of the connections;
- circuit pressure and operation;
- condensate drainage;
- supply air temperature;
- airflow;
- vibrations;
- remote control operation;
- heating and cooling modes;
- communication between the units;
- the absence of unusual noises.
In a commercial setting, we also explain how to adjust the temperature without creating conflicts between the heat pump and the ventilation system. A stable setpoint generally allows the variable-speed compressor to operate more efficiently than frequent stops and restarts.
Subsidy eligibility: always verify the exact numbers
Some low-temperature heat pumps may qualify for financial assistance, depending on the program in effect and the installed configuration. Eligibility, however, is based on the exact combination of the indoor and outdoor units.
The name Samsung WindFree™ MaxHeat is not enough to confirm an amount. The following must be verified:
- the complete model numbers;
- the rated capacity;
- the certified heating capacity at low temperatures;
- the applicable AHRI reference;
- the type of building;
- residential or commercial use;
- the program rules in effect on the installation date;
- the required documents.
Residential programs do not automatically apply to commercial premises. Before promising a subsidy, the building's use and the precise administrative criteria must therefore be verified.
AirGreen expertise for businesses in Montreal and Greater Montreal
We install wall-mounted heat pumps in Montreal, as well as in Laval, Longueuil, the North Shore, and the South Shore. Each commercial environment has its own constraints.
On the Plateau-Mont-Royal, we often have to work with:
- brick or masonry walls;
- very narrow rear spaces;
- adjoining buildings;
- existing ventilation systems;
- ceilings that are already occupied;
- active business premises;
- limited access hours;
- equipment that cannot be moved for long periods.
Our approach is to analyze how the space is actually used before choosing the location. We do not simply look for the easiest place to drill through the wall. We determine where the heat pump will provide the best comfort while remaining accessible and compatible with the business's operations.
This Samsung WindFree™ MaxHeat wall-mounted heat pump installation on the Plateau-Mont-Royal demonstrates how a compact unit can be integrated into a commercial space that already has ceiling ventilation, washable surfaces, and professional equipment.
Height positioning, coordination with the existing diffuser, drainage protection, and filter access were all considered to ensure a functional and durable installation.
