A GREE Gainable system installed in Montréal-Est with a well-positioned outdoor unit
In Montréal-Est, our AirGreen team completed a full HVAC installation of a GREE Gainable system, also called ducted conduit, Slim Duct, or ductable system. This work highlighted a very common reality in the east of the island of Montreal: narrow outdoor spaces, closely spaced buildings, access constraints around exterior walls, and a need to position the outdoor unit in a solid, durable way that complies with best practices.

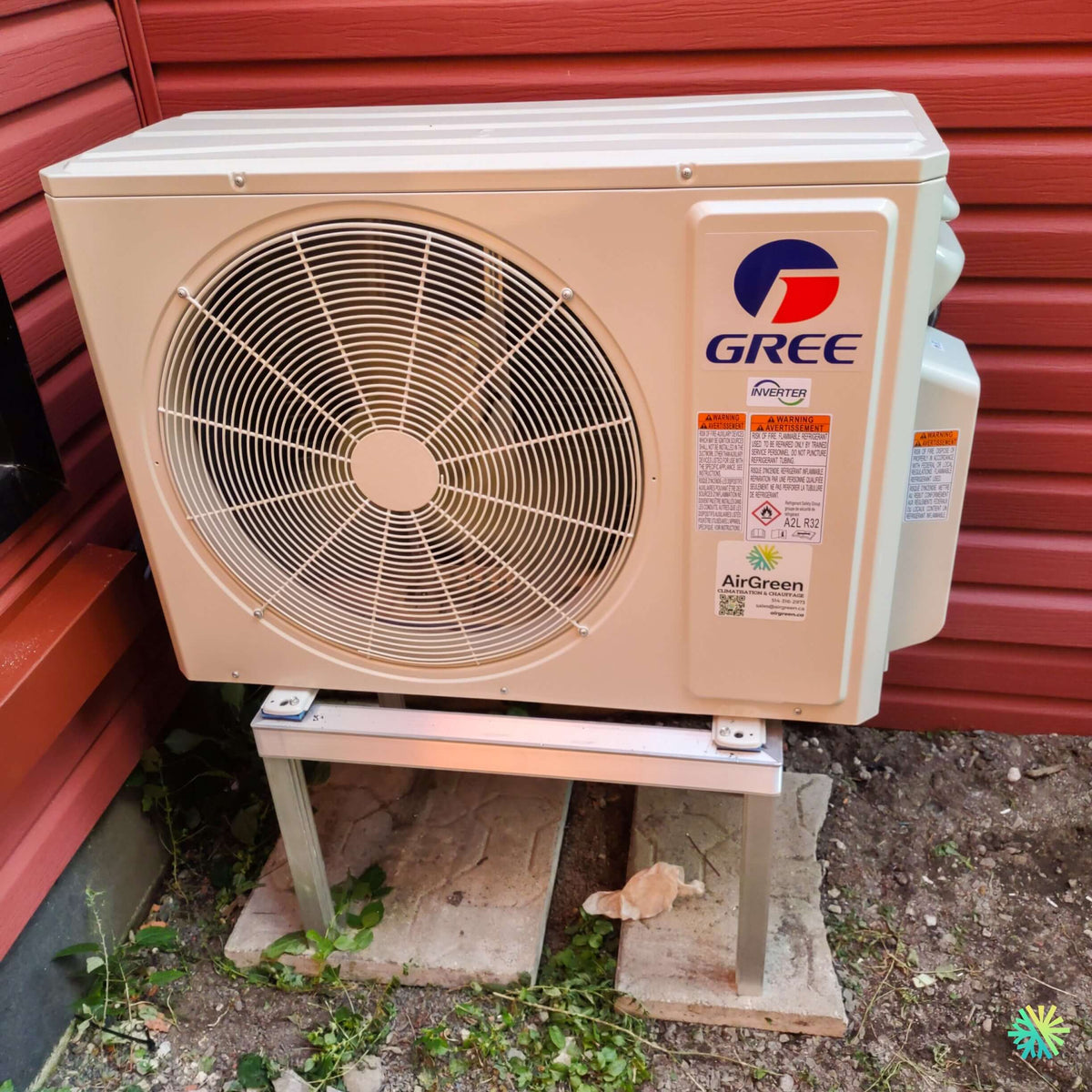

In the construction photo, you can see the outdoor GREE Inverter unit installed on a metal support, in front of a red exterior cladding. This detail may seem simple, but it represents a critical step in the installation. A ducted heat pump does not only depend on the indoor unit hidden in a ceiling, attic, or technical space. It also depends on a well-cleared, well-leveled outdoor unit, protected against water accumulation and positioned to allow adequate air circulation.
In this project, the goal was clear: to offer the client discreet comfort inside, without a visible wall unit in the main rooms, while ensuring a clean and reliable outdoor installation. The choice of a GREE All Match Slim Duct R32 allowed for an integrated solution designed to supply a duct network and distribute air more evenly than a simple wall air conditioner placed in a single room.
Why the GREE gainable was a suitable solution for this project
The GREE Gainable system particularly meets the needs of clients who want a discreet HVAC solution. Inside, the unit can be installed in a false ceiling, a mechanical space, an attic, or a hidden area. The air is then delivered through ducts to one or more diffusion grilles. The result is visually more understated: instead of a visible wall unit, only the grilles are visible.
For a building in Montréal-Est, this type of solution is very relevant when:
- the interior walls are not suitable for the installation of a wall unit;
- several rooms need to be served from the same system;
- the client wants to preserve the appearance of living spaces;
- the house or apartment already has usable technical zones;
- comfort should be more consistent between rooms;
- the installation must remain accessible for HVAC maintenance.
At AirGreen, we offer several GREE Ducted configurations, including low static pressure models, high static pressure models, and the GREE All Match Slim Duct R32 series, available according to capacity needs of 9,000, 12,000, 18,000, 24,000, 30,000, and 36,000 BTU. The final capacity always depends on the building, its insulation, the actual area served, the length of the ducts, the required static pressure, and the intended use.
The importance of positioning the outdoor unit
The outdoor unit visible in this project was installed on an elevated support. This approach offers several important advantages in the Quebec context. First, it limits direct contact with the ground, which helps reduce risks related to water, mud, debris, vegetation, and snow accumulation. Second, it promotes better mechanical stability, especially when the ground is not perfectly even.
In a well-executed HVAC installation, the outdoor unit must be:
- securely fastened;
- installed level;
- sufficiently clear to allow air circulation;
- accessible for service;
- positioned to reduce vibrations;
- neatly connected to the refrigeration and electrical lines;
- protected as much as possible from immediate obstacles.
The choice of location should never be improvised. A unit too close to a wall, fence, staircase, or obstacle can lose efficiency, become noisier, or complicate future interventions. In this case, our technicians worked with the available space around the building to create a clean, functional, and durable installation.
Special attention to the R32 refrigerant
On the device label, the mention R32 is visible. This refrigerant is used in several new generations of GREE systems. It is associated with modern equipment designed to meet current performance and efficiency requirements.
For AirGreen, the use of R32 requires professional execution at every step: proper handling, compliant connections, pressurization, vacuuming, leak testing, and startup according to the manufacturer's procedures. An installation with refrigerant should never be treated as a simple mechanical setup. It requires qualified refrigeration technicians, the right tools, and a precise understanding of the system.
This is also why we offer complete solutions with installation. Heat pump and air conditioning systems containing refrigerant must be installed by authorized professionals, both for safety and long-term reliability.
The role of the Inverter system in daily comfort
The GREE Inverter outdoor unit is designed to modulate its operation rather than just operate on an on-off basis. This modulation allows the system to adjust its power according to the actual needs of the building. For the client, this can translate into a more stable temperature, fewer uncomfortable fluctuations, and smoother operation.
In a ducted installation, this modulation is particularly interesting because the duct network distributes air to different zones. When the unit is properly sized and the air distribution well designed, the system can maintain more consistent comfort without creating unpleasant drafts.
A clean outdoor installation, but designed with the interior in mind
Even though the photo mainly shows the outdoor unit, a ducted project is always conceived as a complete system. The outdoor unit, indoor unit, ducts, grilles, refrigerant lines, drain, wall or smart control, and electrical supply must work together.
For this project in Montréal-Est, our work was not limited to installing a machine outside. It was necessary to coordinate the outdoor unit with the ducted indoor system to ensure:
- a sufficient airflow;
- an adapted static pressure;
- reliable condensation drainage;
- future access for service;
- a clean refrigeration installation;
- consistent heating and cooling performance;
- an acceptable noise level for the client and the neighborhood.
This overall vision is part of our approach at AirGreen. A nice outdoor unit is not enough if the interior is poorly balanced. Conversely, a well-designed duct system must be powered by a properly installed and commissioned outdoor unit.
HVAC expertise adapted to the constraints of Montréal-Est
Installations in Montréal-Est often present particular challenges. The lots can be narrow, side access limited, exterior finishes varied, and distances between buildings shorter than in some suburbs. It is therefore necessary to be precise in the choice of location and in how the work is carried out.
Management of clearances and air circulation
An outdoor heat pump unit must breathe properly. The front fan must be able to expel air without obstruction, and the sides of the device must allow good circulation. A location that is too confined can harm performance, especially during periods of extreme heat or cold.
In this installation, the support allowed the unit to be placed at a useful height, avoiding the base being directly exposed to ground irregularities. The slabs under the support help stabilize the whole, while the space around the device facilitates inspections and interventions.
Vibration control
Poor outdoor installation can transmit vibrations to the building, especially if the device is fixed directly on a sensitive structure or placed on an unstable base. On a GREE Ducted system, as with any quality HVAC installation, we take the time to check mechanical stability.
The support must be solid, the level must be checked, and the support points must be well distributed. This attention reduces the risk of unwanted noise, improves the durability of connections, and contributes to overall comfort.
Protection against water, snow, and debris
Montreal's climate imposes very concrete constraints. In winter, snow accumulation around an outdoor unit can impair operation. In autumn, leaves and debris can accumulate around the base. In spring, meltwater can create wet areas around the installation.
Elevated installation is therefore a practical decision. It helps keep the unit more clear and facilitates seasonal maintenance. We always recommend owners keep the space around the device clean, without accumulation of leaves, plants, objects, or compacted snow.
Common mistakes to avoid with a ducted system
A ducted system can offer remarkable comfort, but only if it is designed and installed correctly. The most common mistakes include:
Choosing the device based only on BTU
A system of 9,000 BTU, 12,000 BTU, 18,000 BTU, 24,000 BTU, 30,000 BTU or 36,000 BTU is not chosen based on a quick estimate of area. The building, heat losses, solar gains, number of rooms, ducts, and static pressure must be analyzed.
Neglecting the duct network
A ducted system heavily depends on its ducts. Ducts that are too long, too narrow, or poorly insulated can reduce performance, increase noise, and create temperature differences.
Forgetting service access
The indoor unit must remain accessible. The filter, fan, drain, and electrical components must be inspectable. A too tight installation can complicate HVAC maintenance and increase service costs later.
Installing the outdoor unit too close to obstacles
Even a good quality device can lose efficiency if poorly placed. Clearances, ventilation, drainage, and ease of access must be planned from the start.
Underestimating drainage
In cooling mode, the indoor unit produces condensation. A poorly designed drain can cause water problems. In a ducted system, drainage must be reliable, accessible, and suited to the location of the indoor unit.
Grants and eligibility of GREE systems
Many clients who contact us for a ducted heat pump also want to know if their project may qualify for financial assistance. Eligibility depends on the exact model, the combination of the indoor and outdoor units, energy efficiency, current program requirements, and the compliance of the requested documents.
At AirGreen, we help clients navigate this step. Some GREE models can meet efficiency criteria depending on the chosen configuration, but validation must always be done with the exact model numbers. We provide the necessary information so the client can complete their procedures when the installation is eligible.
Why choose AirGreen for a GREE Ducted Installation
AirGreen regularly operates in Montréal, Laval, Longueuil, on the North Shore and the South Shore for installations of heat pumps, wall air conditioners, central systems, multi-zone systems, and GREE ducted solutions. Our advantage is based on a complete understanding of the project: equipment selection, clear estimation, careful installation, rigorous commissioning, and after-sales service.
For ducted systems, our expertise is especially important. You need to know static pressures, duct networks, airflows, ceiling constraints, outdoor clearances, acoustics, and service rules. A successful installation depends as much on design as on execution.
In this project in Montréal-Est, the outdoor unit GREE Inverter R32 installed on a support clearly illustrates our approach: a clean, stable installation designed to last and integrated into a complete ducted solution. The client gets the discreet comfort of a Slim Duct system, while benefiting from an outdoor unit well positioned to face the real conditions of the Montreal climate.
Discreet comfort for houses, condos, and buildings in east Montreal
The GREE Ducted system is very suitable for owners who want effective comfort without changing the interior appearance of their space. In Montréal-Est, as in Mercier, Anjou, Pointe-aux-Trembles, Hochelaga-Maisonneuve, or Rosemont, existing buildings often require more thoughtful solutions than a standard installation.
Thanks to a ducted system, the client can enjoy more integrated air distribution, reduced visual presence, and an installation adapted to the building's layout. The outdoor unit, for its part, must be installed with the same level of rigor as the indoor unit. It is this consistency between the inside and outside that determines the final quality of the project.
This project in Montréal-Est demonstrates that a well-designed HVAC installation is never limited to the equipment. It relies on analysis, precision, quality of connections, mechanical stability, respect for clearances, and field experience. At AirGreen, we apply this rigor to every project, whether it is a small apartment, a whole house, a condo, or a multi-unit building.
