Precise integration in a confined space, without compromising the window or airflow
At Massueville, we installed a GENERAL ELECTRIC Zoneline PTAC in a room where every available centimeter had to be used intelligently. The layout presented several visible constraints: a large window occupying almost the entire width of the wall, a baseboard heater at the bottom of the wall, a hardwood floor to protect, and limited clearance on the right due to an adjacent wall and a curtain.
In this context, a traditional wall-mounted system would have been difficult to integrate without significantly altering the room’s layout. The PTAC, installed directly in an opening through the exterior wall, was a particularly suitable solution. Its position beneath the window preserves the upper wall surfaces, limits the footprint, and distributes conditioned air directly into the room.
The result shows a GENERAL ELECTRIC Zoneline unit installed compactly in an existing opening or one prepared for this purpose, with interior finishing carefully framing the sleeve. The unit remains accessible for daily use and future HVAC maintenance, without unnecessarily encroaching on the living space.
Why a PTAC was well suited to this room in Massueville
A PTAC, or Packaged Terminal Air Conditioner, is a self-contained terminal unit installed through an exterior wall. Unlike a split system, it does not require a separate outdoor unit connected to an indoor head by refrigerant lines.
The compressor, fan, coils, and controls are grouped into a single unit. The rear of the system connects to the outdoors, while the indoor front handles air intake and distribution throughout the room.
For this installation in Massueville, this design made it possible to:
- keep the existing large window;
- avoid installing a wall-mounted head above the window;
- use a low opening already suited to this type of equipment;
- simplify access to the filters and controls;
- limit the space occupied in the room;
- provide localized temperature control;
- avoid adding a ventilation duct network.
PTACs are often suitable for apartments, senior residences, rental buildings, hotels, offices, and certain homes where rooms need to be controlled individually. However, we must always confirm that the wall, electrical supply, drainage, and clearances are suitable for the selected model.
Visible features of the installed GENERAL ELECTRIC Zoneline

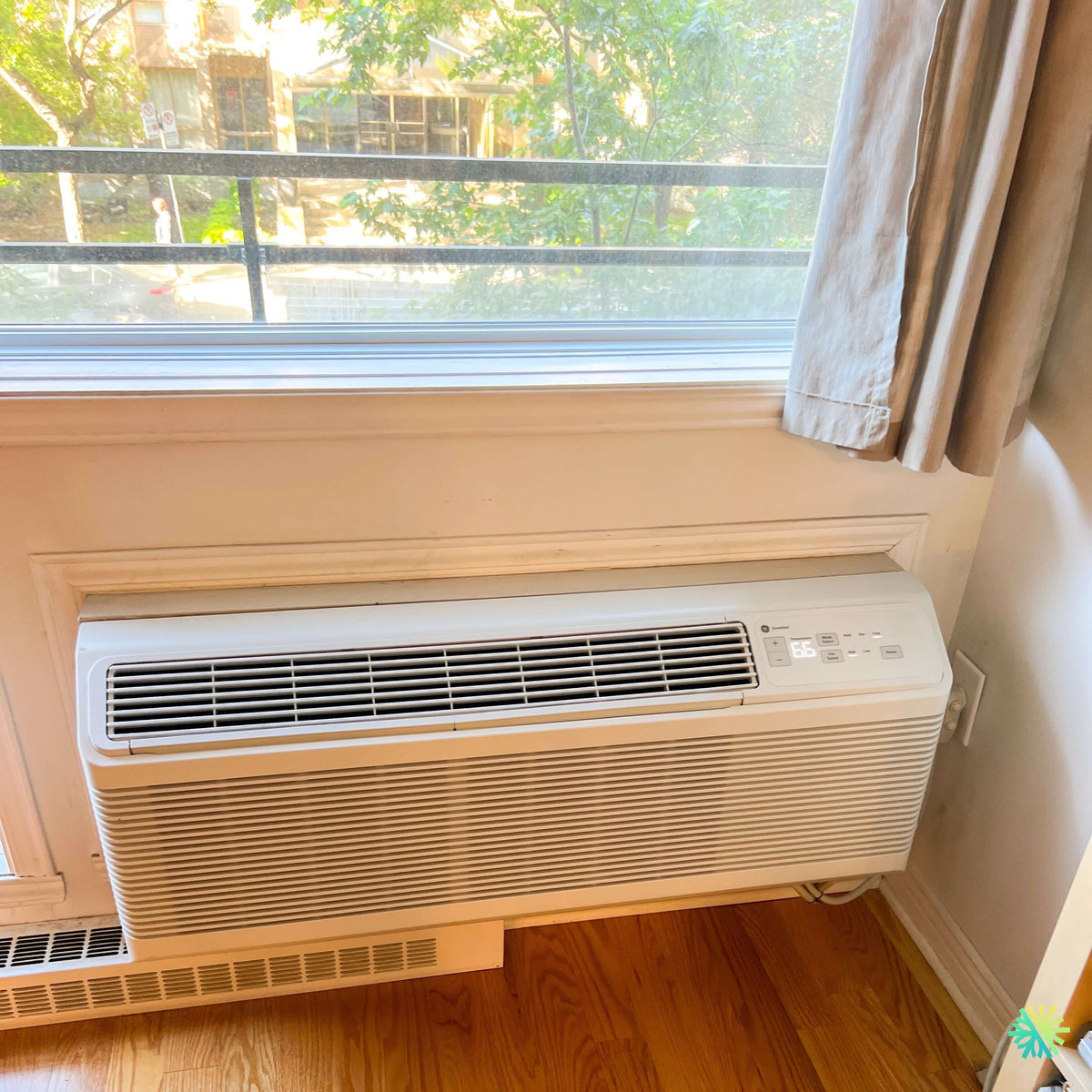

The project photograph makes it possible to observe several important installation features.
The GENERAL ELECTRIC Zoneline has a large supply-air grille on the upper part of the front panel. This position promotes air distribution toward the center of the room rather than projecting it directly toward the floor.
The large lower front grille primarily serves as the return air grille. Room air is drawn through this section, filtered, and then cooled or heated according to the specific functions of the installed model.
The electronic control panel is located on top, on the right-hand side. This arrangement makes the controls accessible without having to remove the front panel. The user can adjust the temperature and operating mode directly on the unit.
The unit is installed beneath the window, in a sleeve passing through the wall. Interior trim surrounds the opening and creates a clean transition between the appliance, wall, and window frame. This finish is important: a PTAC installation must not only function properly, but also limit air infiltration and integrate suitably with the building.
A capacity that must be confirmed from the nameplate
The GENERAL ELECTRIC Zoneline line includes several configurations and capacities. The photograph clearly identifies the brand and product line, but it does not show the full model number, nominal BTU capacity, heating type, or the electrical data on the nameplate.
We therefore avoid assigning a precise capacity without verification. In a professional project, sizing must be confirmed using several data points:
- the room’s actual area;
- ceiling height;
- sun exposure;
- the glazed area;
- the level of insulation;
- air infiltration;
- the room’s use;
- the heat produced by occupants and appliances;
- the cooling and heating capacity indicated by the manufacturer.
An undersized unit could run continuously without reaching the desired temperature. Conversely, an oversized unit could run excessively short cycles, produce greater temperature fluctuations, and control humidity less effectively in summer.
The exact model number is also necessary to verify power consumption, efficiency, noise level, type of auxiliary heating, and electrical circuit requirements.
Positioning beneath the window: simple in appearance, demanding in practice
Installation beneath a window is common for a PTAC, but it must be prepared precisely. The sleeve cannot be installed approximately in the opening.
We specifically check:
- the width and height of the opening;
- the strength of the structure;
- the wall thickness;
- the condition of the sleeve;
- the unit’s support;
- protection against water;
- the exterior finish;
- the seal around the frame;
- the slope required by GENERAL ELECTRIC;
- the absence of obstructions in front of the front panel.
The weight of a PTAC must be properly supported by the sleeve and the wall structure. The window frame must not become the unit’s primary support point.
In this installation in Massueville, the unit is positioned very close to the bottom of the window. The upper trim therefore had to remain thin enough to avoid unnecessarily reducing the glazed opening while ensuring a clean connection with the wall.
Managing condensate and exterior water
When a PTAC operates in cooling mode, the moisture in the air condenses on the cold coil. This water must be managed in accordance with the design of the unit and sleeve.
Depending on the model, some of the condensate may be directed toward the exterior section to improve heat exchange or discharged through a device provided by the manufacturer. However, improper installation can result in:
- water flowing indoors;
- water accumulation in the sleeve;
- corrosion;
- odors;
- damage to the wall;
- damage to the wood floor;
- ice formation in winter.
We therefore pay particular attention to the sleeve’s level and orientation. The system must comply with the slope specified by the manufacturer, generally angled slightly outward when required by the documentation. An improvised or excessive slope can also impair operation.
The exterior seal must prevent rainwater from entering around the sleeve. The seals must remain flexible and suitable for the temperature variations we experience in Quebec.
The proximity of the heating baseboard
A heating baseboard is visible near the bottom of the installation. This proximity requires checking the clearances and airflow.
The PTAC front panel must not be exposed to excessive heat from another appliance. The built-in thermostat could then measure a temperature that does not accurately represent the temperature of the rest of the room.
The baseboard heater must also not block removal of the front panel or make filter access difficult. In this configuration, the unit remains sufficiently extended and accessible to allow the front grille to be opened, subject to the model’s exact mechanism.
When two heating systems are present in the same room, we also recommend coordinating their setpoints. A baseboard heater set too high could operate at the same time as the PTAC and unnecessarily increase electricity consumption.
The visible electrical connection on the right side
The electrical connection is located near the right side of the unit. For a GENERAL ELECTRIC Zoneline PTAC, electrical requirements vary according to the voltage, capacity, and output of the integrated electric heater.
We must always rely on the nameplate and the model documentation to determine:
- the required voltage;
- the minimum circuit ampacity;
- the maximum permitted protection;
- the type of outlet or connection;
- the conductor gauge;
- the need for a dedicated circuit.
A PTAC must never be powered by a household extension cord. The outlet, plug, circuit breaker, and wiring must match the unit’s specifications.
Before commissioning, we also check that the cord is not compressed behind the front panel or exposed to a hot component. In a compact installation like this, organizing the connection contributes as much to safety as it does to the project’s visual quality.
The curtain must remain clear of the grille
The curtain to the right of the window hangs down near the PTAC. This is a simple but important detail for day-to-day operation.
When a curtain partially covers the return grille or air outlet, several problems may occur:
- reduced airflow;
- immediate recirculation of discharged air;
- inaccurate temperature readings;
- longer cycles;
- increased noise;
- less even cooling or heating;
- accelerated filter fouling.
We recommend keeping the fabric completely clear of the front of the unit whenever it is operating. A curtain stop, wall tieback, or adjustment to the length may be enough to maintain the necessary clearance.
The same rule applies to furniture, armchairs, tables, and decorative objects. The front of a PTAC must remain open so air can circulate throughout the room.
What this Massueville installation teaches homeowners and building managers
An existing sleeve is not automatically compatible
Replacing an older PTAC may sometimes seem as simple as removing the unit and sliding in a new one. In reality, sleeve dimensions, attachment locations, drainage, and the outdoor grille can vary by equipment brand and generation.
Before recommending a GENERAL ELECTRIC Zoneline, we check:
- the interior dimensions of the sleeve;
- its structural condition;
- the presence of corrosion;
- the condition of the seals;
- the compatibility of the exterior grille;
- the total wall depth;
- the existing electrical connection;
- the clearances around the front panel.
Reusing an unsuitable sleeve can cause vibrations, air infiltration, poor water drainage, or reduced performance.
The seal around the unit directly affects comfort
Even a high-performance unit will deliver disappointing results if outdoor air passes freely around the sleeve.
In Massueville, as in Montréal, Laval, Longueuil, on the North Shore and on the South Shore, the system must withstand significant temperature variations. A small opening around the frame can become a source of cold drafts, condensation, or frost.
We pay particular attention to the connections between:
- the sleeve and the structure;
- the sleeve and the interior finish;
- the exterior grille and the wall;
- the bottom of the opening and the protective membrane;
- the corners of the trim.
Insulating foam and sealant must be used in the appropriate places without blocking the unit’s drainage paths or service openings.
A complete startup prevents many service calls
After installation, we do more than simply turn on the PTAC. A methodical startup includes, among other things:
- checking the controls;
- testing the fan;
- confirming airflow;
- testing cooling mode;
- testing the heating when the model has this feature;
- listening for abnormal vibrations;
- checking stability;
- checking the drainage;
- verification of shutdown and restart;
- explaining the maintenance to the owner.
We also check that the front panel is properly secured. A grille that is not properly latched can vibrate, produce intermittent noises, or allow unfiltered air to pass through.
Recommended maintenance to maintain good airflow
The front filter is one of the most important components to maintain. In a room occupied daily, we recommend regular inspection, particularly during periods of heavy use.
A clogged filter can reduce airflow and increase cycle times. It can also contribute to coil icing in cooling mode.
Routine maintenance includes:
- cleaning or replacing the filter according to GENERAL ELECTRIC instructions;
- dusting the return grille;
- cleaning the supply louvers;
- inspecting the seals around the sleeve;
- checking that there is no water beneath the unit;
- clearance around the outdoor grille;
- a professional coil inspection when necessary.
Outside, leaves, dust, and debris must not obstruct the heat exchanger. In an environment surrounded by trees like the one visible near this installation, a seasonal inspection is particularly advisable.
The most common mistakes to avoid
Choosing capacity based solely on floor area
Floor area is a starting point, but it does not account for the large window, solar orientation, insulation, or air infiltration.
Neglecting electrical compatibility
Two PTACs of similar dimensions may require different voltages or protection. Replacement must be validated against the rating plate.
Blocking the front panel with a curtain or piece of furniture
The PTAC must draw in and distribute air freely. An obstruction in front of the front panel directly reduces its efficiency.
Installing the sleeve without controlling water
An opening that is improperly sealed or oriented can damage the wall and floor.
Promising a rebate without verifying the exact model
Eligibility for financial assistance should never be assumed. It depends on the program in effect, the type of equipment, the complete model number, the applicable certification, and the building’s conditions. For this GENERAL ELECTRIC Zoneline in Massueville, no specific eligibility can be confirmed from the photograph alone.
A compact installation that respects the room’s architecture
This project clearly demonstrates the value of an HVAC installation adapted to the building rather than an imposed solution that does not take the space into account.
The GENERAL ELECTRIC Zoneline fits beneath the large window without blocking the view or taking up an additional wall. The front panel remains accessible, the controls are easy to use, and the interior finish follows the lines of the existing frame.
The quality of a PTAC installation depends on details that are barely visible once the work is complete: sleeve support, insulation, slope, drainage, electrical connection, and clearance around the grilles. These elements are precisely what ensure reliable operation, more consistent comfort, and better protection for the building.
