Installation of a TRANE ProSpace PTAC under a window in Marieville, Montérégie

A compact integration where airflow and maintenance access matter as much as the unit's capacity

In Marieville, we installed a TRANE ProSpace PTAC in a wall opening located directly beneath a window. This configuration makes it possible to regulate the room temperature locally while keeping the upper walls clear and avoiding the addition of a ventilation duct network.

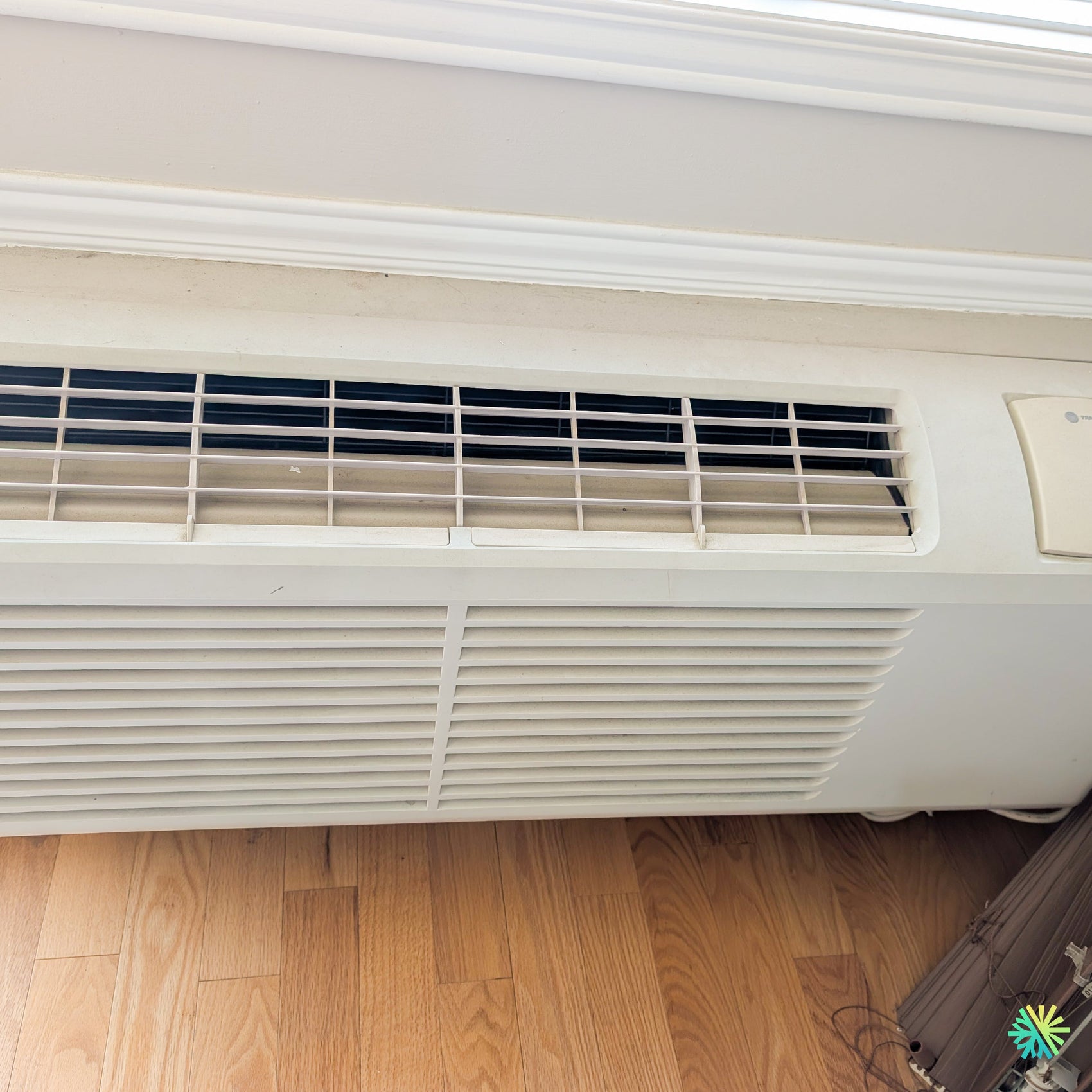

The photograph shows the unit in its final position, very close to the wood floor and beneath an interior finish with several moldings. The TRANE ProSpace front occupies almost the entire width of the available opening. The return-air grille is located in the lower section, while the long supply-air outlet is positioned above it. The control panel is integrated into the right end.

This arrangement may appear simple, but it requires several precise checks. The PTAC must be properly supported by its sleeve, sufficiently sealed around the wall, free of any obstruction, and accessible for future HVAC maintenance. The upper grille must also direct air into the room without blowing directly against the window sill or a curtain.

For this PTAC installation in Marieville, we therefore gave as much importance to airflow as to the mechanical positioning of the unit.

Why a TRANE ProSpace PTAC was suitable for this location

A PTAC is a self-contained terminal unit installed through an exterior wall. It houses the main components required for air conditioning and, depending on the selected version, heating in a single cabinet.

Unlike a ductless wall-mounted heat pump, it does not require a separate outdoor unit connected to an indoor head by refrigerant lines. The rear section of the PTAC communicates directly with the outdoors, while the front remains in the room.

This design offers several advantages in a building that already has a suitable opening:

• no visible refrigerant lines inside;
• independent room control;
• front access to the filters and controls;
• possible replacement without installing a duct network;
• efficient use of the space beneath the window;
• maintenance performed from indoors in many situations;
• reduction in the number of components installed on exterior walls.

In Marieville, the upper space was occupied by a large window and interior trim. The low installation preserved the existing layout while placing the air distribution near the room’s main glazed surface.

The window’s role in room comfort

A window can become a significant source of heat in summer and an area of heat loss in winter. Even with modern glazing, the temperature felt near the window may differ from that measured in the center of the room.

Installing the TRANE ProSpace beneath the window allows the air to be conditioned near this area. In cooling mode, cool air can more quickly reduce the effect of solar radiation. In heating mode, when the model has this function, the discharged air helps limit the sensation of cold near the glazing.

However, this position does not replace proper sizing. The PTAC capacity must be determined by considering several factors:

• room area;
• ceiling height;
• window dimensions and orientation;
• window glazing quality;
• wall insulation level;
• air infiltration;
• sun exposure;
• number of occupants;
• residential, rental, or commercial use;
• heat released by the appliances present in the room.

The width of the front panel does not indicate the capacity in BTUs. Several PTACs with similar dimensions may have different capacities, voltages, and heating configurations.

Capacity, efficiency, and model number

The photograph identifies the TRANE brand and the ProSpace line, but it does not clearly show the complete nameplate. We therefore avoid assigning the unit a specific capacity, energy efficiency rating, or heating output that cannot be visually confirmed.

To properly document an installation, we record in particular:

• the model number;
• the serial number;
• the rated cooling capacity;
• the heating capacity, where applicable;
• the electrical voltage;
• the rated consumption;
• the maximum circuit protection;
• the refrigerant type;
• the performance data published by the manufacturer.

This information helps verify that the PTAC actually meets the building’s needs. It is also essential when an owner wants to compare consumption, order a part, or plan a future replacement.

Why a larger unit is not necessarily better

An oversized PTAC can cool the room quickly and then shut off after a very short cycle. The temperature drops, but the unit may not run long enough to remove moisture from the air effectively.

The result may be a cool room that is uncomfortably humid.

An undersized unit presents the opposite problem. It may run almost continuously on hot days without reaching the requested temperature.

Proper sizing makes it possible to achieve:

• more stable cycles;
• better dehumidification;
• more uniform temperature;
• better-controlled energy consumption;
• fewer compressor starts;
• generally quieter operation.

A supply-air grille that must remain completely unobstructed

The long upper grille visible in the photograph is the main air outlet of the TRANE ProSpace. Its fins direct air forward and slightly upward to promote distribution throughout the room.

This area must never be covered by:

• a curtain;
• a blind;
• a shelf;
• decorative objects;
• laundry;
• a cover;
• a piece of furniture placed too close.

When an obstacle is in front of the grille, air can quickly return to the unit without circulating throughout the room. This recirculation can sometimes distort the temperature reading and cause irregular cycles.

The control panel on the right must also remain accessible. The occupant must be able to adjust the setpoint and mode without moving the unit or removing the front panel.

The condition of the fins and the importance of cleaning

The close-up photograph shows the supply-air grille and louvers in detail. A slight accumulation of dust is visible on some interior surfaces and on the front panel.

This is a common occurrence in a unit that continuously moves air around the room. Dust gradually settles on:

• the grilles;
• the louvers;
• the filter;
• the indoor coil;
• the surfaces around the supply-air outlet.

Periodic cleaning helps preserve the airflow and the appearance of the unit. It also prevents accumulated dust from being recirculated each time the fan starts.

The louvers must be cleaned without forcing them. Excessive pressure can deform them or damage their direction-control mechanism.

The lower front panel and return air

The large lower grille serves as the return-air opening. Room air is drawn in through this section, passes through the filter and heat exchanger, and is then redistributed through the upper section.

For this reason, the area in front of the PTAC must remain clear. An armchair, bed, box, or curtain placed too close could considerably reduce the volume of air drawn in.

Insufficient airflow can lead to:

• reduced capacity;
• increased noise;
• longer cycles;
• higher energy consumption;
• frost on the coil in cooling mode;
• overheating of certain components in heating mode;
• premature fan wear.

In this installation in Marieville, the floor in front of the unit remains clear, which promotes air intake and makes it easier to remove the front panel for maintenance.

The wall sleeve: the hidden structure behind the installation

The PTAC rests in a metal sleeve that passes through the wall. Although this component is almost invisible once the unit is installed, it serves several essential functions.

The sleeve must:

• support the weight of the TRANE ProSpace;
• keep the unit in the correct position;
• protect the wall opening;
• direct water outdoors;
• limit air infiltration;
• maintain the exterior grille;
• reduce vibrations transmitted to the building.

When replacing a PTAC, we never assume that an existing sleeve is automatically compatible. We check its dimensions, depth, condition, and the shape of the exterior grille.

A unit inserted into an unsuitable sleeve may recirculate discharged air, drain condensate improperly, or vibrate against the frame.

Sealing around the unit

The space around the sleeve and wall must be properly insulated and sealed. The seals must limit the entry of:

• cold air;
• hot, humid air;
• water;
• dust;
• outdoor odors;
• small insects.

The upper junction deserves particular attention when the PTAC is installed directly beneath a window. Water infiltration from the window frame could run down to the sleeve and damage the interior finish.

We therefore inspect the relationship between the sill, trim, sleeve, and wall before considering the HVAC installation complete.

Condensate management

In cooling mode, the indoor coil removes moisture from the air. This moisture turns into water and must be directed toward the base of the unit.

The PTAC must be positioned according to the manufacturer’s requirements. An incorrect tilt can cause water to flow indoors.

In a room with a wood floor like the one shown in the photo, a drainage problem can quickly cause:

• stains;
• swollen wood;
• deteriorated seals;
• musty odors;
• damage to the bottom of the wall;
• corrosion in the sleeve.

We therefore check for debris in the water passages and confirm that the unit is positioned correctly before commissioning.

The electrical connection must be verified on the nameplate.

The electrical requirements of a TRANE ProSpace vary according to its capacity and heating configuration.

Two units with nearly identical front panels may require:

• different voltages;
• different outlets;
• circuits with different capacities;
• separate electrical protection;
• different heating capacities.

We always confirm the information on the nameplate before connecting the unit. The PTAC must be powered by a compatible, properly grounded circuit.

Extension cords, power strips, and improvised adapters must not be used to power this type of equipment.

Commissioning, maintenance, and mistakes to avoid after installation

Checks performed before returning the unit

Once the TRANE ProSpace is installed in its sleeve, we perform several tests to confirm that the unit is functioning properly.

Fan check

We test the different available speeds and listen for noises that could indicate friction or vibration.

The airflow should be uniform across the entire length of the grille.

Cooling test

We confirm that the compressor starts, then observe the gradual decrease in the temperature of the discharged air.

We also check that the unit does not produce excessive vibration against the wall or sleeve.

Heating test

When the model includes a heating function, it is tested separately. The type of heating may vary depending on the unit’s exact configuration.

Control check

The buttons and display should respond normally. We check the settings, modes, and whether the unit restarts after being turned off.

Drainage inspection

We ensure that no water flows back inside and that the sleeve follows the prescribed orientation.

Recommended TRANE ProSpace maintenance

The filter should be inspected regularly. The frequency depends on the environment and how the unit is used.

A room that is occupied daily, the presence of pets, or nearby construction work can accelerate the buildup of dirt.

We generally recommend:

• check the filter during periods of intensive use;
• clean the return grille with a soft-brush vacuum attachment;
• wipe the supply louvers;
• keep the space in front of the unit clear;
• watch for any signs of water;
• inspect the outdoor grille after fall;
• schedule professional HVAC maintenance if the coil is dirty.

Always follow the manufacturer’s instructions before washing or removing a filter.

Commonly observed errors

Fully closing the supply louvers

Excessive restriction reduces airflow and can create noise. The louvers should direct the air, not block the outlet.

Placing furniture in front of the front panel

The lower air return must remain unobstructed across its entire width.

Neglecting visible dust

A buildup on the grille may indicate that the filter and heat exchanger also need to be inspected.

Reusing a sleeve without verifying its compatibility

The exterior dimensions of an old unit do not guarantee that the new PTAC will fit properly.

Using the wrong electrical supply

The outlet and circuit breaker must match the model’s nameplate.

Assuming that a grant is available

Eligibility for financial assistance depends on the appliance category, model number, certifications, and current criteria. A TRANE ProSpace PTAC is not automatically eligible for a grant simply because it provides heating and cooling.

An installation adapted to the realities of Marieville

This project shows that a successful PTAC installation involves more than placing a unit in a wall. We must consider the window, sleeve, finish, floor, drainage, electrical circuit, and airflow.

In Marieville, the TRANE ProSpace was installed in a low opening that preserves the upper wall space while providing direct access to the controls and filters.

We apply the same rigor to our PTAC, heat pump, and air conditioning projects in Montréal, Laval, Longueuil, the North Shore, and the South Shore. Every building has its own constraints, and every unit must be selected based on the room rather than its exterior dimensions alone.

A good HVAC installation should make the occupant’s life easier: stable temperature, accessible controls, unrestricted airflow, and simple maintenance. These details, often inconspicuous in the final photo, determine the system’s long-term reliability.
