Installation of a TRANE PROSPACE PTAC under a window in a bedroom in Saint-Valérien-de-Milton

A methodical intervention in a confined space, with complete room protection and direct access to the internal components

At Saint-Valérien-de-Milton, we installed and commissioned a TRANE PROSPACE PTAC in a bedroom where the equipment had to be integrated directly beneath a large black-framed sliding window. The location made it possible to cool the room without installing a wall-mounted unit near the ceiling or adding a separate outdoor condenser, but it imposed several technical constraints: a wall opening very close to the window frame, limited workspace near the bed, and dense vegetation behind the exterior façade.

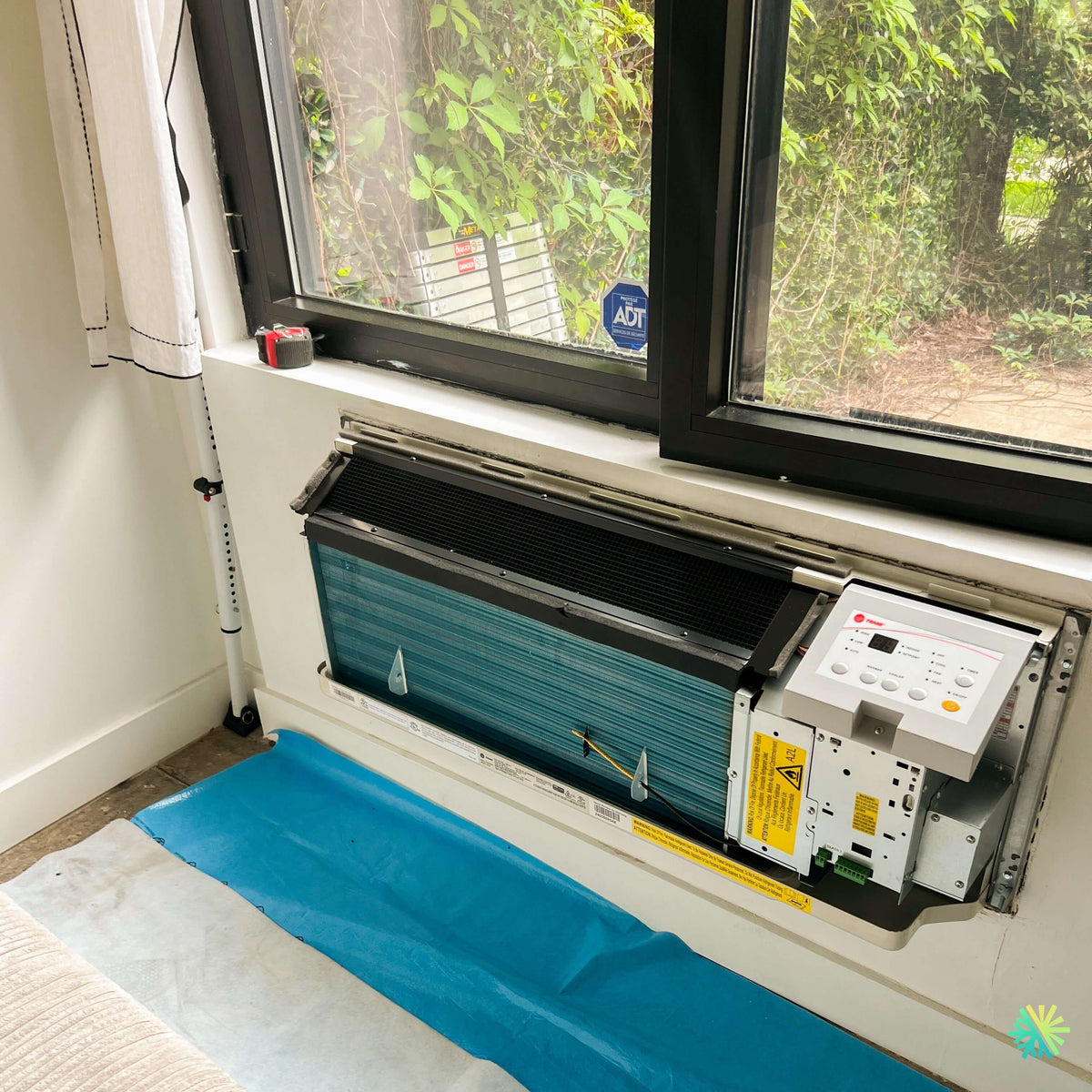

The photograph taken during our work shows the PTAC before its front panel was put back in place. The large blue coil is fully visible, as are the upper grille, sensors, internal connections, and the TRANE control module on the right side. This step is essential because it allows us to check the condition of the unit, the position of the components, and the quality of the installation before closing the front panel.

We also carefully protected the area in front of the system. The blue tarp and white protection visible in the photo prevented dust, small metal pieces, and debris from the wall opening from reaching the floor or furniture. In a bedroom, this precaution is particularly important: the work area is often only a few centimeters from the bed, curtains, and personal belongings.

Why the TRANE PROSPACE PTAC was suitable for this configuration

A PTAC, or packaged terminal air conditioner, is designed to pass through an exterior wall. Unlike a split heat pump, its main components are housed in a single chassis:

• compressor;
• indoor coil;
• outdoor coil;
• fans;
• filter;
• condensate drain pan;
• sensors;
• electronic controls;
• electric heating or the heat pump function, depending on the model.

Air from the room enters through the front panel, passes through the filter and indoor coil, then exits through the upper grille. At the back of the chassis, a second section exchanges heat with the outdoor air.

For this installation in Saint-Valérien-de-Milton, this design made it possible to keep a compact system beneath the window. No ductwork was required, and no pipe cover had to be installed on the interior wall.

The TRANE PROSPACE series was offered in several capacities and configurations, including air-conditioning models with electric heat and heat-pump models. TRANE’s product documentation lists nominal categories of 7,000, 9,000, 12,000, and 15,000 BTU, 208/230- or 265-volt power supplies, and a standard chassis approximately 42 inches wide by 16 inches high. However, the complete reference shown on the nameplate remains essential for confirming the exact specifications of the installed unit.

A wall opening located immediately below the window

One of the main challenges of this project came from the proximity between the PTAC and the lower window frame. The wall sleeve was located almost directly beneath the sill, leaving little room to adjust the chassis and its front panel.

An installation that was too high could have caused several problems:

• contact between the front panel and the window sill;
• difficulty removing the front panel;
• partial obstruction of the upper discharge;
• transmission of vibrations to the framing;
• recirculation of conditioned air toward the unit;
• noise caused by movement of the frame or trim.

We therefore checked the position of the chassis before finalizing its anchoring. The system had to remain stable, while also being removable for future HVAC maintenance.

Preserving access to the sliding window

The window above the PTAC has sliding panels and a thick frame. Its operation had to be preserved without the new unit interfering with the movement of the movable sections.

We paid attention to the clearance required to:

• open the window;
• clean the lower track;
• inspect the seals;
• remove the screens or panels;
• access the top of the PTAC;
• clean the area between the chassis and the sill.

This coordination between the window and the HVAC system prevents routine building maintenance from becoming unnecessarily complex.

Protecting the bed, floor, and traffic area

The PTAC was located immediately next to the bed. We therefore could not work as we would in an empty room or mechanical space.

Before opening the unit, we established a protected area in front of the wall. This protection served to collect:

• dust from the sleeve;
• caulking debris;
• screws removed from the front panel;
• particles accumulated in the former location;
• residue that may come loose from the coil or filter;
• water marks that may appear while checking the drainage.

This step may seem secondary, but it is part of a professional installation. Work on a PTAC often requires partially or completely removing the chassis from its sleeve. Without protection, the weight of the unit and the sharp metal edges can damage a floor, piece of furniture, or fabric.

Inspection of the indoor coil before closing

The large blue heat exchanger visible in the photo is the indoor coil. Room air passes through its fine fins before being cooled or heated.

We inspected several specific points.

The condition of the fins

The fins must be straight enough to allow air to circulate evenly. A small, slightly deformed area does not necessarily prevent the unit from operating, but a heavily crushed surface can reduce airflow and cause uneven temperature distribution.

We check in particular:

• the absence of obstructions;
• the general condition of the fins;
• the presence of dust or residue;
• traces of oil that could indicate a leak;
• corrosion marks;
• the condition of the fasteners and supports.

The sensor position

A sensor is visible in front of the coil. Its location is not random: it must measure a representative temperature and remain securely attached.

A displaced sensor can cause:

• cycles that are too short;
• prolonged operation;
• an ambient temperature different from the setpoint;
• protective shutdowns;
• an improper transition between modes.

Before reinstalling the front panel, we check that the wire is not pinched and that the sensor is not touching a component that could distort its reading.

The complete airflow path

The black upper section visible above the coil is an important part of the airflow path. The front panel and seals must direct air through the heat exchanger rather than allowing it to bypass it.

Improper assembly of the front panel can create an internal leak. The unit continues to operate, but some of the air no longer passes properly through the filter or coil.

The accessible TRANE control compartment on the right side

The photo clearly shows the control panel of the TRANE PROSPACE, temporarily cleared to allow inspection of the components behind it.

We check the following here:

• module mounting;
• the condition of the connectors;
• wire routing;
• grounding;
• the security of the terminals;
• the presence of pinched wires;
• button response;
• the digital display;
• connections intended for external controls, when used.

The panel includes temperature and mode controls that are directly accessible from the room. Depending on the building configuration, some PTACs can also be connected to a wall thermostat or a centralized management system.

A power supply that must match the exact chassis

A PTAC must never be connected based solely on the shape of the available outlet. The voltage, circuit breaker, power cord, and electric heating capacity must match the data on the nameplate.

Depending on the TRANE PROSPACE version, the circuit may be designed for a different power supply and for electric heating of varying capacity. The product-line documentation mentions several cord and heating assemblies, confirming that units with the same physical format can have very different electrical requirements.

During our intervention, we inspect in particular:

1. the available voltage;
2. the circuit breaker capacity;
3. the conductor gauge;
4. the presence of a functional ground connection;
5. the type of connection;
6. the maximum permitted current;
7. the heating element’s compatibility;
8. the absence of overheating at the terminals.

An A2L label visible on the unit

The yellow label located near the electrical compartment indicates a classification A2L. This designation is important for technicians because it indicates the use of a refrigerant with limited flammability that requires appropriate procedures.

The photograph does not allow us to determine with certainty the exact type of refrigerant or its charge. We therefore avoid identifying it based on the label’s color or the appearance of the chassis. This information must always be confirmed on the rating plate.

For work on the refrigeration circuit, it is particularly necessary to:

• eliminate potential ignition sources;
• work with compatible tools;
• ensure adequate ventilation;
• perform appropriate leak detection;
• observe the specified charge;
• follow the manufacturer’s instructions;
• never drill into or heat the circuit without preparation.

For the occupant, the circuit normally remains sealed. The label is primarily an instruction for professionals responsible for installation, repair, or refrigerant recovery.

Inspection of the sleeve and exterior grille

The PTAC chassis is inserted into a sleeve that passes through the wall. Even if the new unit matches the opening’s overall dimensions, we must inspect this structure before finalizing the installation.

Mechanical condition of the sleeve

We inspect:

• interior dimensions;
• alignment;
• the presence of corrosion;
• the strength of the anchors;
• deformations;
• the slope;
• the perimeter seals;
• compatibility with the rear grille.

A slightly bent sleeve can put pressure on the chassis. This stress can cause vibration noise or make it difficult to reinstall the front panel.

The vegetation visible outside

The window overlooks an area with abundant vegetation. The proximity of leaves and branches requires particular attention on the exterior side.

The rear grille of the PTAC must remain unobstructed so the unit can draw in and exhaust air without restriction. An accumulation of leaves, dust, pollen, or vegetation can reduce heat transfer.

We therefore recommend keeping the area around the outdoor outlet clean and regularly checking for:

• leaves stuck to the grille;
• branches touching the sleeve;
• insects and their nests;
• accumulated pollen;
• debris after a storm;
• the growth of climbing plants.

This recommendation is particularly relevant in Saint-Valérien-de-Milton, where buildings may be surrounded by gardens, shrubs, and trees closer to the facades than in densely urban areas.

Drainage management and protection against infiltration

In cooling mode, moisture in the air condenses on the indoor coil. The water must be collected and directed to the designated section of the PTAC.

We checked:

• the cleanliness of the pan;
• the absence of obstructions;
• the slope of the chassis toward the outside;
• water entry points;
• the condition of the seals;
• traces of moisture around the sleeve;
• the junction between the window and the wall opening.

The window’s proximity makes this inspection even more important. Rainwater infiltration from the window frame can be mistaken for a condensate problem. Conversely, a leak from the PTAC can dampen the bottom of the wall and make it seem that the window is the cause.

Our approach is to distinguish between the two possible sources before applying new sealant.

Commissioning the TRANE PROSPACE and advice for maintaining its performance

Tests performed before reinstalling the front panel

Once the mechanical and electrical installation has been verified, we carry out a complete commissioning.

We check the following in sequence:

1. display power;
2. control response;
3. the different fan speeds;
4. compressor startup;
5. cooling operation;
6. heating, depending on the configuration;
7. cycle stability;
8. the vibration level;
9. the temperature of the discharged air;
10. sensor operation;
11. stopping at the setpoint;
12. the final repositioning of the front panel.

We also listen to the unit at several points. A noise may be absent when only the fan is running, then appear when the compressor starts. It may come from the chassis, the sleeve, a poorly secured grille, or a panel touching the window.

An airflow rate suited to a bedroom

In a bedroom, the direction of the airflow directly affects comfort. A stream of cold air directed toward the bed can become unpleasant, even when the room’s average temperature is adequate.

The upper grille should therefore distribute air throughout the space without constantly blowing on the occupant. We check its orientation and explain how to adjust the setpoint without creating excessive cycles.

A temperature that is too low does not necessarily cool the room more quickly. It may simply prolong compressor operation and create a very cold area near the unit.

Filter and coil maintenance

The filter should be inspected regularly. In a room surrounded by vegetation, pollen can accelerate filter clogging during certain times of the year.

A clogged filter can cause:

• reduced airflow;
• increased noise;
• higher energy consumption;
• less effective dehumidification;
• a frozen coil;
• prolonged cycles;
• premature fan wear.

The filter must be reinstalled in the correct direction and only when it is completely dry.

Professional HVAC maintenance also makes it possible to check the fans, outdoor coil, drainage, sensors, connections, and sleeve seal.

Do not block the front panel with furniture or curtains

The bed and textiles must remain far enough away from the unit. The return grille must not be covered by a blanket, cushion, or piece of furniture.

The curtain visible on the left side must also remain clear of the upper air outlet. Fabric drawn toward the front panel can restrict airflow and quickly accumulate dust on the filter.

Rebate eligibility: verify before making promises

A PTAC equipped with a heating mode is not automatically eligible for programs intended for residential heat pumps. The criteria may depend on the model number, certification, capacity, building type, and the official list of recognized equipment.

At AirGreen, we always verify the complete reference before confirming financial assistance. We do not rely solely on the brand, the presence of a heat pump function, or the stated BTU rating.

The result of our work in Saint-Valérien-de-Milton

This TRANE PROSPACE PTAC installation in Saint-Valérien-de-Milton required particular attention to the opening beneath the window, bedroom protection, outdoor vegetation, and access to the control compartment.

Temporarily removing the front panel allowed us to directly inspect the coil, sensor, connections, drainage, and safety controls before final closure. This method reduces the risk of having to reopen the unit after commissioning and allows us to deliver an installation whose components have genuinely been checked.

We apply the same rigor to our PTAC, heat pump, wall-mounted air conditioner, and central system projects in Montreal, Laval, Longueuil, the North Shore, and the South Shore. Every building presents its own challenges: low windows, thick walls, old sleeves, nearby furniture, or limited outdoor access. Our job is to integrate the equipment into this environment without compromising performance, future maintenance, or the interior finish.
