Installation of a GREE FLEXX Electric Air Handler Furnace in Senneville – R32 Central Ducted System Installed Horizontally in a Tight Space

A precise HVAC project in a demanding horizontal configuration

This installation of a GREE FLEXX Air Handler electric furnace in Senneville highlights a type of project that requires true mastery of central systems: integrating a ducted air handler in a very limited technical space, connecting to existing ducts, routing refrigerant lines, managing condensation drainage, and respecting the clearances needed for future maintenance.

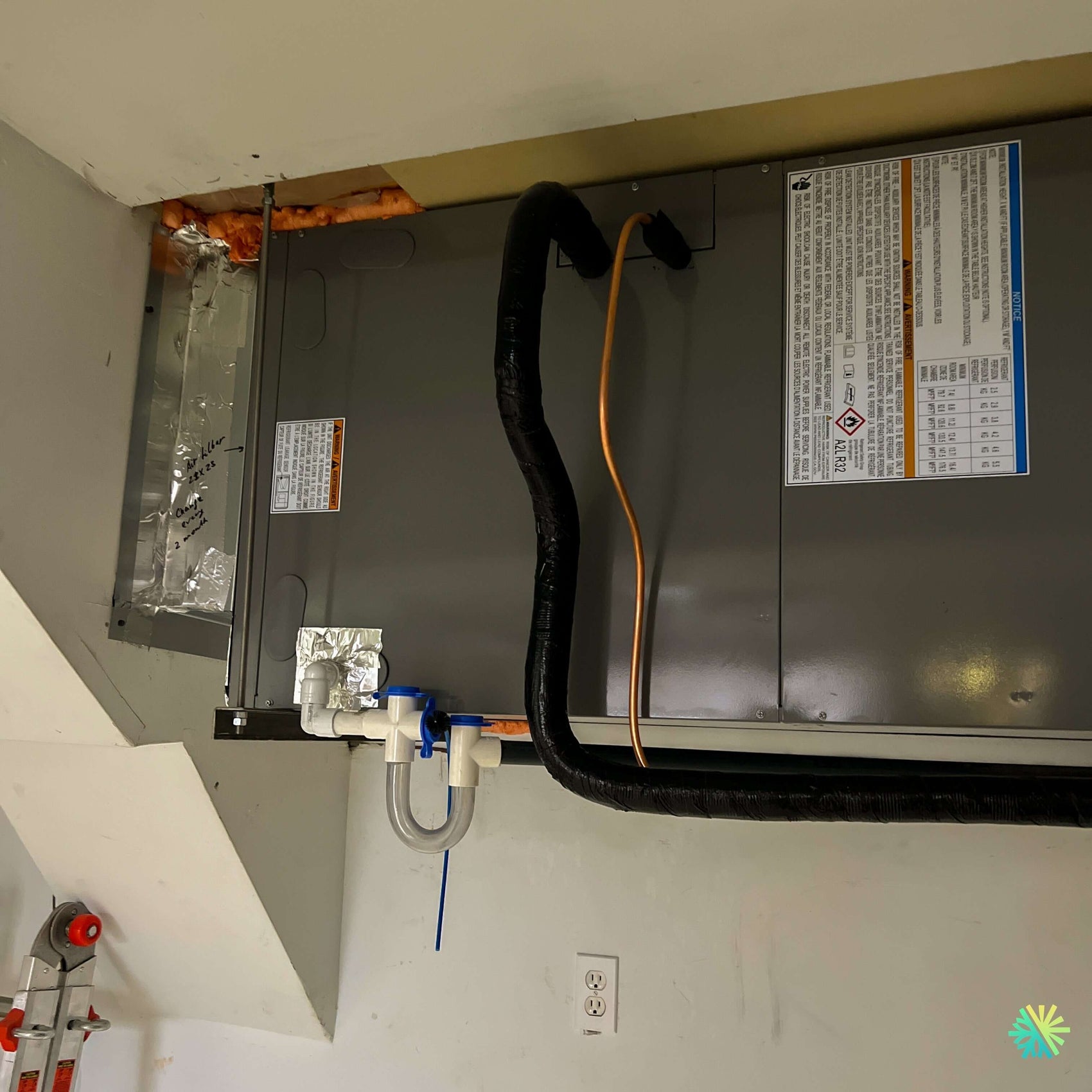

In the photo, you can see a GREE FLEXX unit installed horizontally near the ceiling, in an area where every element had to be carefully planned. The metal duct on the left, the black insulated lines, the exposed copper line, the drain with a clear trap, the openings in the soffit, and the tight space around the unit clearly show that this installation was not a simple equipment replacement. It was a complete technical adaptation designed to provide reliable central comfort while respecting the building’s constraints.

In Senneville, residences often have varied configurations: older renovated houses, extensions, non-standard mechanical spaces, partially finished ceilings, ducts installed in compact areas. At AirGreen, we approach each HVAC installation as a custom project, especially when it involves an electric furnace, an air handler, or a central system paired with a heat pump.

Why a GREE FLEXX Air Handler was suitable for this residence

The choice of a GREE FLEXX Air Handler was relevant for this client because the residence had ducted air distribution. Unlike a wall-mounted heat pump or a wall-mounted air conditioner, a central system allows air to be treated from a single indoor unit and then distributed to multiple rooms. This approach is especially appreciated by homeowners who want to maintain a discreet appearance in living spaces, without visible wall units.

The GREE FLEXX series is often chosen for residential projects where flexibility of installation, central comfort, and compatibility with modern configurations using the refrigerant R32 are desired. Depending on the exact combination of the indoor unit, outdoor unit, and selected capacity, the system can meet various heating and cooling needs.

In this project, the main challenge was not just choosing the device but integrating it properly into the existing environment. A horizontally installed unit must be perfectly supported, aligned with the ducts, accessible for service, and connected in a way that ensures stable drainage. An incorrect level, a poorly designed drain, or an overly restrictive duct transition can harm performance, comfort, and durability.

A horizontal installation: more complex than it seems

The horizontal installation of an air handler requires special attention. In a vertical installation, condensation water often follows a more direct path to the drain. In a horizontal position, managing the slope, trap, and drainage becomes even more important.

In this installation in Senneville, the drain visible with a transparent trap shows the care taken in draining condensation. This part of the work is essential. In air conditioning, the indoor unit removes moisture from the air. This water must be drained reliably, without backflow, leaks, or odor. A well-installed trap helps stabilize the drainage, especially when the device is connected to a central network where air pressures can influence the drain's behavior.

Our technicians had to take several points into account:

• the actual level of the unit;
• the available slope for the drain;
• access to the trap for inspection and cleaning;
• the passage of refrigerant lines;
• the insulation of pipes to limit condensation;
• the connection to the existing duct on the left;
• the protection of openings around the device;
• the possibility to perform HVAC maintenance without unnecessarily dismantling the environment.

This type of detail is often invisible once the installation is complete, but it makes a big difference in system reliability.

Refrigerant lines and R32: execution that must be rigorous

The photo shows a black insulated line as well as an exposed copper line. In a modern central system like the GREE FLEXX, these connections are critical. The refrigerant R32, used in several recent devices, requires strict adherence to the manufacturer's instructions, connection procedures, and safety practices specific to current systems.

The labels visible on the device also remind of the importance of compliance. Systems using next-generation refrigerants must be installed by qualified technicians, with the right tools and a full understanding of installation requirements. At AirGreen, we never treat these connections as a formality. Every connection must be checked, every line must be protected, and the whole system must be commissioned according to a rigorous method.

The exact capacity in BTU, the SEER2, EER2, and HSPF2 ratings, as well as eligibility for certain subsidies depend on the complete installed combination, including the outdoor unit and the corresponding AHRI number. In a GREE FLEXX project, this validation is always carried out based on the relevant technical documents to avoid approximations.

A central integration designed for performance and maintenance

A good central installation is not judged only at system startup. It must also remain practical to maintain, stable in operation, and adapted to the home over several years. In this project in Senneville, the elevated location made this consideration even more important.

Duct connection: preserving airflow

The visible metal duct on the left indicates that the device has been connected to an existing network or adapted on site. In a central system, airflow is a determining factor. If the ducts are poorly sized, poorly sealed, or too restrictive, even a quality piece of equipment can produce uneven comfort.

A GREE FLEXX air handler must operate with an acceptable static pressure. This means air must be able to circulate without excessive obstruction. Transitions between the unit and the ducts must therefore be carefully designed. Too many sharp angles, poorly adjusted openings, or air leaks can cause:

• a drop in efficiency;
• more noise in the ducts;
• less uniform comfort;
• excessive fan strain;
• reduced heating or cooling performance.

At AirGreen, we pay special attention to the complete network. An electric furnace or an air handler is never evaluated alone: it is part of a system that includes ducts, registers, air return, thermostat, outdoor unit, and the actual needs of the residence.

A confined space that required a clean working method

The image shows an installation carried out in a tight space, with a low ceiling, a partially finished opening, and a ladder nearby. This kind of environment requires an organized working method. Technicians must handle the device, adjust the ducts, make connections, and check components without damaging existing surfaces.

In a project like this, preparation is as important as the installation itself. Before securing the device, it is necessary to confirm:

1. The support structure
   The unit must be installed safely, especially when placed horizontally at height.
2. The direction of blowing and return
   The system must be properly oriented to work with the duct network.
3. The slope of the drain
   Poorly planned drainage can cause water problems, even if the device functions well mechanically.
4. Access to service panels
   Future interventions must remain possible without unnecessary work.
5. Sealing of openings
   Passages around ducts and lines must be treated to limit air infiltration and losses.

This approach allows for a more durable and easier to maintain installation.

The role of the electric furnace in the comfort of a home in Senneville

An electric furnace or a central air handler can play a key role in the comfort of a Quebec home. When combined with a compatible central heat pump, it can provide heated and cooled air distribution through existing ducts. Depending on the setup, the electric elements can also serve as backup during colder periods.

In Senneville, where houses can be exposed to winds and temperature variations depending on their location, sizing is especially important. Poorly chosen capacity can lead to less comfortable operation. An undersized unit will struggle to maintain temperature. An oversized unit may cycle too frequently and reduce dehumidification quality in summer.

That’s why we always analyze the house as a whole: area, insulation, windows, ceiling height, orientation, number of floors, duct condition, and client expectations. The right technical choice is not just a BTU number; it depends on the balance between equipment capacity and the building’s reality.

Grants and eligibility: validation based on the complete combination

Homeowners considering an installation of GREE FLEXX often ask if the system can qualify for financial assistance. The answer depends on the exact model, the paired outdoor unit, capacity, AHRI number, and the criteria in effect at the time of installation.

To avoid unpleasant surprises, AirGreen validates the complete combination before confirming eligibility. This step is important for customers in Montreal, Laval, Longueuil, the North Shore, the South Shore, and sectors of the West Island like Senneville, where many homeowners compare options between central heat pumps, wall systems, and furnace replacements.

Mistakes to avoid with a horizontal air handler

This installation clearly illustrates the most common mistakes we see on similar projects.

The first mistake is neglecting the drain. In a horizontal position, a bad trap, insufficient slope, or poorly placed outlet can cause leaks and system shutdowns.

The second mistake is underestimating the importance of access. Equipment installed too close to an obstacle can complicate HVAC maintenance, part replacement, or annual inspection.

The third mistake is connecting ducts without checking airflow. A central system must breathe properly. The ducts must be compatible with the equipment’s capacity.

The fourth mistake is leaving refrigerant lines poorly insulated or protected. This can cause condensation, efficiency losses, or less durable finishing.

The fifth mistake is choosing equipment without validating the complete combination. In modern systems, the indoor unit, outdoor unit, and control settings must work together.

What this installation demonstrates about the AirGreen approach

This project in Senneville shows the importance of a team familiar with field realities. Installing a GREE FLEXX Air Handler electric furnace in a horizontal position requires more than general knowledge. You need to understand the ducts, drainage slopes, clearances, refrigerant connections, electricity, ventilation, and future maintenance.

At AirGreen, we prioritize clean, logical installations adapted to the building. We don’t just aim to fit the equipment into the available space; we want the system to be functional, accessible, safe, and efficient. This difference is felt in the client’s daily comfort and in the reliability of the installation throughout the seasons.

For owners who want to modernize their central system in Senneville, Montreal, Laval, Longueuil, on the North Shore or the South Shore, this installation reminds us that a successful HVAC project starts with a good assessment. The right equipment matters, but the quality of the connection, drainage, and duct integration matters just as much.
