An HVAC installation on a Montreal roof where stability, technical access, and finish mattered as much as performance
In Ahuntsic-Cartierville, in northern Montreal, our AirGreen team completed a full HVAC installation of a GREE FREE MATCH R32 TripleZone heat pump, configured with 3 zones and 3 indoor heads. This project stands out because of its outdoor location: the GREE unit was installed on a flat gravel-covered roof, in an environment where space is ample but every technical decision must be made methodically.

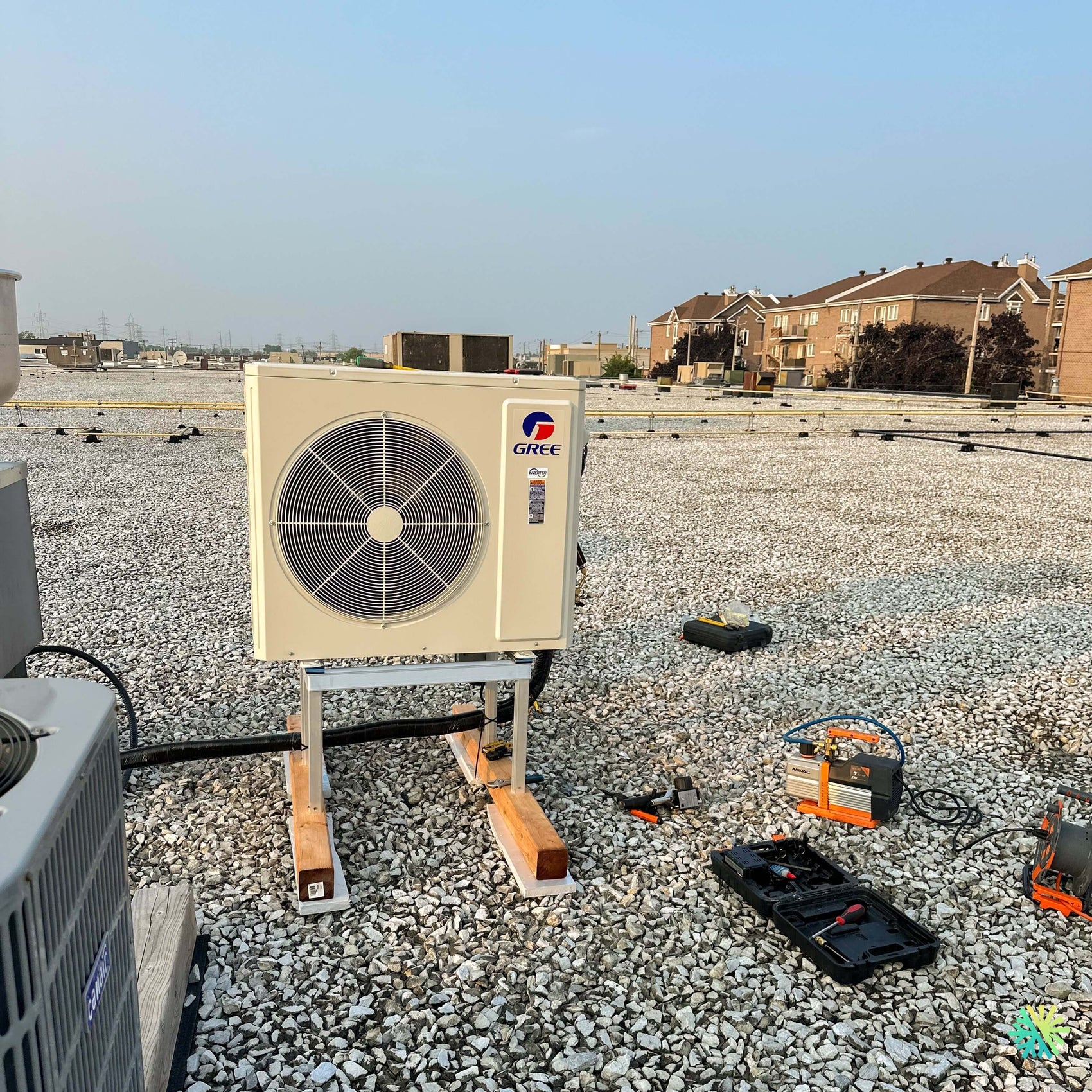

The construction site photo clearly shows the GREE outdoor unit installed on an elevated metal support, with commissioning tools still present around the device: vacuum pump, toolboxes, connection instruments, and verification equipment. This scene illustrates an important stage of the work, where the installation moves from simple mechanical placement to full system validation. For a TripleZone heat pump, this phase is essential, as a single outdoor unit serves three indoor heads distributed across different zones of the building.
In Montreal, and especially in areas like Ahuntsic-Cartierville, flat roofs are common on residential buildings, condos, mixed-use buildings, and some commercial properties. Installing a heat pump on this type of surface requires special expertise: the roof must be protected, the unit properly ventilated, adequate clearances maintained, vibrations limited, future access for HVAC maintenance planned, and refrigerant lines neatly organized.
Why a GREE FREE MATCH R32 TripleZone was the right choice for this building
The choice of a GREE FREE MATCH R32 TripleZone heat pump met a specific need: to treat three distinct spaces with a single outdoor unit. In many buildings in Montreal, indoor zones have different needs. An office may be exposed to the sun for much of the day, a bedroom may require a more stable temperature at night, while a living room or open area may demand different capacity during heat periods.
With a 3 zones – 3 heads configuration, the system allows managing each space separately. This approach is much more flexible than a single device trying to air condition or heat the entire building from one point.
The main benefits for the customer are concrete:
- independent control of each indoor zone;
- a single outdoor unit for three heads, which reduces mechanical clutter on the roof;
- better comfort distribution in rooms used at different times of the day;
- inverter operation that adjusts capacity according to actual demand;
- solution adapted to buildings without central ducts;
- cleaner outdoor integration than with multiple separate condensers.
In a borough like Ahuntsic-Cartierville, where buildings can have very different configurations from one street to another, this flexibility is a significant advantage. It allows customizing comfort without undertaking heavy ductwork.
A flat roof installation: different constraints than a ground installation
Installing an outdoor unit on a flat roof is nothing like installing it on the ground in a backyard. The roof has its own rules. You have to consider the structure, the membrane, the gravel, the drains, the winds, sun exposure, technical access, and distances from other mechanical equipment.
In the photo, the GREE unit is placed on an elevated metal support. This choice is essential for several reasons. It helps keep the device above the gravel level, improves clearance under the unit, facilitates water drainage during defrost cycles, and makes the equipment more accessible for future inspections.
The visible support rests on distribution elements, which helps better distribute the load on the roof during installation. On a flat roof, it is important to avoid unnecessary pressure points and protect the surface under the equipment. A poorly supported installation can create long-term problems, including vibrations, shifts, membrane damage, or maintenance difficulties.
Clearance around the unit: a key factor for performance
The front of the GREE outdoor unit features a large ventilation grille. This fan must be able to expel air freely. On a roof, space often seems abundant, but it is still necessary to consider other equipment, parapets, ducts, drains, obstacles, and neighboring devices.
In this installation in Ahuntsic-Cartierville, the unit was positioned to maintain good front and side clearance. This point is essential to maintain the system’s performance. A poorly ventilated outdoor unit can lose efficiency, produce more noise, work harder, and reduce the lifespan of certain components.
This is especially important for a TripleZone heat pump, as the outdoor unit must meet the demands of three indoor units. When two or three zones call on the system simultaneously, the device must be able to operate without obstruction.
GREE FREE MATCH R32: a multi-zone platform suited for urban projects
The GREE FREE MATCH R32 system is designed for installations where multiple indoor units are connected to a single outdoor unit. This flexibility is very useful in urban environments, especially in Montreal, Laval, Longueuil, on the North Shore and the South Shore, where buildings do not always allow the installation of multiple outdoor units.
The refrigerant R32 is part of the current technologies used in several modern heat pump and wall air conditioner systems. It allows manufacturers to offer efficient devices while aligning with the evolving standards of the HVAC market.
The inverter technology, visible on the unit’s label, also plays an important role. It allows the system to modulate its capacity instead of only operating on an on-off basis. For occupants, this results in a more stable temperature, fewer sudden variations, and better adaptation to the actual needs of the rooms.
Capacity and BTU: a multi-zone configuration that must be validated precisely
In a 3 zones – 3 heads installation, the BTU capacity must never be chosen approximately. Each zone must be evaluated separately, then the complete combination validated. A head installed in a small bedroom does not have the same needs as a head serving an open area or a very sunny office.
For this project in Ahuntsic-Cartierville, the GREE configuration was selected according to the building’s needs, connection distances, the manufacturer’s technical requirements, and the intended use of the three zones. The exact performance of a multi-zone system always depends on the combination of the outdoor unit, indoor heads, refrigerant line lengths, and actual installation conditions.
At AirGreen, we place great importance on this step. An undersized system risks running too often at high demand. An oversized system may offer less stable comfort and less efficient humidity control. The right choice lies in the balance between capacity, performance, comfort, and durability.
Subsidies: a necessary check for multi-zone systems
Building owners and managers in Montreal, Laval, Longueuil, on the North Shore and the South Shore often ask if a heat pump is eligible for subsidy programs. For a GREE FREE MATCH R32 TripleZone, the answer depends on the exact combination installed.
It is necessary to check the model numbers, capacity, applicable certification, and criteria in effect at the time of the work. The series name is not always enough to confirm eligibility. This nuance is important with multi-zone systems, as several combinations can exist from the same product family.
AirGreen supports clients with clear information, a detailed invoice, and the necessary documents to facilitate the applicable procedures after installation.
The technical steps that make a difference in a rooftop installation
A rooftop installation requires a different organization. Tools must be brought up to the roof, access must be secured, lines must be carefully planned, and commissioning must be done in an environment exposed to wind, sun, and sometimes high temperatures.
Installing the metal support
The roof support is one of the most important elements of the project. It must keep the unit stable, level, and sufficiently clear. On a flat roof, stability is not just about preventing the unit from moving. It also helps reduce vibrations transmitted to the building structure.
Our technicians positioned the support to respect the required clearances and to facilitate access to the service panels. This accessibility is essential for HVAC maintenance, periodic checks, and any future interventions.
Roof protection
A flat roof must always be treated with caution. Gravel protects the membrane, but it does not replace a rigorous work method. During installation, care must be taken not to damage the surface, unnecessarily move materials, or create uneven load points.
The visible elements under the support serve to stabilize the installation and distribute the load during the work. This attention is especially important on the flat roofs of Montreal, where freeze-thaw cycles, snow accumulation, and sun exposure can put significant pressure on the materials.
Refrigerant connections and vacuuming
The photo shows the tools used during commissioning, including the vacuum pump. This step is crucial. Before starting a heat pump, the refrigerant lines must be properly connected, tested, and evacuated to remove moisture and air from the circuit.
For a TripleZone system, this step requires great precision. Three indoor units mean multiple connections, several line routes, and a complete validation of the whole. A well-executed commissioning directly contributes to the system's performance, reliability, and lifespan.
Routing the lines to the three indoor units
Even though the photo mainly shows the outdoor unit, the most strategic work also happens in the routing of lines to the indoor units. On a building with a flat roof, you must plan penetrations, drops, protections, drainage slopes, and the cleanest possible paths.
Lines must be protected against weather, UV rays, mechanical damage, and seasonal movements. Passages must also remain compatible with the building’s appearance and technical access needs. At AirGreen, we always aim to reduce unnecessary lengths while respecting building constraints.
Mistakes to avoid with a heat pump on a flat roof
A rooftop installation can be very effective, but certain mistakes can harm the outcome.
Installing the unit too close to an obstacle
Even on a large roof, clearances must be respected. A unit placed too close to a parapet, another condenser, or a mechanical structure can lose efficiency.
Neglecting vibration
A poorly supported outdoor unit can transmit vibrations to the building. Choosing the right support, leveling, and stability are therefore essential.
Forgetting maintenance access
A unit must remain accessible. Service panels, valves, fittings, and electrical components must be reachable without difficulty.
Poor roof protection
The support must be installed with an approach that respects the roof surface. Poor load distribution or inadequate contact can cause long-term problems.
Underestimating the complexity of multi-zone lines
Three indoor units mean a more complex layout. The lines must be planned before installation, not improvised during the work.
What occupants gain with this installation
With this GREE FREE MATCH R32 TripleZone heat pump, occupants enjoy better distributed comfort across three zones of the building. Each indoor unit can be adjusted according to the room's use. This flexibility improves comfort while avoiding unnecessary conditioning of unoccupied areas.
In summer, the warmest rooms can be efficiently air-conditioned. In the shoulder seasons, certain areas can be quickly heated without affecting the entire building. This zone-based management is especially useful in homes, offices, or mixed-use spaces where occupancy schedules vary.
AirGreen expertise in Ahuntsic-Cartierville and Greater Montréal
AirGreen regularly works on heat pump, wall air conditioner, multizone systems, and HVAC maintenance projects in Montréal, Laval, Longueuil, on the North Shore and the South Shore. Rooftop installations are among the projects that require real field experience, as they combine mechanical, electrical, structural, aesthetic, and practical challenges.
In Ahuntsic-Cartierville, this project demonstrates our ability to adapt a multizone solution to a rooftop environment. The result is not just a unit installed on a roof. It is a complete system, designed for three zones, installed with a rigorous method and validated with the appropriate tools before delivery to the client.
Conclusion: a well-executed TripleZone GREE installation on a flat roof in Ahuntsic-Cartierville
This installation of a TripleZone GREE FREE MATCH R32 heat pump in Ahuntsic-Cartierville represents an excellent example of a well-planned urban HVAC installation. The outdoor unit, installed on a metal support above a gravel flat roof, shows the importance of a stable, accessible installation adapted to the realities of Montréal buildings.
With its 3 zones and 3 heads, this system offers a flexible solution to improve indoor comfort while limiting external mechanical bulk. For building owners and managers in Montréal, Laval, Longueuil, on the North Shore and the South Shore, this project confirms the importance of entrusting a multizone installation to a team capable of mastering both equipment selection and field execution.
