Installation of a Midea28 wall-mounted heat pump in the Southwest

AirGreen installed a Midea28 wall-mounted heat pump on a flat roof in Le Sud-Ouest : raised snow-proof frame, sealed passages, and instrumented commissioning. Four-season comfort and efficiency for Greater Montreal.

By AirGreen Climatisation & Chauffage Admin7 min read

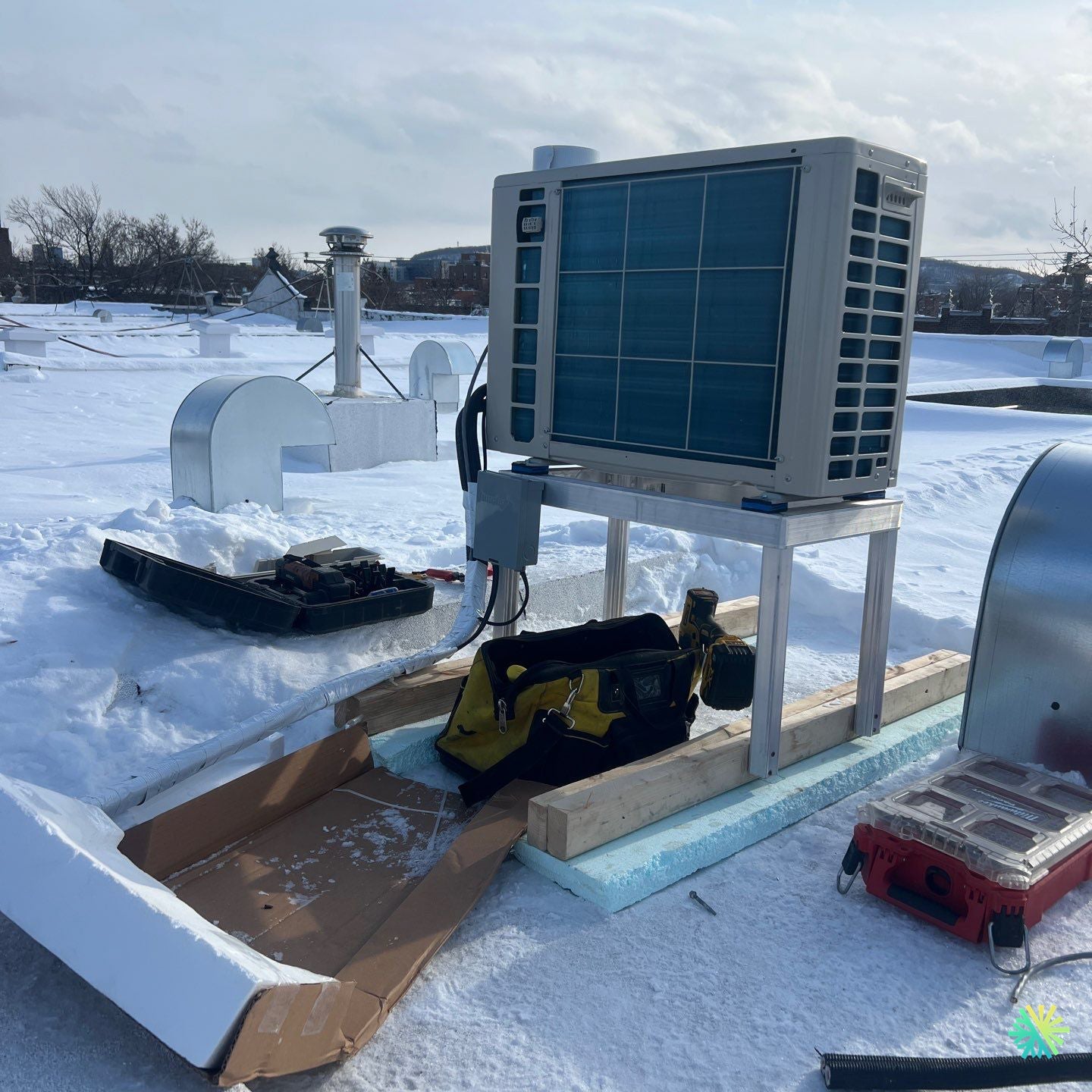

Installation of a Midea28 wall-mounted heat pump in the Southwest
Installation of a Midea28 wall-mounted heat pump in the Southwest
Generic diagram: wall-mounted heat pump, indoor and outdoor units

In summer, the outdoor unit rejects the house's heat outside.

Generic illustration of this type of installation, not a survey of this job site. Tap a number.

  1. Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.

  2. The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.

  3. Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.

  4. A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.

  5. The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.

  6. On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.

  7. The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.

An HVAC installation designed for Montreal winters, on a flat roof, with snow clearance and easy maintenance

At AirGreen , we have just installed a Midea28 wall-mounted heat pump ( R-454B refrigerant, extreme cold performance) on the flat roof of a residential building in the southwest of Montreal . The objective: to offer four-season comfort to a housing unit converted into an open space, while respecting the constraints of a white roof exposed to wind and snow accumulations. This achievement illustrates our know-how in rooftop HVAC installation , a demanding context where every technical detail counts for reliability and durability .

Client context and needs

The owners wanted to replace a seasonal air conditioner with an energy-efficient solution capable of providing both heating and cooling . The constraints identified during the technical visit:

  • Accessible flat roof , with recent elastomeric membrane to protect.

  • Exposure to wind and snow drifts requiring unit elevation .

  • Need for short refrigeration path to the housing to maximize efficiency.

  • Explicit demand for quiet operation and simplified maintenance .

Why the Midea28 for Greater Montreal

The Midea28 is perfect for Montreal winters:

  • R-454B refrigerant : new generation, more efficient than older blends, and aligned with regulatory developments.

  • Capacity suitable for medium to large housing (9k to 33k BTU depending on configuration), with stability down to −30°C , a crucial point for the North Shore , the South Shore , Laval and Montreal .

  • Inverter technology for fine modulation, reducing on/off cycles and consumption.

  • Low noise level, ideal for buildings where the peace and quiet of neighbors and occupants is a priority.

Rooftop design and installation: the AirGreen approach

Roof installations require detailed engineering . We have chosen to install them on a raised aluminum frame , placed on pads and distribution soles in order to protect the membrane and distribute the loads :

  • Raised by approximately 450–600 mm to ensure snow clearance and facilitate frost runoff during defrost cycles.

  • Anti-vibration pads under the chassis to limit the transmission of vibrations to the structure.

  • Disconnect box (service disconnect) in the immediate vicinity, installed at a safe height, with sheathed wiring and sealing at the bushings.

  • Optimized refrigeration path (≈ 5–8 m visible on this configuration) with high-density insulated pipes, stainless steel collars and controlled bend radius to preserve the fluid charge.

  • Waterproof roof passage : membrane-compatible flashing and sealant, for clean passage of refrigeration lines and communication cables to the accommodation.

Condensate management in winter: a key point

On a flat roof, controlling condensate determines the longevity of the system:

  • In heating mode, the Midea28 performs defrost cycles . The water from the frost is directed towards a free flow away from traffic areas, in order to avoid refreezing under the appliance.

  • Controlled slope of bearing surfaces and clearance under the unit to prevent the formation of ice stalagmites .

  • If required by the site, we plan for heating tracing of critical sections or a collection tray drained to a drain; here, the topography of the roof allowed for simple and reliable gravity drainage .

Safety, endurance and maintenance

Working on roofs requires high standards:

  • Stainless steel fixings and anti-corrosion treatments to resist salts and frost.

  • Controlled tightening torques , deep vacuum and documented leak test before final loading.

  • Clear service path around the unit (clearances in accordance with manufacturer recommendations) to facilitate annual HVAC maintenance : cleaning the exchanger, checking pressures, checking the fan and sensors.

  • Clear circuit identification on the panel and device labeling to speed up future interventions.

Interior integration: comfortable diffusion and silence

Inside, the Midea28 wall-mounted head was placed at the top of a load-bearing wall, in the heart of the open area. This positioning:

  • Breaks stratification in winter thanks to efficient cross-sweeping.

  • Limits the direct impact on rest areas (sofa, reading corner).

  • Allows a short and discreet refrigerated path , covered from the roof outlet to the vertical passage, for a neat finish.

Performances and results obtained

Upon commissioning, occupants noted:

  • Fast heating in very cold weather, without excessive noise during power ramps.

  • Stable setpoint in mid-season, with very little oscillation thanks to the inverter compressor .

  • A reduction in electricity consumption compared to the old air conditioner + auxiliary heater combination.

  • In summer, effective dehumidification which significantly improves the feeling of comfort, even at moderate settings.

Grants and Compliance

The Midea28 is part of recent programs promoting efficient heat pumps . Depending on the capacity and seasonal efficiency index, customers may be eligible for financial assistance. We support our customers in preparing files and verifying correspondence with active programs in Montreal , Laval , Longueuil , on the North Shore and the South Shore . All our installations follow RBQ and CSA standards , with a commissioning certificate provided to the customer.

Good operating practices (winter/summer)

To prolong performance:

  • Clean the internal filters every 4–8 weeks.

  • Maintain minimum clearance around the outdoor unit; during storms, remove snowdrifts if necessary.

  • Stable instructions for operating the inverter (avoid sudden day/night differences).

  • Annual maintenance : electrical check, pressures, probes, fans, condition of the insulating foam and exterior capping.

  • In summer, natural shade is desirable but without obstructing the airflow.

What makes the AirGreen difference

Our team, specialized in HVAC installation on flat roofs, operates daily in Greater Montreal . We provide:

  • Precise installation engineering : clearance calculations, choice of support, membrane protection and load distribution .

  • A quality of finish that can be seen... and felt: silence , aesthetics, easy maintenance.

  • Complete support : selection of capacity (BTU), verification of eligibility for subsidies , usage advice, responsive after-sales service .

Technical checklist - highlights of this achievement

  • Midea28 wall-mounted heat pump (R-454B) for raised mounting on a flat roof.

  • Short, insulated refrigeration path , passages sealed with membrane.

  • Proximal disconnection box , standardized and marked wiring.

  • Frost management by under-chassis clearance and gravity flow.

  • Anti-vibration and stainless steel screws for durability.

  • Instrumented commissioning : deep vacuum, vacuum resistance, pressure/temperature measurements, functional heating test.


In summary , the Midea28 installed in Le Sud-Ouest offers a robust and elegant response to the challenges of Montreal flat roofs: high performance , silence , reliability in extreme cold and simplified maintenance . For a similar project in Montreal , Laval , Longueuil , on the North Shore or the South Shore , AirGreen designs and builds custom-made , durable installations ready for the winters here.

In figures
The steps

How it goes, from the first call to the end

The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.

Step 1 of 9The on-site estimate

We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.

  1. The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
  2. The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
  3. Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
  4. The wall openingA single opening, with the slope the drain needs to flow outside.
  5. The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
  6. Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
  7. The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
  8. Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
  9. The walkthroughRemote, modes, filters: we show you the essentials before we leave.
The unit

What the unit delivers when it is cold

The range as published on airgreen.ca: pick a size to see its capacity in deep cold.

The range, size by size
SizeHeating at −8 °CHeating at −15 °CColdest certified pointCOP at −15 °CSEERHSPFIndicative LogisVert aid
Midea Série 28 9 00012,00011,500−30 °C: 5,1001.827.412.5–
Midea Série 28 12 00012,00011,500−30 °C: 5,9001.825.410.5$1,440
Midea Série 28 18 00018,00018,000−30 °C: 8,0001.9221.411.0$2,160
Midea Série 28 24 00022,20024,200−30 °C: 11,9002.3421.013.5$2,664
Midea Série 28 33 00032,00035,000−30 °C: 20,7001.9819.510.5$3,840
12,000Its full nominal heating at −8 °C

According to NEEP, it delivers 12,000 BTU/h at −8 °C (17 °F), as much as at 8 °C. It heats as hard in moderate cold as in mild weather.

16,000A 16,000 BTU/h reserve in mild weather

At 8 °C, its certified maximum capacity reaches 16,000 BTU/h, 33% more than its nominal 12,000 BTU size.

2,000It modulates down to 2,000 BTU/h

At −30 °C, its certified minimum capacity is 2,000 BTU/h (3,800 at 8 °C). It slows down instead of cycling on and off.

Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.A dash in the aid column: amount to be confirmed for this model.

Your numbers

And at your place?

Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.

Before / afterThe cost of the same heat

Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):

Before · baseboards11.142¢/kWh
After · heat pump–

Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.

Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.

Size checkYour baseboards, in BTU/h
–BTU/h of installed electric heat

    Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.

    Through the seasons

    What to do, season by season

    Three habits per season for this unit. They take a few minutes and prevent many calls.

    • Clean the indoor unit's filters.
    • Clear leaves and debris left on the outdoor unit by winter.
    • Test cooling before the first hot days.
    And at your place?

    Which type of equipment for your project?

    Pick what looks like your need.

    Mistakes avoided

    Four mistakes we do not make

    Flip each card to see what we do instead.

    Frequently asked questions

    What people ask us about this kind of work

    12 questions
    Does a wall-mounted heat pump heat in winter?
    Yes, it heats and cools. Its capacity drops in very cold weather; the operating range depends on the model and is listed on its spec sheet.
    Wall-mounted or multi-zone: how do I choose?
    One wall head and one condenser outside: the direct solution for a room or an open area. For two to five rooms, a multi-zone puts one head in each room on a single condenser.
    Where does the outdoor unit go?
    Where it stays above the snow, clear and accessible, away from walkways. We decide it with you during the estimate.
    Are there grants?
    Depending on the model and your situation, assistance programs may apply, including Hydro-Québec's LogisVert. AirGreen checks the model number before quoting an amount. See the grants.
    Do I need a permit?
    Rules vary from city to city: location, distances, noise. See permits and by-laws, and we check for your address.
    How cold can it heat?
    It depends on the model. According to Hydro-Québec, newer models work down to a temperature between −15 °C and −25 °C, and some cold-climate models are certified lower. The minimum temperature is on each unit's spec sheet.
    How much can I save?
    Hydro-Québec says a heat pump can be up to three times more efficient than baseboards for heating in the colder months. The result depends on the house, the climate and how it is used.
    How is the LogisVert assistance calculated?
    For ENERGY STAR cold-climate certified heat pumps, Hydro-Québec lists assistance of $120 per 1,000 BTU/h of heating capacity at −8 °C. AirGreen checks the exact model before quoting an amount; only Hydro-Québec confirms the assistance granted. See the grants.
    Is it noisy?
    The sound level depends on the model and is listed in decibels on each unit's spec sheet. Location matters too: when possible, we avoid putting the outdoor unit under a bedroom window.
    The outdoor unit is covered in ice: is that normal?
    Some frost is: the unit runs defrost cycles. Never hit the ice. If the unit stays iced up or stops heating, call us.
    Does AirGreen hold the required licences?
    Yes. AirGreen holds RBQ licence 5645-9605-01, subclasses 15.8 Ventilation, 15.10 Refrigeration and 16 Electricity.
    Is the estimate free?
    Yes. The on-site estimate is free and the quote follows within 24 hours. Book my free estimate.
