Installation of a Sharp Eco Inverter wall-mounted heat pump in Rosemont–La Petite-Patrie

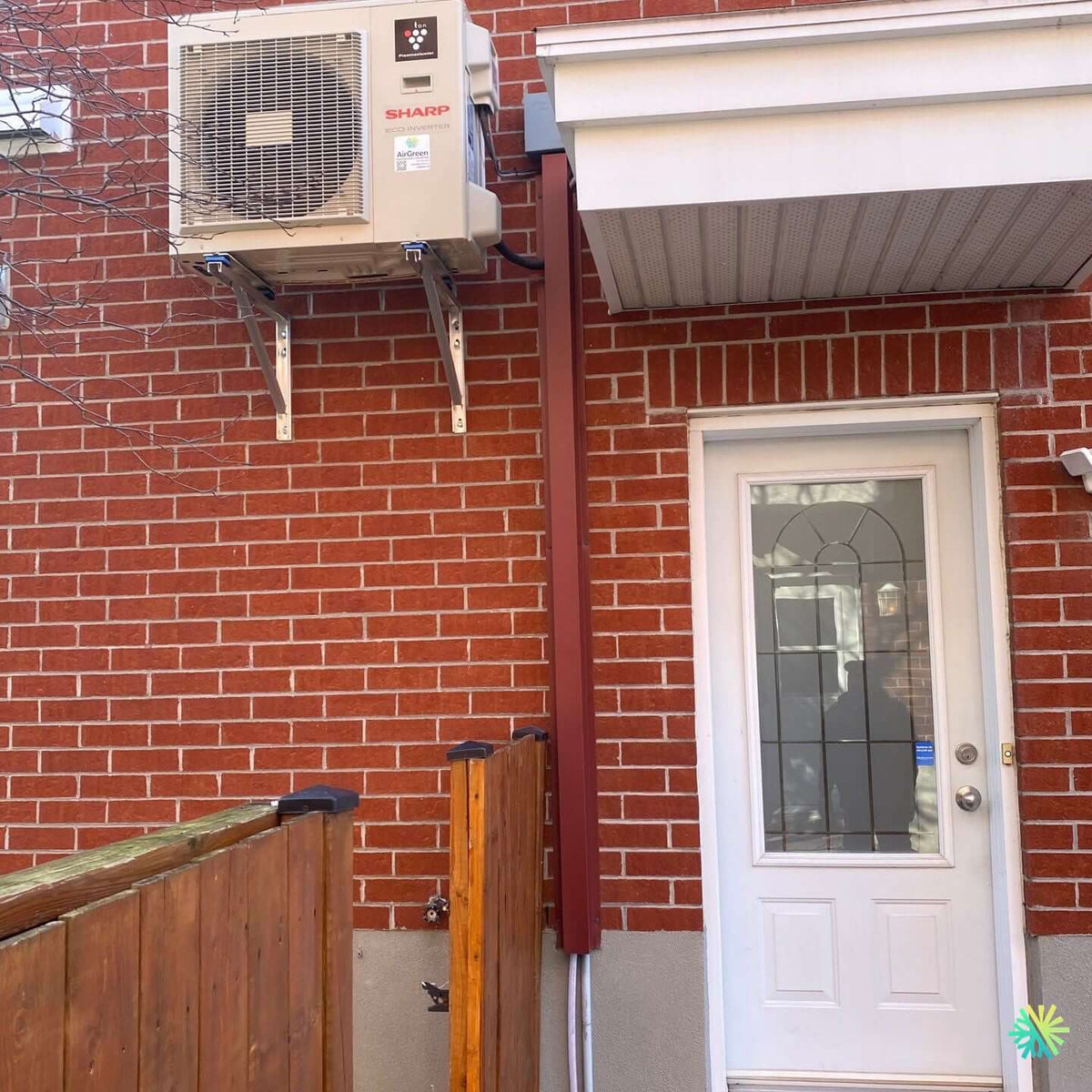

Sharp Eco Inverter wall-mounted heat pump installed in Rosemont–La Petite-Patrie: high wall mount, matching capping, electrical disconnection and gravity drain. AirGreen, HVAC installation specialist in Montreal, Laval, North Shore and South Shore.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
A neat HVAC project in a dense urban environment
In Rosemont–La Petite-Patrie , we regularly work on brick plexes where space is limited, access is narrow, and neighbors are close. This Sharp Eco Inverter wall-mounted heat pump installation illustrates our approach: precise sizing , clean line routing , and durable finishes that respect the building's architecture while maximizing performance.
Client context and objectives
The owner wanted:
-
replace an energy-consuming portable device with a fixed and efficient solution ;
-
reduce electricity costs while improving comfort in summer and winter;
-
preserve the aesthetics of the facade by minimizing the visual impact on the rear yard side;
-
limit noise and vibrations near the access door .
Our recommendation: a Sharp Eco Inverter wall-mounted heat pump ( R-32 refrigerant), compact, reliable in very cold weather and equipped with Plasmacluster ionization technology for superior indoor air quality.
Installation and integration into the facade
-
Galvanized Wall Mount : We mounted the outdoor unit high on sturdy brackets to free up floor space, protect the equipment from snow accumulation, and ensure the required clearances around the fan.
-
Vibration management : silent blocks limit sound transmission to the masonry, a crucial point in the interior courtyards of Montreal plexes.
-
Matching vertical capping : the technical cover follows a single vertical descent from the opening, in a brick red color that matches the facade. This choice reduces the visual impact and simplifies future maintenance (adding cables, checking for leaks).
-
Electrical safety : exterior disconnect box installed nearby, under the roof overhang, for safe intervention in compliance with the Canadian Electrical Code .
-
Condensate management : gravity drainage towards the bottom of the wall, avoiding the use of a pump (less maintenance, less noise).
Optimized refrigeration path
We favor short refrigerant line lengths and a minimal number of elbows , in order to:
-
limit load losses and improve seasonal efficiency;
-
facilitate future diagnosis ;
-
maintain warranty by meeting manufacturer's refrigerant charge tolerances.
The wall penetration is executed with a waterproof cable gland , closed-cell foam and weatherproofing on the exterior side. Inside, the wall unit (not visible here) was positioned to sweep the main room without blowing directly onto the occupants.
Key Steps in HVAC Installation
1) Survey and preparation
-
Checking clearances (window, awning, door).
-
Analysis of ambient and neighborhood noise .
-
Choice of height to combine: snow protection, positive drainage and maintenance.
2) Drilling and installing the supports
-
Low slope drilling for natural condensate drainage.
-
Anchoring of the brackets in the brick with stainless steel mechanical fixings and sealing suitable for freezing/thawing.
3) Refrigeration and electrical connection
-
Flares controlled to exact torque (prevention of micro-leaks).
-
Deep vacuum (≤ 500 microns) and nitrogen leak test .
-
Communication cabling and dedicated power supply via appropriate circuit breaker.
4) Commissioning and calibrations
-
Checking operating pressures and blowing temperatures .
-
Setting defrost modes and ventilation instructions .
-
Advice to customers on how to optimize cycles and save energy.
Technical specifications (extract)
| Element | Detail |
|---|---|
| Kind | Mini-split wall-mounted heat pump ( air conditioning + heating ) |
| Brand | Sharp |
| Range | Eco Inverter ( R-32 refrigerant) |
| Air technology | Plasmacluster Ion (improving indoor air quality) |
| Facility | Wall brackets with silentblocs, matching vertical capping , proximal electrical disconnection |
| Evacuation | Gravity (without pump) |
| Target climate | Reliable cold-weather performance for Greater Montreal |
Note: BTU capacity is chosen after calculating the thermal load based on the volume, insulation, orientation, and use of the rooms. This sizing avoids oversizing (short cycles, discomfort) and undersizing (lack of heat at peak times).
Measured results and concrete benefits
-
4-season comfort : rapid temperature rise and stable maintenance, even during sudden changes in spring and autumn.
-
Lower consumption : inverter modulation precisely adjusts power; cycles are longer and gentler , limiting peaks.
-
Silence : the high installation + silent blocks + ventilation calibration reduce the noise perceived in the courtyard and inside.
-
Healthier air : Plasmacluster ionization limits dust and allergens—an advantage in urban housing close to traffic routes.
-
Low maintenance : accessible filter, simple route, components protected from snow and splashes.
Points of attention on a Montreal plex
-
Clearances under awnings and near doors: keep air intakes/exhausts clear to avoid recirculation and condensation under the soffit.
-
Anchoring in brick : use suitable anchors and a waterproof joint to prevent water infiltration.
-
Snow clearance height : aim for a threshold sufficient in relation to the average accumulation level and provide a drainage zone .
-
Neighbor management : favor a blowing direction away from neighboring windows and a respectful test time slot .
-
Service Plan : Schedule an annual inspection ( HVAC maintenance ) to maintain performance and durability.
Grants and financial aid
In Greater Montreal (Montreal, Laval , Longueuil , North Shore , South Shore ), recent high-efficiency R-32 wall-mounted heat pumps may be eligible for assistance programs . We support our customers for:
-
check eligibility (efficiency, operating temperatures, standards);
-
prepare documents (detailed invoices, photos);
-
optimize the choice of model to combine comfort and return on investment .
Recommended HVAC maintenance
-
Annually : cleaning of exchangers, electrical check, inspection of flares , condensate test, updating of parameters .
-
Heating season : check defrosting, ice clearance and fasteners .
-
Summer season : filter maintenance, temperature differential control to validate heat exchange.
Regular maintenance stabilizes the SEER/HSPF over time, reduces the risk of leaks and extends the life of the compressor.
Why AirGreen for your HVAC installation in Montreal
-
Urban expertise : mastery of the constraints of plexes, co-ownerships and alleys.
-
Clean finishes : aligned capping , clean drilling, compliant electricity .
-
Complete support : selection of heat pump , grant procedures, maintenance and after-sales service .
-
Technical transparency : test reports, site photos, usage instructions provided to the customer.
Results: performance, discretion and sustainability
This installation in Rosemont–La Petite-Patrie delivers exactly what our customers were looking for: a compact, economical , quiet heat pump that integrates well into the brick facade. Thanks to its high installation , a unique technical descent and careful connection , the system will operate reliably, season after season, with optimized operating costs .
For a no-compromise HVAC installation project in Montreal, Laval, Longueuil, North Shore and South Shore , contact AirGreen . We design, install and maintain solutions that enhance your building and sustainably improve your comfort .
How it goes, from the first call to the end
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
And at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
