A wall-mounted unit installed in a bedroom where every inch mattered

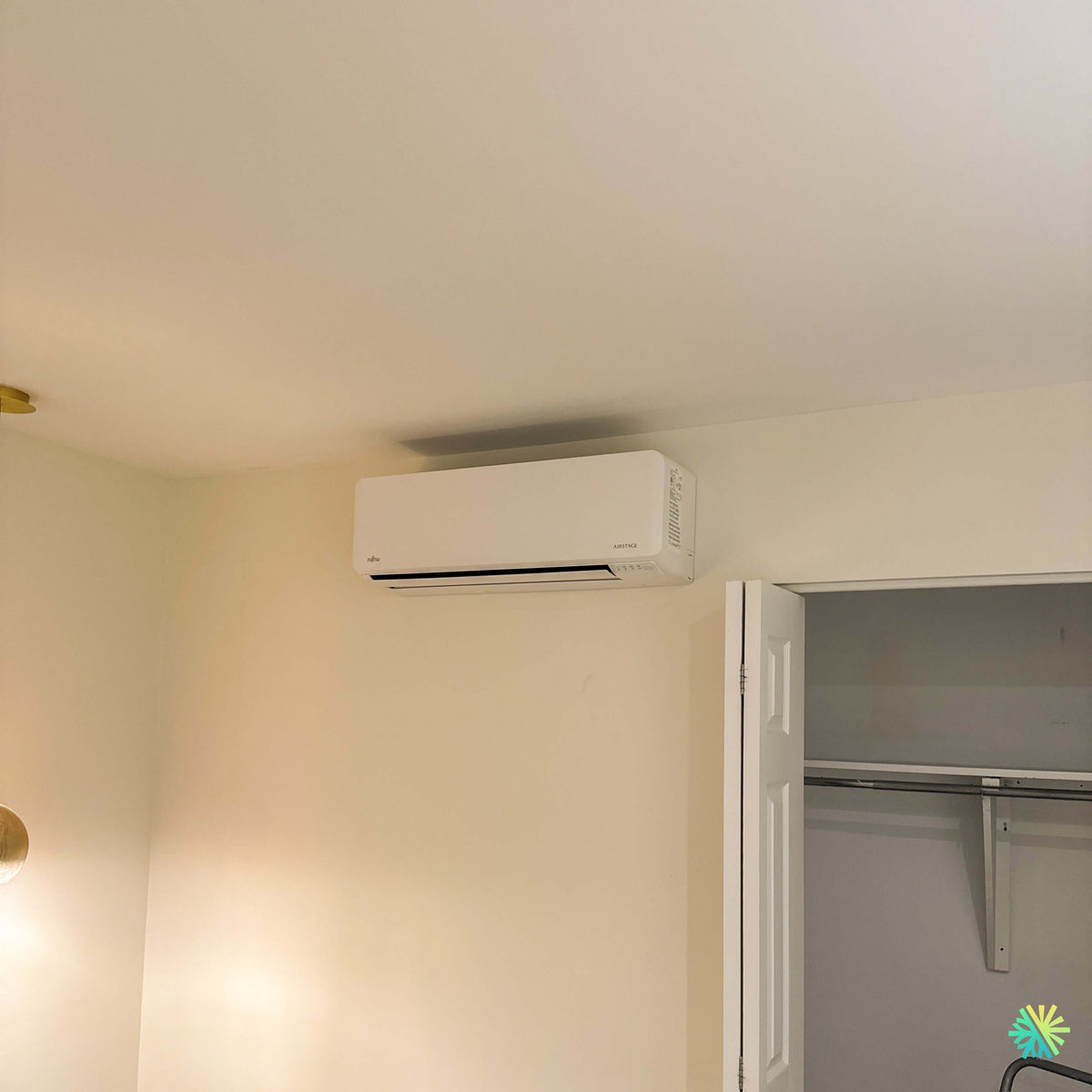

This installation of a Fujitsu Aquila XLTH dual-zone heat pump in Lorraine shows how much the choice of indoor location influences both comfort and the final quality of the project. In this bedroom, the available space was restricted by the presence of a closet, folding doors, a relatively short wall, and a low ceiling near the unit.
We installed the Fujitsu AIRSTAGE indoor unit on the section of wall immediately to the left of the closet, at a height that preserves normal movement through the room while promoting good air distribution. The unit is positioned near the ceiling, but with the necessary clearance to ensure air intake, allow the front panel to open, and facilitate filter cleaning.
The photo shows a discreet installation, without long visible trim around the unit. The white casing blends into the bedroom’s light décor and does not encroach on the storage space. Its location also prevents a strong draft from being directed straight toward the bed or an area where an occupant remains still for several hours.
In a bedroom, this detail is essential. A unit installed too close to the bed can cause a sensation of cold air in summer or a draft of warm air that is too direct in winter. A poorly oriented unit can also create a significant temperature difference between the ceiling, the center of the room, and the floor.
We therefore sought a position that offered several advantages:
- air distribution toward the main area;
- unobstructed access to the closet doors;
- adequate clearance below the ceiling;
- a discreet installation on a little-used wall;
- reasonable access for HVAC maintenance;
- a short, controlled mechanical route;
- a reduced risk of direct drafts reaching the occupants.
Why install the unit near the closet?
The space above or beside a closet is often one of the few areas available in an already furnished bedroom. This solution can be very effective, but it requires a precise assessment of the room.
In this Lorraine project, the closet doors open toward the bedroom. The unit therefore had to remain far enough away not to interfere with their movement or make access to the clothing and shelves more difficult.
Before securing the wall plate, we had to check:
- the exact wall width;
- the doors opening fully;
- the presence of studs;
- the proximity to the ceiling;
- the position of the bed.
- the airflow path;
- the route of the refrigerant lines;
- the possible slope of the condensate drain;
- access to the front panel;
- the space required for future servicing.
This type of installation does not tolerate approximation. A unit shifted a few centimeters to the right could have encroached on the closet opening. Too far to the left, it could have ended up too close to a corner and restricted airflow.
The visible result appears simple, but this simplicity rests on rigorous planning.
An indoor unit properly positioned for nighttime comfort
In a bedroom, the perception of comfort differs from that in a living room. Occupants spend several hours there without moving, often with a reduced fan speed and a steady setpoint.
The unit’s positioning must therefore limit:
- direct drafts;
- rapid temperature fluctuations;
- blowing noise;
- frequent restarts;
- the differences between the top and bottom of the room.
The inverter technology of the Fujitsu Aquila XLTH allows the system to adjust its output to the demand. Once the desired temperature is reached, the compressor can reduce its speed rather than constantly cycling on and off.
In a bedroom, this modulation helps maintain a more consistent temperature overnight. The indoor unit can operate at low speed, with reduced airflow, without imposing sudden changes in comfort.
We generally recommend using a steady setpoint rather than constantly changing the temperature. A variable-speed heat pump works best when it gradually maintains comfort.
An indoor installation without compromising storage
The closet visible in the photo remains fully functional. The indoor unit is positioned so that it does not block the doors or create an obstruction in the opening.
This point may seem minor, but it directly affects the homeowner’s experience after installation. A high-performance heat pump quickly becomes a source of irritation if it interferes with the daily use of a room.
At AirGreen, we do not consider only the technical dimensions of the appliance. We also check how the client uses the space:
- where the bed is located;
- how the doors open;
- where the furniture is placed;
- which wall surfaces must remain clear;
- if the closet is used frequently;
- if a ladder can be set up to clean the filters;
- if the unit remains accessible without having to move all the furniture.
This approach allows us to provide an HVAC installation that truly integrates into the room.
Ceiling clearance: an essential detail
The unit is installed near the ceiling, which is normal for a wall-mounted appliance. However, room air must be able to enter freely through the upper part of the housing.
A unit placed too close to the ceiling may suffer from insufficient return airflow. This can reduce airflow, increase noise, and affect performance.
Sufficient space must also be maintained to lift the front panel and remove the filters.
During installation, we check:
- the unit level;
- clearance from the ceiling;
- the wall plate position;
- the panel opening fully;
- support stability;
- no contact with the trim;
- visual alignment with the closet doors.
Proper alignment contributes to a high-quality finish. In a bedroom with light-colored walls, a slightly tilted or off-center unit quickly becomes noticeable.
Condensation drainage in a bedroom
In cooling mode, the indoor unit removes moisture from the air. This water must be drained through a drain line.
In a bedroom, a condensation leak can damage the wall, floor, furniture, or closet contents. Drainage therefore deserves as much attention as the refrigerant connections.
We make sure that the drain:
- has a continuous slope;
- has no sagging;
- is properly secured;
- is insulated when necessary;
- does not create a reverse slope;
- drains water to a suitable location;
- is tested before the work is completed.
An improper slope can cause water to collect in the pipe. This may lead to noise, odors, or overflow from the internal drain pan.
Before leaving the job site, we test the drainage by simulating condensation production. This step confirms that the water drains away without flowing back toward the unit.
A bedroom served by a dual-zone system
The pictured unit is one of the two zones in the Fujitsu Aquila XLTH system installed at this Lorraine property. The second indoor unit serves another space, while a single outdoor unit supplies both zones.
This configuration is especially useful when a home has two distinct needs. The bedroom may require a lower temperature at night, while the main living area can maintain a different setpoint.
Each indoor unit can be controlled separately for:
- temperature;
- the fan speed;
- louver direction;
- starting and stopping;
- certain scheduling functions;
- the comfort level specific to each room.
However, it is important to understand that both zones must operate in the same general mode. One cannot heat while the other is cooling.
According to Fujitsu documentation for H-series Aquila multi-zone systems, each indoor unit can be controlled independently. The system can provide heating and cooling, but not simultaneously in opposing modes. The same documentation specifies that outdoor units can be paired with wall-mounted units, compact ducted units, and other compatible formats depending on the selected combination.
Sizing, performance, and commissioning of a Fujitsu Aquila XLTH in Lorraine
Capacity suited to the bedroom, not the entire house
The sizing of a wall-mounted unit should never be based solely on the property’s total floor area. In a dual-zone system, each space must be evaluated separately.
For this bedroom, the relevant factors include:
- floor area;
- ceiling height;
- number of exterior walls;
- whether there is a floor or roof above;
- insulation;
- window size;
- solar orientation;
- closet location;
- air infiltration;
- number of occupants;
- frequency of use.
A bedroom on the upper floor may accumulate more heat in summer. A west-facing room may receive significant solar gain late in the day. Conversely, a well-insulated interior bedroom may require much less capacity.
The Fujitsu document lists outdoor units of 18,000, 24,000, 36,000, and 45,000 BTU/h. Depending on the model selected, they can serve two to five indoor units.
The exact capacity of the photographed system is not clear enough to confirm. We therefore do not infer it from the unit’s visual casing size. Several Fujitsu indoor units look similar while offering different capacities.
Authorized dual-zone combinations
For a dual-zone outdoor unit from the H series, Fujitsu presents various indoor-unit combinations, including:
- 7,000 + 7,000 BTU/h;
- 7,000 + 9,000 BTU/h;
- 7,000 + 12,000 BTU/h;
- 7,000 + 15,000 BTU/h;
- 9,000 + 9,000 BTU/h;
- 9,000 + 12,000 BTU/h;
- 9,000 + 15,000 BTU/h;
- 12,000 + 12,000 BTU/h.
These values confirm that a combination is authorized by the manufacturer. They do not replace a load calculation.
The documentation also specifies that the tables are not intended to directly select the system’s final capacity and recommends using Fujitsu’s design tool.
This distinction is important. A combination may be technically permitted but poorly suited to a specific property.
Why avoid an oversized unit in a bedroom
An oversized indoor unit may seem reassuring, but it does not always provide better comfort.
In a small bedroom, an oversized unit can reach the setpoint very quickly, then reduce or stop operating before properly circulating the air.
Possible consequences include:
- short cycles;
- more noticeable drafts;
- unnecessarily high noise levels;
- poor dehumidification;
- uneven temperature;
- frequent compressor restarts;
- less stable comfort during the night.
A properly selected capacity allows the system to operate longer at low output. This is generally preferable for a bedroom.
Connected capacity and sharing between the two zones
A multizone system may sometimes accept a combined indoor capacity greater than the outdoor unit’s nominal capacity.
This flexibility does not mean that the outdoor unit produces more than its actual capacity. Fujitsu clearly states that exceeding 100% of connected capacity does not increase the system’s output.
When both zones simultaneously require high output, the available capacity is divided between them.
This reality must be considered when a bedroom and a large open-plan area are used at the same time. A poor combination can result in slower temperature increases in one of the zones.
We therefore evaluate:
- the maximum load of each room;
- hours of use;
- simultaneous demand;
- solar orientation;
- winter performance;
- the homeowner’s comfort priorities.
Low-temperature heating on the North Shore
The Aquila series designed for cold climates includes models capable of operating in heating mode down to approximately -26 °C, depending on the model.
This feature is relevant in Lorraine, on the North Shore, where winter temperatures can be very low.
Nevertheless, it is important to distinguish the minimum operating temperature from the capacity actually available.
As the outdoor temperature drops:
- the home’s heat losses increase;
- the heat pump’s capacity may vary;
- defrost cycles become more frequent;
- the capacity must be shared between the two zones;
- the heating demand may exceed the system’s capacity.
A heat pump should therefore not be selected solely based on its advertised minimum temperature. We must check the low-temperature performance tables and compare them with the building’s needs.
Acoustic comfort in a bedroom
Noise is one of the main concerns when installing a wall-mounted unit in a bedroom.
Several factors influence the perceived noise level:
- the fan speed;
- the unit’s capacity;
- the distance from the bed;
- wall resonance;
- the condition of the filters;
- the presence of an object in front of the air outlet;
- the outdoor compressor speed;
- the quality of the connections.
The unit visible in the photo is installed on an unobstructed wall. No tall furniture or curtain blocks the air outlet.
This position allows the louver to distribute air without creating immediate turbulence. At night, a reduced or automatic speed can be used to maintain quiet operation.
Dual-zone system commissioning
A clean indoor installation alone does not guarantee system quality. Commissioning must be carried out methodically.
Our main steps include:
- checking the wall plate;
- checking the unit level;
- identifying the lines;
- leak testing;
- evacuating the system;
- verifying vacuum stability;
- opening the service valves;
- confirming the electrical connections;
- identifying zone 1 and zone 2;
- testing each unit;
- checking the drainage;
- testing both zones simultaneously;
- measuring the temperatures;
- explaining the controls to the owner.
On a multi-zone system, the refrigerant lines and communication cables must correspond to the correct indoor unit. Reversing them can cause errors or inconsistent operation.
We therefore test each zone separately before operating both units together.
The importance of evacuation
The refrigeration circuit must be evacuated before the refrigerant is released.
This step removes air and moisture from the lines. Insufficient evacuation can lead to:
- reduced performance;
- abnormal pressures;
- oil contamination;
- acid formation;
- premature compressor wear;
- long-term operating problems.
A simple purge does not replace evacuation performed with the proper instruments.
Eligibility for financial assistance
Eligibility of a Fujitsu dual-zone heat pump for financial assistance depends on the exact combination installed.
You must verify:
- the outdoor unit model;
- the models of both indoor units;
- the AHRI or ENERGY STAR reference;
- the certified low-temperature capacity;
- the property type;
- the program criteria;
- the purchase date;
- the installation date;
- supporting documents.
The Aquila XLTH designation or use in a cold climate does not automatically guarantee eligibility. The complete system must meet the requirements of the program applicable at the time of installation.
Mistakes to avoid in a bedroom
Install the unit directly above the bed
The airflow may become uncomfortable at night.
Block the closet opening
A technical installation should not interfere with the room’s everyday use.
Place the unit too close to the ceiling
Air return and access to the filters may be reduced.
Choose excessive capacity
An oversized unit can cause short cycling and poor dehumidification.
Neglect drainage
A leak in a room can damage the wall, floor, and contents of the closet.
Forget maintenance access
The front panel must be able to be opened without removing the doors or moving fixed elements.
Directing airflow toward an open door
A significant portion of the capacity may leave the bedroom instead of treating the intended zone.
Usage tips for the homeowner
To get the most out of this installation, we recommend:
- maintain a stable setpoint;
- use automatic fan mode;
- direct the louver downward in heating mode;
- avoid blowing air directly toward the bed;
- clean the filters regularly;
- keep the air outlet clear;
- do not cover the unit;
- watch for any unusual leakage;
- close the doors when the bedroom needs to be treated separately;
- avoid abrupt mode changes between the two zones.
When the bedroom door remains open, some of the air may circulate toward the hallway. This can be useful, but it reduces the precision of temperature control in the bedroom.
Recommended maintenance
Filters should be inspected regularly. In a bedroom, textile fibers, dust, and particles can gradually accumulate.
A clogged filter can cause:
- reduced airflow;
- noisier operation;
- increased energy consumption;
- less uniform temperature;
- dust buildup on the coil;
- a reduction in capacity.
However, cleaning the filters does not replace thorough cleaning of the evaporator, fan, and condensate pan.
Professional HVAC maintenance makes it possible to inspect the internal components and confirm that both zones continue to operate properly.
The result for this Lorraine property
This Fujitsu Aquila XLTH dual-zone heat pump installation addressed a specific need: improving comfort in two zones while integrating an indoor unit into a bedroom with very little wall space available.
The selected solution provides:
- to keep the closet fully accessible;
- to avoid blowing air directly toward the bed;
- to preserve floor space;
- to maintain a discreet finish;
- to provide independent control of the bedroom;
- to use a single outdoor unit for two zones;
- to facilitate access to the filters;
- to provide modulated heating and cooling.
At AirGreen, we carry out this type of HVAC installation in Lorraine, as well as in Montreal, Laval, Longueuil, on the North Shore, and on the South Shore, adapting each project to the building’s actual configuration.
A heat pump should not only perform well on a technical data sheet. It must also be properly positioned, correctly sized, and integrated into the occupants’ daily lives.
In this bedroom, the result is intentionally discreet. The unit takes up little space, respects the existing openings, and treats the area without compromising storage.
