Installation of a Fujitsu AIRSTAGE wall-mounted heat pump in Ange-Gardien: precise installation above a window in a space with limited clearance

A Fujitsu installation in Ange-Gardien where a few inches of clearance made all the difference

This installation of a Fujitsu AIRSTAGE wall-mounted heat pump in Ange-Gardien perfectly illustrates an aspect of the trade that may seem simple on paper but requires considerable judgment on site: choosing the right location for the indoor unit when the room’s architecture imposes several constraints at once.

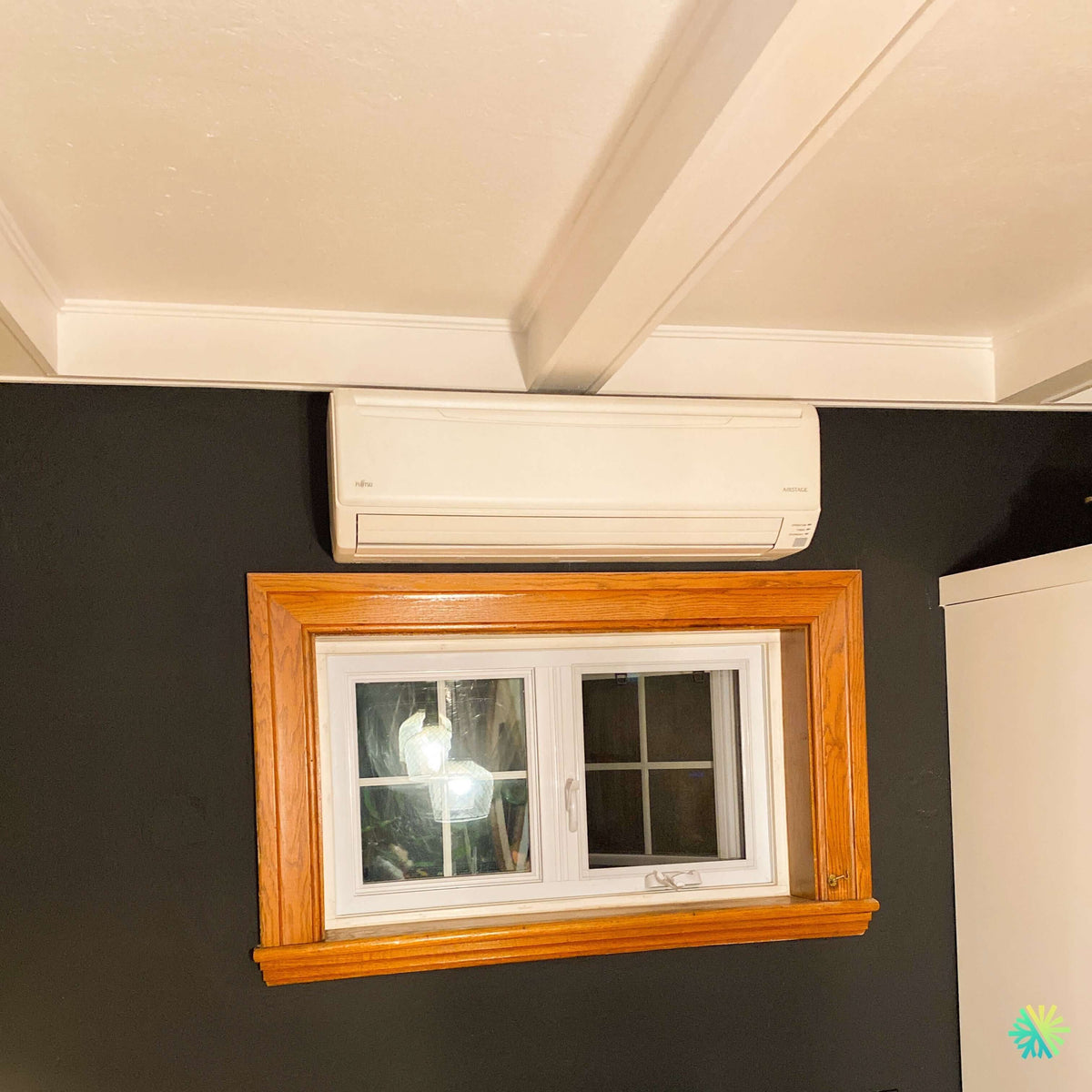

In the photo of this AirGreen project, the Fujitsu wall-mounted unit is installed directly above a window, on a dark wall framed by wood trim, while a dropped ceiling and a beam occupy the upper part of the room. We therefore had to work within a relatively confined area, maintain a clean appearance, and, above all, respect the clearances required for the heat pump to operate properly.

The result is a compact installation that makes smart use of a section of wall that would otherwise be difficult to use. Whether for a property in Ange-Gardien or for our installations in Montreal, Laval, Longueuil, the North Shore, and the South Shore, this type of situation highlights an important rule: the best location for a wall-mounted heat pump is not simply wherever the unit fits. Air circulation, maintenance access, the refrigerant line routing, drainage, and integration into the room must all be considered.

A Fujitsu AIRSTAGE indoor unit installed in a complex architectural area

Several elements are immediately visible in this installation.

The Fujitsu AIRSTAGE wall-mounted unit is positioned between the top of the window and a dropped ceiling. A beam also runs across the ceiling in the immediate vicinity of the unit. This type of configuration considerably limits the positioning options.

In a room without any particular constraints, we generally look for a location offering:

• unobstructed air distribution;
• sufficient space around the unit;
• adequate height;
• reasonable access to the filters and components;
• a logical route for the refrigerant piping and drain;
• the least possible visual impact on the room.

Here, the window occupies a large portion of the wall, and the ceiling’s structural elements eliminate several other options. Rather than unnecessarily moving the unit to one side of the room and compromising air distribution, the space above the window was used precisely.

Why install a wall-mounted heat pump above a window?

Installing a heat pump above a window can be highly effective when properly planned. In particular, it makes use of wall space that often remains unused while keeping furniture and storage areas free.

In this installation in Ange-Gardien, the relatively central position of the unit also allows the supply air to spread throughout the room rather than being immediately blocked by a tall piece of furniture or a partition.

However, simply centering the unit visually is not enough.

We must ensure that the unit has enough space to draw in air through its upper section and discharge treated air through its lower louver. A unit installed too close to the ceiling may have restricted airflow. An installation that is too low, on the other hand, may direct the airflow straight toward occupants or interfere with the opening of a window or door.

In this photo, the proximity of the ceiling soffit is precisely the kind of detail our technicians must analyze before permanently securing the mounting plate.

Precise leveling is particularly important above a window

Another less visible but essential detail concerns the level of the indoor unit.

A wall-mounted heat pump produces condensation when operating in cooling mode. This water must be properly discharged through the drainage system. An improperly positioned unit or a drain with an inadequate slope can eventually cause problems such as:

• water running down the wall;
• water accumulating in the condensate pan;
• gurgling noises;
• odors caused by stagnant water;
• damage to the paint, window frame, or finishing materials.

In an installation like this, the fact that the unit is positioned above a beautiful wooden window frame makes drainage quality even more important. A condensate leak would be more than just unpleasant: it could damage the finishing elements located directly beneath the heat pump.

That is why a professional HVAC installation must consider the entire system, not just how the unit is mounted on the wall.

Fujitsu AIRSTAGE: a wall-mounted design suited to residential installations

The photo clearly identifies the Fujitsu brand and the name AIRSTAGE on the indoor unit. However, the exact model number and nominal BTU capacity are not visible in this view.

We avoid determining capacity solely from the unit’s external dimensions, since several units in the same family may have very similar housings while offering different capacities.

To confirm precisely:

• the number of BTUs;
• the indoor model number;
• the outdoor unit model;
• the SEER2 rating;
• the HSPF2 rating;
• the minimum heating temperature;
• the type of refrigerant;
• the AHRI certification number;
• potential eligibility for financial assistance;

we refer to the nameplates and technical documents corresponding exactly to the installed system.

This verification is particularly important for homeowners shopping for a Fujitsu heat pump in Ange-Gardien or elsewhere in Quebec. Two units of the same brand may have very different winter performance.

The number of BTUs should never be chosen simply according to the size of the available wall

A common mistake is to select a wall-mounted heat pump solely according to a rough floor-area rule. The building’s surface area is important, but it tells only part of the story.

To properly determine a system’s capacity, we take the following into account, among other factors:

• the floor area and volume of the spaces;
• the number of stories;
• insulation;
• the number and size of windows;
• solar orientation;
• the layout of the rooms;
• heat loss;
• winter heating requirements;
• the natural circulation of air between the different areas.

An oversized heat pump is not automatically more comfortable. In cooling mode, an excessively large unit can quickly reach the requested temperature without running long enough to provide optimal dehumidification. Conversely, an undersized unit may need to operate almost continuously during periods of extreme cold or heat.

AirGreen’s goal is therefore to propose a capacity that is appropriate for the building, rather than simply installing the largest unit that can fit in the available space.

This Ange-Gardien project shows why the location matters as much as the choice of heat pump

Air circulation must remain the priority

In a wall-mounted heat pump installation, a few centimeters can significantly alter airflow behavior.

The front panel of the Fujitsu unit shown here contains the air-distribution louver located on the lower section. When the unit operates, this louver directs the air into the room.

We must avoid locations where the airflow is immediately blocked by, as much as possible:

• a beam;
• a cabinet;
• a tall piece of furniture;
• a partition;
• a curtain;
• an open door;
• another architectural obstruction.

The photographed installation is a good example of a technical compromise: the upper part of the room is complex, but the space directly in front of the heat pump remains relatively open.

A restrained visual integration despite the constraints

The surroundings of this installation have plenty of character: a light-colored ceiling, large moldings, a wooden window frame, and a dark wall.

A white wall-mounted unit will inevitably be visible on such a wall. The goal was therefore not to make it disappear, but to give it a logical and structured position.

Installing it directly above the window helps create a natural alignment. The heat pump does not appear to have been added randomly to an open section of the wall. Instead, it fits into the architectural axis already created by the window.

This aesthetic consideration is especially important in homes where the space available for a heat pump is limited.

During our HVAC installations in Montreal, Laval, Longueuil, on the North Shore, the South Shore, and in municipalities such as Ange-Gardien, we regularly encounter walls with beams, windows, cabinets, irregular ceilings, or decorative elements. We then need to find a balance between performance and integration.

The line route is part of the planning

The indoor head is only the visible portion of the system. Behind this installation are also the components that allow the heat pump to operate: refrigerant lines, communication wiring, electrical power depending on the system configuration, and condensate drainage.

Before drilling into a wall, we need to consider the entire route.

A location may seem excellent from inside and become problematic when the exterior of the building is analyzed. For example, a downspout, structure, balcony, particular foundation wall, or exterior obstacle can considerably complicate the routing of the lines.

That is precisely why a heat pump installation should be considered a complete project rather than simply the installation of two units.

What we want to avoid during a wall-mounted installation

The most costly problems often arise when details have been overlooked from the outset.

Among the mistakes we systematically try to avoid are an outdoor unit positioned too close to the ceiling, a unit placed in a corner that severely limits air circulation, a drain without an adequate slope, lines installed without sufficient protection, and an outdoor unit placed where snow accumulation could become problematic.

In Quebec, the location of the outdoor unit requires particular attention.

In heating mode, a heat pump must operate while outdoor conditions may include snow, ice, wind, and defrost cycles. The installation must therefore account for draining the water produced during defrosting and possible accumulation around the unit.

Maintaining the wall-mounted unit remains essential after installation

Even an excellent Fujitsu heat pump will gradually lose performance if it is not maintained.

The indoor unit’s filters collect dust present in the home’s air. When they become very dirty, airflow may decrease and the unit must work harder to maintain the requested temperature.

We therefore recommend regularly checking the condition of the filters, particularly during periods when the heat pump operates daily.

Over time, more thorough HVAC maintenance may also become necessary to eliminate deposits that form on the evaporator, blower wheel, and certain internal surfaces.

For a unit installed above a window like this one, accessibility must also be considered from the outset. It must be possible to open the front panel and remove the filters without having to dismantle architectural elements.

Rebates must be verified using the system’s exact number

Financial assistance associated with heat pumps changes depending on the programs, eligibility criteria, and precise combinations of indoor and outdoor units.

It would therefore be incorrect to claim that a heat pump is eligible simply because it is a Fujitsu AIRSTAGE.

Instead, we verify the exact combination number, its applicable certification, and the program criteria in effect at the time of the project.

This step is particularly important when a homeowner compares several proposals. A price difference between two heat pumps may seem significant before rebates and much less significant once the applicable financial assistance is taken into account.

This project reflects our approach at AirGreen well

This Ange-Gardien installation does not stand out because of a spectacular intervention. It stands out because of the details that had to be resolved correctly: a window occupying much of the wall, a dropped ceiling, a beam very close to the chosen location, and relatively limited space for the indoor head unit.

This is precisely where installation experience becomes important.

We evaluate the unit, but also the room in which it will operate for years. A heat pump may have excellent technical specifications and still provide a disappointing experience if it is poorly positioned.

Conversely, a properly sized Fujitsu ductless heat pump, installed with the appropriate clearances and directed toward an open area, can provide much more even heating and cooling.

A Useful Example for Homeowners with Limited Wall Space

Homeowners who think they do not have enough space to install a heat pump should pay particular attention to this project.

Windows, beams, and irregular ceilings do not automatically rule out an installation. However, the available clearances must be measured precisely, and it must be confirmed that a suitable unit can operate properly in that configuration.

We carry out this type of analysis for houses, condos, plexes, and other buildings in Ange-Gardien, Montreal, Laval, Longueuil, the South Shore, and the North Shore.

Depending on the building, the solution may be a single-zone ductless heat pump, a multi-zone system, or another HVAC configuration better suited to the layout.

A Successful Installation Begins Before the First Screw

The most important part of a heat pump project often takes place before the installation even begins.

The capacity, indoor location, outdoor location, routing of the lines, condensate management, and electrical requirements must all be determined. When these elements are decided correctly, the work on-site becomes much more predictable and the final result is cleaner.

This Fujitsu AIRSTAGE installation in Ange-Gardien is a good example. The available space was limited, and the architecture imposed its own constraints. By carefully using the area above the window, we were able to integrate the heat pump into the room while maintaining a logical configuration for air distribution.

At AirGreen, it is this attention to detail that we apply to every ductless heat pump installation, whether it takes place in Ange-Gardien or elsewhere in Greater Montreal.
