Installation of a Fujitsu AIRSTAGE Altair 500 wall-mounted heat pump in Mont-Saint-Hilaire, Montérégie

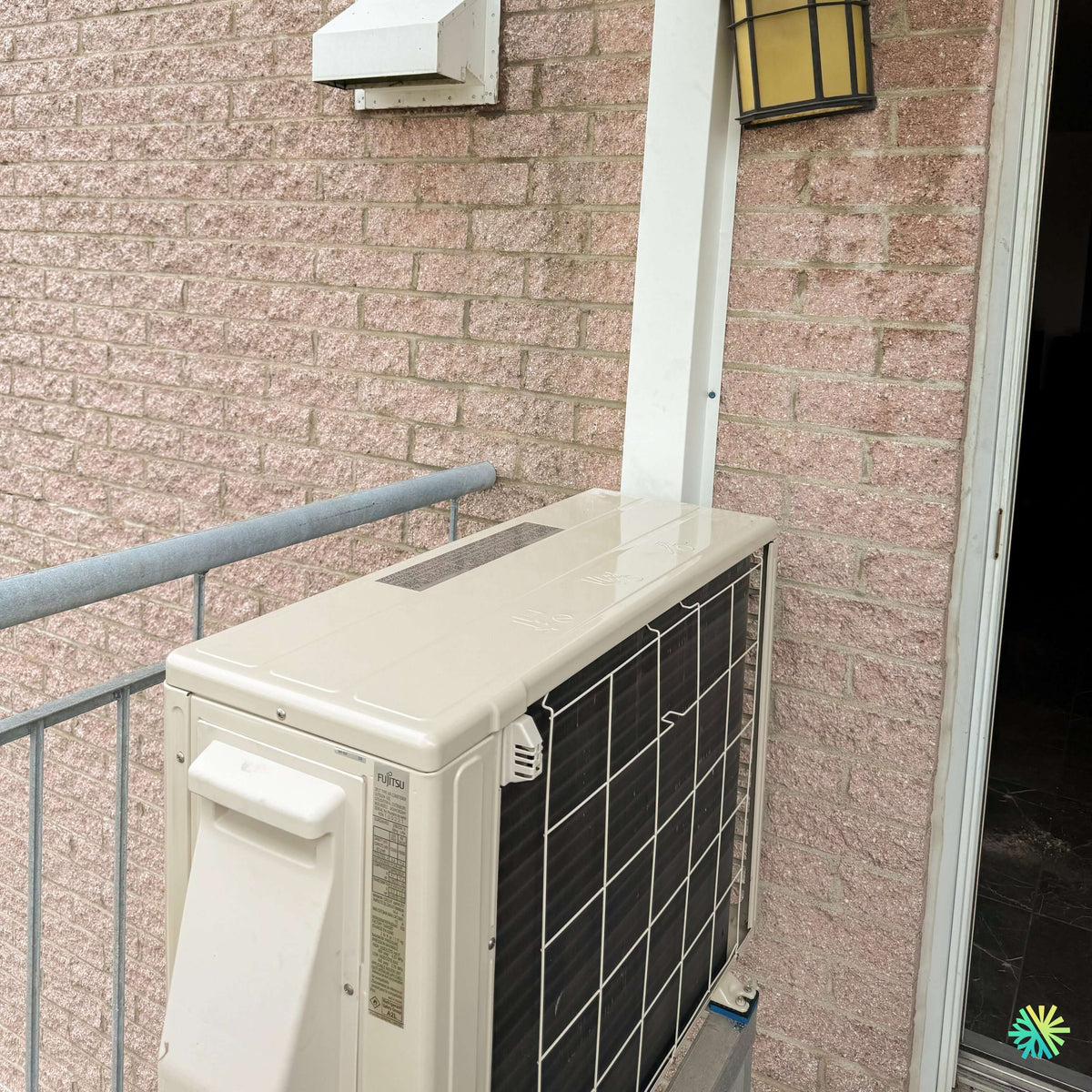

A Fujitsu Altair 500 installation in a narrow outdoor space, with a line passage fully integrated into the façade

In Mont-Saint-Hilaire, we installed a Fujitsu AIRSTAGE Altair 500 wall-mounted heat pump in an outdoor configuration that required much more precision than simply positioning the unit on the ground. The site photo clearly shows the context: a brick façade, limited space between the wall and a metal guardrail, a door located very close to the outdoor unit, and a line route that had to run vertically along the building.

Our goal was twofold: to install the equipment in a technically viable location while maintaining a clean finish on a façade already occupied by several architectural elements.

We therefore used a raised metal bracket to keep the outdoor unit at an appropriate height and clear the space beneath it. The refrigerant line and wiring were grouped inside a vertical white line-hide cover, installed against the brick. This finish protects the connections while avoiding a succession of pipes, cables, and insulation remaining visible on the façade.

This is a particularly important detail for a home in Mont-Saint-Hilaire, where a heat pump installation often has to fit into an already landscaped outdoor environment rather than being placed on a completely unobstructed wall.

The Fujitsu AIRSTAGE Altair 500 series includes several single-zone wall-mounted systems: 09KPAS1, 12KPAS1, 18KPAS1, 24KPAS1, 30KPAS1, and 36KPAS1. Depending on the capacity, the nominal cooling capacity ranges from 9,000 to 33,000 BTU/h, while the nominal heating capacity ranges from 10,000 to 34,000 BTU/h. However, the photo does not allow us to confirm the exact capacity installed for this project with sufficient certainty, so we prefer to stick to the verifiable specifications of the series.

An outdoor location where every clearance matters

The distinctive feature of this heat pump project in Mont-Saint-Hilaire largely stems from the available space.

The outdoor unit is located in a relatively narrow area bordered by:

• a brick wall;
• a metal guardrail;
• a nearby exterior door;
• a light fixture attached to the façade;
• a ventilation duct already present higher up;
• the new vertical line-hide for the heat pump.

This type of environment requires several checks even before drilling begins.

The unit must be able to breathe properly. The outdoor heat exchanger needs adequate airflow to transfer heat. A heat pump installed too close to an obstacle may lose efficiency, recirculate some of its air, or become more difficult to service.

The positioning shown in the photo is specifically intended to make use of the available space without enclosing the unit between the wall and the guardrail.

Why the elevated support plays an important role

We installed the outdoor unit on a sturdy metal support, rather than directly on the surface of the gallery or landing.

This choice offers several practical advantages.

First, it keeps the underside of the compressor clear. In winter, a heat pump regularly performs defrost cycles. Water may then flow beneath the unit. It is therefore important to avoid creating a configuration in which this water remains trapped directly against the chassis.

Next, the support makes maintenance and access to certain parts of the unit easier.

Finally, in a space like this, it helps us position the outdoor unit at a height that is consistent with the piping route and the building’s geometry.

A poorly designed or improperly secured support can also transmit vibrations. That is why mechanical stability is an integral part of the HVAC installation, just as much as the refrigerant connection.

A vertical line-hide that structures the entire installation

One of the most visible elements of this installation is the long white line-hide running vertically against the brick façade.

Inside, they generally contain the components required to connect the indoor unit to the outdoor unit:

The refrigerant lines

They carry refrigerant between the two units.

The required communication and power wiring

It provides the electrical connection and control between the system components.

The line insulation

It helps maintain performance and limits condensation on the cold lines.

Depending on the configuration, the drainage

The indoor unit’s condensate drain must also be planned according to the building’s layout.

The line-hide protects these components from the elements and considerably improves the visual finish.

On a masonry façade like this one, we aim to follow a logical line. The vertical line-hide is therefore positioned neatly rather than crossing the façade diagonally.

The Fujitsu Altair 500: an R-32 wall-mounted heat pump

The Fujitsu AIRSTAGE Altair 500 operates with R-32 refrigerant across all capacities listed in the series documentation. Fujitsu describes this refrigerant as having a significantly lower global warming potential than R-410A. The documentation compares a GWP of 675 for R-32 with 2,088 for R-410A, representing an announced reduction of 68%.

R-32 is therefore one of the important technical features of this generation of equipment.

For our technicians, this also means that work methods, tools, and procedures must be adapted to the refrigerant used. The piping must never be treated as merely an incidental part of the installation.

Inverter technology adapted to a home’s changing needs

The Altair 500 series uses an Inverter compressor. It can adjust the system’s operation based on demand rather than operating exclusively at full capacity and then shutting off.

This modulation capacity helps maintain a more stable temperature in the home.

The published operating ranges clearly demonstrate this modulation. For example:

• the 09KPAS1 can produce approximately 3,100 to 11,200 BTU/h in cooling mode;
• the 12KPAS1, approximately 3,100 to 13,600 BTU/h;
• the 18KPAS1, approximately 4,000 to 20,000 BTU/h;
• the 24KPAS1, approximately 4,000 to 24,400 BTU/h;
• the 30KPAS1, approximately 9,900 to 32,400 BTU/h;
• the 36KPAS1, approximately 9,900 to 34,100 BTU/h.

In heating mode, the ranges are also modulating and can exceed the rated capacity under certain conditions.

This operation is particularly beneficial during the shoulder seasons of spring and fall, when heating or cooling needs are relatively low.

High efficiencies that vary by capacity

The Fujitsu technical data sheet indicates VERY2 values of:

• 26.0 for the 9,000 BTU model;
• 24.0 for the 12,000 BTU model;
• 22.0 for the 18,000 BTU model;
• 21.5 for model 24KPAS1;
• 22.0 for the 30,000 BTU model;
• 21.0 for model 36KPAS1.

The lineup also includes different ENERGY STAR classifications, including, depending on the model, ENERGY STAR, ENERGY STAR Cold Climate, and ENERGY STAR Most Efficient versions.

For a homeowner evaluating energy savings or financial assistance programs, it is therefore essential to verify the exact model number rather than relying solely on the name “Altair 500.”

Not all capacities within the same family have exactly the same efficiencies or certifications.

Eligibility for rebates must be verified using the exact model

When a customer asks us whether a heat pump is eligible for financial assistance, we do not answer solely based on the brand.

You must verify:

• the exact indoor unit/outdoor unit combination;
• the capacity;
• the applicable certification;
• the program criteria;
• the rules in effect on the installation date.

The Altair 500 series documentation shows that several models have different classifications. This distinction may affect eligibility for certain programs.

For a heat pump installation in Mont-Saint-Hilaire, this is therefore something to confirm before signing the project if the subsidy is part of the homeowner’s financial calculations.

The technical details that make the difference in a heat pump installation in Mont-Saint-Hilaire

Piping dimensions vary according to capacity

A common mistake when replacing an old system is assuming that the existing pipes will automatically be suitable for the new heat pump.

That is not the case.

For the Fujitsu Altair 500, the documentation states:

• 9,000 and 12,000 BTU models: 1/4 in. liquid and 3/8 in. gas;
• 18,000 and 24,000 BTU models: 1/4 in. liquid and 1/2 in. gas;
• 30,000 and 36,000 BTU models: 3/8 in. liquid and 5/8 in. gas.

The diameter must exactly match the equipment requirements.

On this Mont-Saint-Hilaire installation, the vertical line-hide conceals the path of the lines, but the true quality of the work is found precisely inside: proper bends, continuous insulation, suitable connections, and a carefully planned route.

A substantial piping length for challenging buildings

The Altair 500 series also offers considerable flexibility regarding line-set lengths.

According to Fujitsu, the maximum length is:

• 20 m (66 ft) for the 9,000 and 12,000 BTU models;
• 30 m (98 ft) for the 18,000 and 24,000 BTU models;
• 50 m (164 ft) for the 30,000 and 36,000 BTU models.

The maximum vertical difference increases to 15 m, 25 m, or 30 m, depending on the capacity.

This flexibility is especially useful when the indoor unit and outdoor unit cannot be installed directly back-to-back.

In Montréal, we often encounter this issue in duplexes and condos. In Longueuil and on the South Shore, it regularly arises in homes with patios, balconies, or narrow side spaces. In Laval and on the North Shore, multi-storey installations may also require much longer runs.

A power supply that must also match the capacity

The Altair 500 series operates at 208 to 230 V, 60 Hz, single-phase, but the circuit breaker rating varies by model.

The technical specifications indicate:

• 15 A for the 9,000 BTU models;
• 15 A for the 12,000 BTU models;
• 15 A for the 18,000 BTU models;
• 20 A for the 24KPAS1;
• 30 A for the 30,000 and 36,000 BTU models.

This information must be verified before installation.

An existing electrical circuit is not automatically suitable just because it previously powered an old air conditioner. We must take the new equipment and its specifications into account.

Heating down to -15 °C according to the published rated range

Fujitsu publishes a heating operating range from -15 °C to 24 °C for the Altair 500 models presented in the technical specifications.

For a Quebec homeowner, this means that this heat pump can make a significant contribution to heating during a large part of the season.

However, three concepts must be distinguished:

Minimum operating temperature

It indicates how far the equipment is designed to operate within the published range.

Available capacity at low temperatures

It may differ from the rated capacity.

The home’s actual needs

They depend on the building’s heat loss.

A heat pump should therefore never be selected solely based on the statement “operates down to -15 °C.”

A compact unit for tight spaces

The job-site photo directly illustrates the usefulness of a compact outdoor unit.

Depending on the capacity, Altair 500 outdoor units measure approximately:

• 663 mm wide for the 9,000 and 12,000 BTU models;
• 799 mm for the 18,000 and 24,000 BTU models;
• 940 mm for the 30,000 and 36,000 BTU models.

In a narrow space like the one at this residence in Mont-Saint-Hilaire, these dimensions become a design consideration.

We must consider not only the physical width of the unit, but also the clearances required around it.

Sound level matters when a door is nearby

In this installation, the outdoor unit is located relatively close to a door.

Noise therefore becomes a factor to consider.

The Fujitsu specifications indicate an outdoor sound level ranging from approximately 46 to 56 dB(A), depending on the capacity and whether it is in heating or cooling mode.

The indoor unit can, in turn, go as low as 19 dB(A) in quiet mode on certain capacities.

This data is useful, but the quality of the installation also affects acoustic comfort. A poorly secured structure or unstable support can amplify vibrations.

That is why we check the support, contact points, and positioning before commissioning.

An installation designed with HVAC maintenance in mind

The heat pump must remain accessible after the installation team leaves.

This is a point that is sometimes overlooked.

The technician may eventually need to:

• inspect the outdoor coil;
• clean the heat exchanger;
• access the service valves;
• check the system pressure if necessary;
• inspect the electrical connections;
• check the compressor’s operation;
• perform a diagnosis.

Placing a unit in a location where it is nearly impossible to service may reduce the initial project cost by a few minutes, but it can create complications throughout the system’s entire life.

In this configuration, we therefore considered future HVAC maintenance from the moment we selected the location.

What we take away from this Mont-Saint-Hilaire installation

This Fujitsu AIRSTAGE Altair 500 installation in Mont-Saint-Hilaire is particularly representative of the real-world work carried out in the field.

The main challenge was not finding a large empty area. It was exactly the opposite: we had to integrate a heat pump into a space already occupied by a railing, a door, a brick façade, a light fixture, and another outdoor line set.

We therefore worked around the existing architecture rather than against it.

The elevated support, careful positioning of the outdoor unit, and white vertical line-set cover make it possible to achieve a well-structured installation despite the site constraints.

This is the approach we apply to our wall-mounted heat pump projects in Montreal, Laval, Longueuil, the North Shore, the South Shore, and Montérégie.

We analyze the building first, then the equipment.

A good HVAC installation depends on the project as a whole: properly selected capacity, correctly sized piping, suitable electrical supply, adequate airflow, stable support, well-planned drainage, and sufficient access for service.

In this Mont-Saint-Hilaire project, the Fujitsu Altair 500 was integrated into an outdoor space where every detail mattered. The result is a compact, protected installation that complements the façade, while benefiting from Inverter technology, R-32 refrigerant, and the performance levels offered by this new generation of Fujitsu systems.
