An installation in Saint-Hugues where the indoor unit's positioning makes all the difference
In Saint-Hugues, in Montérégie, we completed this installation of a FUJITSU AIRSTAGE ORION XLTH wall-mounted heat pump+ with a very concrete objective: to integrate a high-performance heating and cooling system without compromising the use of the interior space.

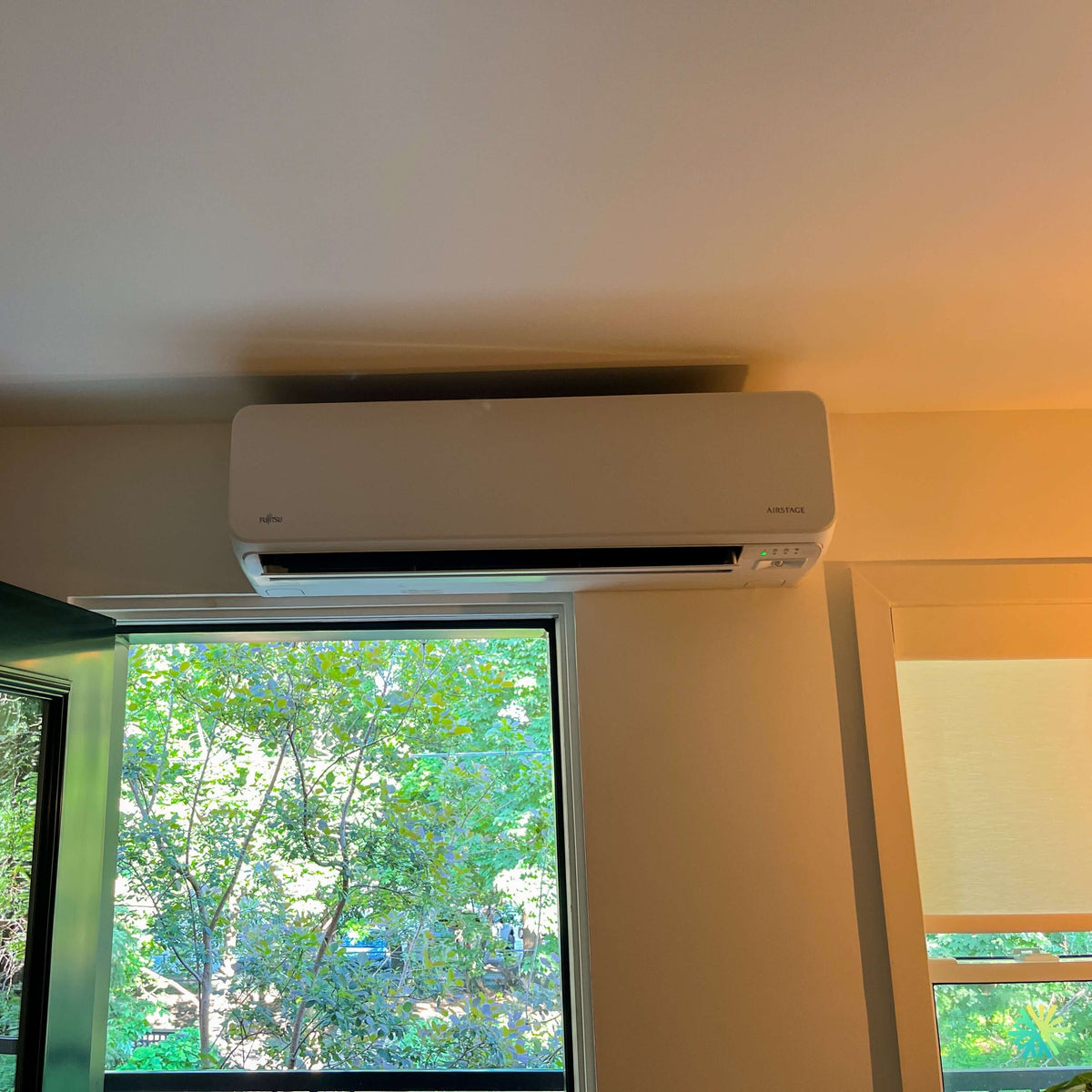

The installation photo clearly shows one of the most important aspects of this project. The indoor unit was installed high up, above a large exterior opening, on a section of wall where every available centimetre matters. This configuration keeps the main wall surfaces free for furnishings while giving the heat pump a favourable position for distributing air throughout the room.
The result is particularly clean: the FUJITSU unit fits along the upper line of the room without unnecessarily encroaching on the living space. For us at AirGreen, a successful HVAC installation is never limited to mounting a unit on the wall. The location must take into account airflow, maintenance access, the building's structure, the refrigerant line route, condensate drainage, and the final appearance.
A FUJITSU ORION XLTH+ designed for the Quebec climate
The FUJITSU AIRSTAGE ORION XLTH+ belongs to a range of wall-mounted heat pumps designed for heating in cold climates. According to the technical documentation provided by FUJITSU for this series, ORION XLTH+ models can operate in heating mode down to -30 °C, a particularly relevant feature for a residence in Saint-Hugues, where a heat pump must be selected for both its winter performance and its summer cooling capacity.
The range presented in the technical data sheet includes three configurations:
- 09KTAP1 : rated cooling capacity of 9,000 BTU/h and rated heating capacity of 12,000 BTU/h;
- 12KTAP1 : rated cooling capacity of 12,000 BTU/h and rated heating capacity of 15,300 BTU/h;
- 15KTAP1 : rated cooling capacity of 14,500 BTU/h and rated heating capacity of 17,400 BTU/h.
The photo clearly identifies a FUJITSU AIRSTAGE wall-mounted unit, but it does not, on its own, reliably confirm which of these three capacities was installed. We therefore prefer not to arbitrarily assign a BTU rating to this project when the nameplate or exact model number is not visible.
This distinction is important. In the HVAC field, stating a capacity based solely on the appearance of a unit can lead to incorrect information, since several units in the same series use indoor cabinets of similar dimensions.
Exceptionally high energy efficiency
The ORION XLTH+ also stands out for its efficiency data. The FUJITSU technical specifications indicate SEER2 values of up to 33.5 for model 09KTAP1, 31.5 for 12KTAP1, and 28.7 for 15KTAP1. The listed HSPF2 Region V values are 11.5, 11.3, and 10.7, respectively.
For the homeowner, these figures have a practical consequence: the heat pump can modulate its output instead of operating solely according to a traditional on-off cycle.
This is the role of Inverter technology. The compressor adjusts its output according to the actual heating or cooling demand. When the indoor temperature approaches the setpoint, the system can reduce its output rather than shut off completely and restart at full capacity a few minutes later.
This modulation helps to:
- maintain a more stable indoor temperature;
- reduce comfort fluctuations;
- limit repeated compressor starts;
- improve part-load efficiency;
- reduce noise levels when demand is low.
Heating capacity that remains relevant as the temperature drops
A heat pump installed in Quebec should never be evaluated solely according to its rated capacity as stated in a brochure. It is also important to consider what happens when the outdoor temperature drops below zero.
This is precisely where the features of the FUJITSU ORION XLTH+ range become interesting.
According to the manufacturer’s specifications, model 12KTAP1, for example, can reach a maximum heating percentage of 128% of its rated capacity at -26 °C and 103% at -30 °C, under the reference conditions indicated by FUJITSU. Model 15KTAP1 is listed at 116% at -26 °C and 101% at -30 °C.
This does not mean that a heat pump should be sized solely by looking at these percentages. A professional selection must take into account the floor area, insulation, air infiltration, windows, the building’s orientation, and heat distribution between rooms.
At AirGreen, we emphasize this point because a heat pump that is too small may lack capacity during cold periods, while an unnecessarily oversized unit can create other comfort and modulation problems.
The visible detail in the photo: a high and compact installation
In this installation in Saint-Hugues, the indoor unit is positioned immediately above an opening leading outdoors. This arrangement offers an obvious advantage: it makes use of a wall area that would otherwise be difficult to utilize.
The ORION XLTH+ is well suited to this type of configuration because the indoor units in this series measure approximately 894 mm wide, 295 mm high, and 280 mm deep, according to the FUJITSU technical specifications.
On site, installation in a high location nevertheless requires greater precision than positioning on a large, unobstructed wall.
We must specifically check:
Air circulation
The heat pump’s lower flap must be able to project air toward the occupied area without immediately encountering an obstacle that could disrupt its distribution.
In the configuration shown in the photograph, the front of the unit remains completely unobstructed. This arrangement allows air to leave the appliance directly and circulate throughout the room.
Required clearances
An appliance installed near the ceiling must maintain the clearances specified by the manufacturer so that its air intake is not obstructed.
Measurements must therefore be taken before drilling. A difference of a few centimetres can determine whether a location is actually usable.
Access for maintenance
The filter on a wall-mounted heat pump must remain accessible. The ORION XLTH+ series documentation also indicates the use of a washable filter.
An aesthetically pleasing installation that makes future maintenance impossible would be a poor installation. We must therefore consider from the outset the cleaning of the filters, access to the coil, the condensate pan, and the internal components.
Copper ProCore coils
FUJITSU states that the ORION XLTH+ indoor unit uses highly corrosion-resistant copper ProCore coils. The documentation also highlights this feature as a factor that helps promote system durability.
In a residential installation, the quality of the internal components matters just as much as the unit’s exterior appearance. A heat pump operates for thousands of hours over its service life and must regularly handle changes in temperature, pressure, and humidity.
This construction is therefore a factor we consider when comparing different wall-mounted heat pumps in Montréal, Laval, Longueuil, the North Shore, the South Shore, and Montérégie.
R-32 Refrigerant: A Newer Generation of FUJITSU Heat Pumps
The ORION XLTH+ uses R-32 refrigerant.
According to FUJITSU, its global warming potential is 675, compared with 2,088 for R-410A, representing an indicated reduction of 68%.
For a homeowner replacing an old heat pump or installing a ductless system for the first time, this is an important technical aspect to understand. The heating and air conditioning industry is gradually moving toward refrigerants with lower global warming potential, and R-32 is part of this transition.
1/4-in liquid piping and 3/8-in gas piping
A particularly useful detail for homeowners, contractors, and building managers comparing several systems is the size of the refrigerant piping.
For the three ORION XLTH+ models presented in the technical data sheet, FUJITSU indicates:
- liquid line: 1/4 in;
- gas line: 3/8 in;
- minimum piping length: 3 m (10 ft);
- maximum length: 20 m (66 ft);
- maximum vertical difference: 14.9 m (49 ft).
These limits provide some flexibility when determining the outdoor unit’s location.
In a real-world installation, however, we do not aim to use the maximum amount of piping simply because the manufacturer allows it. When the building permits, a shorter, more direct route generally simplifies installation and reduces visible mechanical components.
Very quiet indoor operation
In a bedroom, living room, or open-plan space, the noise from a heat pump can quickly become just as important as its capacity.
The FUJITSU ORION XLTH+ series offers a quiet ventilation mode. Depending on the model, the documentation indicates an indoor sound level as low as 23 dB(A) for the 09KTAP1 and 12KTAP1 versions, while the 15KTAP1 reaches 26 dB(A).
The units offer six fan speeds, in addition to automatic mode. This range of airflow rates helps the system adjust air circulation to the room’s actual needs.
This is particularly relevant for an installation like the one in Saint-Hugues: since the unit is positioned very high, managing the direction and speed of the air directly contributes to the comfort experienced in the occupied area.
Integrated Wi-Fi and remote control
FUJITSU documentation indicates integrated Wi-Fi connectivity, paired with the AIRSTAGE mobile app for remote monitoring and control.
Depending on the configuration, the homeowner can manage the system without relying solely on the infrared remote control.
The series also offers several more advanced integration options. FUJITSU specifically mentions compatibility with certain BACnet and Modbus interfaces, as well as several wired controllers and optional accessories.
For a home, all these functions are obviously not necessary. However, they become interesting in certain advanced residential applications or in buildings where the air-conditioning system needs to communicate with an automation solution.
This Saint-Hugues project illustrates our approach to installing a wall-mounted heat pump
The most visible aspect of this installation is simple: the heat pump seems to be part of the room rather than having been added afterward.
This is precisely what we look for during our installations.
We analyze the wall before deciding on the location
Systematically installing an indoor unit on the first available wall is a mistake.
Before installation, several points must be considered:
- the natural distribution of air;
- clearance above and around the unit;
- the presence of doors and windows;
- the possible drain route;
- the route of the refrigerant lines;
- the possible location of the outdoor unit;
- accessibility for maintenance;
- the wall structure;
- the homeowner’s aesthetic preferences.
The photo of this FUJITSU ORION XLTH+ installation in Saint-Hugues clearly shows why this analysis is important. Rather than occupying a large wall area that could be used for furniture or décor, we made use of the upper part of the room.
We place great importance on the finishing
A heat pump can be excellent on paper yet make a poor impression if its installation is neglected.
A professional installation should pay attention to details such as:
- indoor unit leveling;
- the quality of the openings;
- drain routing;
- pipework protection;
- finishing around wall penetrations;
- outdoor unit positioning and mounting;
- electrical connections;
- condensate drainage inspection;
- system commissioning.
These elements are not always visible on a quote based solely on price. Yet they directly affect the reliability and final appearance of the heat pump installation.
A common mistake: choosing BTUs based solely on floor area
One of the mistakes we regularly encounter in the HVAC field is automatically matching floor area to heat pump capacity.
Two homes with the same floor area may have very different needs.
An older home with extensive glazing, limited insulation, and numerous air leaks may require much more heating than a recent building of comparable size.
Conversely, systematically oversizing the unit “to be sure” is not a better strategy.
We assess, among other things:
- the building envelope;
- the number and type of windows;
- interior volume;
- solar exposure;
- the number of floors;
- the layout of the rooms;
- the presence of open staircases;
- other heating sources;
- occupancy habits.
We then determine whether a 9,000, 12,000, or 15,000 BTU heat pump is the best choice.
Why the ORION XLTH+ is particularly well suited to Quebec
For a home in Saint-Hugues, as well as for a property in Montreal, Laval, Longueuil, on the North Shore or the South Shore, we generally look for a balance among several criteria.
An excellent heat pump should not only be able to cool in July. It must also maintain strong performance when January arrives.
The FUJITSU ORION XLTH+ brings together several features suited to this reality:
- heating advertised down to -30 °C;
- R-32 refrigerant;
- Inverter technology;
- efficiency of up to 33.5 SEER2, depending on the model;
- ENERGY STAR rating indicated on the models in the series;
- base pan heater designed for very cold climates;
- indoor operation as low as 23 dB(A);
- built-in Wi-Fi;
- piping length of up to 20 metres;
- ProCore copper indoor coil.
Watch out for grants: eligibility must be validated at the time of the project
The models listed in the FUJITSU sheet display ENERGY STAR ratings, including a designation associated with cold climates.
This may be relevant for certain financial assistance programs. However, the actual amount of a grant should never be assumed solely because a heat pump has an ENERGY STAR certification.
Eligibility depends on the program in effect, the model number, the indoor/outdoor combination, the capacity and sometimes a specific performance reference.
At AirGreen, we therefore verify the equipment actually being proposed rather than promising financial assistance based solely on the product name.
What we take away from this Saint-Hugues installation
This installation clearly illustrates the kind of decision that may seem minor before the work begins but transforms the final result: where exactly should the indoor unit be placed?
Here, positioning the unit high on the wall preserves a functional wall while integrating the heat pump into an area already defined by the exterior opening. The white unit blends discreetly with the room's light-colored surfaces, while its front panel and airflow louver remain completely unobstructed.
Behind this apparent simplicity, however, are several considerations: electrical supply, R-32 refrigerant, refrigerant piping, condensate drainage, airflow, clearances, mounting and commissioning.
It is this combination of equipment selection, technical installation and finishing that makes the difference between simply having a heat pump and having an HVAC installation that is genuinely suited to the building.
FUJITSU heat pump installation by AirGreen
At AirGreen, we install wall-mounted heat pumps, multi-zone systems and central systems throughout Greater Montreal and several surrounding municipalities.
Our teams complete projects in Montreal, Laval, Longueuil, on the South Shore and the North Shore, as well as in several areas of Montérégie, including Saint-Hugues.
For every project, our work begins with understanding the building. Brand selection comes next, followed by sizing, placement and installation method.
This FUJITSU AIRSTAGE ORION XLTH+ installed in Saint-Hugues is a good example of this approach: a unit designed for cold climates, integrated into a compact location, with an installation that preserves as much usable room space as possible.
For a homeowner comparing several heat pump options in Saint-Hugues, the best advice remains not to limit the comparison to the number of BTUs or the listed price. You need to consider cold-weather performance, sound level, installation quality, parts availability, refrigerant characteristics, control options and, above all, the actual fit between the unit and the building.
At AirGreen, these are precisely the factors on which we base our recommendations and installations.
