Installation of a Fujitsu AIRSTAGE Orion XLTH wall-mounted heat pump in Saint-Polycarpe

A Fujitsu Orion XLTH installation designed to maximize comfort without cluttering the room

At Saint-Polycarpe, this installation of a Fujitsu AIRSTAGE Orion XLTH wall-mounted heat pump illustrates very well what we look for at AirGreen when a unit must be integrated into an already finished residential space: a logical position, unobstructed air distribution, a clean-looking installation, and a machine genuinely suited to Quebec's climate.

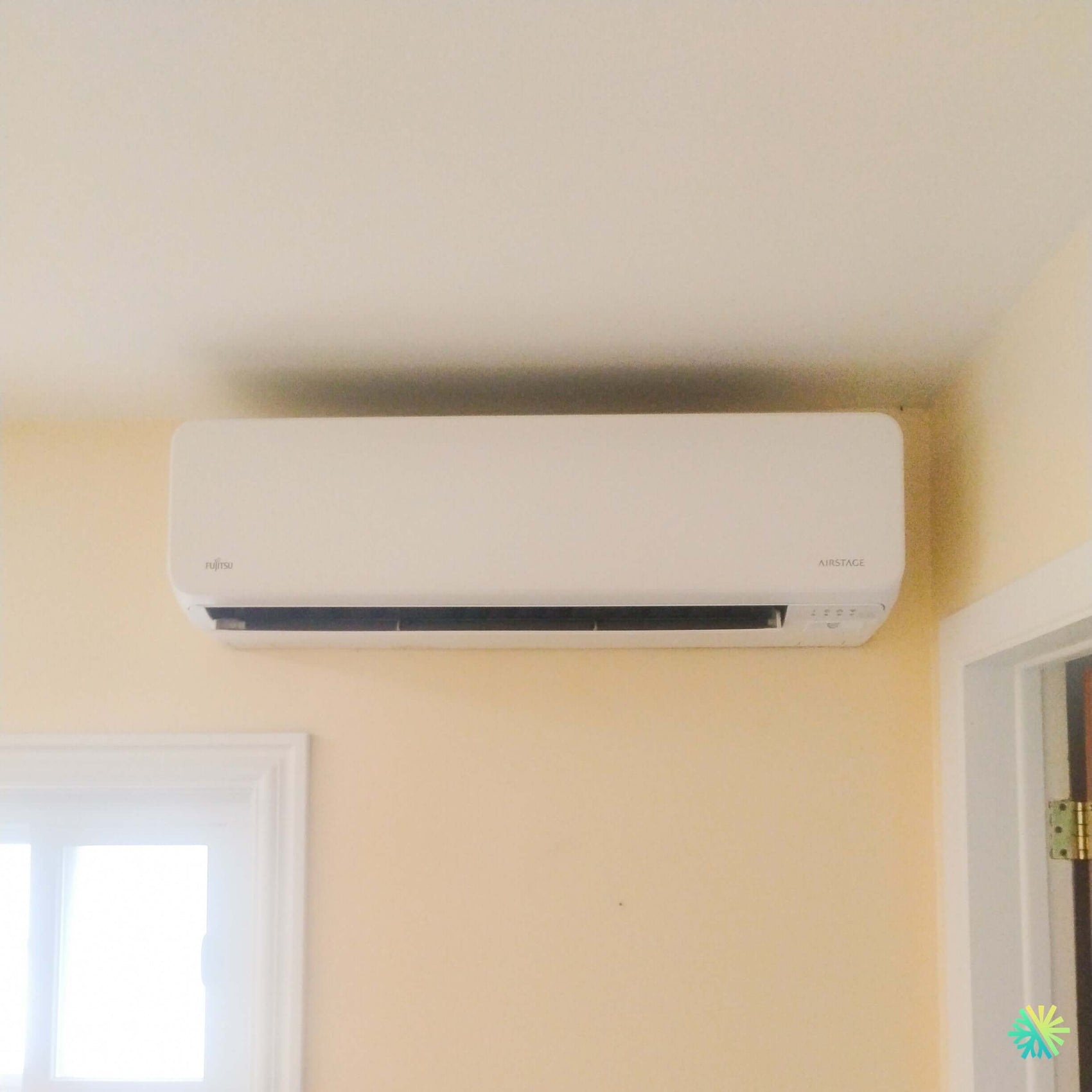

In the final site photo, the indoor unit is installed very high on the wall, near the ceiling, in the available space between a window opening and an adjacent door. This positioning choice is not merely aesthetic. In a wall-mounted heat pump installation, a few inches can have a significant impact on air circulation, access for maintenance, the route of the refrigerant lines, and the ability to properly direct the airflow louvers.

Here we have a Fujitsu AIRSTAGE Orion XLTH, a series designed for heating and cooling in cold climates. Fujitsu's technical documentation covers capacities of 9,000, 12,000, 14,500, 18,000, and 22,000 BTU/h in nominal cooling, depending on the specific model. All units in this family can operate in heating mode down to -26 °C, which is particularly relevant for a residence in Saint-Polycarpe and, more broadly, for HVAC installations carried out in the Greater Montreal area.

A wall-mounted unit installed where every centimeter counts

The configuration visible in this installation required particular attention to the available clearance. The unit is located in the upper part of the wall, with a door on the right and a lower window opening on the left. Installing a heat pump in this type of space requires checking several elements even before drilling the wall:

• the necessary clearance above the unit;
• the ability to properly open the front panel to clean the filters;
• the possible presence of studs, cables, or structural elements;
• the ideal airflow direction;
• the refrigerant piping route;
• condensate drain flow;
• future access for HVAC maintenance;
• the installation’s visual impact in the room.

The photo shows a particularly understated installation. The indoor unit remains properly aligned, and the area directly in front of the air outlet remains clear. This is important: a wall-mounted heat pump should not simply “fit” on the wall. It must be able to project its air without a molding, cabinet, or door immediately disrupting the airflow.

A heat pump truly designed for Quebec winters

The XLTH designation takes on its full meaning in our climate. The Orion series presented in the Fujitsu data sheet is designed to continue heating down to an outdoor temperature of -26 °C (-15 °F). The cooling operating range, meanwhile, extends from -10 °C to 50 °C.

However, it is not enough to look at the advertised minimum temperature. The capacity actually available as the temperature drops is much more revealing.

Fujitsu indicates, in particular, that some models in the series can maintain a maximum capacity higher than their rated capacity even in extremely cold weather. Depending on the selected capacity, the performance indicated at -21 °C ranges from 95% to 154% of the rated cooling capacity used as a reference in the technical table. At -26 °C, the indicated values range from 80% to 127%, depending on the model.

For us, this data is much more useful than simply stating “cold climate.” When we size an HVAC system, we must consider the floor area, insulation, number of stories, windows, the home’s exposure, and the actual air distribution.

From 9,000 to 24,000 BTU: why we do not choose a capacity based on floor area alone

The photo clearly identifies the Fujitsu AIRSTAGE family, but it does not by itself confirm the exact capacity of this installation. We therefore avoid arbitrarily assigning it a BTU rating.

The Orion XLTH series covered by the technical data sheet includes, among others:

These figures come directly from the Fujitsu technical data sheet.

Sizing remains essential. A heat pump that is too small may struggle to meet demand during the coldest periods. An unnecessarily oversized unit may operate less efficiently during periods of low load.

We encounter the same reality when installing wall-mounted heat pumps in Montreal, Laval, Longueuil, on the North Shore and the South Shore: two buildings of similar size may require different solutions simply because of their insulation, orientation, or interior layout.

Particularly high energy-efficiency ratings

The Orion XLTH series also stands out for its efficiency ratings.

Depending on the capacity, the TRÈS2/SEER2 indicated in the documentation ranges from 24.0 to 33.1. The 12KZAH1 model, for example, reaches a SEER2 of 30.5, while the 15KZAH1 shows 27.5 and the 18KZAH1 25.5.

Heating performance, expressed in the document as the regional V/HSPF2 CPSC2, ranges from 9.4 to 10.7 depending on capacity.

These values are important for a homeowner comparing several heat pumps. The BTU capacity indicates how much heating or cooling an appliance can provide, while seasonal ratings offer a better indication of the amount of energy required to provide that comfort throughout an entire season.

Energy certifications and assistance programs

The models covered by the Fujitsu document carry the ENERGY STAR, ENERGY STAR Cold Climate, and ENERGY STAR Most Efficient ratings indicated by the manufacturer.

These classifications can be important when a homeowner wants to verify their eligibility for financial assistance or an energy-efficiency program. Actual eligibility must always be validated using the exact model number, the corresponding indoor/outdoor combination, and the program criteria in effect at the time of the project.

At AirGreen, we prefer to perform this verification using the equipment’s precise references rather than assuming that an entire series automatically qualifies for the same amount.

R-32: an important technical change in this Fujitsu generation

This Orion range uses R-32 refrigerant.

Fujitsu documentation compares its global warming potential with that of R-410A: the stated GWP drops from 2,088 for R-410A to 675 for R-32, representing an announced reduction of 68 %. Fujitsu also specifies that R-32 systems require less refrigerant while maintaining the expected heating performance.

For a professional installation, the type of refrigerant also matters when preparing the job site. Work methods, appropriate tools, and compliance with the manufacturer’s requirements must correspond to the installed system.

Dimensions that explain the ease of integration visible in the photo

The compactness of the indoor unit is particularly interesting in the context of this Saint-Polycarpe installation.

The indoor units of the 9K, 12K, and 15K models measure approximately:

• 980 mm wide;
• 280 mm high;
• 240 mm deep.

The 18K and 24K versions are larger:

• 1,150 mm wide;
• 340 mm high;
• 280 mm deep.

This difference is far from insignificant. During a replacement or new installation above a door, a window, or in a narrow section of wall, a difference of 60 mm in height or 170 mm in width can make a configuration possible or impossible.

This is precisely the kind of measurement we check before confirming the final position of a Fujitsu heat pump.

What this Saint-Polycarpe installation shows about a well-planned HVAC installation

Indoor operation as low as 23 dB(A)

Acoustic comfort is often underestimated when choosing an appliance.

Fujitsu indicates an indoor sound level as low as 23 dB(A) in quiet mode on the 9K and 12K models. The 15K drops to 26 dB(A), while the 18K and 24K reach 30 dB(A) in quiet mode.

In a living room or near a bedroom, this feature can become just as important as energy efficiency.

The unit’s location also affects how sound is perceived. An improperly secured installation, vibration transmitted to a lightweight structure, or piping touching part of the building can create noises that do not come directly from the machine. The quality of the HVAC installation therefore remains decisive even when choosing a quiet appliance.

Inverter technology and capacity modulation

The Orion XLTH uses an Inverter compressor. Rather than operating only in on-off mode at full capacity, the system can modulate its output to better match demand.

The Fujitsu table clearly shows the available range. On the 12K, for example, cooling can vary from 3,100 to 16,000 BTU/h, while heating can vary from 3,500 to 23,600 BTU/h.

This modulation allows the system to maintain a more stable temperature when the thermal load is below its rated capacity.

Integrated Wi-Fi and control options

The series also includes integrated Wi-Fi connectivity, with remote monitoring through the AIRSTAGE mobile app specified by Fujitsu. The platform can also be paired with several control and interface options, including wired controllers and BACnet- or Modbus-compatible solutions for certain more advanced projects.

For a residential homeowner, the main benefit remains simple: being able to adjust the settings and monitor operation without having to stand in front of the unit.

For certain multi-unit residential buildings or commercial projects, integration options become much more important.

A design suited to snow accumulation and winter heating

The technical data sheet mentions a base pan heater designed for extremely cold regions.

In the Saint-Polycarpe area, as elsewhere in Quebec, this feature does not replace proper installation of the outdoor unit. We must always consider:

• the height of the unit relative to snow accumulation;
• drainage of the water produced during defrost cycles;
• clearance around the coil;
• access for maintenance;
• the strength of the support;
• airflow around the condenser.

An excellent heat pump installed too close to the ground or in an area where snow accumulates can lose some of its advantages.

Piping dimensions vary according to capacity

This is a technical detail that homeowners almost never see, but it matters enormously when replacing a system.

For this series, the dimensions specified by Fujitsu are:

• 9K and 12K: 1/4 in. liquid line and 3/8 in. gas line;
• 15K: 1/4 in. liquid line and 1/2 in. gas line;
• 18K and 24K: 3/8 in. liquid line and 5/8 in. gas line.

This means that replacing a heat pump does not automatically involve reusing the existing lines. We must confirm their diameter, condition, length, and compatibility with the new equipment.

The maximum permitted length also varies considerably: 82 feet on the 9K and 12K models, 98 feet on the 15K, and up to 164 feet on the 18K and 24K versions.

Even the electrical supply varies from one capacity to another

The entire series operates at 208 to 230 V, 60 Hz, single-phase, but the specified circuit breaker is not the same for all capacities.

The 9K and 12K models use a 15 A circuit breaker, while the 15K, 18K, and 24K models are specified for 20 A.

That is why we check the electrical panel before an installation. Choosing a capacity without verifying the available power supply can turn a simple project into unforeseen additional electrical work.

The mistakes we aim to avoid on this type of project

An installation like this looks simple once the work is complete. However, several errors can compromise the result:

Installing the unit based solely on aesthetics

A heat pump must first be able to breathe, blow properly, and remain accessible.

Choosing BTUs solely from a floor-area chart

Floor area is a starting point, not a heating and cooling load calculation.

Automatically reusing old piping

The diameter may not match the selected Fujitsu model.

Neglecting the drain

In cooling and dehumidification modes, the indoor unit produces water. The drainage system must be designed with an appropriate slope and discharge point.

Installing the outdoor unit too low

In Quebec, snow accumulation and defrost cycles must be factored into the design.

Forgetting to provide access for maintenance

The filters are washable according to the Fujitsu specifications. An installation must therefore allow the owner or technician to remove them without undue difficulty.

An approach we apply in Saint-Polycarpe and throughout Greater Montreal

This Fujitsu Orion XLTH wall-mounted heat pump installation in Saint-Polycarpe reflects how we work at AirGreen: starting with the actual building rather than forcing a standard solution.

The same principles apply to our HVAC installations in Montreal, where we often work with shared walls and restricted spaces; in Laval, in homes with widely varying layouts; in Longueuil and on the South Shore, where projects regularly combine replacement with energy modernization; as well as on the North Shore, where piping distances and the location of the outdoor unit may impose other constraints.

A good installation relies on the system as a whole: capacity, airflow, placement, electrical supply, piping, condensate drainage, winter operation and ease of maintenance.

Why the Fujitsu Orion XLTH Is a Serious Option for a Cold Climate

Based on the data provided by Fujitsu, several features clearly stand out:

• functional heating down to -26 °C;
• R-32 refrigerant;
• SEER2 efficiencies of up to 33,1 depending on the capacity;
• Inverter compressor;
• ENERGY STAR certification indicated for the range;
• indoor operation as low as 23 dB(A) on certain capacities;
• integrated Wi-Fi;
• basic base-pan heater for cold climates;
• relatively compact indoor units;
• several capacities to adapt the system to the building’s actual needs.

The appeal of this heat pump therefore does not rest on a single feature. It is the combination of efficiency, winter heating capacity, modulation and installation flexibility that makes the range appealing for residential projects in Quebec.

The visible result in Saint-Polycarpe

In this installation, the white indoor unit blends discreetly into the light-colored wall without dominating the room. It occupies a high area that would otherwise have been little used and maintains an unobstructed airflow path toward the living space.

This is often the stage at which a successful installation seems almost obvious. Yet the final result depends on the decisions made before and during the work: measuring correctly, selecting the right unit, identifying the best location and carrying out the connections precisely.

At AirGreen, it is this combination of technical choice and quality execution that we seek to reproduce on every wall-mounted heat pump installation, whether it takes place in Saint-Polycarpe, Montreal, Laval, Longueuil, on the North Shore or the South Shore.
