Installation of a Fujitsu AIRSTAGE Orion XLTH wall-mounted heat pump in Sainte-Justine-de-Newton
Installation by AirGreen of a Fujitsu Orion XLTH in Sainte-Justine-de-Newton, with the condenser on an elevated support and a compact balcony installation to optimize space, defrosting, and winter operation.
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
A Fujitsu Orion XLTH installation on a balcony where every centimetre had to be used intelligently
At Sainte-Justine-de-Newton, we completed an installation of a Fujitsu AIRSTAGE Orion XLTH wall-mounted heat pump in a configuration that perfectly illustrates an often-underestimated aspect of HVAC: an excellent heat pump must also be installed in a way that respects the space actually available around the building.
In this AirGreen installation, the outdoor unit is neither on the ground beside the house nor suspended high on an unobstructed façade. It is positioned directly on a narrow balcony, between the building wall and the railing. The photo clearly shows the constraints: a glass door, balcony door, outdoor furniture, a passageway that must remain clear, and limited space in front of the façade.
We therefore worked with a compact, structured solution. The Fujitsu condenser rests on an elevated metal support, which keeps the unit above the concrete slab while maintaining a clean and stable installation.
This project is particularly interesting for apartment, condo, and multi-unit building owners who sometimes think that a wall-mounted heat pump cannot be installed when there is no large yard or available side space.

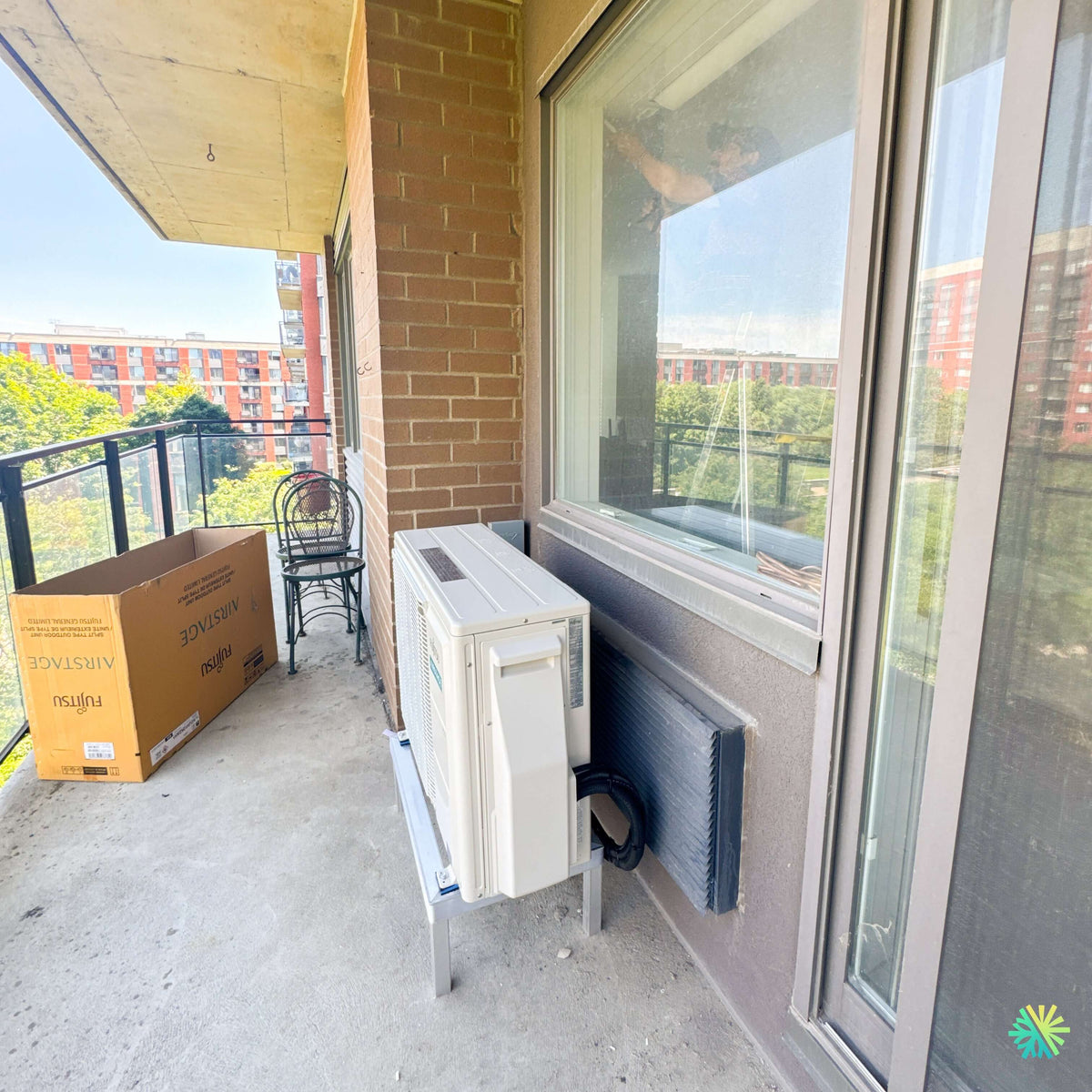

What the photo tells us about this installation in Sainte-Justine-de-Newton
Several site details are visible.
The outdoor unit is placed:
- against an exterior wall of masonry and stucco;
- under a large window;
- on a metal support independent of the slab;
- in an area partially protected by the balcony above;
- immediately beside the line entry point;
- compact enough to leave part of the balcony accessible.
We can also see that the refrigerant lines are grouped behind the equipment before entering the building. This layout limits the visible outdoor run and provides a much more discreet finish than when a long line set runs several metres across the façade.
In a balcony HVAC installation, this optimization is important. We must constantly find a compromise between technician access, the clearances required for the equipment to operate, the homeowner's passage, and the installation's visual impact.
Why use an elevated support instead of placing the unit directly on the ground
The metal base visible in the photo is not merely an aesthetic accessory.
A heat pump outdoor unit must be installed on a stable base and positioned to avoid, as much as possible, direct contact with water, snow, ice, and debris at ground level.
On a concrete balcony, raising the unit provides several practical advantages:
- improved clearance beneath the condenser;
- better management of water generated during defrost cycles;
- reduced prolonged contact with moisture;
- easier access beneath and around the unit during HVAC maintenance;
- more structured and easier-to-level installation.
In this specific case, the support also makes it possible to position the unit at a suitable height relative to the route of the lines running indoors.
The Fujitsu Orion XLTH: designed for heating in cold climates
The Fujitsu AIRSTAGE Orion XLTH belongs to Fujitsu’s H series of single-zone systems. The official documentation provided lists a range of five capacities: the 09K, 12K, 15K, 18K, and 24K versions.
One of its main advantages in Quebec is its heating operating range. Fujitsu indicates operation down to -26 °C, with a heating range of -26 °C to 24 °C for models in this family. The documentation also mentions the use of R-32 refrigerant, Inverter technology, and a base pan heater designed for extremely cold climates.
For an installation in Sainte-Justine-de-Newton, these are not merely catalog specifications. A heat pump installed in Quebec must be selected by considering its performance when temperatures fall below zero, not only its performance on a summer day.
Several capacities available for properly sizing the building
The Fujitsu technical sheet lists the following nominal cooling capacities:
- 9,000 BTU/h for the 09K model;
- 12,000 BTU/h for the 12K;
- 14,500 BTU/h for the 15K;
- 18,000 BTU/h for the 18K;
- 22,000 BTU/h for the 24K.
At nominal heating capacity, the stated capacities are respectively 12,000, 16,000, 18,000, 21,600 and 25,200 BTU/h.
The photograph does not make it possible to identify the precise capacity of the installed unit with certainty, and we prefer never to infer tonnage solely from the outdoor size of the condenser.
During a real project, we select the capacity based on several parameters: area to be treated, insulation, fenestration, orientation, room configuration, ceiling height, and heating needs.
A heat pump that is too small may be constantly strained during severe cold. An unnecessarily oversized unit, on the other hand, may be less suitable for modulation, dehumidification, and overall comfort.
Particularly high efficiency on the smaller capacities
The technical data sheet for the Orion XLTH series also presents high efficiency ratings.
Depending on capacity:
- the 09K reaches a SEER2 of 33.1;
- the 12K shows a SEER2 of 30.5;
- the 15K shows 27,5;
- the 18K reaches 25,5;
- the 24K shows 24,0.
For heating, the listed HSPF2 Region V values range from 9.4 to 10.7, depending on the model.
These figures are useful when comparing several wall-mounted heat pumps in Montreal, Laval, Longueuil, the North Shore, or the South Shore, but they must always be interpreted in light of the building’s capacity and needs.
A high SEER2 never offsets the consequences of poor installation, incorrect sizing, or insufficient outdoor airflow.
Heating capacity that remains impressive as the temperature drops
The Fujitsu performance sheet goes further by indicating the maximum available heating percentage at -15 °C, -21 °C, and -26 °C.
For example, for the 12K version, Fujitsu indicates up to:
- 138 % of the reference rated capacity at -15 °C;
- 124 % at -21 °C;
- 102 % at -26 °C.
For the 15K model, the listed values are 140%, 126%, and 109%, respectively.
These figures show why we place so much importance on detailed performance data sheets. Two units advertised as “cold-climate” heat pumps can perform very differently when the outdoor temperature reaches -20 °C.
The Inverter compressor and everyday comfort
Inverter technology allows the compressor to adjust its operation to demand rather than operating only at full power and then shutting off completely.
In everyday use, this modulation can help:
- maintain a more consistent temperature;
- limit sudden changes in comfort;
- reduce on-off cycles;
- adjust consumption to actual demand;
- maintain quieter operation when full capacity is not required.
This is particularly relevant in homes where the heat pump operates for several hours a day in heating mode during the winter.
R-32: the refrigerant used by this new generation of Fujitsu systems
The Orion XLTH series presented in the documentation uses R-32.
In its brochure, Fujitsu compares the global warming potential of R-32 with that of R-410A: the manufacturer indicates a GWP of 675 for R-32 versus 2,088 for R-410A, corresponding to an announced reduction of 68%.
For the installer, this change also requires precise knowledge of the procedures applicable to the refrigerant used and the equipment needed to carry out the installation and commissioning correctly.
Why this balcony installation requires more planning than a ground-level installation
Preserving the passage without compromising condenser ventilation
In the photo from Sainte-Justine-de-Newton, the balcony is relatively long but narrow. Installing a heat pump in the wrong place could easily have turned the unit into a permanent obstacle.
We therefore had to consider how the balcony would be used every day.
The goal was not simply to find a place where “the machine fits.” We had to maintain sufficiently convenient circulation between the door, the furniture, and the rest of the balcony, while leaving the outdoor unit the space it needs to operate.
This is an important difference between an installation carried out solely for the convenience of the job site and one designed to remain practical for years.
A short, discreet refrigerant-line route
One advantage of this layout is the proximity between the outdoor unit and the point where the lines enter.
Behind the condenser, we can see a bundle of lines running directly to the façade.
Reducing unnecessary detours makes it possible to:
- maintain a more discreet finish;
- reduce the number of line-hide sections;
- avoid unnecessary lengths;
- simplify future access to the connections;
- limit the visual impact on a façade or balcony.
It is nevertheless essential to respect the minimum lengths specified by Fujitsu.
The documentation specifies a minimum length of 3 m (10 ft) for the 09K, 12K, and 15K models, and 5 m (16 ft) for the 18K and 24K models. Maximum lengths range from 25 m (82 ft) to 50 m (164 ft) depending on capacity.
Piping size changes according to capacity
One mistake we encounter on some replacement projects is assuming that existing piping can automatically be retained.
On this Fujitsu range, however, the dimensions differ depending on capacity:
- 09K and 12K: 1/4 in. liquid and 3/8 in. gas;
- 15K : 1/4 in. liquid and 1/2 in. gas;
- 18K and 24K: 3/8 in. liquid and 5/8 in. gas.
Before replacing a wall-mounted air conditioner or heat pump, it is therefore necessary to check the size, condition, length, and compatibility of the existing lines.
A relatively compact outdoor unit, advantageous on a balcony
The photograph clearly shows why condenser size matters.
For the models in this series, Fujitsu specifies an outdoor unit measuring approximately 799 mm wide, 632 mm high, and 290 mm deep. The outdoor weight is listed as 39 kg (86 lb) for the 09K, 12K, and 15K models, and 53 kg (117 lb) for the 18K and 24K capacities.
This relatively compact depth is an advantage when work must be carried out in a space like this.
However, it never eliminates the need to respect the service clearances and airflow requirements for the installation.
Exceptionally quiet indoor operation
Indoor noise is particularly important in a condo or apartment.
According to the Fujitsu specifications, the 09K and 12K models can operate as quietly as 23 dB(A). The 15K version is listed at 26 dB(A), while the 18K and 24K models are rated at 30 dB(A) in their quiet setting.
The unit also has several fan speeds: automatic, high, medium-high, medium, medium-low, low, and quiet operation.
For us, this type of feature becomes particularly useful when an indoor unit must be installed in a living room, bedroom, or open-concept area used for several hours a day.
Integrated Wi-Fi and control through the AIRSTAGE app
Fujitsu documentation mentions integrated Wi-Fi connectivity with remote monitoring through the AIRSTAGE mobile app. It also presents several compatible controller and interface options.
For the homeowner, the main benefit remains straightforward: being able to adjust or monitor the temperature remotely without relying exclusively on the infrared remote control.
What about subsidies?
The documentation provided confirms that the range has ENERGY STAR ratings, including cold-climate references for certain models. It also mentions the possibility of receiving local rebates.
However, the exact amount of a Quebec subsidy and the eligibility of a given installation cannot be determined solely from this brochure.
Eligibility must be validated for the precise combination of model numbers, capacity, and program reference applicable at the time of the project.
At AirGreen, we consider this verification a step separate from simply choosing the brand. The same trade name may include several capacities and technical combinations.
Mistakes We Avoid When Installing a Heat Pump on a Balcony
An installation like the one in Sainte-Justine-de-Newton requires particular attention to several common mistakes:
- Placing the condenser directly on the slab without considering water and defrost cycles.
- Blocking the passage between the door and the railing.
- Installing the unit in an overly enclosed space, which restricts airflow.
- Running piping unnecessarily across the entire façade when a more direct route is possible.
- Choosing capacity solely based on square footage without considering the building.
- Reusing existing piping without verifying its diameter.
- Neglecting future access for maintenance or service.
- Overlooking the specific constraints of a condo or multi-unit building balcony, including common areas, structural considerations, and the rules applicable to the building.
This project clearly reflects the way we work at AirGreen
This Fujitsu heat pump installation in Sainte-Justine-de-Newton is not remarkable because it uses an unusual amount of equipment. It is interesting precisely for the opposite reason: we successfully integrated a high-performance heat pump neatly into a space where every detail had to be carefully considered.
The metal support keeps the condenser elevated. The outdoor piping route remains short. The unit occupies a relatively limited portion of the balcony. The door remains accessible. The building maintains an orderly appearance.
This is the type of work we regularly carry out in Greater Montreal and the surrounding areas. In Montreal, some installations are limited by alleys and small balconies. In Laval, we often encounter homes where the best location is on a narrow side. In Longueuil and on the South Shore, condo and multi-unit building layouts regularly impose similar constraints. On the North Shore, snow management and winter positioning remain just as important.
Our role is to combine the equipment's features with what the building actually allows.
A Fujitsu AIRSTAGE Orion XLTH provides Inverter technology, R-32, heating capacity down to -26°C according to the manufacturer's documentation, multiple power levels, and very quiet indoor operation on certain capacities. However, the unit can only reach its full potential if its installation is properly planned.
In Sainte-Justine-de-Newton, this project shows that a relatively small balcony does not necessarily prevent the installation of a cold-climate wall-mounted heat pump. With the right positioning, clearances, suitable support, and a carefully managed piping route, it is possible to achieve a compact, accessible heating and cooling solution suited to the building.

The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
