A Fujitsu Orion XLTH installation in Upton where every centimetre counted
In Upton, in Montérégie, this installation of a Fujitsu AIRSTAGE Orion XLTH wall-mounted heat pump perfectly illustrates a reality we regularly encounter at AirGreen: choosing the unit is important, but its placement in the home is just as important.

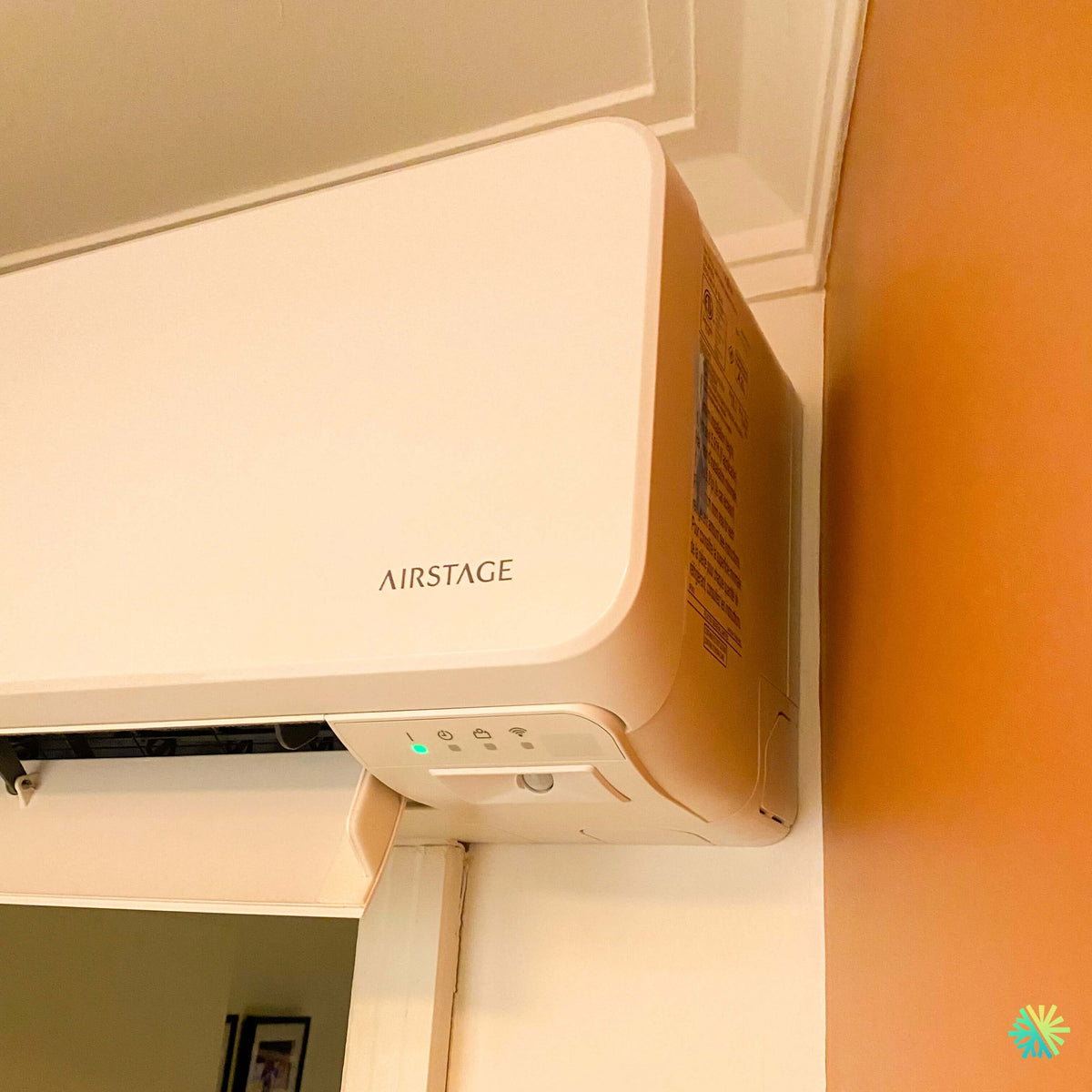

The photo taken after our work shows an indoor unit installed very high on the wall, immediately adjacent to an architectural feature and a neighbouring vertical surface. The available space therefore required a precise installation. The casing had to be positioned securely and neatly while maintaining the clearances required for the unit’s operation, the movement of the air outlet louver, and future maintenance work.
The result is particularly interesting because the heat pump appears to be practically integrated into the room’s architecture. The white, rounded façade of the Fujitsu AIRSTAGE blends in with the mouldings and the light-coloured ceiling surfaces. On the lower right side, the unit’s indicator panel can be seen, including the wireless connectivity symbol. The lower louver is open, confirming that the unit was operating when the photo was taken.
For us, this project in Upton is a reminder that a successful HVAC installation is never limited to choosing a location where “the unit fits.” We must consider airflow, physical constraints, technical access, drainage, refrigerant lines, and how the unit will blend into the room for many years.
A heat pump designed for Quebec winters
The Fujitsu AIRSTAGE Orion XLTH range belongs to Fujitsu’s single-zone H series. According to the technical documentation provided, it is designed to provide heating down to an outdoor temperature of -26 °C. The series includes the 09KZAH1, 12KZAH1, 15KZAH1, 18KZAH1, and 24KZAH1 variants.
This information is particularly relevant in Upton, where a heat pump must not only be effective during hot days in July. Winter heating accounts for an essential part of the system’s use.
The operating range published by Fujitsu is -26 °C to 24 °C in heating mode and -10 °C to 50 °C in cooling mode for the models presented in this series.
However, an important distinction must be made: being able to operate at -26 °C and provide exactly the same capacity as at a milder outdoor temperature are two different things. That is why, at AirGreen, we examine performance data by temperature rather than focusing solely on the stated minimum temperature.
Capacities suited to different types of rooms and homes
The Orion XLTH series presented in the documentation includes several nominal capacities:
- 9,000 BTU/h in cooling mode for the 09KZAH1;
- 12,000 BTU/h for the 12KZAH1;
- 14,500 BTU/h for the 15KZAH1;
- 18,000 BTU/h for the 18KZAH1;
- 22,000 BTU/h for the 24KZAH1.
In heating mode, the nominal capacities are respectively 12,000, 16,000, 18,000, 21,600, and 25,200 BTU/h.
The photo of this installation in Upton clearly identifies the unit as a Fujitsu AIRSTAGE, and the project information indicates that it is an Orion XLTH. However, the full nameplate is not legible enough in the image to rigorously confirm which of these five capacities was installed.
We therefore prefer not to make up a BTU figure.
This precaution is important in the HVAC field. A homeowner comparing two installations should compare the exact model numbers, not just the units’ external appearance. Several capacities use very similar housings.
Why Oversizing a Heat Pump Is Not Necessarily Beneficial
It is common to think that a larger heat pump will necessarily provide greater comfort. In practice, sizing should instead match the building’s actual needs.
We assess, among other things:
- the area and volume to be treated;
- insulation;
- the number and quality of the windows;
- the orientation of the house;
- heat loss;
- the layout of the rooms;
- the number of floors;
- the presence of open spaces;
- winter heating needs;
- the actual use of the rooms.
A unit that is too small may work excessively during difficult periods. A unit that is too large may, depending on the conditions and configuration, operate for less time at partial load and may not always provide the desired comfort and dehumidification performance.
The choice of a wall-mounted heat pump in Upton should therefore be based on the building, rather than on the simplified notion that a higher number of BTUs is automatically better.
Particularly high energy efficiency in the smaller capacities
The Fujitsu technical data sheet makes it possible to compare the efficiency of the different models precisely.
The TRÈS2, corresponding to SEER2 in English terminology, reaches:
- 33.1 for the 09KZAH1 model;
- 30.5 for the 12KZAH1;
- 27.5 for the 15KZAH1;
- 25.5 for the 18KZAH1;
- 24.0 for the 24KZAH1.
The CPSC2 Region V values, related to seasonal heating efficiency, are respectively 10.7, 10.1, 10.1, 10.1, and 9.4. The documentation also indicates an ENERGY STAR classification, including the designations associated with cold climates for the models presented.
These figures help explain why the Fujitsu Orion XLTH can be considered both for air conditioning and for making a significant contribution to heating a Quebec residence.
Inverter technology for modulating operation rather than simply stopping and restarting
The Orion XLTH line uses an Inverter compressor. This technology allows the system to adjust its operation according to demand instead of being limited to a succession of full-capacity starts and stops.
For occupants, this modulation can help maintain a more stable temperature when demand is relatively constant.
This is particularly useful during transitional periods: a cool autumn day in Upton does not have the same needs as a January night at -20 °C. The system can adapt its operation to the conditions rather than always operating in the same way.
Fujitsu documentation also mentions several operating modes, including economy mode, minimum heat, automatic defrost, and automatic restart.
R-32: the refrigerant used by this new generation of Fujitsu products
The Orion XLTH presented in the documentation uses R-32 refrigerant.
Fujitsu compares in its documentation a global warming potential of 2,088 for R-410A with 675 for R-32, representing an announced reduction of 68% in GWP.
For us, this information is also important from a technical standpoint. When replacing an older heat pump, one must never assume that the existing lines or the work methods used for an older system can be reused without verification.
The refrigerant, pipe diameters, the condition of the lines, and the manufacturer's precise specifications must all be taken into consideration.
The technical details behind a clean installation like this one in Upton
An indoor placement that required precision
The photo of this project is particularly revealing. We can see the heat pump positioned very close to several physical boundaries: the ceiling, trim, and adjacent wall.
In a similar situation, a few centimetres can make a difference.
We must specifically verify that:
- the unit can properly draw in air;
- the lower flap can open without obstruction;
- airflow can effectively reach the occupied area;
- the panel and filters remain accessible;
- the unit is perfectly level in accordance with installation requirements;
- condensate drainage can be properly installed;
- the refrigerant lines can reach the outdoor unit without unnecessary compromises.
A visually compact installation must never become a technically inaccessible installation.
Access to the filters remains essential
Fujitsu documentation indicates that the units have washable air filters.
It is a simple but important feature in everyday use. A clogged filter reduces airflow and can interfere with the normal operation of a heat pump.
When carrying out installations in Montréal, Laval, Longueuil, the North Shore, the South Shore, and Montérégie, we therefore seek to avoid locations that would make regular cleaning unnecessarily difficult.
Maintenance should not be considered only when a breakdown occurs. A good installation takes into account from the outset that the unit will need to be opened, inspected, and cleaned during its service life.
Indoor operation as low as 23 dB(A)
For the 09KZAH1 and 12KZAH1 models, Fujitsu publishes an indoor sound level of only 23 dB(A) in quiet mode, in both heating and cooling. The 15KZAH1 model is rated at 26 dB(A), while the 18KZAH1 and 24KZAH1 models are rated at 30 dB(A) in the same mode.
These levels are particularly interesting when the unit is installed in a room used for several consecutive hours.
However, the noise from a heat pump does not depend solely on the number in the brochure. How the unit is mounted, the immediate surroundings, vibrations, and the location of the outdoor unit also matter.
Built-in Wi-Fi: a detail visible directly on the Upton installation
In the photo, the Wi-Fi symbol is clearly visible in the indicator area beneath the right side of the unit.
The Orion XLTH series features built-in Wi-Fi connectivity with remote monitoring through the AIRSTAGE mobile app. Fujitsu also offers various controller and interface options for more advanced applications.
For residential use, this connectivity can make it easier to manage the temperature when occupants are away or want to adjust the settings without relying solely on the infrared remote control.
Piping diameters are not the same across the entire range
This is one of the most important details when a customer replaces an old heat pump.
The dimensions specified by Fujitsu are:
- 09KZAH1 : 1/4 in. liquid and 3/8 in. gas;
- 12KZAH1 : 1/4 in. liquid and 3/8 in. gas;
- 15KZAH1 : 1/4 in. liquid and 1/2 in. gas;
- 18KZAH1 : 3/8 in. liquid and 5/8 in. gas;
- 24KZAH1 : 3/8 in. liquid and 5/8 in. gas.
It is therefore impossible to answer the question “Can I keep my old piping?” properly simply because both the old and new units are wall-mounted heat pumps.
We check the model, diameter, length, condition of the lines, and the manufacturer's requirements.
Piping lengths that also allow for complex installations
The flexibility of the Orion XLTH range does not stop at its capabilities.
Fujitsu indicates a maximum piping length of 25 m, or approximately 82 ft, for the 09 and 12 versions; 30 m, approximately 98 ft, for the 15 version; and up to 50 m, approximately 164 ft, for the 18 and 24 versions.
The maximum vertical differences range from 20 m to 30 m, depending on the model.
These features can be very useful in projects where the outdoor unit cannot be installed directly behind the indoor unit. However, this does not mean that we deliberately aim to use as much piping as possible: the most logical, clean, and technically appropriate route is generally preferable.
The electrical circuit must be selected according to the exact model.
The entire series operates at 208 to 230 V, 60 Hz, single-phase.
However, the electrical protection depends on the capacity:
- 15 A for the 09KZAH1 and 12KZAH1 models;
- 20 A for the 15KZAH1, 18KZAH1, and 24KZAH1 models.
This detail once again confirms why a professional estimate must take the exact model number into account.
In some projects we encounter in Greater Montreal, an electrical constraint can even affect the capacity or equipment that can be installed without additional work on the electrical panel.
A design adapted to cold conditions
The outdoor unit in the Orion XLTH series includes a standard base pan heater, which Fujitsu presents as an element intended for extremely cold climate regions. The manufacturer also mentions a low-noise outdoor mode.
The base pan heater is particularly relevant during winter defrost cycles. A heat pump extracts heat from the outdoor air, and its heat exchanger can accumulate frost when conditions favor its formation. The unit must then periodically enter a defrost cycle.
In Quebec, managing water and ice around the outdoor unit therefore deserves careful attention when choosing its location.
Performance in extreme cold is more revealing than simply stating “-26 °C”
The technical sheet goes beyond the minimum temperature and provides maximum-capacity ratios at low temperatures.
At -26 °C, Fujitsu indicates, depending on the model, a maximum capacity corresponding to:
- 127% for the 09KZAH1;
- 102% for the 12KZAH1;
- 109% for the 15KZAH1;
- 106% for the 18KZAH1;
- 80% for the 24KZAH1,
with the percentages calculated according to the reference method explained in the Fujitsu document.
This is the type of information that really matters to a homeowner who wants to use their heat pump to heat their home in winter in Upton.
Comparing only two minimum temperatures between two brands does not necessarily indicate which one will provide the desired level of heating in a specific building.
Mistakes we recommend avoiding before an installation
After numerous heat pump installations in Greater Montreal and Montérégie, certain mistakes keep recurring.
Choosing solely based on the number of BTUs
The nominal BTU rating is essential, but it must be related to the building’s actual needs.
Assuming that existing lines can automatically be reused
As the Orion XLTH range itself demonstrates, changing the capacity can alter the required pipe diameter.
Choosing the indoor location solely for aesthetics
A unit may look very attractive on a wall but distribute air poorly. Appearance and performance must be balanced.
Forgetting about future maintenance
It must be possible to remove the filters and access the machine for HVAC maintenance or thorough cleaning.
Comparing heat pumps solely by their minimum operating temperature
Actual capacities at -15 °C, -21 °C or -26 °C can be far more informative.
Neglecting the outdoor location
Snow accumulation, defrosting, water, airflow and service access must all be considered from the time of installation.
What we take away from this AirGreen installation in Upton
This project clearly illustrates our approach at AirGreen.
Here, we had a Fujitsu AIRSTAGE Orion XLTH wall-mounted heat pump installed in an area where precise physical integration was required. We aimed for a clean, compact result that matched the room’s architecture, without treating the unit as merely an appliance mounted on the wall.
The technology behind this range is also well suited to local requirements: heating operation down to -26 °C, an Inverter compressor, R-32 refrigerant, ENERGY STAR certification, low noise levels, integrated Wi-Fi and several available capacities.
However, the features of a good machine can never replace a good installation.
Final performance depends on the entire system: sizing, location, refrigerant lines, drainage, electrical circuit, outdoor support, commissioning and maintenance.
This is the combination we strive to master on every AirGreen project, whether it is carried out in Upton, Montreal, Laval, Longueuil, on the North Shore, the South Shore or elsewhere in Montérégie.
For a homeowner considering a Fujitsu heat pump installation in Upton, the goal is therefore not simply to obtain an Orion XLTH. It is to obtain the right Orion XLTH, with the right capacity, installed in the right location and according to Fujitsu’s technical requirements.
