Installation of a FUJITSU ORION XLTH+ wall-mounted heat pump in Saint-Jean-Baptiste: elevated outdoor unit near a terrace and heating down to -30 °C

In Saint-Jean-Baptiste, an outdoor installation where location, snow, and service access matter just as much as the heat pump itself

This installation of a FUJITSU ORION XLTH+ in Saint-Jean-Baptiste perfectly illustrates a type of project where choosing the outdoor unit requires much more thought than simply looking for open space.

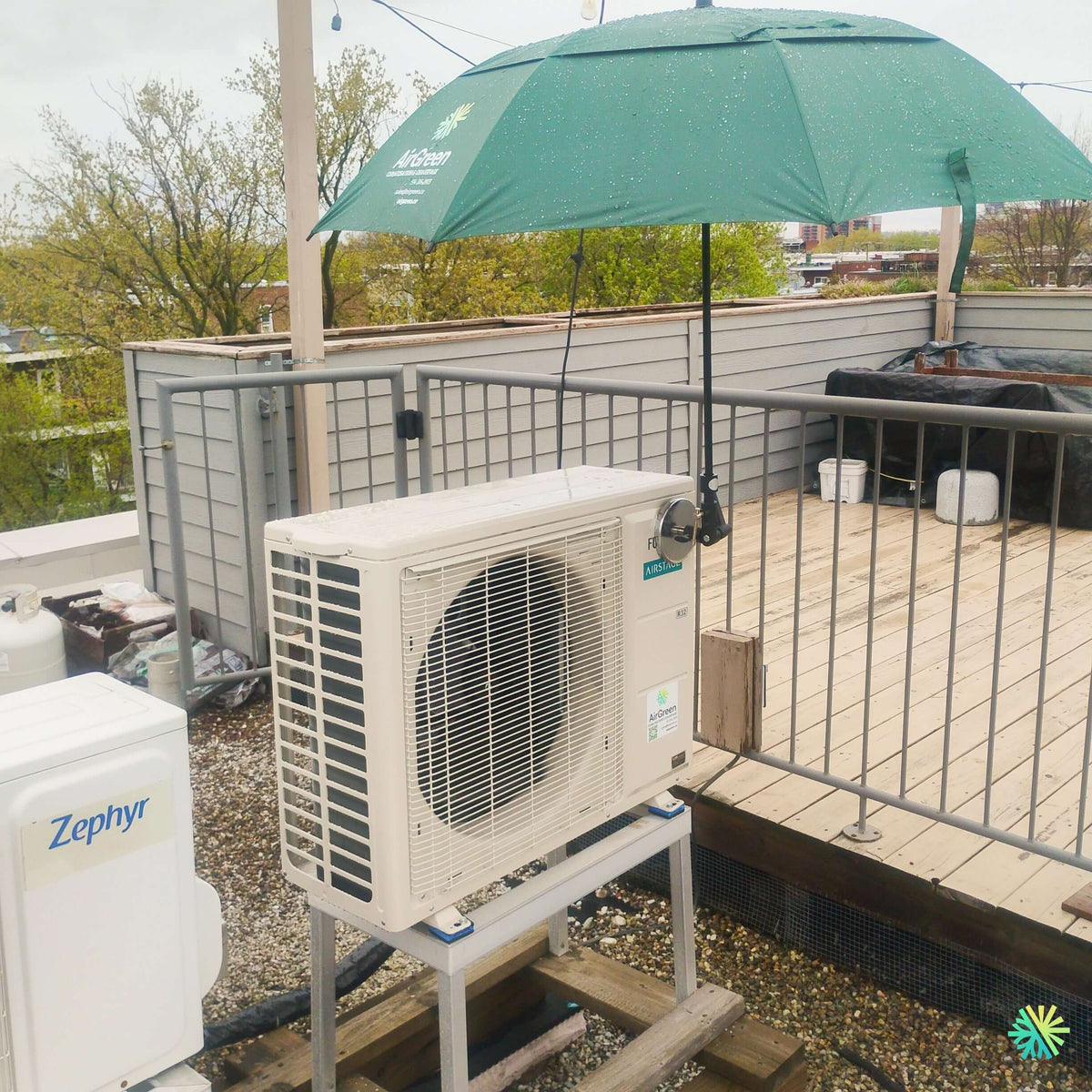

In the photo taken during our work, the FUJITSU AIRSTAGE ORION XLTH+ is installed immediately beside an elevated patio, a metal guardrail, and another HVAC unit already in place. The ground around the appliance is covered with gravel, and the heat pump rests on an elevated metal support, itself installed above a wooden structure.

This configuration provides a good overview of the realities we face at AirGreen. In a yard, on a roof, near a patio, or in an already occupied technical space, we must find a location that remains compatible with:

• airflow around the outdoor unit;
• snow accumulation in winter;
• defrost water drainage;
• access for HVAC maintenance;
• the presence of other equipment;
• the areas used by occupants;
• the routing of the refrigerant and electrical lines;
• the mechanical stability of the support.

In this Saint-Jean-Baptiste project, the elevated installation is therefore a particularly important detail. It places the unit above the immediate ground level and helps create clearance beneath the appliance, which becomes especially important when a heat pump must operate in the heart of a Quebec winter.

The installed machine is part of the FUJITSU ORION XLTH+ line, a single-zone series with Inverter technology and R-32 refrigerant. Fujitsu presents it as a line designed for cold climates, with a heating operating range extending down to -30 °C (-22 °F).

Why we do not install a heat pump directly at ground level without considering winter conditions

When the outdoor temperature drops, a heat pump continues extracting heat from the outdoor air. Its coil may then accumulate frost.

The machine periodically initiates a defrost cycle to remove this buildup. The water produced by melting frost must then be able to drain away.

This is where installation height becomes important.

If the outdoor unit is too low, several problems may arise over time:

• snow may rise to the base of the appliance;
• defrost water may form a significant accumulation of ice;
• the underside of the unit may gradually become obstructed;
• service access becomes more difficult;
• air circulation may be compromised.

In the photograph of our installation in Saint-Jean-Baptiste, the FUJITSU heat pump is clearly positioned on a metal support that provides considerable height above the gravel.

This is not a decorative element. It is part of the installation strategy.

A base pan heater suited to cold conditions

The documentation for the ORION XLTH+ specifies that the outdoor unit has a base pan heater designed for extremely cold climates.

This feature supports the machine’s winter operation, but it does not replace proper physical installation.

Even with a system designed to better handle cold conditions, we must leave enough space for water and ice to drain away without gradually blocking the appliance.

This is precisely why the support visible in this project should be considered an integral part of the HVAC installation, rather than a simple accessory.

Proximity to a terrace changes how positioning should be considered

The photograph also shows that the appliance is right next to an outdoor terrace protected by a guardrail.

This proximity entails several considerations.

In particular, we must avoid positioning the unit so that its air discharge is constantly directed toward an area where occupants spend time. The appliance must also not become an obstacle to movement or make part of the terrace uncomfortable.

Sufficient space must also be maintained around the cabinet so that the technician can service it later.

On a compact installation like this one, every side of the machine matters.

Service access is planned from day one

A heat pump can operate for many years. During that time, it may be necessary to:

• clean the heat exchanger;
• inspect the refrigeration connections;
• measure electrical parameters;
• check the sensors;
• diagnose the compressor or motors;
• access the electronic boards;
• perform maintenance or repairs.

A unit placed too close to a guardrail, wall, or another appliance can make these tasks unnecessarily complex.

We therefore seek a balance between an unobtrusive location and a reasonable workspace.

Another HVAC unit already in place: an important site detail

To the left of the FUJITSU, another outdoor unit from the Zephyr brand can also be seen.

This means that the mechanical area was already occupied.

In this type of configuration, adding a new heat pump requires more planning than an installation on a completely unobstructed wall.

Two units placed too close together can interact negatively, particularly if their airflow is disrupted. We must prevent one unit from directly taking in the air discharged by the other and verify that the clearances remain compatible with each unit’s requirements.

We must therefore work with what already exists, rather than treating the new heat pump as an isolated system.

A raised installation must also be stable

The photo clearly shows the metal support and the outdoor unit’s support points.

A heat pump has a compressor and a fan that naturally generate slight vibrations. The structure must therefore be solid and stable.

Poor mechanical installation could eventually cause:

• additional vibrations;
• noise;
• movement of the unit;
• strain on the lines;
• undesirable wear on certain connections.

We therefore check the unit’s stability and level before commissioning.

The goal is simple: the unit must remain in the same position despite the seasons, defrost cycles, and years of use.

Why the FUJITSU ORION XLTH+ is particularly interesting for an installation in Saint-Jean-Baptiste

Heating down to -30 °C, but above all, capacity that remains available when it gets very cold

Many homeowners comparing cold-climate heat pumps first look at the displayed minimum temperature.

The ORION XLTH+ is rated to operate in heating mode down to -30 °C.

But this information becomes much more useful when the remaining capacity at low temperatures is also examined.

The Fujitsu lineup presented includes three configurations:

• 09KTAP1;
• 12KTAP1;
• 15KTAP1.

According to the technical specifications, their maximum heating capacity at -30 °C still represents 113%, 103%, and 101% of their respective reference rated capacities. At -26 °C, the published figures are 147%, 128%, and 116%.

For a project in Saint-Jean-Baptiste, this type of data is much more informative than simply stating that the equipment “operates” at low temperatures.

A heat pump intended to make a significant contribution to heating a residence should be evaluated based on its ability to produce heat during cold periods.

Three capacity options in the lineup

The Fujitsu specification sheet lists the following nominal cooling capacities:

• 9,000 BTU/h for the 09KTAP1;
• 12,000 BTU/h for the 12KTAP1;
• 14,500 BTU/h for the 15KTAP1.

At nominal heating capacity, the advertised values are respectively 12,000, 15,300, and 17,400 BTU/h.

However, the exact capacity of the photographed unit cannot be determined with certainty from its outdoor cabinet alone.

We prefer not to make up this information.

At AirGreen, heat pump sizing is based instead on the building’s needs: floor area, insulation, windows, heat loss, ceiling height, exposure, and room layout.

Inverter technology enables significant modulation

The FUJITSU ORION XLTH+ is not limited to a single fixed capacity.

Thanks to the Inverter compressor, it can adjust its operation according to the load.

For example, the 12KTAP1 configuration has an advertised cooling range of 3,100 to 17,300 BTU/h, while its heating capacity can vary from 4,500 to 27,300 BTU/h, depending on conditions.

This modulation is important because a home does not continuously need the heat pump’s maximum capacity.

In spring, fall, or during a milder winter day, the system can reduce its output rather than operating constantly at full capacity.

Oversizing remains an error to avoid

Installing more BTUs simply “to be sure” is not a good selection method.

An oversized heat pump may operate in a way that is less suited to the building.

We instead consider:

• the area actually being served;
• insulation;
• interior volume;
• openings;
• solar orientation;
• air circulation;
• the existing heating system;
• winter heat loss.

Whether the project is in Saint-Jean-Baptiste, Montreal, Laval, Longueuil, on the North Shore, or the South Shore, the principle remains the same: capacity must match the building.

R-32: a clearly visible detail on the installed unit

In the photo from our job site, the marking R32 appears on the FUJITSU cabinet.

The documentation confirms the use of R-32 refrigerant across the three configurations in the lineup. Fujitsu indicates a global warming potential of 675 for R-32, compared with 2,088 for R-410A, representing an announced 68% reduction in GWP.

For us, using a different refrigerant in no way reduces the importance of rigorous commissioning.

The lines must be properly installed, the connections checked, and the procedures prescribed by the manufacturer followed.

The series piping: 1/4 in. liquid and 3/8 in. gas

The ORION XLTH+ technical sheet indicates the following for all three capacities:

Liquid line: 1/4 in.
Gas line: 3/8 in.

Fujitsu specifies a minimum piping length of 10 ft, a maximum length of 66 ft, and a maximum vertical difference of 49 ft.

This flexibility provides more options when the indoor and outdoor units cannot be placed directly back-to-back.

However, this does not mean that the maximum length should always be used. We favor a logical, protected route that is as clean as possible.

A relatively compact outdoor unit

The compactness of the outdoor unit is an advantage when a project offers limited space.

Depending on the model, the documentation specifies a width of approximately 799 to 820 mm for the outdoor units in this series, depending on capacity.

This partly explains why the ORION XLTH+ can be integrated into an area like the one shown in Saint-Jean-Baptiste, where the unit must coexist with a patio, a railing, and another system.

However, compact does not mean that it can be enclosed. Air circulation around the heat exchanger remains essential.

Outdoor sound levels should be considered near living areas.

The proximity of the patio also makes operating noise relevant.

Depending on capacity, Fujitsu specifies reference sound levels for the outdoor unit ranging from 44 dB(A) to 51 dB(A) in cooling mode and from 44 to 49 dB(A) in heating mode under the specified conditions.

However, the noise actually perceived depends greatly on the surroundings: nearby surfaces, fences, walls, distance, and reverberation.

The location chosen is therefore part of acoustic comfort.

An indoor unit that can go as low as 23 dB(A)

Indoors, the 09KTAP1 and 12KTAP1 models can operate at as little as 23 dB(A) in quiet mode, while the 15KTAP1 is rated at 26 dB(A).

The series offers several fan speeds as well as an automatic mode.

For occupants, this ability to greatly reduce noise when demand is low helps make the heat pump much less noticeable in everyday life.

Integrated Wi-Fi and remote management

The ORION XLTH+ also includes integrated Wi-Fi connectivity, with remote monitoring and control available through the AIRSTAGE app according to Fujitsu documentation.

This makes it possible, in particular, to adjust certain settings without being directly in front of the indoor unit.

For a residence used irregularly, this option can be particularly practical for managing comfort without unnecessarily keeping the house at the same temperature all the time.

ENERGY STAR and rebates: always confirm the exact system

The Fujitsu technical sheet associates the three configurations presented with ENERGY STAR classifications, including the cold-climate designations appearing in the documentation.

For homeowners who want to take advantage of financial assistance, we nevertheless always verify the precise combination of the indoor and outdoor units, as well as the criteria in effect at the time of the project.

A rebate should never be announced solely because a product line name appears on a general list. The exact combination and program requirements must be confirmed.

What we take away most from this installation in Saint-Jean-Baptiste

Ultimately, the photograph tells us much more than simply showing the presence of a new heat pump.

It shows a FUJITSU ORION XLTH+ installed in an already landscaped outdoor area, near a patio and another unit, on a support that keeps it well above the ground.

It is precisely these real-world constraints that make the difference between a generic installation and a properly planned project.

We must anticipate winter before it arrives. We must think about defrosting before the first ice forms. We must plan for maintenance before a repair is needed. And we must consider occupants before deciding where to position an outdoor unit.

At AirGreen, we apply this approach to our wall-mounted heat pump installations in Montreal, Laval, Longueuil, on the North Shore, the South Shore, and in surrounding municipalities, including Saint-Jean-Baptiste.

In this project, the choice of the FUJITSU ORION XLTH+, capable of heating operation down to -30°C, is paired with an outdoor installation designed for the realities of Quebec’s climate. It is the combination of these two elements—the equipment and how it is installed—that determines the true quality of an HVAC system.
