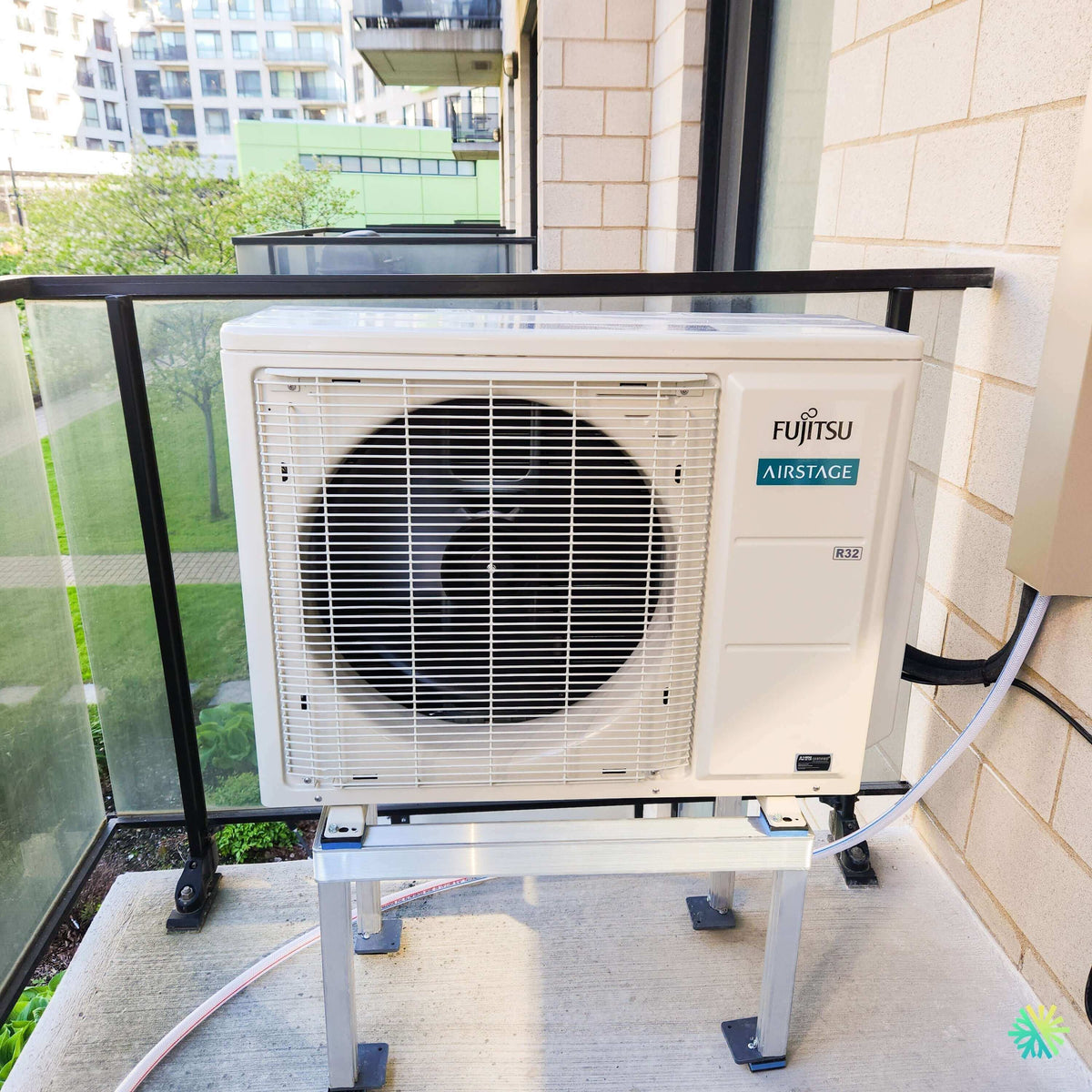

Installation of a FUJITSU AIRSTAGE ORION XLTH R-32 wall-mounted heat pump on a balcony in Saint-Barnabé-Sud

A balcony installation where space, vibrations, and outdoor-unit clearance become priorities

This FUJITSU AIRSTAGE ORION XLTH wall-mounted heat pump installation in Saint-Barnabé-Sud perfectly illustrates a type of project where the quality of the work is measured by more than just the unit selected. The outdoor location imposes several practical constraints here: limited balcony space, a guardrail immediately in front of the unit, a nearby side wall, and the need to keep the heat pump high enough for winter operation.

In the job-site photo, we see a FUJITSU AIRSTAGE R-32 outdoor unit installed on an independent metal support. The unit is therefore neither simply placed on the concrete slab nor suspended directly from the wall. This decision creates a more suitable installation for a heat pump intended to operate in heating mode during Quebec winters.

We also used anti-vibration mounts between the unit and the metal structure. In a balcony environment, this detail is particularly important: vibrations can easily be transmitted to a slab, building structure, or adjacent wall if the installation is not properly prepared.

The result is a compact HVAC installation that makes intelligent use of the available space while maintaining the necessary access to the outdoor unit.

Why a balcony completely changes how a heat pump is planned

An open backyard generally offers plenty of flexibility for positioning an outdoor unit. A balcony is different.

Before installation, we must simultaneously consider several factors:

• the actual depth of the balcony;
• the presence of the guardrail;
• clearance in front of the fan;
• the available distance between the heat pump and the wall;
• air circulation around the unit;
• future access for HVAC service;
• vibration management;
• snow and ice;
• water from defrost cycles;
• the route of the refrigerant piping and wiring.

In this project in Saint-Barnabé-Sud, the large front fan of the FUJITSU remains oriented toward the outside of the balcony. The goal is to avoid creating an installation where the air discharged by the unit immediately becomes trapped against a solid surface.

The presence of a guardrail must always be taken into consideration, because a heat pump needs adequate airflow to function properly.

An elevated metal support rather than an installation directly on the slab

One of the most visible elements of this installation is the four-legged support.

It serves several functions.

First, it raises the outdoor unit above the concrete slab. This additional height becomes very useful during the cold season, when the heat pump regularly enters defrost cycles.

Next, the support creates open space beneath the unit. Defrost water can therefore be managed more easily than with a unit positioned almost directly against the balcony surface.

Finally, this type of structure makes it easier to position the unit precisely when we have to work in a relatively narrow space.

FUJITSU documentation specifically indicates that the AIRSTAGE Orion XLTH series is designed to provide heating down to -26 °C and that the outdoor unit has a base pan heater designed for extremely cold climate regions.

Installing a heat pump designed for cold weather without properly planning for its outdoor environment would go against this principle.

Antivibration pads: a small component that is particularly important on a balcony

The photo shows the antivibration mounts placed at the unit’s fastening points.

When an Inverter compressor modulates its output, its operating speed varies. Even a quiet heat pump inevitably produces some mechanical vibration.

In a ground-level installation, much of this vibration can be absorbed by a suitable base. On a balcony, the building’s structure may transmit more of it.

That is why we pay particular attention to:

• the support’s level;
• the rigidity of the structure;
• fastening points;
• antivibration materials;
• at the contact point between the heat pump and its support.

The goal is to avoid turning the slab or railing into an amplifying element.

A compact outdoor unit that still leaves room for circulation

The photo also shows that the unit was placed close to the side wall without occupying the entire depth of the balcony.

This compromise is important: a heat pump on a balcony must not make the space unusable, but it must not be squeezed into a location chosen solely to preserve a few centimetres either.

At AirGreen, we strive to maintain enough space for maintenance and future service work.

A technician must be able to access the components without having to dismantle half of the installation.

This is particularly relevant for FUJITSU AIRSTAGE units, whose connections and service components are located in the side section of the outdoor unit.

Choosing a system genuinely designed for Quebec’s climate

The FUJITSU AIRSTAGE ORION XLTH is part of a single-zone wall-mounted range designed for heating in cold climates.

The technical documentation covers five capacities:

• 09KZAH1;
• 12KZAH1;
• 15KZAH1;
• 18KZAH1;
• 24KZAH1.

It is not possible to determine with certainty from this photograph alone which of these five capacities was installed in Saint-Barnabé-Sud. The rating plate is not visible in sufficient detail to read the model number.

We therefore prefer to maintain technical accuracy: the series is confirmed, but the exact capacity should not be invented based on the appearance of the outdoor unit.

Why the FUJITSU AIRSTAGE ORION XLTH is an appealing choice for a residential installation in Quebec

From 9,000 to 22,000 BTU/h of nominal cooling capacity, depending on the version

The series data sheet lists the following nominal capacities:



One important feature immediately stands out: the nominal heating capacity is higher than the nominal cooling capacity for each of the models shown.

For a homeowner looking for a wall-mounted heat pump for heating and cooling, this distinction deserves far more attention than the simple marketing figure associated with the product.

A heating range down to -26 °C

The five models listed in the FUJITSU data sheet have a heating operating range from -26 °C to 24 °C.

For an installation in Saint-Barnabé-Sud, this feature is directly relevant.

A heat pump installed in Quebec must cope with periods when temperatures fall well below freezing. It is therefore necessary to examine not only the unit's ability to operate, but also how much heat it can still produce as the temperature drops.

Very-low-temperature capacity deserves a model-by-model analysis

The FUJITSU technical data sheet goes further and provides maximum-capacity percentages at different outdoor temperatures.

At -21 °C, it indicates, among other things:

• 154% of nominal capacity for the 09K;
• 124% for the 12K;
• 126% for the 15K;
• 127% for the 18K;
• 95% for the 24K.

At -26 °C, the listed values become 127%, 102%, 109%, 106%, and 80%, respectively.

These figures explain why we never recommend a heat pump based solely on its nominal capacity.

Two models from the same series do not necessarily maintain their capacity in the same way when the outdoor temperature drops.

Particularly high TRÈS2 efficiencies in smaller capacities

FUJITSU documentation also lists the following TRÈS2 values:

• 33.1 for the 09K;
• 30.5 for the 12K;
• 27.5 for the 15K;
• 25.5 for the 18K;
• 24.0 for the 24K.

Energy efficiency is obviously an important criterion, but the best unit is not automatically the one with the highest rating.

A heat pump installation must first be sized according to the home’s needs.

An oversized unit can quickly reach the requested temperature and then reduce or interrupt its operation more frequently. Conversely, an undersized unit may work much harder during periods of high demand.

At AirGreen, we therefore seek a balance between capacity, modulation, efficiency, and the building’s actual needs.

R-32: clearly identified on the installed equipment

The small symbol R32 is directly visible on the front panel of the outdoor unit photographed in Saint-Barnabé-Sud.

The Orion XLTH series does indeed use R-32 refrigerant.

In its documentation, FUJITSU compares a global warming potential of 675 for R-32 with 2,088 for R-410A, representing an announced reduction of 68% in this comparison.

The refrigerant change is not merely a marketing mention on the casing. It also affects installation and servicing practices, as well as the equipment used by HVAC technicians.

Inverter technology for modulating operation

The FUJITSU AIRSTAGE ORION XLTH uses an Inverter compressor.

The principle is particularly relevant to residential comfort: instead of operating solely according to an on-or-off logic, the heat pump can adapt its operation to requirements.

As the indoor temperature approaches the setpoint, the system can reduce its output rather than continuing to operate systematically at full capacity.

This modulation notably contributes to:

• a more stable temperature;
• more gradual operation;
• better adaptation to load variations;
• a reduction in repeated starts;
• more effective use of the available capacity.

FUJITSU presents this technology as a central element of the series’ comfort and efficiency.

Sound level: a major criterion for a balcony installation

On a balcony, acoustics become more important than with a unit installed at the back of a large property.

The wall, slab, and railings create an environment where mechanical noise must be taken seriously.

Depending on the model, FUJITSU specifies a sound level of between 46 and 50 dB(A) for the outdoor unit.

But the figure provided by the manufacturer is not enough.

Installation quality also plays a role:

• a properly levelled support;
• anti-vibration mounts;
• a reasonable distance from surfaces that could transmit vibrations;
• no loose metal parts likely to vibrate;
• careful positioning in relation to doors and windows.

That is precisely why the small visible elements in the photo—notably the independent support and pads—are so important.

Down to 23 dB(A) for certain indoor units

Acoustic comfort is obviously not limited to the balcony.

The 09K and 12K indoor models can operate as quietly as 23 dB(A) in quiet mode. The 15K model is rated at 26 dB(A), while the 18K and 24K versions go down to 30 dB(A).

The units offer multiple fan speeds: automatic, high, medium-high, medium, medium-low, low, and quiet operation.

This range of settings allows the airflow to be adjusted more precisely to the desired comfort level.

Built-in Wi-Fi and remote control

The series also includes built-in Wi-Fi connectivity for remote control and monitoring with the AIRSTAGE app.

This feature is useful for:

• adjust the temperature before returning home;
• change a setting without looking for the remote control;
• monitor the system remotely;
• more easily adjust operating schedules.

For more complex applications, FUJITSU also provides several optional interfaces and integration options, including BACnet and Modbus.

Piping: check the diameter before replacing an old heat pump

The Orion XLTH series does not operate with a single combination of copper pipe diameters.

FUJITSU specifies:

• 09K and 12K: 1/4 in. liquid and 3/8 in. gas;
• 15K: 1/4 in. liquid and 1/2 in. gas;
• 18K and 24K: 3/8 in. liquid and 5/8 in. gas.

This becomes particularly important when replacing an existing unit in a condo or building where the lines run through multiple architectural elements.

We never assume that the existing refrigerant line can be kept simply because it is already there.

We check the model, diameters, condition of the line, and manufacturer requirements before choosing the installation method.

Up to 164 feet of piping for certain capacities

The maximum lengths also vary by model.

The data sheet states:

• 82 ft for the 09K and 12K;
• 98 ft for the 15K;
• 164 ft for the 18K and 24K.

This flexibility can be particularly useful in a balcony project where the outdoor unit’s location is dictated by the building’s layout, while the indoor wall-mounted unit must be installed elsewhere to ensure proper air distribution.

An ENERGY STAR cold-climate system according to FUJITSU documentation

The technical data sheet presents the five models with ENERGY STAR and ENERGY STAR Cold Climate ratings.

This certification is important for homeowners exploring heat pump financial incentives in Quebec.

Eligibility for a particular program and the applicable amount must nevertheless be confirmed based on the exact combination of the indoor and outdoor units and according to the rules in effect at the time of installation.

We avoid assigning a subsidy amount simply based on the commercial name “ORION XLTH”.

What we want to avoid in a balcony installation

An installation like the one in Saint-Barnabé-Sud reminds us of several mistakes that are best prevented from the outset.

Placing the heat pump directly on the concrete

This can reduce the clearance beneath the equipment and complicate water and ice management during winter.

Systematically attaching the equipment to the wall

In some configurations, this can transmit more vibration to the structure. Here, choosing an independent support better suits the visible context.

Placing the unit too close to a solid railing

The fan's air discharge must remain sufficiently unobstructed. Significant restriction in front of the heat exchanger can impair operation.

Installing the unit in an inaccessible location

The side panels and connections must remain accessible for HVAC maintenance, diagnostics, and future repairs.

Choosing capacity based on floor area alone

Floor area is only one factor. We also examine insulation, windows, exposure, ceiling height, room layout, and heat loss.

An installation that clearly demonstrates our approach at AirGreen

This FUJITSU AIRSTAGE ORION XLTH heat pump project in Saint-Barnabé-Sud aptly summarizes how we approach an HVAC installation.

We do not consider only where the equipment can physically fit.

We analyze how it will actually operate over several years.

Here, this means in particular:

• install the heat pump on an elevated structure;
• limit vibration transmission;
• make use of the available balcony area;
• keep the fan oriented toward an open space;
• take winter use into account down to advertised temperatures of -26 °C;
• ensure convenient access to the components;
• choose an Inverter technology with R-32 suited to heating and cooling use.

We apply the same principles during our heat pump installations in Montreal, Laval, Longueuil, on the North Shore and the South Shore: understanding the building before determining how the equipment should be integrated into it.

A proper installation is not simply one that looks good on the day the work is completed. It is an installation that remains logical when snow, de-icing, maintenance, temperature fluctuations, and years of use arrive.
