A Fujitsu Wall-Mounted Installation in Lachine Designed for Daily Comfort, Discretion, and Efficiency
In this project completed in Lachine, our AirGreen team installed a Fujitsu ALTAIR 500 wall-mounted heat pump, a mini split system designed to provide precise comfort in both heating and cooling, while discreetly blending into the interior of a Montreal residence. The installation photo perfectly illustrates the project's objective: a high-mounted indoor wall unit above a living space, with a neatly integrated conduit passage near the curtains and a refined finish that respects the room's aesthetic.
Lachine is a sector of Montreal with a wide variety of buildings: single-family homes, duplexes, condos, renovated apartments, and older residences whose structure sometimes imposes significant constraints on HVAC installations. In this specific case, the main challenge was to add a modern comfort solution without disturbing the interior layout. The client wanted a reliable, efficient, easy-to-use, and sufficiently discreet heat pump that wouldn't visually dominate the room.
The Fujitsu ALTAIR 500 emerged as a coherent solution. This range is appreciated for its quiet operation, stable performance, and wall-mounted format well-suited for residential spaces. In a room with curtains, a tall wooden cabinet, and a relatively limited wall configuration, precise positioning became essential. A successful HVAC installation had to consider air distribution, clearance around the unit, refrigerant line routing, condensate drainage, and the final appearance.
Thoughtful Interior Positioning to Optimize Air Distribution

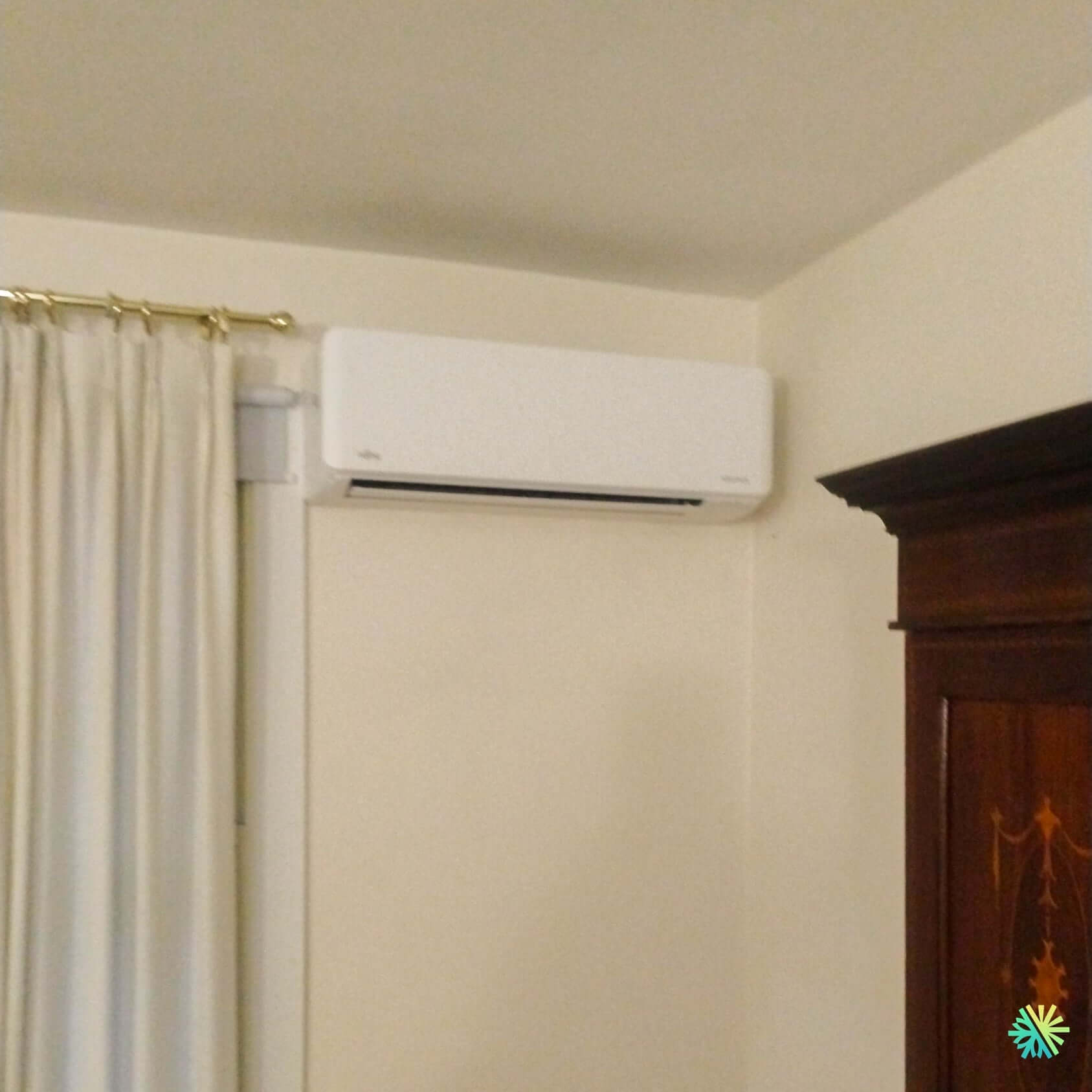

The indoor unit visible in the photo was placed near the ceiling, in an area that allows good air projection into the room. This detail is very important. A wall-mounted heat pump should not just be installed where there is space; it must be positioned to distribute air efficiently, without blowing directly on occupants and without being blocked by furniture, curtains, or decorative elements.
In this Lachine residence, the available space was framed by a window with curtains on the left and a tall cabinet on the right. It was therefore necessary to find a balance between accessibility, performance, and discretion. The unit was installed high up to promote natural air circulation, while maintaining sufficient distance from the ceiling and side obstructions. This type of decision directly impacts perceived comfort: poor positioning can create cold spots, unpleasant drafts, or inconsistent performance.
Thanks to a well-planned installation, the wall-mounted air conditioner can quickly cool the room in summer and contribute to heating during cold periods, with smoother modulation than a traditional auxiliary heating system. The client thus benefits from more stable comfort and better temperature control.
The Importance of a Clean Finish in an Occupied Room
In the photo, it is noticeable that the technical passage is located near the curtain, with a discreet vertical casing to protect and conceal the conduits. In interior installations, this detail is often crucial for client satisfaction. A high-performing machine can lose much of its perceived value if the installation seems improvised, bulky, or poorly finished.
At AirGreen, we know that homeowners don't just want a functional heat pump. They want an installation that respects their home. In a living space, every line, every cover, every wall outlet, and every connection must be designed to integrate neatly. In Lachine, the challenge was to install the unit in an already furnished environment, without detracting from the room's appearance or reducing the use of space.
The result is a clean, clear, and practical installation. The white indoor unit harmonizes with the light-colored wall, the conduit passage remains compact, and the overall setup maintains a discreet visual presence. For a Montreal residence, where rooms can sometimes have more limited dimensions than in suburban homes, this approach is particularly important.
Why Choose a Fujitsu ALTAIR 500 for a Residence in Lachine
The Fujitsu ALTAIR 500 is an interesting option for homeowners looking for a reliable heating and cooling solution designed for intensive residential use. Fujitsu is a recognized brand in the HVAC field, particularly for its wall-mounted systems that combine efficiency, durability, and acoustic comfort.
In a house or condo in Lachine, this type of mini split can meet several needs:
- effectively cool a main room during hot and humid periods;
- provide efficient supplementary heating in spring, fall, and during certain winter periods;
- improve comfort in an area poorly served by the existing system;
- reduce the use of electric baseboards or a less efficient system;
- offer independent temperature control in a specific zone.
One of the great advantages of a wall-mounted heat pump is its flexibility. It can be used in a targeted manner, without requiring central ducts. For many buildings in Lachine, especially those built or renovated at different times, this flexibility is a major asset. It is often simpler, cleaner, and more economical to install a well-sized wall system than to modify the entire air distribution of a residence.
A Mini Split System Adapted to the Realities of Montreal Buildings
Installations in Montreal often present particular constraints. Walls can be thick, outdoor access limited, conduit paths more complex, and the location of the outdoor unit must be carefully chosen to respect the building structure, the neighborhood, and applicable regulations. In Lachine, these considerations are frequent, especially in residential areas where houses are close to each other or have established outdoor layouts.
For this project, our team had to coordinate the indoor location with the path to the outside. The wall unit had to be positioned to offer good air distribution, but also to allow efficient passage of refrigerant lines and the condensate drain. This coordination avoids unnecessarily long paths, reduces the risk of inadequate slopes for drainage, and facilitates future HVAC maintenance interventions.
A well-designed installation takes into account the following details:
- ideal height of the indoor unit;
- sufficient lateral clearance;
- filter accessibility for cleaning;
- discreet conduit routing;
- appropriate drain slope;
- vibration reduction;
- wall penetration sealing;
- refrigerant line protection;
- secure positioning of the outdoor unit.
These elements are not secondary. They determine the system's reliability, daily comfort, and ease of maintenance.
An AirGreen Achievement Where Technical Precision Makes All the Difference
Key Installation Steps
A professional HVAC installation follows a rigorous sequence. For this Fujitsu ALTAIR 500 wall-mounted heat pump in Lachine, the work began with a site inspection and validation of the location. It was necessary to confirm that the chosen wall allowed for a safe installation, that the passage to the outside was feasible, and that air distribution would be adequate.
Our team then proceeded to fix the wall plate, make the controlled opening for the technical passage, install the indoor unit, connect the refrigerant lines and drain, and then connect to the outdoor unit. Each step must be executed with precision, as errors are sometimes invisible initially but can cause problems later.
Among the most important steps are:
The Perfectly Leveled Fixing of the Indoor Unit
A poorly leveled indoor unit can cause drainage problems. The condensate produced in cooling mode must flow naturally to the outside or to the designated drainage system. If the inclination is incorrect, water can accumulate, causing noise, leaks, or odors. In this project, the wall mounting was carried out with care to ensure reliable drainage.
Clean Routing of Conduits
Refrigerant lines, communication cables, and drains must follow a logical and protected path. In an occupied room, overly visible or bulky passages should be avoided. The vertical casing installed near the curtain keeps everything clean and compact.
Vacuuming the Refrigerant Circuit
Before commissioning, the circuit must be properly prepared. Vacuuming removes air and moisture from the lines. This step is essential to protect the compressor and ensure the long-term performance of the heat pump. At AirGreen, we place great importance on this procedure, as it directly influences the system's durability.
Operational Tests
Once the installation is complete, the system is tested in cooling and heating modes. We check the unit's response, discharge temperatures, drain behavior, noise level, and proper operation of the controls. The client also receives the necessary explanations for using their new mini split correctly.
Acoustic Comfort: An Essential Criterion in a Bedroom or Living Room
The photo shows an indoor unit installed in a furnished room, likely regularly used as a living space or bedroom. In this type of environment, noise is a major factor. A wall-mounted heat pump must be quiet enough to operate during the evening, night, or telecommuting periods without becoming bothersome.
The Fujitsu ALTAIR 500 is well suited for this type of use, as Fujitsu wall-mounted systems are generally designed to offer gentle ventilation and discreet operation. But silence does not depend solely on the machine. Proper installation also helps reduce vibrations, airflow noise, and drainage-related noise.
This is why we pay attention to the following points:
- stability of the indoor unit;
- solid fixing of the wall plate;
- well-organized line routing;
- absence of excessive tension on connections;
- good condensate drainage;
- settings adapted to the client's habits.
A silent appliance that is poorly installed can become noisy. A well-installed appliance better retains its original qualities.
Energy Efficiency and Intelligent Use
A well-sized heat pump often improves comfort while reducing energy consumption compared to certain direct electric heating solutions. The inverter system adjusts its power according to demand, which limits abrupt starts and maintains a more stable temperature.
For the Lachine client, the goal was not just to add air conditioning. It was about obtaining an appliance that could be used across multiple seasons, capable of making the home more comfortable during humid summer days, cool autumn evenings, and transitional periods in spring.
Efficiency, however, depends on several usage habits. We generally recommend:
- setting a stable temperature rather than constantly changing the setpoint;
- cleaning filters regularly;
- avoiding blocking airflow with curtains or furniture;
- having the appliance checked periodically;
- ensuring the outdoor unit remains clear of snow, leaves, and debris;
- using ventilation and dehumidification modes according to actual needs.
These simple actions help extend the equipment's lifespan and maintain good performance.
Subsidies and Eligibility: A Point to Validate Depending on the Exact Model
Homeowners in Montreal, Laval, Longueuil, the North Shore, and the South Shore often ask us the same question: can the installation of a wall-mounted heat pump qualify for a subsidy? The answer depends on the exact model, its certified performance, the type of building, and the criteria in effect at the time of application.
For a project like this Fujitsu ALTAIR 500 installation in Lachine, AirGreen can provide the necessary documents to the client when the installed model is eligible: detailed invoice, technical information, brand, model, and other required elements. We always recommend checking eligibility before the final purchase, as programs can change and certain conditions must be met.
This step is important for clients comparing several options. A more efficient heat pump can sometimes be a better long-term choice, especially if it combines comfort, energy savings, and available financial assistance.
Common Mistakes to Avoid in a Wall-Mounted Installation
Based on this installation in Lachine, several practical tips can be useful for homeowners considering a similar system.
Installing the Unit Too Close to the Ceiling
A wall unit must have sufficient clearance to draw in air correctly. If it is flush with the ceiling, performance can decrease and maintenance becomes more difficult.
Neglecting Curtains and Furniture
Curtains, cabinets, bookshelves, and tall furniture can disrupt airflow. In this project, the presence of the curtain and the furniture on the right was taken into account in the positioning.
Choosing Based Solely on Price
The purchase cost is important, but it should not be the only criterion. A cheaper but poorly executed installation can lead to leaks, noise, poor performance, or costly repairs.
Forgetting Maintenance
Even an excellent wall-mounted heat pump needs to be maintained. Filters must be cleaned, the indoor unit must remain clean, and periodic checks help prevent problems.
Underestimating drainage
The condensate drain is a critical component. An incorrect slope or poorly planned routing can cause water leaks. In Montreal buildings, where walls and access can vary greatly, this part must be carefully planned.
AirGreen's Experience in Fujitsu Installations
AirGreen regularly installs Fujitsu systems throughout the greater metropolitan area, including Montreal, Lachine, Laval, Longueuil, the North Shore, and the South Shore. This experience allows us to adapt our approach to each building, whether it's a condo, a single-family home, a duplex, or a small commercial space.
We know that every project has its constraints. In Lachine, interior integration was one of the important points. In other projects, the challenge may be the outdoor unit, the length of the lines, the installation height, co-ownership rules, or electrical access. Our job is to offer a complete solution, without improvisation.
Our method is based on:
- a clear assessment of needs;
- an appropriate capacity choice;
- a clean and compliant installation;
- simple explanations to the client;
- post-installation support;
- HVAC maintenance services to maintain performance.
This level of support is particularly appreciated by clients who want to avoid unpleasant surprises and obtain a durable solution.
Final Result: A Fujitsu Mini-Split Well Integrated and Ready for Montreal Seasons
This installation of a Fujitsu ALTAIR 500 wall-mounted heat pump in Lachine demonstrates the importance of both a technical and aesthetic approach. The indoor unit is discreetly placed, the conduit routing is neatly integrated, and the system offers the client a versatile solution for heating and air conditioning.
For homeowners in Lachine and the greater Montreal area, this project represents a good example of what a well-executed wall installation can provide: improved comfort, more precise temperature management, neat interior integration, and an efficient solution without major central ventilation work.
A heat pump is never just a machine. It's equipment that becomes part of daily life. It must be quiet, reliable, well-placed, easy to use, and properly maintained. In this project, the Fujitsu ALTAIR 500 was installed with this vision: to offer lasting comfort, without compromising the room's appearance or the building's quality.
