Installation of a GREE LIVO R32 Wall-Mounted Heat Pump in Montreal: Discreet Mini Split Air Conditioner for Clean, Stable, and Well-Distributed Indoor Comfort
AirGreen installs a GREE LIVO R32 wall-mounted heat pump in Montreal: discreet R32 mini split, neatly integrated indoor unit, efficient air conditioning, and HVAC comfort adapted to urban housing.
- City
- Region
- Equipment
- Brand
- Challenges
- Published
The job on one screen
The unit’s data sheet
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Gree Livo R32 9 000 (115 V) | 10,000 | 7,600 | −25 °C: 5,700 | 1.86 | 20.5 | 8.8 | – |
| Gree Livo R32 9 000 | 9,600 | 7,600 | −25 °C: 5,500 | 1.94 | 20.5 | 8.8 | – |
| Gree Livo R32 12 000 (115 V) | 9,700 | 8,500 | −25 °C: 6,500 | 1.75 | 19.0 | 8.5 | – |
| Gree Livo R32 12 000 | 9,700 | 9,100 | −25 °C: 6,500 | 1.8 | 19.0 | 8.5 | $1,164 |
| Gree Livo R32 18 000 | 15,300 | 12,100 | −25 °C: 10,200 | 1.85 | 20.0 | 8.5 | $1,836 |
| Gree Livo R32 24 000 | 19,200 | 15,700 | −25 °C: 10,500 | 1.75 | 19.0 | 8.5 | $2,304 |
| Gree Livo R32 30 000 | 24,000 | 23,000 | −25 °C: 16,900 | 1.8 | 22.0 | 9.0 | $2,880 |
| Gree Livo R32 36 000 | 27,400 | 24,600 | −25 °C: 21,000 | 1.8 | 21.0 | 8.5 | $3,288 |
According to NEEP, it delivers 10,000 BTU/h at −8 °C (17 °F), as much as at 8 °C. It heats as hard in moderate cold as in mild weather.
According to NEEP, its certified maximum capacity at −25 °C (−13 °F) is 5,700 BTU/h, 63% of its nominal 9,000 BTU size.
At 8 °C, its certified maximum capacity reaches 13,300 BTU/h, 48% more than its nominal 9,000 BTU size.
According to NEEP, its COP at −15 °C is 1.94: the highest of the Livo R32 line, which ranges from 1.75 to 1.86 at that temperature.
According to NEEP, its certified maximum capacity at −25 °C (−13 °F) is 5,500 BTU/h, 61% of its nominal 9,000 BTU size.
At 8 °C, its certified maximum capacity reaches 13,136 BTU/h, 46% more than its nominal 9,000 BTU size.
According to NEEP, it delivers 8,500 BTU/h at −15 °C, against 9,100 for the Gree Livo R32 12 000.
At −25 °C, its certified minimum capacity is 1,800 BTU/h (3,070 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 8,500 BTU/h, 71% of its nominal 12,000 BTU size. Its COP there is 1.75.
According to NEEP, it delivers 9,100 BTU/h at −15 °C, against 8,500 for the Gree Livo R32 12 000 (115 V).
At −25 °C, its certified minimum capacity is 1,800 BTU/h (3,070 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 9,100 BTU/h, 76% of its nominal 12,000 BTU size. Its COP there is 1.80.
At 8 °C, its certified maximum capacity reaches 22,500 BTU/h, 25% more than its nominal 18,000 BTU size.
According to NEEP, its certified minimum capacity is at least 7,000 BTU/h at every temperature. In a small, well-insulated room it will cycle on and off more often: size it carefully.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 12,100 BTU/h, 67% of its nominal 18,000 BTU size. Its COP there is 1.85.
At −25 °C, its certified minimum capacity is 3,100 BTU/h (5,800 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 15,700 BTU/h, 65% of its nominal 24,000 BTU size. Its COP there is 1.75.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 23,000 BTU/h, 77% of its nominal 30,000 BTU size. Its COP there is 1.80.
According to NEEP, its COP at −25 °C is 1.54: the highest of the Livo R32 line, which ranges from 1.30 to 1.52 at that temperature.
At −25 °C, its certified minimum capacity is 7,000 BTU/h (10,000 at 8 °C). It slows down instead of cycling on and off.
According to NEEP, its certified heating capacity at −15 °C (5 °F) is 24,600 BTU/h, 68% of its nominal 36,000 BTU size. Its COP there is 1.80.
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.A dash in the aid column: amount to be confirmed for this model.
The article, chapter by chapter
An indoor installation in Montreal where the finish mattered as much as the performance
In Montreal, our AirGreen team carried out the installation of a wall-mounted heat pump GREE LIVO R32, a mini split system designed to offer both air conditioning, efficient supplementary heating, and precise indoor comfort control. The photo clearly illustrates one of the most important elements of this project: the indoor wall unit was installed in a finished room, on a light wall, near the ceiling, with a clean and discreet visual integration.
In this type of Montreal residence, the challenge is never just to install a functional machine. It is necessary to respect the appearance of the room, choose an appropriate height, ensure good air diffusion, avoid unnecessary marks on the walls, and precisely coordinate the passage of ducts to the outside. A successful HVAC installation must visually go unnoticed while clearly improving daily comfort.
Here, the GREE LIVO R32 was positioned on a clear wall, at a height that promotes effective air distribution. The indoor unit is centered in an area allowing the airflow to circulate freely into the room, without being blocked by furniture, a decorative beam, a curtain, or a nearby partition. The presence of a textured wall or a brick element on the left side of the photo also shows that the space had a certain architectural identity. Our job was therefore to integrate the system without harming the interior character of the room.
Why the GREE LIVO R32 was suitable for this residential project
The GREE LIVO R32 is a wall-mounted heat pump of the mini split type, a solution particularly suited for apartments, condos, duplexes, triplexes, and townhouses in Montreal. It meets the needs of homeowners who want to add efficient air conditioning without installing a full duct network, while benefiting from supplementary heating during cooler periods.
This model uses the refrigerant R32, increasingly present in modern residential HVAC systems. R32 allows good thermal transfer and is part of a new generation of equipment more efficient than many older platforms using other refrigerants. Combined with inverter technology, it allows the unit to modulate its operation according to the actual demand of the room.
For the client, this means more stable comfort. Instead of operating only on an on-off basis, the heat pump adjusts its speed to maintain a steady temperature. This modulation reduces sudden variations, improves the comfort feeling, and can contribute to better-controlled energy consumption when the unit is properly sized.
The BTU capacity must always be confirmed according to the exact configuration of the dwelling. At AirGreen, we evaluate several factors before validating the capacity of a wall air conditioner: area, ceiling height, insulation, solar orientation, number of windows, building airtightness, room usage, and air circulation between zones. In a Montreal dwelling, these details vary greatly from one property to another, especially between a recent condo, an old ground floor, a top floor very exposed to the sun, or a unit with shared walls.
An indoor positioning designed for air circulation

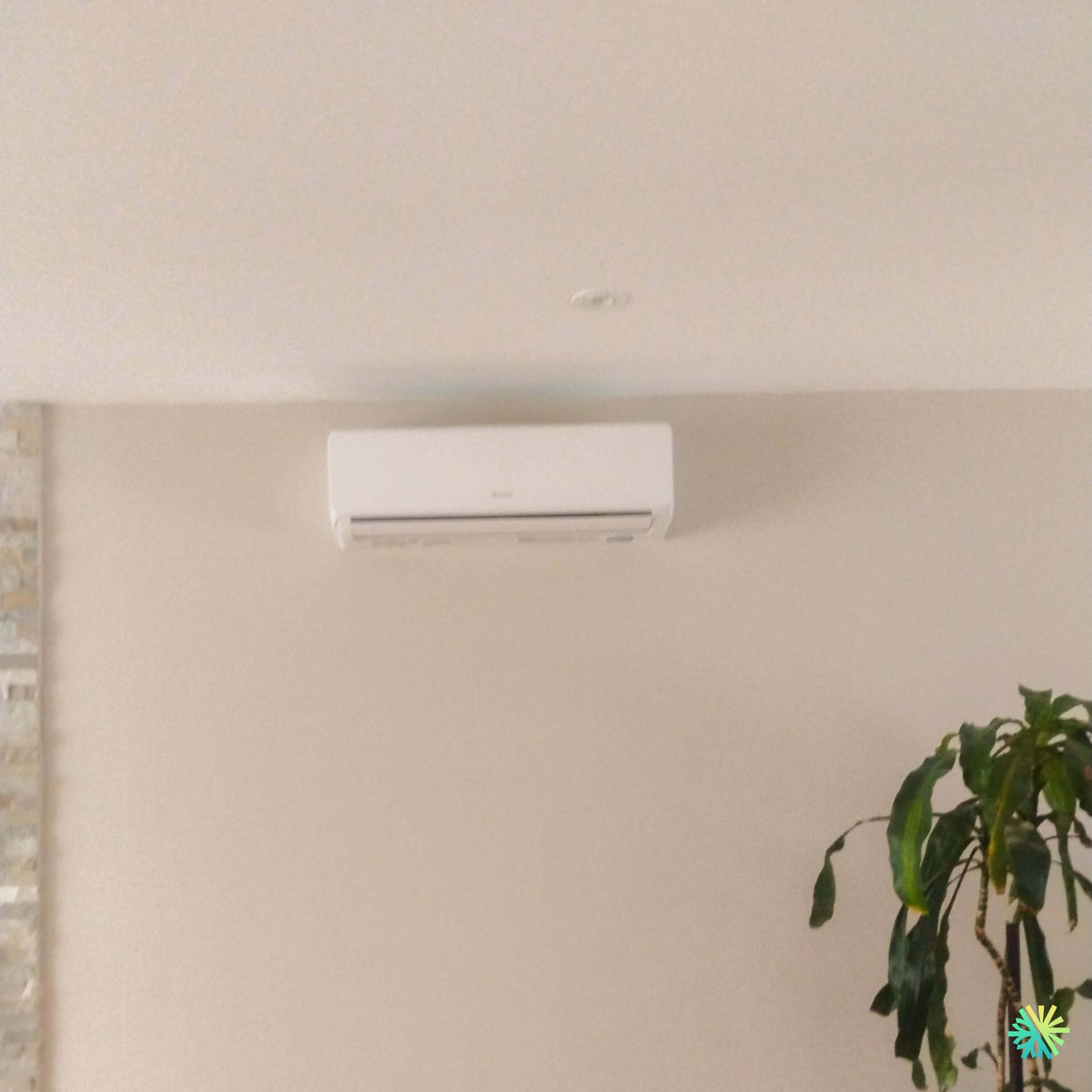

The indoor unit visible in the photo is installed near the ceiling, on a clear wall. This choice is important for a wall-mounted heat pump, as the air must be blown into the room without immediate obstacles. An installation that is too low or too close to a corner can reduce distribution efficiency. An installation too close to the ceiling, without sufficient clearance, can also hinder air intake from the top of the unit.
In this project in Montreal, the goal was to find the right balance: an aesthetic height, good diffusion capacity, reasonable access for filter maintenance, and a clean integration into the room. The unit is placed to remain discreet while being effective. Its white color blends well with the light decor, avoiding the effect of an overly imposing installation.
This attention to location is often what distinguishes an ordinary installation from a true professional HVAC installation. A wall unit must be installed to operate properly for years, not just to look good on installation day.
The challenge of finished walls in Montreal homes
Installing a GREE LIVO R32 wall heat pump in an already finished space requires precision. Interior walls may hide studs, electrical wires, pipes, old repairs, or more fragile materials. In some homes in Montreal, there are also uneven walls, decorative finishes, lower ceilings, or access constraints to the outside.
Our team therefore worked with a rigorous method:
- checking the drilling area;
- exact positioning of the wall plate;
- leveling the indoor unit;
- planning the routing of refrigerant lines;
- care taken with the condensation drain;
- clean sealing of the wall passage;
- protection of the interior finish.
The condensation drain is a critical point. In cooling mode, the indoor unit removes moisture from the air. This water must be properly drained, with an adequate slope or with a mechanical solution when the setup requires it. Poor drainage can cause leaks, stains on the wall, odors, or damage to the building. In a finished interior like this, there is no room for approximation.
A discreet finish to preserve the appearance of the room
In the photo, the installation looks visually simple: a white wall unit, a light wall, no visible piping in the room, a clean line under the ceiling. This is exactly the type of finish sought by many homeowners in Montreal, Laval, Longueuil, on the North Shore and on the South Shore.
In many projects, clients ask if a heat pump will harm the appearance of their living room, office, bedroom, or open area. The answer largely depends on the choice of location and the quality of the installation. A well-placed unit can become very discreet. A poorly positioned unit, on the other hand, can unnecessarily draw attention or complicate the room layout.
At AirGreen, we consider the actual use of the space. In this installation, it was necessary to maintain a simple indoor atmosphere, avoid visual clutter, and ensure good accessibility to the filters. The unit can be opened and maintained without moving large furniture or working in an uncomfortable position.
Technical choices that make this GREE LIVO R32 installation durable and efficient
A wall-mounted heat pump only delivers its full performance if the installation follows best practices. The machine matters, but the work around the machine matters just as much: refrigerant connections, vacuuming, drainage, sealing, line protection, electrical supply, outdoor location, and commissioning.
Concrete advantages for the client
In this Montreal project, the GREE LIVO R32 improves comfort in a specific area without heavy construction. The client benefits from a compact wall unit capable of cooling the room during hot and humid summer days in Montreal, while also providing supplementary heating during transition periods.
The main benefits are clear:
- more stable air conditioning during heat periods;
- better indoor humidity management;
- useful supplementary heating in spring, fall, and depending on winter conditions;
- modulating operation thanks to inverter technology;
- installation without ductwork;
- discreet format suitable for urban housing;
- local temperature control in the served area.
For properties in Montreal, this flexibility is particularly useful. Buildings can have rooms that overheat in summer, poorly ventilated bedrooms, sun-exposed living rooms, or floors where air does not circulate well. A mini split solution allows you to precisely target these problems without overhauling the entire home's mechanical system.
Mistakes to avoid during an indoor installation
Installing a wall air conditioner seems simple when only looking at the indoor unit, but many mistakes can compromise the result.
Installing the unit in the wrong place
A poorly chosen location can create areas that are too cold, direct drafts on occupants, or poor air circulation. The unit should not blow directly on a bed, sofa, or workspace used for long periods.
Neglecting drainage
An insufficient slope or poorly positioned drain can cause water problems. In a finished room, this can quickly become costly. Drainage must be planned from the start, not fixed afterward.
Choosing capacity based only on surface area
Two rooms of the same size can have very different needs. An open area with large south-facing windows does not require the same capacity as an interior room with little sun exposure. The BTU capacity must be chosen carefully.
Installing without considering maintenance
The indoor unit filters must be accessible. A device installed too high, too close to a shelf, or above an obstacle can discourage regular maintenance. Good HVAC maintenance starts with easy access.
Drilling without wall analysis
In a Montreal building, walls can hold surprises. A careful inspection reduces the risk of damage and allows for a cleaner installation.
Subsidies and eligibility: an essential check before the file
For owners in Montreal, subsidy programs can make installing a heat pump more advantageous. Eligibility, however, depends on the exact model, installed capacity, current technical criteria, and administrative requirements of the program applicable at the time of the work.
For a GREE LIVO R32, we always recommend verifying the exact model information before submitting a file. At AirGreen, we help our clients gather the necessary information, such as the brand, model, detailed invoice, and required technical data. This step avoids unpleasant surprises and helps the client better understand the conditions related to subsidies.
The AirGreen experience in wall-mounted installations in Montreal
We regularly install wall heat pumps, wall air conditioners, and mini split systems in homes in Montréal, but also in Laval, Longueuil, on the North Shore, and on the South Shore. Each area has its particularities. In Montréal, the most common constraints involve exterior access, party walls, condominiums, balconies, alleys, narrow yards, old walls, and aesthetic requirements.
In this project, the simplicity of the interior installation was a central element. The photo shows a clean result, with no visible ductwork in the room, and a well-aligned and well-integrated unit. For a client, this level of finishing greatly changes the perception of the project. A heat pump must improve comfort, but it must also respect the living space.
A result that combines comfort, discretion, and technical rigor
This installation of a GREE LIVO R32 wall heat pump in Montréal shows that a good HVAC project relies on a series of precise decisions. The choice of model, mounting height, airflow direction, drilling, drainage, interior finishing, and commissioning must be consistent from start to finish.
The final result is a discreet, efficient solution adapted to a Montréal residential interior. The wall unit integrates neatly into the decor, the system provides a concrete response to air conditioning and supplementary heating needs, and the installation meets the necessary standards to ensure good durability.
At AirGreen, we approach every project with the same high standards: offering a solution tailored to the building, carefully installed, designed for the real comfort of the client, and supported by local expertise in HVAC. Whether in Montréal, Laval, Longueuil, on the North Shore or on the South Shore, our goal remains the same: to deliver a clean, reliable, and well-thought-out installation, capable of serving the client season after season.
The job tools
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
How the job unfolds
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What we check on a job like this one
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Good habits, once the unit is in place
Six simple habits that keep the unit going. Your list stays on this device.
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
The right pages, at the right time
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
An on-site estimate, the right capacity, the right equipment.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
