A securely anchored outdoor unit designed to meet the constraints of an urban passageway

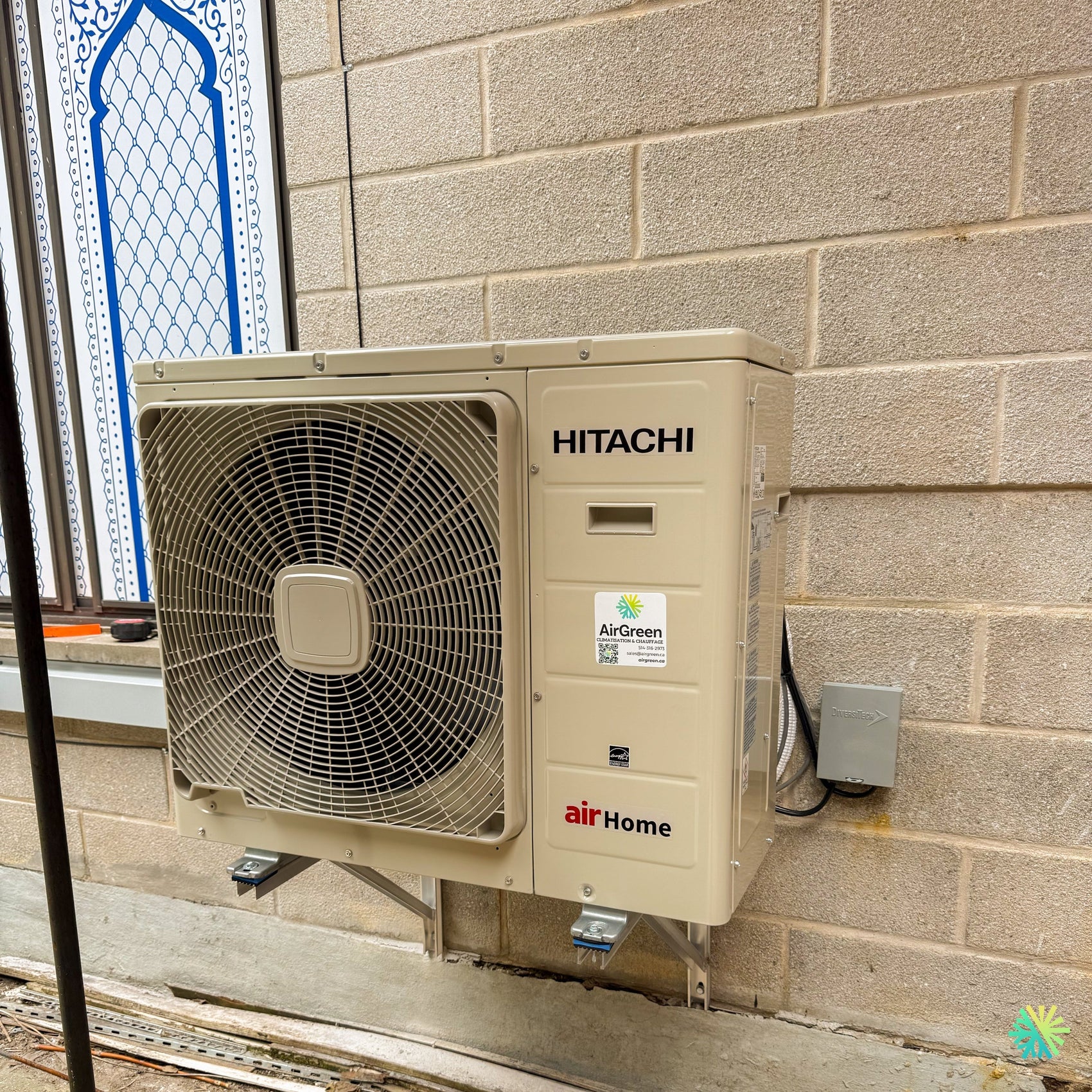

This installation of a Hitachi airHome 400 wall-mounted heat pump in Montréal-Est illustrates an essential aspect of HVAC work: the location of the outdoor unit must be chosen based on the actual building, rather than on a theoretical configuration. Here, the condenser had to be integrated along a concrete block wall, in a relatively narrow area where ducts, architectural elements, and electrical equipment were already present.
We therefore chose an installation on a metal wall bracket, with the unit raised above the concrete slab. This method clears the ground, protects the heat pump base from certain snow accumulations, and facilitates access to the components during inspections and maintenance.
The photograph also reveals several important details: the bracket is secured to the masonry, the unit rests on anti-vibration supports, the electrical disconnect is accessible nearby, and the front of the condenser remains unobstructed to allow air to discharge.
Why a wall-bracket installation was suitable for this project
In several areas of Montréal-Est, buildings have narrow side passages, concrete yards, or surfaces already occupied by pipes and equipment. Installing a heat pump directly on the ground can then create practical problems:
- reduced clearance for movement;
- snow accumulation around the unit;
- exposure to puddles and debris;
- difficulty accessing the bottom of the condenser;
- risk of contact with stored equipment;
- transmission of vibrations to an uneven base;
- partial obstruction of a service passage.
The wall bracket allows us to better control the height and level of the unit. In this project, the heat pump is positioned high enough to remain clear of the slab, but not unnecessarily high. An installation that was too high would have complicated future technical work and increased the loads placed on the anchors.
An anchor designed for concrete block masonry
The visible wall is made of concrete blocks, a common surface in residential, commercial, and institutional buildings in eastern Montréal. Attaching a condenser to this type of wall requires a method suited to the structure.
We must in particular check:
- the condition of the block and mortar joints;
- the location of the anchors;
- the anchoring depth;
- the support’s ability to bear the weight of the unit;
- resistance to repeated vibrations;
- maintaining level after startup;
- the necessary space between the wall and the coil.
A wall-mounted heat pump does not remain perfectly static during operation. The compressor modulates its speed, the fan speeds up or slows down, and defrost cycles change the operating conditions. The anchors must therefore withstand repeated forces, not merely support the weight of the unit on the day of installation.
Visible anti-vibration support points beneath the condenser
The photograph shows that the unit is not simply set directly on the metal brackets. Supports are placed between the heat pump’s feet and the bracket.
This separation helps reduce the transmission of vibrations to the wall. In a masonry structure, vibrations can sometimes travel to interior rooms and become noticeable as a humming sound, particularly during quieter periods.
The quality of an HVAC installation therefore also depends on details that may seem secondary:
- properly align all four mounting points;
- tighten the bolts without deforming the feet;
- keep the unit perfectly stable;
- avoid direct contact between the cabinet and the wall;
- prevent the lines from vibrating against the masonry;
- use supports designed for the model’s weight and dimensions.
An anti-vibration pad does not correct a weak or improperly anchored support. It complements an installation that must already be rigid, level, and properly sized.
A front clearance essential for operation
The large fan visible at the front of the Hitachi airHome 400 expels air after it has passed through the outdoor coil. This frontal space must remain clear.
In a narrow passage, it may be tempting to protect the unit behind a panel, fence, or decorative structure. However, such an obstruction can cause the discharged air to recirculate. The unit then draws in air that has already been warmed in cooling mode, which increases operating pressure and reduces efficiency.
We therefore kept a clear space in front of the fan. This choice promotes:
- better heat rejection in summer;
- adequate airflow in heating mode;
- a reduced risk of overheating;
- more stable compressor operation;
- direct access to the coil and fan;
- easier cleaning.
The passage must also remain clear after installation. Building owners and managers should avoid storing boxes, bins, materials, or tools in front of the outdoor unit.
The electrical disconnect installed nearby
To the right of the condenser, we can see an electrical disconnect mounted on the wall. This component allows the heat pump’s power supply to be shut off locally during servicing.
Its location must be accessible without being installed in a position exposed to impacts or accidental handling. Outdoor wiring must also be protected and secured so that it does not rub against metal edges or masonry.
Depending on the exact capacity of the Hitachi airHome 400, the electrical requirements vary. The manufacturer’s documentation specifies maximum overcurrent protection ratings including:
- 15 A for certain 9,000 and 12,000 BTU/h versions;
- 25 A for the 18,000 and 24,000 BTU/h versions;
- 40 A for the highest-capacity version.
The minimum circuit ampacity also varies by model. We must therefore always rely on the nameplate of the installed unit and the manufacturer’s instructions rather than the appearance of the cabinet.
A capacity that cannot be determined from the photograph alone
The outdoor unit shown has the large cabinet format used for the higher capacities in the airHome 400 lineup. The 24,000 and 36,000 BTU/h versions have very similar outdoor dimensions, approximately 37.4 in. wide, 37.2 in. high, and 14.6 in. deep.
However, it would be incorrect to state an exact capacity without reading the complete model number on the nameplate. At AirGreen, we avoid inferring an appliance’s BTU rating based solely on its size.
The Hitachi airHome 400 lineup includes systems from 9,000 to 36,000 BTU/h. Depending on the selected model, it offers seasonal efficiency of up to 20.0 SEER2, an HSPF2 of up to 9.2 in Region 4 and 8.0 in Region 5, as well as a stated heating operating range down to approximately -20.5 °C. All models shown use R32 refrigerant.
Sizing should instead take the building’s actual heating load into account:
- area of the zone served;
- insulation level;
- interior volume;
- solar exposure;
- number of windows;
- residential or commercial use;
- number of occupants;
- air infiltration;
- heating requirements;
- presence of other HVAC systems.
What this Hitachi airHome 400 installation brings to the Montréal-Est building
The heat pump must not only be securely mounted. It must provide modulating capacity, stable operation, and realistic maintenance throughout its service life.
Inverter technology for adjusting output
The Hitachi airHome 400 uses Vector DC Inverter technology. The compressor can adjust its speed according to heating or cooling needs instead of operating only at full capacity.
When a space is very warm, the unit increases its output to quickly correct the temperature. As it approaches the setpoint, it slows down to maintain comfort with fewer fluctuations.
This modulation is particularly useful in a Montréal-Est building, where loads can change quickly depending on:
- sun exposure;
- door openings;
- activities in the rooms;
- the heat produced by equipment;
- the outdoor temperature;
- the number of occupants.
A properly sized system can therefore maintain a more consistent temperature while reducing abrupt starts.
An outdoor design adapted to Quebec conditions
The outdoor unit of the Hitachi airHome 400 has several features designed to improve its durability:
- cabinet with anticorrosion paint;
- corrosion-treated blue fins;
- fire-resistant electrical enclosure;
- protection against certain voltage fluctuations;
- three-minute start-up delay;
- optional snow protection accessory.
In Montréal-Est, corrosion deserves particular attention because of humidity, snow, freeze-thaw cycles, and contaminants that may be present near buildings and traffic routes.
The wall bracket visible in this installation helps keep the base of the condenser away from water and debris on the ground. However, it does not replace maintenance. The coil must remain clean, and debris must be removed before it restricts airflow.
Managing water during defrost cycles
During winter heating, a heat pump extracts heat from the outdoor air. Frost may form on the coil, and the unit periodically initiates a defrost cycle.
The water produced during this cycle must be able to drain beneath the unit. The elevation visible in this project provides additional space, reducing the risk of ice quickly rising up to the cabinet.
Nevertheless, we must analyze the area beneath the condenser:
- Is the slab sloped correctly?
- Can water drain away from the wall?
- Could a pedestrian walkway become slippery?
- Could ice block a drain?
- is any equipment located directly beneath the unit?
- could the installation create an accumulation against the foundation?
In a yard or service passage, defrost water management must be planned from the outset of the installation.
Protected and accessible refrigerant lines
In this photograph, the main lines are integrated near the back or side of the unit. This configuration reduces their visual exposure and limits obstruction in the passageway.
Maximum piping lengths vary by capacity. The airHome 400 documentation indicates limits ranging from approximately 82 to 165 feet, with maximum elevation differences ranging from approximately 49 to 98 feet.
The diameters also change depending on the model:
- 1/4 in. liquid line on several capacities;
- 3/8 in. liquid line on the high-capacity version;
- a 3/8 in., 1/2 in., or 5/8 in. gas line, depending on the system.
This variation explains why existing piping should never be reused automatically. Before any heat pump conversion or replacement, we check the diameters, the condition of the copper, refrigerant compatibility, and the length of the run.
The invisible steps that determine reliability
A photograph shows the final result, but much of the work remains invisible. For this wall-mounted heat pump installation in Montreal East, the critical steps include:
- checking the wall structure;
- positioning and leveling the support;
- securing the anchors;
- the installation of vibration isolators;
- the refrigerant connection;
- the leak-tightness check;
- evacuating the system;
- the electrical connection;
- the clearance check;
- the heating and cooling tests.
Poor vacuuming can leave air and moisture in the lines. An outdoor unit that is properly aligned may nevertheless experience problems if this step is neglected.
We also check that the lines do not transmit vibrations to the wall. Even when the condenser is properly isolated from the support, a rigid line resting directly against the masonry can become a source of noise.
Mistakes to avoid when installing an outdoor wall-mounted unit
This project offers several useful lessons for building owners and managers in Montreal, Laval, Longueuil, the North Shore, and the South Shore.
Installing the unit too close to the ground
A low height exposes the condenser more to snow, water, and debris. It can also leave less space for defrost water drainage.
Securing the bracket only into the mortar joints
The bracket must be anchored according to the wall's characteristics and the expected loads. An improvised fastening can loosen over time due to vibrations.
Neglecting the clearance behind the coil
Air must be able to enter from the rear and sides according to the manufacturer's requirements. A unit placed directly against the wall may lose performance.
Overlooking vibrations
A solid wall does not automatically eliminate noise. The supports, piping, and anchors must be treated as a whole.
Placing the disconnect switch out of reach
The disconnect device must remain accessible to the technician, without requiring materials to be moved or special equipment to be used.
Storing materials in front of the fan
Even a perfectly completed installation can operate less efficiently if airflow is blocked after the crew leaves.
Simplified maintenance through strategic placement
The positioning of this Hitachi airHome 400 provides access to the front, the electrical side, and the underside of the unit. This accessibility facilitates several tasks:
- coil cleaning;
- fin inspection;
- fan check;
- electrical connection check;
- vibration check;
- fitting inspection;
- debris removal;
- corrosion check.
We recommend keeping a clear perimeter around the condenser and periodically checking for leaves, dust, or materials that could obstruct the heat-transfer surfaces.
A pressure washer should not be used directly on the coil. The pressure can bend the fins and reduce airflow.
An installation adapted to the realities of Montréal-Est
This HVAC installation in Montréal-Est demonstrates that a relatively narrow passage can accommodate a high-performance heat pump when a coherent configuration is chosen.
The wall bracket frees up floor space, the supports reduce vibration transmission, the disconnect switch remains accessible, and the fan has sufficient unobstructed clearance in front. The unit is integrated into the masonry without compromising operation or future service work.
At AirGreen, we approach each project according to the property's practical constraints. A wall-mounted heat pump installed in a yard, on a balcony, against a concrete block wall, or in a service passage cannot be treated the same way.
At Montréal-Est, as elsewhere in Greater Montréal, our goal is to bring three elements together in a single installation: reliable technical performance, clean integration, and sufficient access to ensure long-term maintenance.
