Installation of a SHARP BU Double Zone Heat Pump in Plateau-Mont-Royal
A SHARP BU Double Zone Heat Pump transformed this Plateau-Mont-Royal home, delivering efficient heating, cooling, and cleaner air. Find out how AirGreen did it!
Take a tour of the installation
Each number is a point we check on site. Switch between summer and winter to watch air and heat move.
In summer, the outdoor unit rejects the house's heat outside.
Generic illustration of this type of installation, not a survey of this job site. Tap a number.
Mounted level on a wall plate, high enough for the air to reach the whole room, with enough space around it to slide the filters out easily.
The refrigerant lines, the communication cable and the drain go through the wall in a single opening, sealed against water, cold air and insects.
Two insulated copper pipes connect the two units. Outside, a line cover can protect them from sun, knocks and weather.
A shut-off switch near the outdoor unit isolates it safely for service. It must stay accessible at all times.
The compressor and the fan. In heating mode it captures heat from the outdoor air, even in winter, and moves it inside.
On the ground or on the wall, it keeps the unit above accumulated snow. The unit stays clear and defrost water can drain away.
The fan needs to blow freely. Storage, a fence or a wall too close, and efficiency drops while noise goes up.
Enhancing Comfort and Efficiency with a SHARP BU Double Zone Heat Pump in Plateau-Mont-Royal
A Fresh Start for Comfort and Air Quality in Montreal Homes
At AirGreen, we pride ourselves on providing cutting-edge solutions for heating and cooling systems in Montreal, Laval, Longueuil, North Shore, and South Shore. This SHARP BU Double Zone Heat Pump installation in Plateau-Mont-Royal perfectly demonstrates our dedication to top-tier service, energy efficiency, and customer satisfaction.
The Project: A Modern Solution for a Classic Plateau Home
Nestled in the heart of Plateau-Mont-Royal, one of Montreal's most iconic neighborhoods, this charming residence was ready for a major upgrade. The homeowners reached out to us, seeking a system that could effectively heat and cool their home across two distinct zones while meeting their long-term energy-saving goals.
With the region’s diverse climate—hot summers and freezing winters—it was essential to choose a system that offered both high performance and reliability in extreme weather conditions. The SHARP BU Double Zone Heat Pump emerged as the clear choice.
Why the SHARP BU Double Zone Heat Pump?
Outstanding Features at a Glance
- Compressor Capacity: 24,000 BTU
- Two 12,000 BTU Indoor Units: Perfect for managing comfort in two separate zones.
- Heating Performance: Operates seamlessly even at a bone-chilling -27°C.
- Energy Efficiency: A remarkable 24.0 SEER rating ensures maximum energy savings.
- Quiet Operation: With a sound pressure level of just 50.0 dB(A), the outdoor unit operates almost silently.
- WiFi Integration: Remote control from your smartphone for ultimate convenience.
- Environmentally Friendly: Uses R-32 refrigerant for reduced environmental impact.
This SHARP BU model isn’t just efficient—it’s smart. With WiFi capabilities and advanced Plasmacluster technology, it goes above and beyond simple heating and cooling. It actively purifies the air, neutralizing odors, allergens, and bacteria for a healthier indoor environment.
Installation Details: Precision and Care
Our team worked diligently to ensure this installation met the highest standards.
Step 1: Strategic Placement of Indoor Units

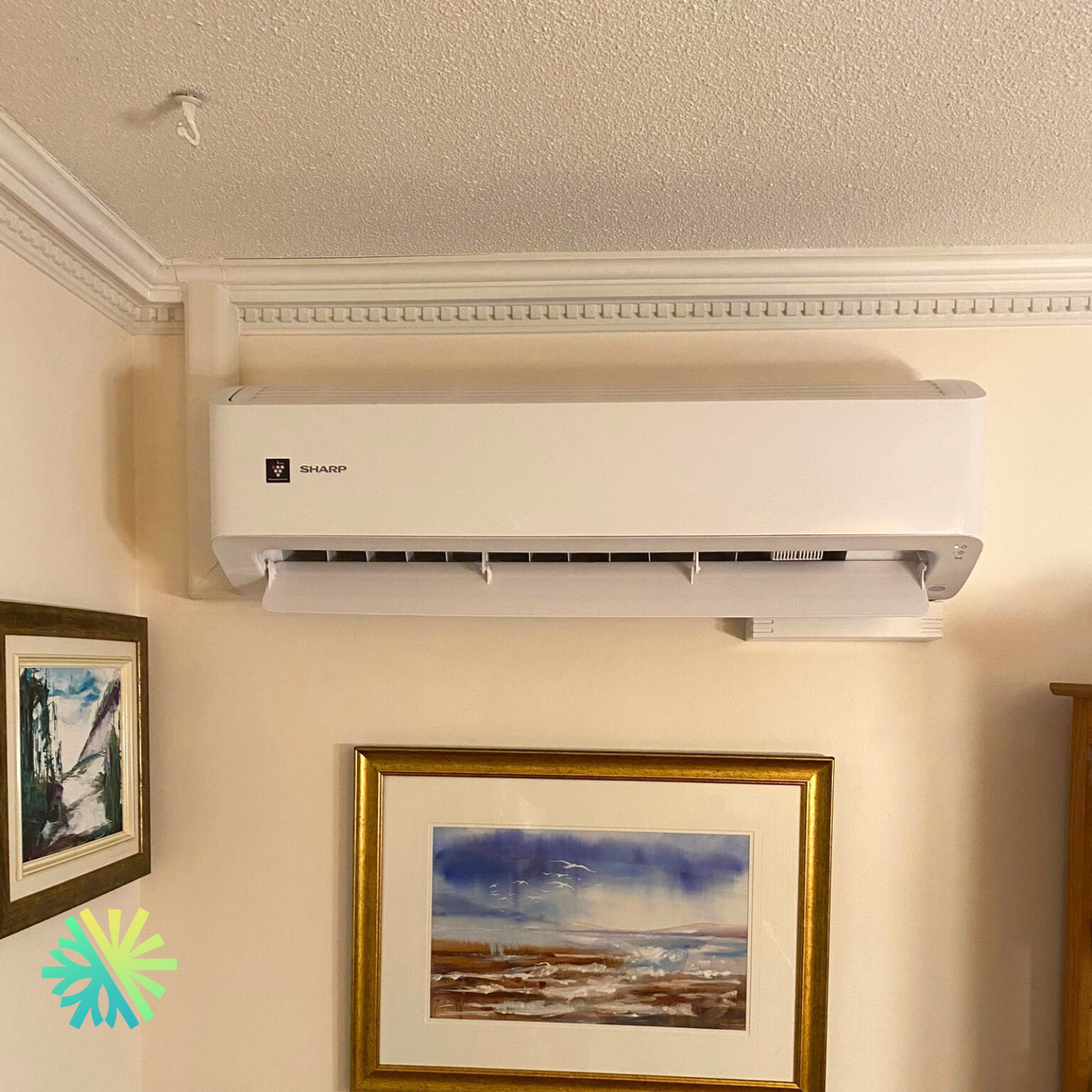

The two 12,000 BTU indoor units were positioned carefully to maximize airflow efficiency while complementing the aesthetics of the home. One unit was installed in the living room, where family members gather, ensuring a comfortable environment year-round. The second unit was placed in the bedroom, guaranteeing restful nights no matter the season.
Step 2: Exterior Unit Installation
The 24,000 BTU outdoor compressor was installed with precision, ensuring optimal operation even in frigid Montreal winters. This unit, boasting SHARP’s patented “HOT GAS PIPE” system, prevents ice buildup and maintains high efficiency at temperatures as low as -27°C—essential for homes in Quebec’s unpredictable winters.
Step 3: Custom Piping and Finishing
Attention to detail matters. Our team used clean, discrete piping to connect the indoor and outdoor units, blending seamlessly into the home’s architecture. We take pride in ensuring that our installations look as good as they perform.
Why This Model Qualifies for the $3,000 LogisVert Grant
Energy efficiency is a top priority for both homeowners and Hydro-Québec. The SHARP BU Double Zone Heat Pump is fully eligible for the $3,000 LogisVert Grant—an incredible incentive for upgrading to greener, energy-efficient HVAC systems. This model’s impressive 24.0 SEER rating means it not only qualifies but also delivers tangible savings on energy bills.
Additionally, this SHARP heat pump recently ranked #1 in our “Guide des Thermopompes Murales 2025”, making it one of the most reliable and efficient systems on the market.
SHARP BU Double Zone: Performance You Can Trust
Key Specifications
- Zones: Supports 2 zones (expandable to 3 zones for future flexibility).
- Voltage: 220V for steady, reliable operation.
- Compressor Warranty: 10 years.
- Parts Warranty: 10 years.
- Labor Warranty: 10 years (extended).
Advanced Technology
- Plasmacluster Air Purification: Ensures cleaner, healthier air.
- Coanda Effect: Promotes better airflow, avoiding drafts.
- Self-Cleaning Function: Reduces maintenance while improving air quality.
By combining these features, the SHARP BU Double Zone Heat Pump provides a robust, reliable solution for heating, cooling, and air quality—perfect for modern homes in Montreal.
An Installation Worth Highlighting
The homeowners were thrilled with their new system, appreciating the immediate improvement in comfort and air quality. The dual-zone capabilities allow them to set different temperatures in the living room and bedroom, meeting everyone’s individual needs without compromising efficiency.
The installation was smooth and timely, a testament to our experienced team’s skills. At AirGreen, we understand that every project is unique, and we take pride in finding the perfect solution for each client.
Why Choose AirGreen for Your Heat Pump Installation?
At AirGreen, we are committed to providing:
- Top-Quality Products: We partner with leading brands like SHARP to deliver outstanding solutions.
- Expert Installation: Our technicians are highly trained to ensure flawless installations every time.
- Ongoing Support: With extended warranties and dedicated service, we’re with you for the long haul.
- Tailored Solutions: Every home is different, and we offer custom solutions to meet your specific needs.
Whether you’re upgrading your current system or installing a brand-new heat pump, AirGreen is here to ensure your comfort all year long.
Ready for Your Own Installation?
If you’re in Montreal, Laval, Longueuil, or the surrounding areas and are considering upgrading to an energy-efficient, reliable heat pump, the SHARP BU Double Zone system is a choice you won’t regret. With its innovative features, remarkable energy efficiency, and access to significant grants like Hydro-Québec’s $3,000 LogisVert program, it’s an investment that pays off in comfort and savings.
Contact AirGreen today, and let us help you find the perfect HVAC solution for your home. Your comfort is our mission, and with the SHARP BU Double Zone Heat Pump, we’re bringing Montreal homes to a whole new level of heating, cooling, and clean air quality.
The unit on this job, in figures
The range as published on airgreen.ca: pick a size to see its capacity in deep cold.
| Size | Heating at −8 °C | Heating at −15 °C | Coldest certified point | COP at −15 °C | SEER | HSPF | Indicative LogisVert aid |
|---|---|---|---|---|---|---|---|
| Sharp BU 24 0002 Zones (Dual Zone) | 25,000 | 21,200 | −27 °C: 14,600 | 2.3 | 24.0 | 11.5 | $3,000 |
| Sharp BU 24 0003 Zones (Triple Zone) | 25,000 | 21,200 | −27 °C: 14,600 | 2.3 | 24.0 | 11.5 | $3,000 |
Among the year’s most efficient according to ENERGY STAR, on top of its cold-climate certification.
Minimum certified capacity (NEEP): it slows down instead of stopping when a single room calls.
NEEP still lists 14,600 BTU/h at a COP of 1.84 at −17 °F.
Global warming potential of R-32, versus 2,088 for R-410A (ENERGY STAR).
Among the year’s most efficient according to ENERGY STAR, on top of its cold-climate certification.
Minimum certified capacity (NEEP): it slows down instead of stopping when a single room calls.
NEEP still lists 14,600 BTU/h at a COP of 1.84 at −17 °F.
Global warming potential of R-32, versus 2,088 for R-410A (ENERGY STAR).
Data read live from the airgreen.ca page of each size (NEEP / AHRI certified performance). When the title names the installed size, it is highlighted; otherwise the whole range is shown. The aid shown is today’s, using Hydro-Québec’s rule ($120 per 1,000 BTU/h at −8 °C); amounts quoted in the article date from its publication. Only Hydro-Québec confirms the assistance granted.
The big day, step by step
The main steps of this kind of job at AirGreen. Every house has its quirks: the estimate brings them out.
We look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
Model, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
Floors and furniture protected, wall plate position marked level, wall opening located.
A single opening, with the slope the drain needs to flow outside.
Set on a stand raised above the snow, with the clearances the manufacturer requires.
Connected, insulated and protected. The opening is then sealed against water, cold air and insects.
A dedicated circuit and an accessible disconnect near the outdoor unit.
Leak test, vacuum, then start-up and a check of heating and cooling.
Remote, modes, filters: we show you the essentials before we leave.
- The on-site estimateWe look at the room, the outside wall, the line route and where the outdoor unit will go. That is where the capacity gets chosen.
- The quoteModel, capacity and price, in writing. We also check whether the model qualifies for assistance programs.
- Getting readyFloors and furniture protected, wall plate position marked level, wall opening located.
- The wall openingA single opening, with the slope the drain needs to flow outside.
- The outdoor unitSet on a stand raised above the snow, with the clearances the manufacturer requires.
- Lines, cable and drainConnected, insulated and protected. The opening is then sealed against water, cold air and insects.
- The electrical workA dedicated circuit and an accessible disconnect near the outdoor unit.
- Tests and start-upLeak test, vacuum, then start-up and a check of heating and cooling.
- The walkthroughRemote, modes, filters: we show you the essentials before we leave.
What would it look like at your place?
Two quick checks with real numbers: what heat costs, and what your current heaters add up to in BTU/h.
Baseboards and electric furnaces turn 1 kWh of electricity into 1 kWh of heat. A heat pump delivers more: that is its COP. At Hydro-Québec’s rate D (11.142¢/kWh above 40 kWh a day, since 1 April 2026):
Hydro-Québec: a heat pump can be up to three times more efficient than baseboards for heating in the colder months.
Estimate per kWh of heat, at the chosen temperature, using the certified COP from the product page. Taxes, access charge and backup heat not included.
Conversion: 1 W = 3.412 BTU/h. An indication, not a load calculation: baseboards and furnaces are often stronger than the real need, and they can stay as backup. AirGreen confirms the capacity on site.
Four mistakes we do not make
Flip each card to see what we do instead.
Your own project, step by step
What to do, season by season
Three habits per season for this unit. They take a few minutes and prevent many calls.
- Clean the indoor unit's filters.
- Clear leaves and debris left on the outdoor unit by winter.
- Test cooling before the first hot days.
- Clean the filters more often when the unit runs a lot.
- Keep plants away from the outdoor unit.
- Check that no water drips from the indoor unit.
- Rake the leaves around the outdoor unit.
- Test heating before the first cold days.
- Book periodic maintenance before winter.
- Keep snow away from the stand and the front of the unit.
- Let the unit defrost: it is normal.
- Never hit the ice on the fins; call us if the unit stays iced up.
Is your home ready?
Check what applies at your place. A "no" is not a refusal: it is what we sort out during the estimate.
Four statements: true or false?
It all comes down to details you have just seen.
1. In heating mode, the outdoor unit can produce water.
During defrost cycles. That water must drain away without forming ice.
2. You pick the capacity with a simple square-footage rule.
Windows, insulation, orientation and how the room is used all count. Capacity is chosen on site.
3. A multi-zone connects several indoor heads to a single condenser.
One head per room, all on the same condenser. Each room keeps its own temperature.
4. The disconnect can sit behind the patio furniture.
It must stay accessible: it is what shuts the unit off for service.
0 / 4 right answers
What people ask us about this kind of work
Does a wall-mounted heat pump heat in winter?
Wall-mounted or multi-zone: how do I choose?
Where does the outdoor unit go?
Are there grants?
Do I need a permit?
How cold can it heat?
How much can I save?
How is the LogisVert assistance calculated?
Is it noisy?
The outdoor unit is covered in ice: is that normal?
Does AirGreen hold the required licences?
Is the estimate free?
No question matches. Write to us: we answer.
More jobs to see, near you
By town, by equipment or by region: browse more than 4,700 published projects.
Each dot: a town where AirGreen has published projects. The glowing dot: this job.
Every house has its constraints. We see them before we install.
The on-site estimate is free and the quote follows within 24 hours.
Text and photo: a real AirGreen Climatisation & Chauffage job. The diagrams are generic illustrations of the type of installation, not a survey of this job site. Sources of the added figures: airgreen.ca product pages (NEEP / AHRI performance), Hydro-Québec (Heat pumps page, LogisVert, read on 13 October 2026), Régie de l’énergie (rate D as of 1 April 2026).
