A multi-zone heat pump suited to a residence where each room requires its own comfort balance
In Saint-Valérien-de-Milton, we installed a Fujitsu AIRSTAGE AQUILA XLTH triple-zone heat pump designed to serve several areas of the residence from a single outdoor unit. The project clearly illustrates the value of a multi-zone system when a homeowner wants precise control over heating and air conditioning without installing multiple outdoor units around the house.

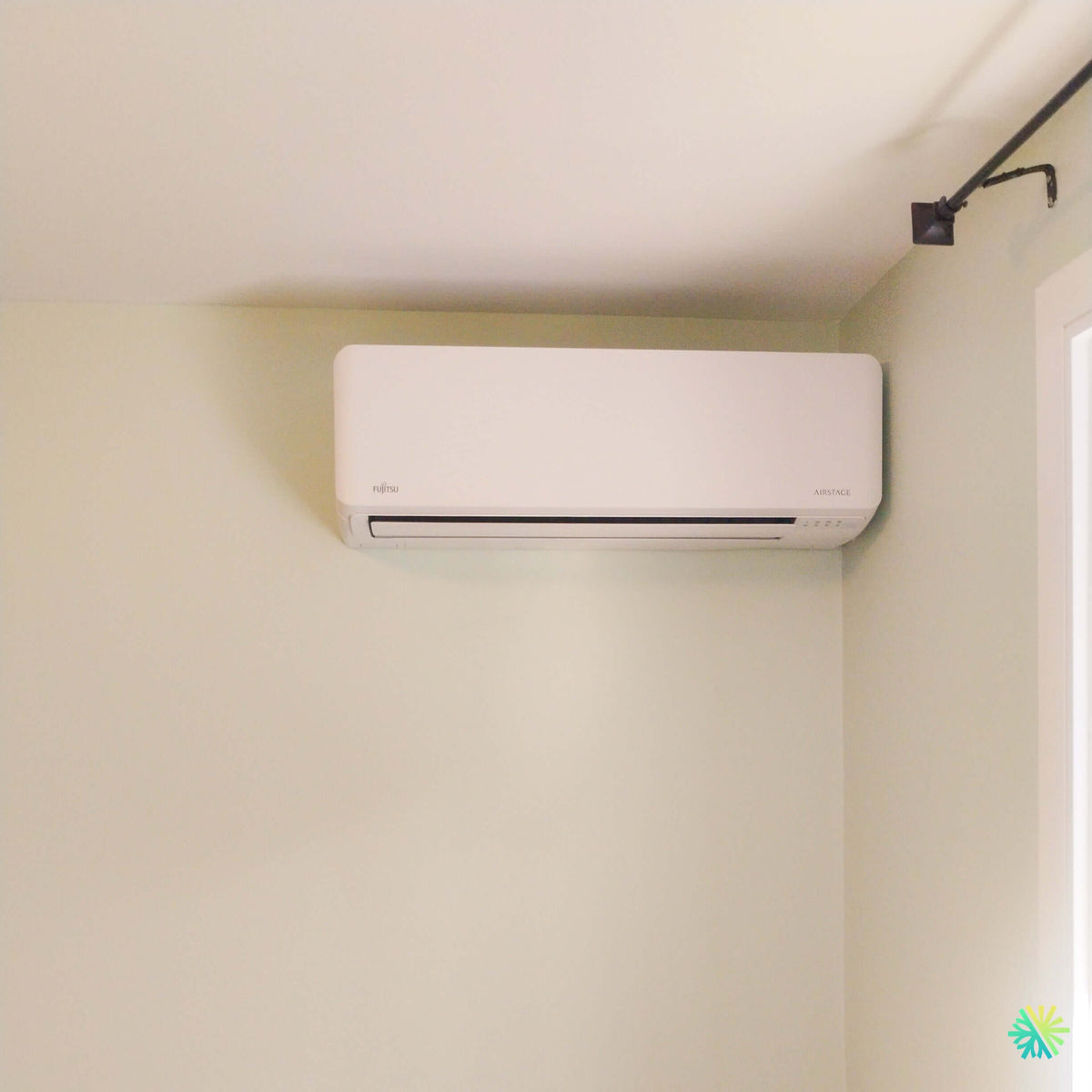

The photo of this installation shows one of the Fujitsu AIRSTAGE wall-mounted units installed in a room where the available space had to be used precisely. The unit is positioned very high on the wall, near a corner of the room and an opening on the right. We selected this area to keep the floor completely clear, achieve good air projection throughout the room, and integrate the equipment into the existing architecture without encroaching on the living space.
This type of detail may seem secondary when looking only at the heat pump once it has been installed. For us, however, it is one of the determining factors in a good HVAC installation. A system’s performance depends not only on its rated capacity or the reputation of its manufacturer. Unit placement, the choice of combinations, drain management, line length, and commissioning directly influence the comfort achieved day to day.
Why a triple-zone configuration was appropriate in Saint-Valérien-de-Milton
In a residence, three rooms of similar dimensions can have very different heating and cooling needs.
A room with several windows does not accumulate heat in the same way as a room located in the center of the building. A common area may require much more air conditioning in summer. A rarely used room does not need to receive exactly the same amount of heating as a living room occupied all day.
The Fujitsu triple-zone heat pump addresses this reality by connecting three indoor units to a single outdoor system, depending on the selected combination.
Fujitsu’s documentation for the AIRSTAGE H Aquila and Aquila CTEB series indicates that multi-zone systems can use several indoor unit formats and that each indoor unit can be controlled individually. It also states that a multi-zone outdoor unit can support a connected capacity of up to 130 %, depending on the permitted configuration.
The result is much more flexible than a system that treats the entire residence as a single zone.
High-mounted wall unit: a functional choice, not merely an aesthetic one
On this installation in Saint-Valérien-de-Milton, the indoor unit visible in the photo is installed in the upper section of the wall.
This arrangement is common with wall-mounted heat pumps, but the exact height must be carefully considered. Room air enters the unit, passes through the filters and heat exchanger, and is then redistributed by the fan and airflow louvers.
When the unit is installed too low, air distribution can become less uniform, and the unit occupies more of the wall’s visual space. When it is placed too close to the ceiling or an obstacle, air intake and access for maintenance can be compromised.
In this specific case, we used the upper section of the wall while maintaining a clean and accessible installation.
Proximity to the corner of the room
The photo also shows that the unit is relatively close to the right-hand side wall.
In such a configuration, several factors must be checked before drilling into the wall:
- the required clearances around the unit;
- full opening of the front panel;
- access to the filters;
- the ability to remove certain components during future servicing;
- the airflow path;
- the possible presence of structures, studs, or electrical components behind the wall.
The goal is never to install the unit “wherever there is room,” but to select a location that will function properly throughout the system’s entire service life.
Sizing a multi-zone system: the step that determines the system’s actual performance
With a single-zone heat pump, the relationship between the indoor unit and the outdoor unit is relatively straightforward.
With a triple-zone heat pump, three different indoor loads must be managed with a single outdoor unit.
The Fujitsu documentation notably lists outdoor units of:
- 18,000 BTU/h, with up to two indoor units;
- 24,000 BTU/h, with up to three indoor units;
- 36,000 BTU/h, with up to four indoor units;
- 45,000 BTU/h, with up to five indoor units.
The Fujitsu tables then provide different combinations of indoor units based on the required capacities.
In a triple-zone configuration, it would therefore be incorrect to automatically choose three units with the same capacity simply because there are three rooms.
The three zones must be analyzed separately
For each room, we look at several parameters.
Area and volume
Square footage remains important, but it is not enough. A room with an eight-foot ceiling does not have the same volume as a cathedral-ceiling room of the same area.
Exterior walls
The more surfaces a room has that are directly exposed to the outdoors, the greater its heat loss can become in winter.
Windows
A large south- or west-facing window can cause significant solar heat gains on hot days.
Insulation
The building's age, envelope quality, and window performance directly affect the heating and cooling load.
Occupancy
A bedroom occupied at night, an office used all day, and a family area do not have the same usage.
That is why the three units in a Fujitsu multizone heat pump can have different capacities while still being connected to the same outdoor unit.
Fujitsu combinations that must comply with the manufacturer's limits
The documentation provided for Aquila systems presents extremely detailed tables of permitted combinations.
For example, the AOUH24KWAS3 / AOUH24KWAH3 can power up to three indoor units and supports several capacity combinations. The documentation also shows different configurations using 36,000 and 45,000 BTU/h outdoor units.
It is important to note that Fujitsu adds a specific warning: these tables should not be used alone to select system capacity. The manufacturer recommends its Design Simulator software for selecting AIRSTAGE H series equipment.
At AirGreen, we make the same distinction between a technically permitted combination and one that is genuinely suitable for the residence.
The technical details that make a multizone installation reliable and pleasant to use
Inverter technology to adapt output to zone demands
Fujitsu AIRSTAGE systems use an inverter-driven compressor, commonly called an Inverter compressor. Fujitsu documentation associates this technology with better operation modulation and more efficient comfort management.
This principle is particularly relevant with three zones.
During the day, only one room may need a significant adjustment. A few hours later, two or three zones may be calling simultaneously. The outdoor unit must therefore adjust its output according to the overall load.
This modulation is one of the main reasons why the choice of indoor and outdoor capacities must be consistent from the outset.
Three room thermostats, but the same overall operating mode
Each indoor unit can be controlled separately. This makes it possible, for example, to set a bedroom to a different temperature from the living room.
However, there is a normal limitation to multizone systems of this type: the indoor units share the same outdoor unit.
Fujitsu documentation specifies that the system can provide heating and cooling, but not both simultaneously.
In other words, one zone cannot require heating while a second zone connected to the same outdoor unit is operating in cooling mode.
This is a point we systematically explain when a homeowner compares a triple-zone heat pump with three independent systems.
Several indoor unit styles can be combined
One of the interesting features of the Fujitsu AIRSTAGE range is its configuration flexibility.
The documentation presents units:
- wall-mounted;
- Slim Duct;
- compact cassette;
- Mid Static Duct.
For wall-mounted units, the series includes models corresponding to several nominal capacities, from 7,000 to 24,000 BTU/h depending on the combinations.
The photo from Saint-Valérien-de-Milton shows a Fujitsu AIRSTAGE wall-mounted unit. However, the exact number and its capacity in BTUs are not readable in the image. We therefore do not assign a specific capacity to this unit without a complete model reference.
Cold-climate heating: what the documentation actually specifies
The Fujitsu document provided covers the Aquila and Aquila CTEB systems and specifies that the CTEB units can operate in heating mode down to -26 °C. It also indicates a cooling range extending up to 50 °C for these versions.
This low-temperature operating capability represents a significant advantage in our Quebec climate.
Nevertheless, we remain precise when it comes to technical specifications. A product family may contain several variants. The exact minimum temperature, heating capacity available at -15 °C or -20 °C, SEER2, HSPF2, and eligibility for financial assistance must always be confirmed using the exact model number and, where applicable, the AHRI reference.
Rebates: why the exact model is essential
For a homeowner shopping for a heat pump in Saint-Valérien-de-Milton, eligibility for financial assistance programs can greatly influence the final choice.
However, a heat pump is not eligible simply because it bears the Fujitsu brand or belongs to a family designed for cold climates.
Eligibility generally depends on a specific combination of equipment and a corresponding official reference.
Since the document provided does not give a specific AHRI number for this particular installation, we cannot assign a precise rebate amount to this project based solely on this documentation.
A successful indoor installation also depends on drainage
An invisible detail in the photo nevertheless plays an essential role: the condensate drain.
In cooling mode, moisture removed from the air turns into water on the indoor coil. This water must be drained properly.
In a triple-zone installation, we must manage up to three separate drains.
When the structure allows it, we favor gravity drainage with a consistent slope. Problems often arise when a drain has:
- a reverse slope;
- a crushed section;
- an insufficiently watertight connection;
- a buildup of debris;
- an improper route through the wall.
A system can cool perfectly well and still cause water damage if this part of the installation is neglected.
Refrigerant lines: three circuits that must be organized properly
Each indoor unit must also be connected to the outdoor unit by its own refrigerant circuit.
In a three-zone installation, planning the line routing is therefore more complex than with a single-zone system.
We aim to limit unnecessary detours, properly protect the lines, and organize their routing logically.
This improves:
- appearance;
- future access;
- mechanical protection;
- the overall quality of the installation.
The lengths and elevation differences must also comply with the limits established by the manufacturer.
Proper evacuation remains essential
Once the refrigerant connections are complete, commissioning does not simply consist of opening the valves on the outdoor unit.
The lines must be properly prepared and evacuated to remove air and moisture.
Poor evacuation can cause operating problems, reduce performance, and decrease system reliability.
For us, this step is an integral part of a professional HVAC installation, whether it involves a heat pump in Montreal, a multi-zone system in Laval, or an installation like this one in Saint-Valérien-de-Milton.
Common mistakes we avoid on a three-zone system
During our service calls in Greater Montreal and the surrounding areas, several problems regularly arise in poorly planned multi-zone installations:
- Installing the same capacity in all three rooms without calculating their requirements.
- Choosing a combination of units not approved by the manufacturer.
- Placing a wall-mounted unit too close to an obstruction.
- Directing the air straight toward a bed or an area that is occupied continuously.
- Forgetting to allow access to the filters.
- Underestimating the condensate drain routing.
- Using unnecessarily long refrigerant line runs.
- Neglecting evacuation and leak testing.
- Choosing the outdoor unit solely based on the total nominal capacity of the indoor units.
These are technical details, but they are precisely what determine the quality of an installation after several years of use.
A discreet wall-mounted unit in a room without sacrificing floor space
The unit visible in the photo of this installation in Saint-Valérien-de-Milton also illustrates one of the major advantages of a wall-mounted heat pump: the equipment takes up virtually no floor space.
The room therefore retains all of its usable floor space.
This represents an important difference in homes without a central duct network, where adding a ducted system would require major work.
The white finish of the Fujitsu AIRSTAGE unit also blends fairly discreetly into the room’s light-colored wall.
Why maintenance remains important after a beautiful installation
Even a new installation requires maintenance.
The filters of wall-mounted units should be cleaned regularly. Over time, the coil, blower wheel, and drain pan may also accumulate dust.
Proper HVAC maintenance helps preserve airflow, limit internal buildup, and detect certain problems before they become more serious.
In a triple-zone system, the three indoor units must be considered separately. One head may require more cleaning than another if it is located in a dustier or more frequently used room.
An AirGreen approach applicable to Montreal, Laval, Longueuil, the North Shore, and the South Shore
This Fujitsu AQUILA XLTH triple-zone heat pump installation in Saint-Valérien-de-Milton reflects the same method we apply to our projects in Montreal, Laval, Longueuil, the North Shore, and the South Shore.
We begin by understanding the building.
Next, we determine the needs of each zone, the compatible capacities, the best route for the lines, and the positioning that will provide the best balance between performance, accessibility, and aesthetics.
A multi-zone installation involves more decisions than a simple wall-mounted installation, but this complexity also makes it possible to obtain a system that is much better suited to a home with rooms that have different needs.
In the case of Saint-Valérien-de-Milton, the indoor unit visible in the photo represents only part of the project. Behind this neat installation are the sizing of the three zones, the refrigerant connections, the drains, the electrical connections, and the system’s complete commissioning.
It is this attention paid to both what is visible and what is hidden that enables a Fujitsu AIRSTAGE AQUILA XLTH triple-zone heat pump to provide the expected level of comfort during Quebec’s hot summers and cold periods.
