FUJITSU AIRSTAGE · THREE-ZONE · 3 ROOMSFUJITSU three-zone at AirGreenAuthorized dealer at the highest level of the AIRSTAGE Elite program.
Elite Plus
Three-zoneR-3224,000, 36,000 or 45,000 BTU/h
Fujitsu multi-zone heat pump · updated October 8, 2026

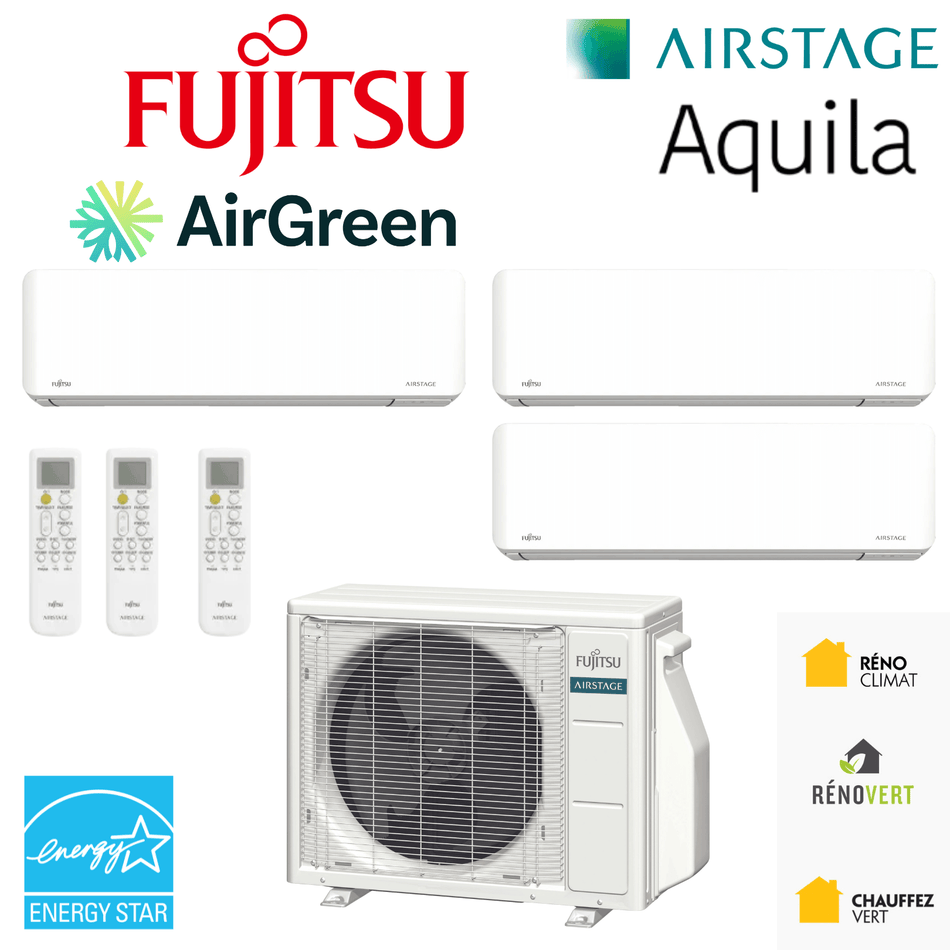

FUJITSU AIRSTAGE three-zone: three rooms, one outdoor unit.

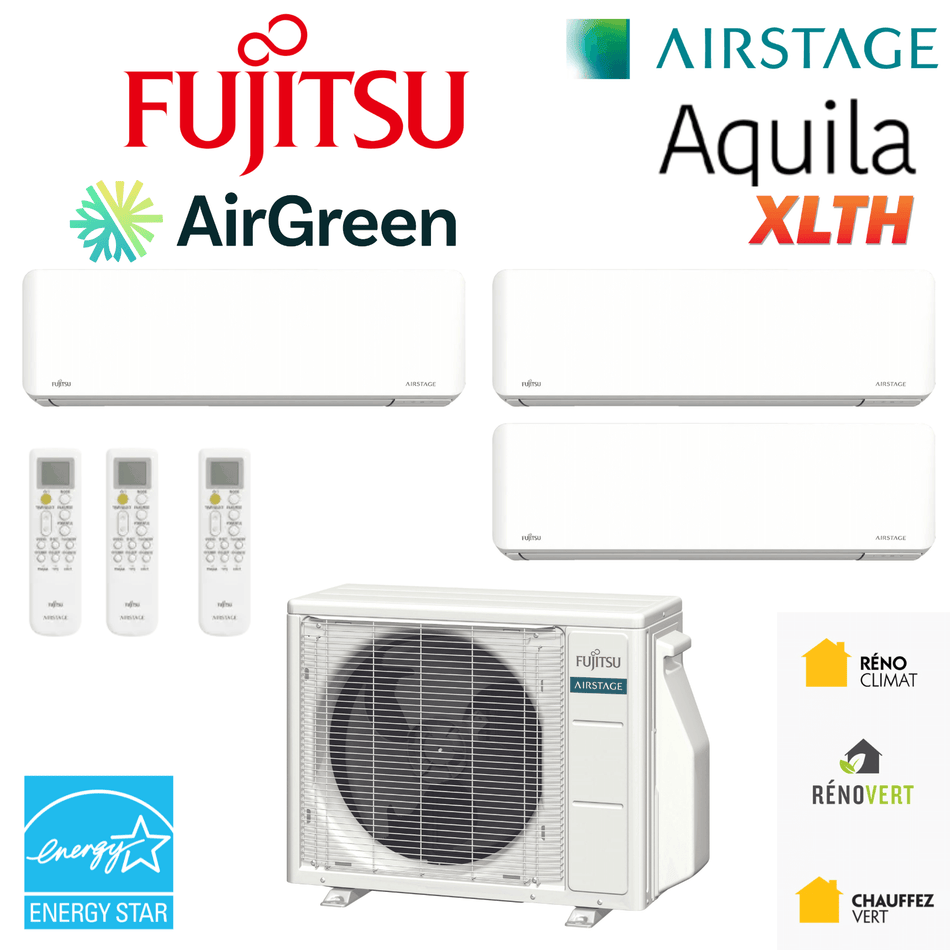

Three heads on an Aquila 24,000, 36,000 or 45,000, or on an Aquila XLTH that heats down to -26 °C. The best-rated Fujitsu multi-zone of all is in fact a three-zone: the Aquila XLTH 24,000, SEER2 23.5 and HSPF2 11.5.

Build my zonesBook my free estimate
83head trios approved by Fujitsu: 10 on the 24,000, 35 on the 36,000, 38 on the 45,000.
23.5The Aquila XLTH 24,000 SEER2, the best in the multi-zone family.
36,400 BTU/hRated at -15 °C for the Aquila XLTH 36,000, against 24,000 for the standard 36,000.
AltairTarazedAlshainN ↑ · E ←

Aquila, the Eagle

The constellation that gives Fujitsu’s multi-zone family its name, from catalogue coordinates. Fujitsu does not explain the choice.

5outdoor units take three heads
31 000BTU/h of heads at most on the 24,000, in heads of 15,000 or less
70 mof total line set for the Aquila XLTH 24,000, against 50 m for the standard
-26 °Cwith the Aquila XLTH 24,000 or 36,000
AirGreen × FUJITSU AIRSTAGEThree-zone83 approved trios24,000 · 36,000 · 45,000 BTU/hSEER2 up to 23.5Down to -26 °CElite Plus dealer
01 · What only the Fujitsu three-zone does

Three rooms, and the best rating in the family.

Six facts from Fujitsu’s tables and sheets and the ENERGY STAR list. Sources are at the bottom of the page.

23.5 · 11.5

The best-rated Fujitsu multi-zone is a 24,000 three-zone: the Aquila XLTH, SEER2 23.5 and HSPF2 11.5.

31,000 BTU/h

With three heads, the 24,000 only accepts 7,000 to 15,000 heads, for 31,000 BTU/h at most.

70 m

Same "24,000" label, 20 m more: the XLTH takes 70 m of total line set, the standard 50 m.

10 · 35 · 38

Fujitsu approves 10 trios on the 24,000, 35 on the 36,000 and 38 on the 45,000.

36,400 BTU/h

At -15 °C, the standard Aquila 36,000 delivers 24,000 BTU/h and the Aquila XLTH 36,000 delivers 36,400.

25,200 BTU/h

The Aquila XLTH 24,000 is certified for slightly more heat at -15 °C than at 8 °C.

02 · Your three rooms

Three heads: 24,000, 36,000 or 45,000?

Build your three rooms and switch outdoor units: the tool checks your trio against Fujitsu’s tables and tells you whether the combination is approved.

Outdoor unitHeadsHead sizesAccepted totalCombinationsLogisVert
Aquila 24,0002–37k · 9k · 12k · 15k · 18k14–31 k23$1,872
Aquila 36,0002–47k · 9k · 12k · 15k · 18k · 24k25–46 k74$1,180
Aquila 45,0002–57k · 9k · 12k · 15k · 18k · 24k34–58 k171$3,720
Aquila XLTH 24,0002–37k · 9k · 12k · 15k · 18k14–31 k23$1,944
Aquila XLTH 36,0002–47k · 9k · 12k · 15k · 18k · 24k25–46 k74$2,928

Fujitsu combination tables (FG8159A, rev. 2/2025).

03 · Three rooms now, four later

A fourth room some day?

The 24,000 only has three ports. On the 36,000 or 45,000, a port stays free: pick the unit, the tool shows which head can be added to each trio.

3 rooms today, 4 later

Aquila / XLTH 36,000

TodayHead added later
7,000 + 7,000 + 12,000+ 7,000 · 9,000 · 12,000 · 15,000 · 18,000
7,000 + 7,000 + 15,000+ 7,000 · 9,000 · 12,000 · 15,000
7,000 + 7,000 + 18,000+ 7,000 · 9,000 · 12,000
7,000 + 7,000 + 24,000+ 7,000
7,000 + 9,000 + 9,000+ 7,000 · 9,000 · 12,000 · 15,000 · 18,000
7,000 + 9,000 + 12,000+ 7,000 · 9,000 · 12,000 · 15,000 · 18,000
7,000 + 9,000 + 15,000+ 7,000 · 9,000 · 12,000 · 15,000
7,000 + 9,000 + 18,000+ 7,000 · 9,000 · 12,000
7,000 + 9,000 + 24,000no extra head
7,000 + 12,000 + 12,000+ 7,000 · 9,000 · 12,000 · 15,000
7,000 + 12,000 + 15,000+ 7,000 · 9,000 · 12,000
7,000 + 12,000 + 18,000+ 7,000 · 9,000
7,000 + 12,000 + 24,000no extra head
7,000 + 15,000 + 15,000+ 7,000 · 9,000
7,000 + 15,000 + 18,000no extra head
7,000 + 15,000 + 24,000no extra head
7,000 + 18,000 + 18,000no extra head
9,000 + 9,000 + 9,000+ 7,000 · 9,000 · 12,000 · 15,000 · 18,000
9,000 + 9,000 + 12,000+ 7,000 · 9,000 · 12,000 · 15,000
9,000 + 9,000 + 15,000+ 7,000 · 9,000 · 12,000
9,000 + 9,000 + 18,000+ 7,000 · 9,000
9,000 + 9,000 + 24,000no extra head
9,000 + 12,000 + 12,000+ 7,000 · 9,000 · 12,000
9,000 + 12,000 + 15,000+ 7,000 · 9,000
9,000 + 12,000 + 18,000+ 7,000
9,000 + 12,000 + 24,000no extra head
9,000 + 15,000 + 15,000+ 7,000
9,000 + 15,000 + 18,000no extra head
9,000 + 18,000 + 18,000no extra head
12,000 + 12,000 + 12,000+ 7,000 · 9,000
12,000 + 12,000 + 15,000+ 7,000
12,000 + 12,000 + 18,000no extra head
12,000 + 15,000 + 15,000no extra head
12,000 + 15,000 + 18,000no extra head
15,000 + 15,000 + 15,000no extra head

22 of the 35 3-head combinations can take one more head later, per Fujitsu’s tables. LogisVert does not pay for adding a head: we plan for it from the start.

Aquila 45,000

TodayHead added later
7,000 + 7,000 + 24,000+ 7,000 · 9,000 · 12,000 · 15,000 · 18,000
7,000 + 9,000 + 18,000+ 7,000 · 9,000 · 12,000 · 15,000 · 18,000 · 24,000
7,000 + 9,000 + 24,000+ 7,000 · 9,000 · 12,000 · 15,000 · 18,000
7,000 + 12,000 + 15,000+ 7,000 · 9,000 · 12,000 · 15,000 · 18,000 · 24,000
7,000 + 12,000 + 18,000+ 7,000 · 9,000 · 12,000 · 15,000 · 18,000
7,000 + 12,000 + 24,000+ 7,000 · 9,000 · 12,000 · 15,000
7,000 + 15,000 + 15,000+ 7,000 · 9,000 · 12,000 · 15,000 · 18,000
7,000 + 15,000 + 18,000+ 7,000 · 9,000 · 12,000 · 15,000 · 18,000
7,000 + 15,000 + 24,000+ 7,000 · 9,000 · 12,000
7,000 + 18,000 + 18,000+ 7,000 · 9,000 · 12,000 · 15,000
7,000 + 18,000 + 24,000+ 7,000 · 9,000
7,000 + 24,000 + 24,000no extra head
9,000 + 9,000 + 18,000+ 7,000 · 9,000 · 12,000 · 15,000 · 18,000
9,000 + 9,000 + 24,000+ 7,000 · 9,000 · 12,000 · 15,000
9,000 + 12,000 + 15,000+ 7,000 · 9,000 · 12,000 · 15,000 · 18,000
9,000 + 12,000 + 18,000+ 7,000 · 9,000 · 12,000 · 15,000 · 18,000
9,000 + 12,000 + 24,000+ 7,000 · 9,000 · 12,000
9,000 + 15,000 + 15,000+ 7,000 · 9,000 · 12,000 · 15,000 · 18,000
9,000 + 15,000 + 18,000+ 7,000 · 9,000 · 12,000 · 15,000
9,000 + 15,000 + 24,000+ 7,000 · 9,000
9,000 + 18,000 + 18,000+ 7,000 · 9,000 · 12,000
9,000 + 18,000 + 24,000+ 7,000
9,000 + 24,000 + 24,000no extra head
12,000 + 12,000 + 12,000+ 7,000 · 9,000 · 12,000 · 15,000 · 18,000
12,000 + 12,000 + 15,000+ 7,000 · 9,000 · 12,000 · 15,000 · 18,000
12,000 + 12,000 + 18,000+ 7,000 · 9,000 · 12,000 · 15,000
12,000 + 12,000 + 24,000+ 7,000 · 9,000
12,000 + 15,000 + 15,000+ 7,000 · 9,000 · 12,000 · 15,000
12,000 + 15,000 + 18,000+ 7,000 · 9,000 · 12,000
12,000 + 15,000 + 24,000+ 7,000
12,000 + 18,000 + 18,000+ 7,000 · 9,000
12,000 + 18,000 + 24,000no extra head
15,000 + 15,000 + 15,000+ 7,000 · 9,000 · 12,000
15,000 + 15,000 + 18,000+ 7,000 · 9,000
15,000 + 15,000 + 24,000no extra head
15,000 + 18,000 + 18,000+ 7,000
15,000 + 18,000 + 24,000no extra head
18,000 + 18,000 + 18,000no extra head

32 of the 38 3-head combinations can take one more head later, per Fujitsu’s tables. LogisVert does not pay for adding a head: we plan for it from the start.

04 · The three-head rule

Heads of 15,000 or less, 31,000 in total: the 24,000 is enough.

Beyond that, you need the 36,000 (up to 46,000 BTU/h of heads) or the 45,000 (up to 57,000). The bars show each outdoor unit’s range with three heads.

Outdoor unit2 zones3 zones4 zones5 zones
Aquila 24,000
AOUH24KWAS3		13 combinations10 combinations––
Aquila 36,000
AOUH36KWAS4		8 combinations35 combinations31 combinations–
Aquila 45,000
AOUH45KWAS5		5 combinations38 combinations69 combinations59 combinations
Aquila XLTH 24,000
AOUH24KWAH3		13 combinations10 combinations––
Aquila XLTH 36,000
AOUH36KWAH4		8 combinations35 combinations31 combinations–

Number of head combinations approved by Fujitsu, by number of rooms. Aquila and Aquila XLTH units of the same size share one table.

Each outdoor unit’s range, with three heads

Aquila 24,000<br><small>heads from 7,000 to 15,000</small>
21,000–31,000 BTU/h
Aquila 36,000<br><small>heads from 7,000 to 24,000</small>
25,000–46,000 BTU/h
Aquila 45,000<br><small>heads from 7,000 to 24,000</small>
34,000–57,000 BTU/h

Total of the three heads, from the smallest to the largest trio approved by Fujitsu (FG8159A table). Aquila XLTH units of the same size have the same trios.

Example: two 9,000 bedrooms and a 12,000 office make 30,000 BTU/h: the 24,000 accepts them. Swap the office for an 18,000 living room: you need to move up to the 36,000.

05 · The three-zone systems

Five R-32 systems, five R-410A.

Tap a system: outdoor unit, possible heads, heat rated at -15 °C, efficiency and indicative LogisVert amount.

ModelHeats down toMax at -15 °CSEER2HSPF2LogisVertAHRI

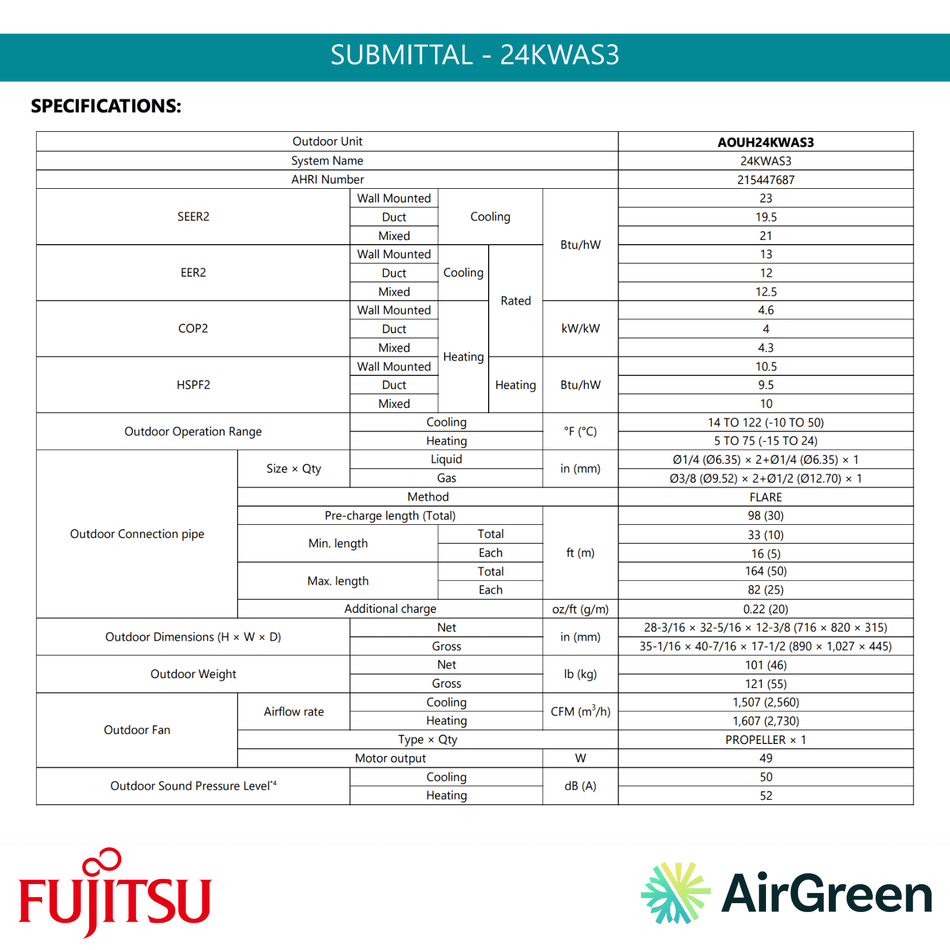

Aquila 24,000 BTU/h, 3 zones-15 °C–2310.5$1,872215447687
Aquila 36,000 BTU/h, 3 zones-15 °C–2210$1,180215447689

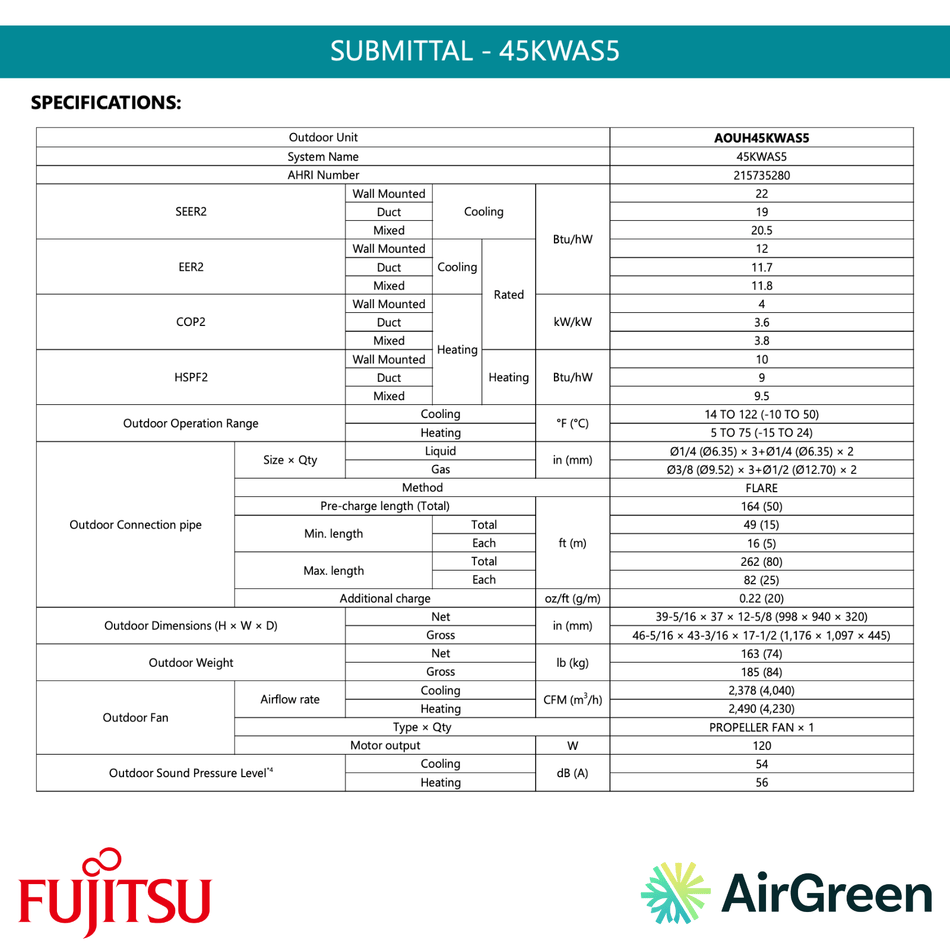

Aquila 45,000 BTU/h, 3 zones-15 °C36,000 BTU/h2210$3,720215735280

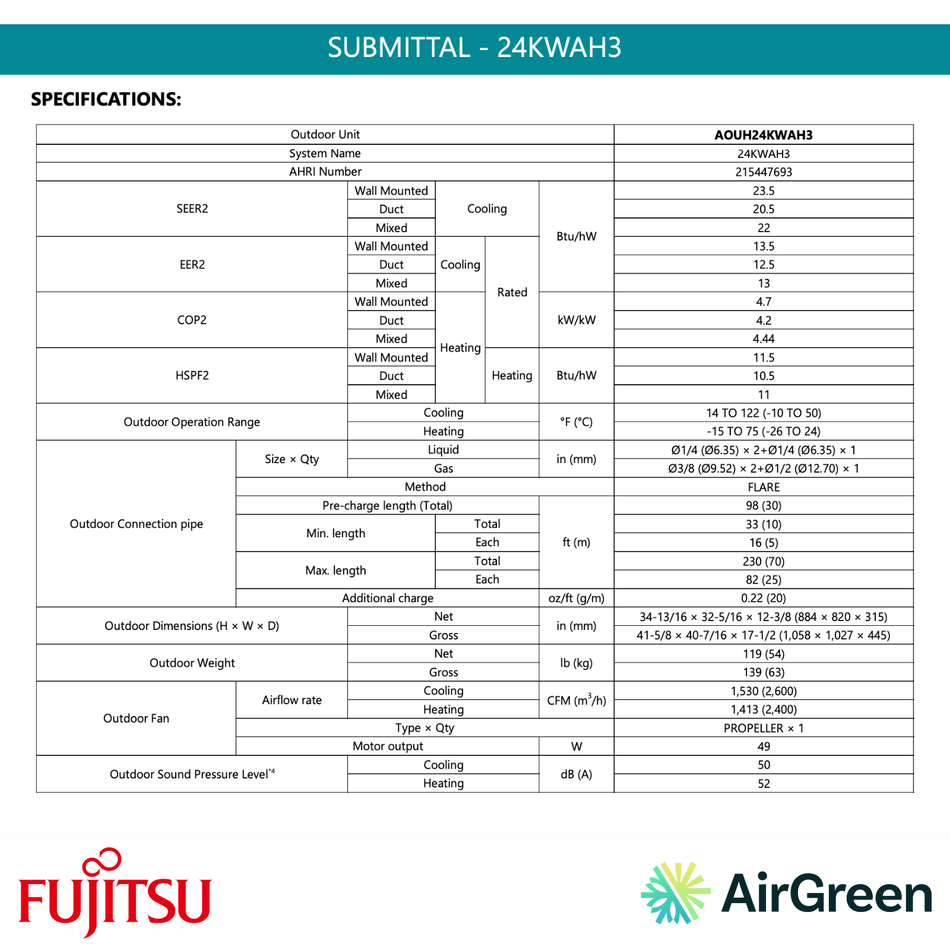

Aquila XLTH 24,000 BTU/h, 3 zones-26 °C–23.511.5$1,944215447693

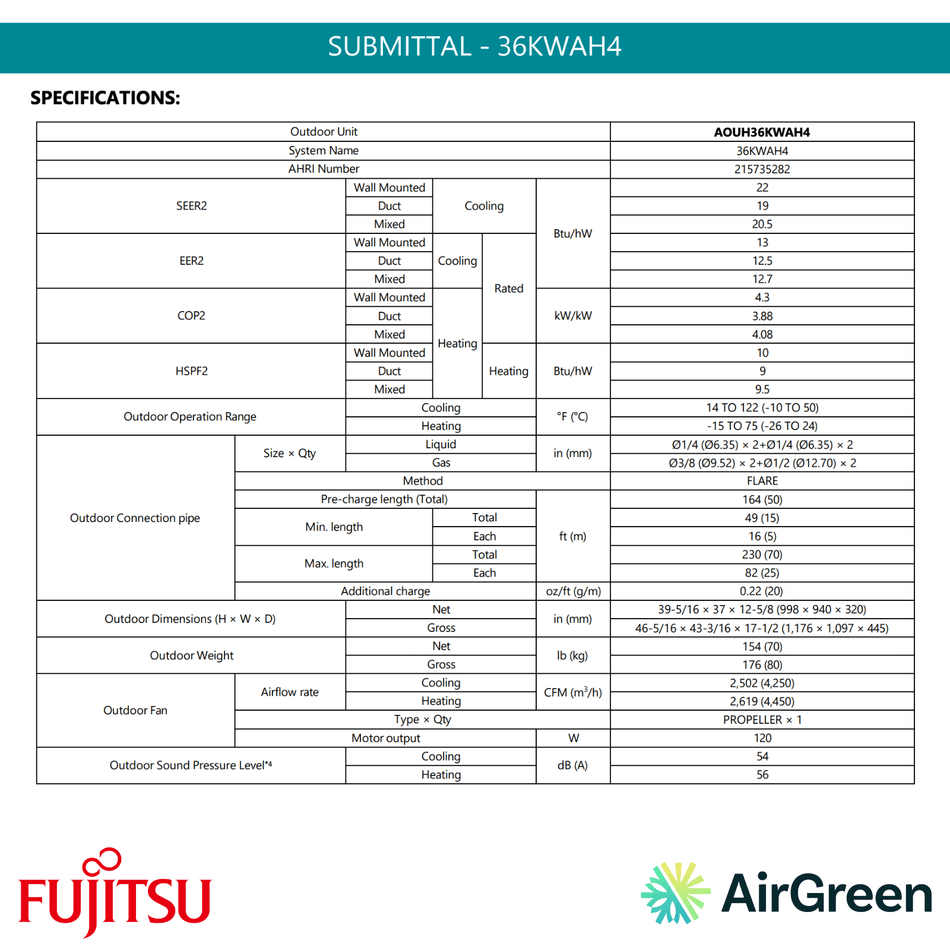

Aquila XLTH 36,000 BTU/h, 3 zones-26 °C36,400 BTU/h2210$2,928215735282
RLXFZ 24,000 BTU/h, 3 zones (R-410A)-15 °C–18.58.7$7056998279
RLXFZ 36,000 BTU/h, 3 zones (R-410A)-15 °C–––$0–
RLXFZ 45,000 BTU/h, 3 zones (R-410A)-15 °C–––$0–
RLXFZH 24,000 BTU/h, 3 zones (R-410A)-26 °C–2010$1,8488033586
RLXFZH 36,000 BTU/h, 3 zones (R-410A)-26 °C–20.59.5$2,5688908615
06 · Who heats best in winter

At -15 °C: 24,000 for the standard 36,000, 36,400 for the XLTH.

Tap a temperature: the bars show the maximum heat published by Fujitsu, the red tick the ENERGY STAR value rated with wall heads.

Heat by outdoor unitTap a temperature
Size8.3 °C-8.3 °C-15 °C-26.1 °C
Aquila 24,000––––
Aquila 36,000––––
Aquila 45,00050,000 BTU/h41,000 BTU/h36,000 BTU/h–
Aquila XLTH 24,000–––14,000 BTU/h
Aquila XLTH 36,00042,000 BTU/h38,000 BTU/h36,400 BTU/h22,140 BTU/h

Bars: maximum heat published by Fujitsu, when it is. Red tick: ENERGY STAR value rated with wall heads. At -8 °C the ENERGY STAR value is a part-load test: it can be lower than at -15 °C.

At -15 °C, how much of the 8 °C heat is left?

Aquila 24,000
80%
Aquila 36,000
65.9%
Aquila 45,000
75%
Aquila XLTH 24,000
100.8%
Aquila XLTH 36,000
100%

Heat rated at -15 °C divided by heat rated at 8 °C (wall-head certificate). ENERGY STAR requires at least 70% for the cold-climate mark; in red, below the bar.

07 · Same label, two machines

Aquila 24,000 or Aquila XLTH 24,000?

Same head trios. The XLTH heats down to -26 °C, takes 20 m more line set and gets the best rating in the family.

Aquila 24,000 versus Aquila XLTH 24,000
Aquila 24,000Aquila XLTH 24,000
Heats down to-15 °C-26 °C
Rated at -15 °C19,200 BTU/h25,200 BTU/h
Rated at 8 °C24,000 BTU/h25,000 BTU/h
SEER22323.5
HSPF210.511.5
Heads2–32–3
Max total line set50 m70 m
Breaker20 A25 A
Outdoor unit height716 mm884 mm
Outdoor weight46 kg54 kg
Outdoor sound, heating52 dB(A)52 dB(A)
Heated base pannoyes
Indicative LogisVert$1,872$1,944

Per ENERGY STAR, the Aquila XLTH 24,000 is rated for slightly more heat at -15 °C than at 8 °C: 25,200 against 25,000 BTU/h. Fujitsu also publishes 14,000 BTU/h maximum at -26 °C.

08 · Three certificates per unit

Wall heads, ducted or a mix: three different ratings.

Switch between the three: efficiency, heat rated at -8 °C and the LogisVert amount change with the type of heads.

Wall, mixed or ducted heads
Outdoor unitWall headsMixedDucted
Aquila 24,000SEER2 23 · HSPF2 10.5 · at -8 °C: 15,600 BTU/h · LogisVert $1,872SEER2 21 · HSPF2 10 · at -8 °C: 15,600 BTU/h · LogisVert $1,872SEER2 19.5 · HSPF2 9.5 · at -8 °C: 15,600 BTU/h · LogisVert $1,872
Aquila 36,000SEER2 22 · HSPF2 10 · at -8 °C: 23,600 BTU/h · LogisVert $1,180SEER2 20.5 · HSPF2 9.5 · at -8 °C: 24,000 BTU/h · LogisVert $1,200SEER2 19 · HSPF2 9 · at -8 °C: 24,400 BTU/h · LogisVert $1,220
Aquila 45,000SEER2 22 · HSPF2 10 · at -8 °C: 31,000 BTU/h · LogisVert $3,720SEER2 20.5 · HSPF2 9.5 · at -8 °C: 30,800 BTU/h · LogisVert $3,696SEER2 19 · HSPF2 9 · at -8 °C: 30,600 BTU/h · LogisVert $3,672
Aquila XLTH 24,000SEER2 23.5 · HSPF2 11.5 · at -8 °C: 16,200 BTU/h · LogisVert $1,944SEER2 22 · HSPF2 11 · at -8 °C: 16,200 BTU/h · LogisVert $1,944SEER2 20.5 · HSPF2 10.5 · at -8 °C: 16,200 BTU/h · LogisVert $1,944
Aquila XLTH 36,000SEER2 22 · HSPF2 10 · at -8 °C: 24,400 BTU/h · LogisVert $2,928SEER2 20.5 · HSPF2 9.5 · at -8 °C: 23,800 BTU/h · LogisVert $2,856SEER2 19 · HSPF2 9 · at -8 °C: 23,400 BTU/h · LogisVert $2,808

Each outdoor unit has three ENERGY STAR and AHRI certificates. AirGreen’s products ship with wall heads: the first certificate applies. The mixed certificate is the average of the other two.

09 · Installation

Three lines: 50, 70 or 80 m in total.

Each line is 25 m at most; their total depends on the outdoor unit. The three rooms need not be on the same floor: 15 m of height to a head, 10 m between two heads.

One head, one line: place itDrag the sliders
ModelMax lengthMax heightPre-chargeMinimum
Aquila 24,00025 m15 m30 m5 m
Aquila 36,00025 m15 m–5 m
Aquila 45,00025 m15 m–5 m
Aquila XLTH 24,00025 m15 m–5 m
Aquila XLTH 36,00025 m15 m–5 m

All lines together: the maximum per unit

Aquila 24,000
50 m
Aquila 36,000
70 m
Aquila 45,000
80 m
Aquila XLTH 24,000
70 m
Aquila XLTH 36,000
70 m

Fujitsu: 25 m at most per head, 15 m of height to a head, 10 m between two heads.

10 · What you hear

A quiet head, a more present outdoor unit.

Wall heads from 21 dB(A) on quiet speed; the outdoor unit, from 50 to 56 dB(A) depending on size and mode. Fujitsu lab measurements.

ModelIndoor, quiet speedIndoor, high speedOutdoor unit
Aquila 24,00021 dB(A)–52 dB(A)
Aquila 36,00021 dB(A)–56 dB(A)
Aquila 45,00021 dB(A)–56 dB(A)
XLTH 24,00021 dB(A)–52 dB(A)
XLTH 36,00021 dB(A)–56 dB(A)
RLXFZ 36,000––55 dB(A)
RLXFZ 45,000––55 dB(A)
RLXFZH 24,000––52 dB(A)

Levels published by Fujitsu, measured in a lab; at home, the room, the furniture and the distance change what you hear. Scale: Government of Québec reference points.

11 · Hydro-Québec LogisVert

From $1,180 to $3,720 with three wall heads.

The amount follows the outdoor unit, not the number of heads. Only the standard Aquila 36,000 is not cold climate: it gets $50 per 1,000 BTU/h instead of $120.

ModelIndicative amountCalculation
Aquila 24,000 BTU/h, 3 zones$1,87215,600 BTU/h ÷ 1,000 × $120 = $1,872
Aquila 36,000 BTU/h, 3 zones$1,18023,600 BTU/h ÷ 1,000 × $50 = $1,180
Aquila 45,000 BTU/h, 3 zones$3,72031,000 BTU/h ÷ 1,000 × $120 = $3,720
Aquila XLTH 24,000 BTU/h, 3 zones$1,94416,200 BTU/h ÷ 1,000 × $120 = $1,944
Aquila XLTH 36,000 BTU/h, 3 zones$2,92824,400 BTU/h ÷ 1,000 × $120 = $2,928
RLXFZ 24,000 BTU/h, 3 zones (R-410A)$70514,100 BTU/h ÷ 1,000 × $50 = $705
RLXFZ 36,000 BTU/h, 3 zones (R-410A)$0–
RLXFZ 45,000 BTU/h, 3 zones (R-410A)$0–
RLXFZH 24,000 BTU/h, 3 zones (R-410A)$1,84815,400 BTU/h ÷ 1,000 × $120 = $1,848
RLXFZH 36,000 BTU/h, 3 zones (R-410A)$2,56821,400 BTU/h ÷ 1,000 × $120 = $2,568
ENERGY STAR required

Since November 26, 2025, only ENERGY STAR certified heat pumps qualify.

12,000 BTU/h minimum

The outdoor unit must be at least 12,000 BTU/h nominal in cooling.

Cap: 100% of the cost

The grant never exceeds the purchase and installation cost, before taxes.

9 months to apply

You apply no later than nine months after installation.

Apply for LogisVert no later than
July 8, 2027
All about LogisVert

One system, one amount: the amount depends on the outdoor unit and its certificate, not on the number of heads. Adding a head later does not earn a second amount.

12 · The previous generation

The R-410A three-zones.

They stay in AirGreen’s catalogue, with their own R-410A heads. Their LogisVert amount depends on the ENERGY STAR list: from $0 to $2,568 depending on the outdoor unit.

Outdoor unitHeadsHeats down toENERGY STAR15,000 headIndicative LogisVert
RLXFZ 24,000
AOU24RLXFZ		2–3-15 °Cstandardyes$705
RLXFZ 36,000
AOU36RLXFZ1		3–4-15 °Cnot listedno$0
RLXFZ 45,000
AOU45RLXFZ		2–5-15 °Cnot listedno$0
RLXFZH 24,000
AOU24RLXFZH		2–3-26 °Ccold climateno$1,848
RLXFZH 36,000
AOU36RLXFZH		2–4-26 °Ccold climateno$2,568

R-410A generation: Fujitsu’s 2016 multi-zone brochure and the ENERGY STAR list, read October 8, 2026. The 15,000 R-410A head (ASU15RLS2) is not compatible with the units marked “no”, according to Fujitsu.

13 · Six multi-zone rules

What to know before choosing.

One mode at a time All heads on one outdoor unit heat together or cool together, according to Fujitsu.

Capacity is shared When every head calls, total capacity is the outdoor unit’s; what is unused goes to the rooms still calling.

Only the combinations in the tables Fujitsu approves specific head combinations; the tables are not for sizing, hence the home visit.

One system, one amount For LogisVert, one outdoor unit and its heads are one system; adding or replacing a single head is not eligible.

The right certificate Wall heads only: non-ducted certificate. All ducted: ducted certificate. A mix: mixed certificate.

The right match Fujitsu’s warranty excludes incorrect matching of units: we pick the heads from the tables.

14 · The spec sheet

The outdoor units, line by line.

Aquila 24,000Aquila 36,000Aquila 45,000Aquila XLTH 24,000Aquila XLTH 36,000
Outdoor unitAOUH24KWAS3AOUH36KWAS4AOUH45KWAS5AOUH24KWAH3AOUH36KWAH4
Heads2–32–42–52–32–4
Heats down to-15 °C-15 °C-15 °C-26 °C-26 °C
Accepted heads total14,000–31,000 BTU/h25,000–46,000 BTU/h34,000–58,000 BTU/h14,000–31,000 BTU/h25,000–46,000 BTU/h
SEER223222223.522
HSPF210.5101011.510
Rated heat 8 / -8 / -15 °C24,000 / 15,600 / 19,20036,400 / 23,600 / 24,00048,000 / 31,000 / 36,00025,000 / 16,200 / 25,20036,400 / 24,400 / 36,400
Cold climateyesnoyesyesyes
Heated base pannononoyesyes
Max total line set50 m70 m80 m70 m70 m
Breaker20 A25 A30 A25 A35 A
Outdoor sound (cool / heat)50 / 52 dB(A)54 / 56 dB(A)54 / 56 dB(A)50 / 52 dB(A)54 / 56 dB(A)
Size (w×h×d)820×716×315 mm820×884×315 mm940×998×320 mm820×884×315 mm940×998×320 mm
Weight46 kg58 kg74 kg54 kg70 kg
AHRI no. (wall heads)215447687215447689215735280215447693215735282
Indicative LogisVert$1,872$1,180$3,720$1,944$2,928

Fujitsu submittal sheets and the ENERGY STAR list, read October 8, 2026. Ratings with wall heads.

15 · Did you know

What the three-zone tables tell.

The Aquila XLTH 24,000 has the best rating of any Fujitsu multi-zone: SEER2 23.5 and HSPF2 11.5.

Source: ENERGY STAR

At -15 °C, the Aquila XLTH 24,000 is certified for 25,200 BTU/h, against 25,000 at 8 °C.

Source: ENERGY STAR

Same "24,000" label, 20 m more: the XLTH takes 70 m of total line set, the standard 50 m.

Source: Fujitsu

With three heads, the 24,000 refuses 18,000 heads.

Source: Fujitsu

The 36,000 accepts 35 different head trios, from 25,000 to 46,000 BTU/h in total.

Source: Fujitsu

At -26 °C, the Aquila XLTH 36,000 is rated up to 22,140 BTU/h.

Source: Fujitsu
16 · The Fujitsu warranty

Up to 12 years on parts and compressor.

The longest tier needs online registration within 60 days and a Fujitsu Elite contractor. At AirGreen, both are done for you.

12 yearsparts and compressor, on eligible models
Basic warranty5 years parts, 7 years compressor
7 yrs
Registered onlineWithin 60 days
10 yrs
Elite contractor + registeredThe AirGreen tier
12 yrs

In Québec, the basic warranty needs no registration; the 10- and 12-year tiers do. Source: Fujitsu limited warranty statement (R-32).

Online registration, 60 days

We register your unit with Fujitsu, free, on time.

Fujitsu Elite contractor

The condition for the 12-year tier. AirGreen is Elite Plus.

Licensed installer

The warranty requires a licensed contractor. RBQ 5645-9605-01.

Bought online: not covered.

Fujitsu’s text excludes systems bought from an online retailer.

AirGreen × FUJITSU AIRSTAGE

Fujitsu’s trios, AirGreen’s plan.

Three rooms is often two bedrooms and a living room, or one floor and a basement. AirGreen measures each room, picks the trio and the outdoor unit, installs and registers the warranty.

FUJITSUAIRSTAGE

What FUJITSU AIRSTAGE brings

  • 83 triosApproved by Fujitsu, all in the tool.
  • SEER2 23.5Aquila XLTH 24,000, the best rated.
  • Down to -26 °CWith the Aquila XLTH.
  • Up to 12 yearsParts and compressor, on Fujitsu’s conditions.
AirGreen

What AirGreen brings

  • Elite Plus dealerThe highest level of the AIRSTAGE Elite program.
  • Free home estimateWe measure and check the insulation and the location.
  • Warranty registered for youWith Fujitsu, within 60 days.
  • RBQ 5645-9605-01Subclasses 15.8, 15.10 and 16.

The result: three well-served rooms, on the outdoor unit that suits them.

Build my zonesBook my free estimate
17 · Our three-zone installations

Recent installations, in photos.

Each article on our blog tells a real installation: the rooms, the outdoor unit and the lines.

Aquila XLTH three-zone in Saint-Bernard-de-Michaudville
Oct. 4, 2026Aquila XLTH three-zone in Saint-Bernard-de-Michaudville
Aquila XLTH 36,000 BTU three-zone in Brossard
Oct. 1, 2026Aquila XLTH 36,000 BTU three-zone in Brossard

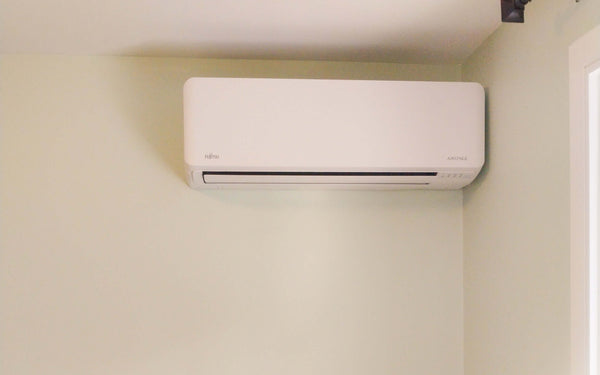

Aquila XLTH three-zone in Saint-Valérien-de-Milton
Sept. 24, 2026Aquila XLTH three-zone in Saint-Valérien-de-Milton

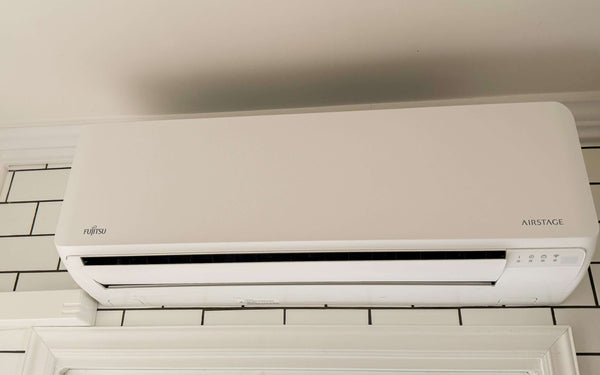

Aquila XLTH three-zone in Saint-Marcel-de-Richelieu
Sept. 23, 2026Aquila XLTH three-zone in Saint-Marcel-de-Richelieu

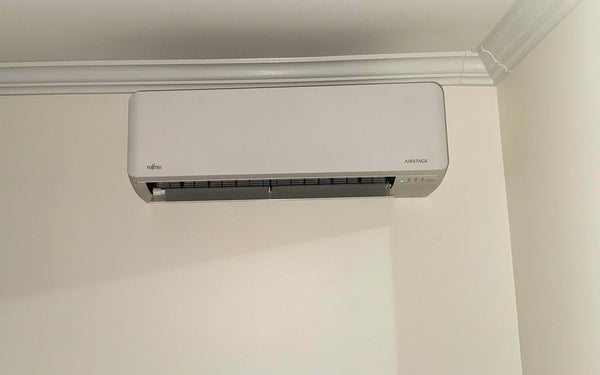

Three discreet zones in Sainte-Hélène-de-Bagot
Sept. 17, 2026Three discreet zones in Sainte-Hélène-de-Bagot

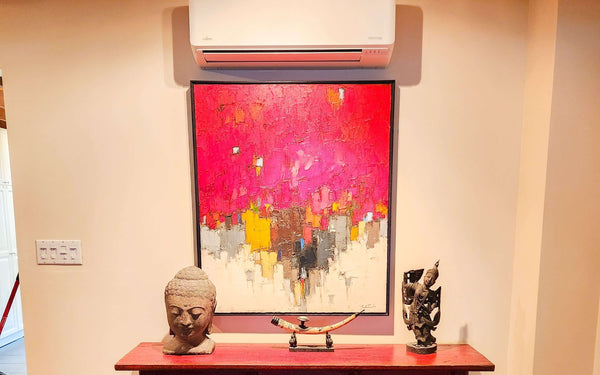

Aquila XLTH three-zone in a character home in La Présentation
Sept. 16, 2026Aquila XLTH three-zone in a character home in La Présentation
See all our installations
18 · FUJITSU AIRSTAGE dealer – ELITE PLUS

Elite Plus: the highest level of the AIRSTAGE Elite program.

Fujitsu’s Japanese engineering, installed by an Elite Plus team across Montreal, Laval, Longueuil, the North Shore, the South Shore and Montérégie.

Elite Plus partnership

The highest level of the AIRSTAGE Elite program.

Advanced Fujitsu training

Our technicians take the manufacturer’s training on AIRSTAGE systems.

Careful commissioning

Vacuum, refrigerant settings, electrical hookup, set up for winter.

Genuine parts and Fujitsu support

Manufacturer parts and Fujitsu technical support, wherever we install.

Our FUJITSU AIRSTAGE page
1Home estimate

Free. We measure and check the insulation and the location.

2Clear quote

The model, the size and the indicative LogisVert amount, in writing.

3Installation and commissioning

Vacuum, refrigerant, electrical, winter settings.

4Warranty registered

We register the unit with Fujitsu and help you with LogisVert.

19 · Frequently asked questions

What people ask us about three-zone systems.

The 24,000 works if each of the three heads is 15,000 or less and they total 31,000 or less. Otherwise you need the 36,000 (up to 46,000 of heads) or the 45,000 (up to 57,000).

20 · See also

Related collections.

Multi-zoneMulti-zone heat pumps

The whole FUJITSU multi-zone family, two to five rooms.

View the collectionMulti-zone2-zone multi-zone

Only two rooms: the two-zone.

View the collectionMulti-zone4-zone multi-zone

A fourth room: 36,000 or 45,000 BTU/h.

View the collectionR-32Altair 500

The same ASUH..KPAS heads as a single-zone system.

View the collection
AirGreen × FUJITSU AIRSTAGEFree home estimateWarranty registered for youElite Plus dealerMontreal · Laval · Longueuil · South Shore · North Shore
AirGreen · Heating & cooling

Your three-zone, installed by an Elite Plus team.

We come and see the three rooms, build the trio from Fujitsu’s tables and give you a clear quote with the indicative LogisVert amount.

Book my free estimate514 316-2973

Hydro-Québec does not solicit anyone by phone or door to door for LogisVert. A call “from Hydro-Québec” selling a heat pump: hang up.

RBQ 5645-9605-01Subclasses 15.8, 15.10 and 16
Free estimateAt home, no commitment
Warranty registered for youWith Fujitsu, within 60 days
Showroom1370 Joliot-Curie Street, unit 712, Boucherville

Sources checked on October 8, 2026

26 sources · show
  1. Fujitsu AIRSTAGE, airstagehvac.com/products/multi
  2. Fujitsu AIRSTAGE, airstagehvac.com/r32-2-3-4rooms/kwas
  3. Fujitsu AIRSTAGE, airstagehvac.com/r32-2-3-4rooms/kwah
  4. Fujitsu, submittal sheet 18KWAS2
  5. Fujitsu, submittal sheet 24KWAS3
  6. Fujitsu, submittal sheet 36KWAS4
  7. Fujitsu, submittal sheet 45KWAS5
  8. Fujitsu, submittal sheet 18KWAH2
  9. Fujitsu, submittal sheet 24KWAH3
  10. Fujitsu, submittal sheet 36KWAH4
  11. Fujitsu, brochure FG8159A
  12. Fujitsu, brochure FG2057B
  13. Fujitsu, brochure FG2057
  14. Fujitsu, product or archive page LEG
  15. Fujitsu AIRSTAGE, document pdf-fcus-pr-2016-fujitsu-36-000-multi-zone-xlth-01
  16. Fujitsu AIRSTAGE, document pdf-fcus-h-series-warranty-r32-202606
  17. ENERGY STAR, certified air-source heat pump list (dataset w7cv-9xjt)
  18. ENERGY STAR, program criteria
  19. Hydro-Québec, LogisVert residential participation guide, version 1.10
  20. Hydro-Québec, residential
  21. Government of Québec, mesure du bruit
  22. Government of Canada, heating cooling heat pump
  23. U.S. eCFR, section 429.16
  24. International Astronomical Union, star and constellation names
  25. airgreen.ca product sheets, read October 8, 2026
  26. AirGreen, “Nos réalisations” projects blog

Amounts shown are estimates; only Hydro-Québec confirms the grant. Manufacturer data is quoted “according to Fujitsu”.

Price on quote. Every installation is different: we give you a free, detailed quote before any commitment.
The FUJITSU AIRSTAGE shop · Three-zone

The three-zone systems, right below.

Each product sheet gives the outdoor unit, the head trios offered and the indicative LogisVert amount.

All multi-zones2 zones4 zonesAltair 500
FUJITSUAIRSTAGE
