Installation of a Fujitsu Aquila XLTH Triple-Zone Heat Pump in La Présentation: An Integrated Multizone Solution for a Home with Distinctive Architectural Character

A Fujitsu triple-zone heat pump installed without sacrificing the interior aesthetics

In La Présentation, our AirGreen team completed an installation of a Fujitsu Aquila XLTH triple-zone heat pump in a property where thermal comfort had to blend into an already carefully designed interior. The project therefore involved more than simply mounting three wall units and connecting them to an outdoor condenser. Each location had to be selected to preserve the visual balance of the rooms while ensuring effective air distribution.

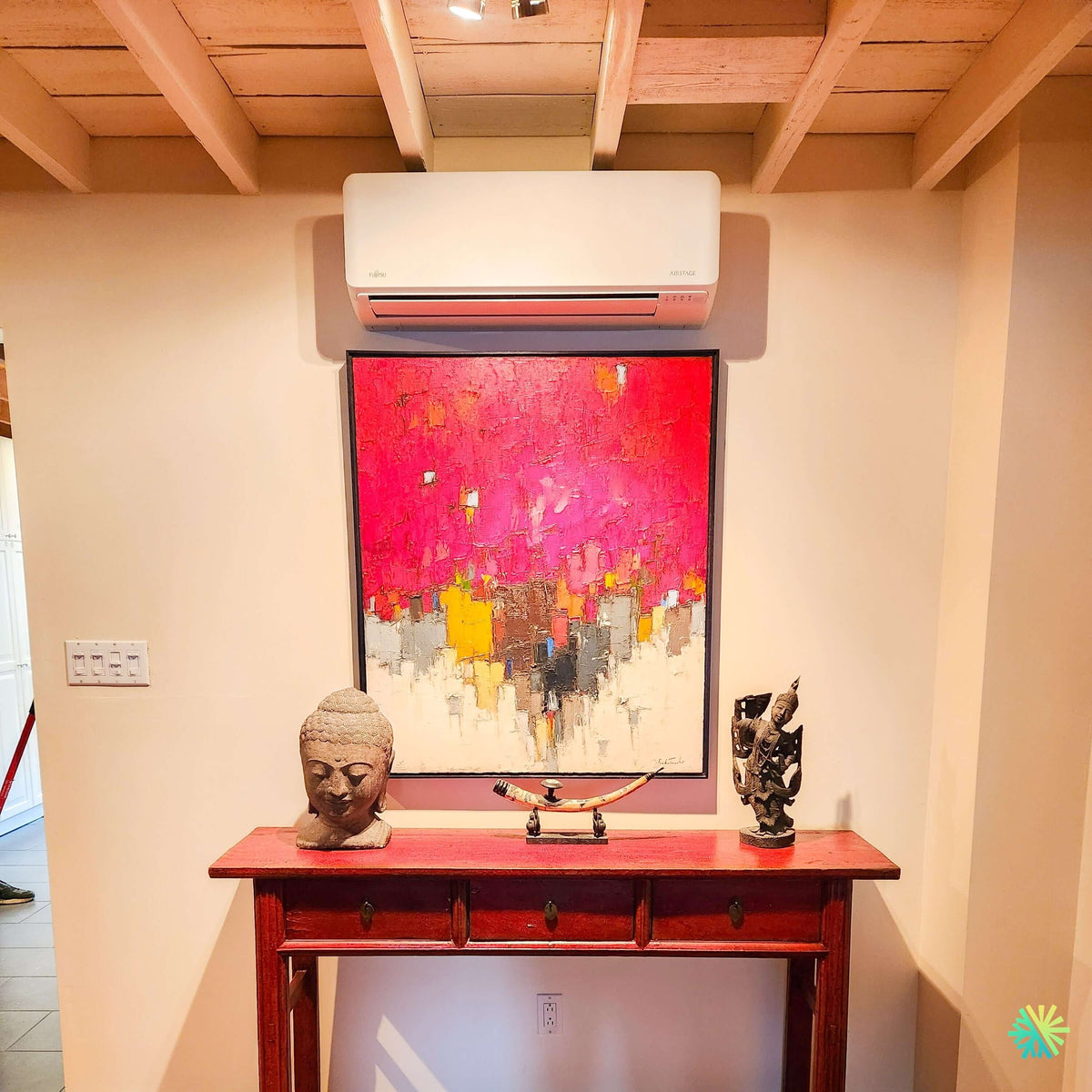

The photo of this installation provides an excellent example. One of the indoor Fujitsu AIRSTAGE units was positioned on a central wall, directly beneath a ceiling structure made of exposed wooden beams. Beneath the heat pump are a large framed artwork, a decorative piece of furniture, and several objects that already occupy this space visually.

Our challenge was therefore clear: integrate modern HVAC equipment into a room with plenty of character without making it seem as though the heat pump had been added randomly afterward.

The result shows exactly what we look for when completing this type of project: a Fujitsu wall-mounted unit positioned along the axis of the interior composition, with enough space to operate properly and an installation that respects the existing architectural features.

Why a triple-zone installation is particularly beneficial for this type of property

A house with several distinct rooms, levels, or areas does not behave thermally like one large, uniform space.

Needs can vary considerably between:

• an open living area;
• a bedroom;
• a corridor or intermediate space;
• an upper floor;
• a room with many windows;
• an area exposed to sunlight;
• a room with more exterior walls.

This is precisely the context in which a multi-zone heat pump becomes worthwhile.

Rather than relying on a single wall-mounted unit that would have to push air through several openings, a triple-zone configuration directly distributes heating and cooling to the three selected areas.

The Fujitsu documentation provided for the AIRSTAGE H Series Aquila range indicates that the manufacturer offers 18,000, 24,000, 36,000, and 45,000 BTU/h outdoor units that can be combined with various indoor units. The 24,000 BTU/h version illustrated in the combination tables can notably be connected to up to three indoor units, which corresponds to the very principle of a triple-zone installation.

Three zones do not mean three temperatures produced completely independently

The zoning of a multi-zone heat pump deserves a precise explanation.

Each Fujitsu indoor unit can be controlled independently using its remote control. Occupants can therefore set different temperatures from one zone to another and choose which units should operate. Fujitsu confirms this possibility in the documentation for its H series.

There is, however, one important limitation: the system provides heating or cooling, but not both simultaneously.

In other words, one zone cannot call for heating while another calls for cooling at the same time on the same multi-zone system.

This is a point we explain to homeowners before installation, as it makes it possible to understand exactly how the zoning of a Fujitsu triple-zone heat pump works.

In residential use in Quebec, this characteristic generally causes few problems. When outdoor temperatures are cold in winter, the different rooms primarily need heating. In summer, demand is directed more toward cooling.

Choosing the location: as important as choosing the equipment

In the photo taken after installation, the Fujitsu unit is positioned relatively high on the wall, immediately below the exposed beams.

This location has several advantages.

First, it allows the air outlet to be above the occupied area and distribute air throughout the room without being blocked by furniture.

Next, the unit remains visually aligned with the large panel below. Rather than being shifted to one side without an architectural reason, the unit follows the wall’s axis.

Finally, the space around the heat pump remains sufficiently clear so that its intake and discharge are not obstructed.

Why we avoid placing a unit solely where installation would be fastest

A common mistake in wall-mounted air conditioner or heat pump projects is to choose the location based on drilling convenience rather than comfort.

A wall directly facing the outdoors may seem ideal to the installer because it reduces the piping length. However, this location is not necessarily the one that will distribute the air most effectively.

At AirGreen, we consider all of the following simultaneously:

• the geometry of the room;
• the natural movement of air;
• the available height;
• the furniture;
• the windows and doors;
• the beams and moldings;
• drainage options;
• the refrigerant piping route;
• access for cleaning and servicing;
• the final visual impact.

In this installation in La Présentation, the indoor environment specifically required this type of consideration.

The exposed beams completely changed the installation approach

The ceiling visible in the photo consists of wood and exposed structural beams.

For an HVAC installer, this detail is not merely decorative. A visible ceiling structure imposes additional constraints: it is much more difficult to conceal a technical route without compromising the existing finish.

When we work in a home with exposed architectural features, we try to avoid unnecessary work that could damage:

• wood;
• moldings;
• painted surfaces;
• decorative elements;
• the existing structures.

The refrigerant-line and drainage routing must therefore be planned before the unit is permanently secured.

The result visible here is particularly understated: the Fujitsu unit seems to belong in the space rather than compete with it.

Fujitsu Aquila: the flexibility of a true multi-zone system

One of the advantages of the Fujitsu AIRSTAGE Aquila family is the variety of indoor units that can be paired with multi-zone condensers.

The manufacturer’s documentation mentions four formats in particular:

• wall-mounted units;
• Slim Duct;
• compact cassettes;
• Mid Static Duct.

This flexibility makes it possible to adapt a single outdoor system to different architectural constraints.

Therefore, a multi-zone project does not necessarily need to include three identical units.

In some homes, a wall-mounted unit may be the best option in the main living area, while a ducted unit is more appropriate in a section where reducing the equipment’s visual presence is desired.

In the project presented here, the visible indoor unit is a wall-mounted Fujitsu AIRSTAGE model, chosen and positioned to provide direct air distribution while respecting the existing layout.

How we design a Fujitsu Aquila XLTH installation suited to Quebec winters

Cold-weather performance must be considered from the selection stage

In La Présentation, as in Montreal, Laval, Longueuil, the North Shore, and the South Shore, a heat pump cannot be evaluated solely on its ability to cool in July.

The real challenge lies in heating when the outdoor temperature drops sharply.

The Fujitsu documentation provided for Aquila and Aquila CTEB H series systems presents the cold-climate versions as capable of operating in heating mode down to -26 °C.

This information is important for a homeowner who wants a heat pump to genuinely contribute to winter heating rather than primarily serve as an air conditioner.

However, we take care to distinguish between two concepts: the minimum operating temperature and the capacity actually available at low temperatures.

A system may continue to operate at a given outdoor temperature without necessarily delivering its full nominal capacity. That is why the choice of condenser, indoor units, and their capacities must always be matched to the building’s heat loss.

Why we do not select a triple-zone system by simply adding up the BTUs

This is probably one of the most common mistakes when comparing multizone heat pumps.

Suppose a home has three indoor units. It may be tempting to add their nominal capacities together and consider that total to be the actual capacity available at all times.

This is not how a multizone system should be designed.

Fujitsu’s tables include several permitted combinations in which the total nominal capacity of the indoor units exceeds the condenser’s nominal capacity. The manufacturer specifies that a multizone outdoor unit can accept a connected capacity of up to 130 % in certain configurations.

But Fujitsu adds an essential clarification: exceeding 100% of combined capacity does not increase the system’s output capacity.

A concrete example of what this means

If several zones call for their maximum capacity at the same time, the condenser must share its available output among them.

This is not necessarily a problem if the design has been properly completed. In a real home, all rooms do not always reach their maximum load at exactly the same time.

But this reality must be taken into account before selecting the system.

This is also why Fujitsu states that its combination tables must not be used as a capacity selection tool and recommends its Design Simulator software for selecting AIRSTAGE H Series equipment.

The inverter compressor allows the system to adjust its output

The Fujitsu Aquila series uses inverter-driven compressor technology, or an inverter.

Unlike an older unit operating primarily according to an on-off logic, the inverter allows the compressor speed to adapt to the heating demand.

Fujitsu combines this technology with improved comfort control and more efficient energy use in its multi-zone systems.

In a triple-zone configuration, this aspect becomes especially significant.

When multiple zones call for heating after a temperature drop, the system can increase its output. Once the setpoints are reached, it can modulate rather than operate continuously at full capacity.

This helps maintain more consistent temperatures throughout the home.

A single outdoor condenser for three indoor zones

One of the main reasons our customers choose a triple-zone heat pump is to reduce the number of outdoor units.

With three single-zone systems, three separate condensers would normally be required.

With a Fujitsu multi-zone configuration, several indoor units share a single compatible outdoor unit.

This solution can offer particularly compelling benefits when:

• the area around the house is limited;
• the owner wants to preserve the appearance of the façade;
• a deck occupies a significant portion of the available space;
• the distances between buildings are short;
• there are location restrictions;
• you want to limit the number of supports, circuits, and outdoor equipment.

The trade-off is that the piping becomes more complex.

Each indoor unit must have a suitable connection to the outdoor unit. Installation therefore requires more planning than a single-zone heat pump.

The interior finish is part of our HVAC work

The photo of this installation is interesting precisely because the heat pump is not photographed in an empty room.

It is located above a highly colorful artwork, surrounded by furniture, sculptures, and an exposed wood ceiling.

This situation reflects the reality of many AirGreen installations: we work in occupied, furnished, and finished homes.

Our goal is therefore not only to obtain correct pressure readings or ensure functional drainage. We must also deliver an installation that respects the property.

A heat pump installation can be technically functional while still being visually substandard. Misaligned line-set covers, an off-center unit, or openings made without considering the available space will remain visible for years.

We prefer to address these details during site preparation.

What we check before commissioning a triple-zone system

After the physical installation of the units, the work is not finished.

A thorough commissioning process involves several technical checks, including the integrity of the connections, drainage, communication between units, and operation of the different zones.

With a multi-zone system, we must also ensure that each indoor unit communicates properly with the condenser and responds to its commands.

The operating logic must be explained to the homeowner: changing modes, adjusting temperatures, using the fans, and interaction between the three zones.

This step is important because an excellent system that is used incorrectly may appear to be malfunctioning.

Maintaining a Fujitsu multi-zone system: three indoor units require a regular routine

A triple-zone system simplifies the outdoor installation, but it naturally involves several indoor units that require maintenance.

Filters should be cleaned periodically to maintain good airflow.

Over time, the evaporator, blower wheel, and drain pan can also accumulate dust or contaminants.

We recommend that homeowners monitor the following in particular:

• a decrease in airflow;
• an unusual odor;
• a new noise;
• water near the unit;
• a significant difference in performance between zones;
• visibly loaded filters.

Regular HVAC maintenance helps maintain proper operation and identify problems before they become more serious.

Mistakes to avoid during a triple-zone heat pump project

A multi-zone installation deserves more thorough preparation than a simple equipment replacement.

Among the mistakes we work especially hard to avoid are oversizing the indoor units, choosing a condenser solely according to the theoretical total BTUs, installing a unit where airflow is obstructed, poorly planned drainage, and deciding on the piping route after the equipment has been mounted.

It is also important not to assume that three different indoor units will operate like three completely independent heat pumps. They share the same outdoor system and must therefore be selected as a set.

This is exactly what Fujitsu’s combination tables show: not all combinations of indoor units are interchangeable, and capacities must comply with the configurations permitted by the manufacturer.

An installation that clearly illustrates our approach at AirGreen

This Fujitsu Aquila XLTH installation in La Présentation combines several elements characteristic of our work: a triple-zone configuration, technology designed for heating and cooling, a home with visible architectural constraints, and particular attention to interior integration.

The Fujitsu unit shown in the photograph is installed neatly above the central artwork, without interfering with the exposed beams or furniture. Its positioning keeps the air outlet unobstructed while maintaining a cohesive visual composition in the room.

Behind this relatively discreet result lies all the complexity of a genuine multi-zone project: capacity selection, unit compatibility, refrigerant line routing, drainage, connections, zone controls, and commissioning.

It is this combination of HVAC design, technical expertise, and quality workmanship that we apply in our heat pump installations in Montreal, Laval, Longueuil, the North Shore, the South Shore, and surrounding municipalities such as La Présentation.

For a homeowner who wants to heat and cool several areas with a minimum of outdoor equipment, a Fujitsu Aquila XLTH triple-zone heat pump can be a particularly appealing solution when the system is properly sized and installed based on the building rather than on a simple addition of BTUs.
