FUJITSU AIRSTAGE · CENTAURI · CENTAURI XLTHFUJITSU central systems at AirGreenAuthorized dealer at the highest level of the AIRSTAGE Elite program.
Elite Plus
AirGreen × FUJITSU AIRSTAGECentauri · Centauri XLTHThe whole house through the ductsDown to -26 °CUp to $4,464 in LogisVert2 to 16 kW back-upElite Plus dealer
01 · What only the Fujitsu central system does

One machine, the whole house.

Six facts from Fujitsu documents, the ENERGY STAR list, the LogisVert guide and Hydro-Québec’s rates. Sources are at the bottom of the page.

AMUH

The same AMUH indoor unit serves both series, Centauri (down to -21 °C) and Centauri XLTH (down to -26 °C).

2 to 16 kW

Fujitsu offers 2 to 16 kW electric heater kits that fit inside the indoor unit, on a dedicated circuit.

Not in the attic

For LogisVert, the indoor unit and the ducts must stay inside the home’s insulated envelope, not in the attic.

+10,000 BTU/h

At -15 °C, the 48,000 Centauri XLTH gives 51,000 BTU/h, against 41,000 for the standard Centauri of the same size.

Rate DT

A heat pump with electric back-up is not a dual-energy system under Rate DT, which requires a fuel.

Mini or Multi Split

ENERGY STAR files these systems as "Mini or Multi Split", while Hydro-Québec calls them central split heat pumps.

02 · The path of the heat

From the outdoor unit to every room.

A central heat pump replaces the furnace or joins the existing duct system. Here is the air’s path.

1. The outdoor unit

It draws heat from the outside air in winter and rejects the house’s heat in summer.

2. The refrigerant lines

Two copper pipes connect the outdoor unit to the indoor unit.

3. The AMUH unit

Its coil heats or cools the air; its fan pushes it into the ducts. The electric back-up, if any, sits here.

4. The ducts

Warm or cool air reaches each room through the supply registers.

5. The return air

Air comes back to the unit through the return, past the filter.

03 · Centauri or Centauri XLTH

A question of cold.

Slide to the coldest temperature the heat pump must cover alone: the Centauri goes to -21 °C, the XLTH to -26 °C.

The coldest temperature you aim for
Centauridown to -21 °C
Centauri XLTHdown to -26 °C

Heating ranges published by Fujitsu. Below its range, a heat pump has no published capacity: the back-up takes over.

SeriesHeats down toSizes (BTU/h)ENERGY STARLogisVert
Centauri
AOUH..KUAS1 + AMUH
-21 °C12,000 to 48,000 (6 sizes)cold climate, all six$1,272 – $4,464
Centauri XLTH
AOUH..KUAH1 + AMUH
-26 °C30,000, 36,000, 48,000cold climate, Most Efficient$2,520 – $4,080
Previous generation
R-410A
–24,000 to 48,0002 of 7$0 – $3,528

Ranges published by Fujitsu; indicative LogisVert amounts per the ENERGY STAR list ($120 per 1,000 BTU/h at -8 °C for cold climate).

04 · The nine R-32 systems

From 1 to 4 tons.

Tap a system: photo, sheet, efficiency and LogisVert amount. The same AMUH indoor unit serves both series.

ModelHeats down toMax at -15 °CSEER2HSPF2LogisVertAHRI
Centauri 12,000 BTU/h-21 °C16,100 BTU/h19.910.3$1,272217290592
Centauri 18,000 BTU/h-21 °C17,300 BTU/h19.210.5$1,932217290593
Centauri 24,000 BTU/h-21 °C24,600 BTU/h17.710.1$2,184217290594
Centauri 30,000 BTU/h-21 °C29,400 BTU/h1910$2,664217290595
Centauri 36,000 BTU/h-21 °C32,000 BTU/h17.69.8$3,288217290596
Centauri 48,000 BTU/h-21 °C41,000 BTU/h179.6$4,464217290597
Centauri XLTH 30,000 BTU/h-26 °C34,000 BTU/h18.810$2,520217895716
Centauri XLTH 36,000 BTU/h-26 °C41,000 BTU/h18.310.2$3,024217895717
Centauri XLTH 48,000 BTU/h-26 °C51,000 BTU/h1910.2$4,080217895718
05 · In cold weather

At -15 °C, the XLTH 48,000 gives 10,000 BTU/h more.

Bars: capacity at -15 °C (ENERGY STAR) and maximum capacity at the coldest published point (NEEP). Red tick: the rated values.

Heat by outdoor temperatureTap a temperature
Size-15 °C-20.6 °C-26.1 °C
Centauri 12,00016,100 BTU/h14,520 BTU/h–
Centauri 18,00017,300 BTU/h14,570 BTU/h–
Centauri 24,00024,600 BTU/h21,860 BTU/h–
Centauri 30,00029,400 BTU/h25,190 BTU/h–
Centauri 36,00032,000 BTU/h27,850 BTU/h–
Centauri 48,00041,000 BTU/h37,960 BTU/h–
Centauri XLTH 30,00034,000 BTU/h–26,000 BTU/h
Centauri XLTH 36,00041,000 BTU/h–32,000 BTU/h
Centauri XLTH 48,00051,000 BTU/h–51,000 BTU/h

At -8 °C the rated value is a part-load test: it can be lower than at -15 °C.

06 · Electric back-up

From 2 to 16 kW, inside the AMUH unit.

Pick a size: the Fujitsu kits that fit it, each on a dedicated circuit.

The electric heater kits
Indoor unitFujitsu kits
12,000 BTU/h · AMUH12KUASUTZ-EU02MSA · 2 kW — 6,824 BTU/h · 1 stage · breaker field-supplied
UTZ-EU04MSB2 · 4 kW — 13,648 BTU/h · 2 stages · breaker field-supplied
18,000 BTU/h · AMUH18KUASUTZ-EU03MSA · 3 kW — 10,236 BTU/h · 1 stage · breaker included
UTZ-EU06MSB2 · 6 kW — 20,472 BTU/h · 2 stages · breaker field-supplied
24,000 BTU/h · AMUH24KUASUTZ-EU02MSA · 2 kW — 6,824 BTU/h · 1 stage · breaker field-supplied
UTZ-EU04MSA · 4 kW — 13,648 BTU/h · 1 stage · breaker included
UTZ-EU08MSB2 · 8 kW — 27,296 BTU/h · 2 stages · breaker field-supplied
30,000 BTU/h · AMUH30KUASUTZ-EU03MMA · 3 kW — 10,236 BTU/h · 1 stage · breaker included
UTZ-EU05MMA · 5 kW — 17,060 BTU/h · 1 stage · breaker included
UTZ-EU10MMB2 · 10 kW — 34,120 BTU/h · 2 stages · breaker included
36,000 BTU/h · AMUH36KUASUTZ-EU03MMA · 3 kW — 10,236 BTU/h · 1 stage · breaker included
UTZ-EU06MMA · 6 kW — 20,472 BTU/h · 1 stage · breaker included
UTZ-EU12MMB2 · 12 kW — 40,944 BTU/h · 2 stages · breaker included
48,000 BTU/h · AMUH48KUASUTZ-EU05MMA · 5 kW — 17,060 BTU/h · 1 stage · breaker included
UTZ-EU08MMA · 8 kW — 27,296 BTU/h · 1 stage · breaker included
UTZ-EU16MMB2 · 16 kW — 54,592 BTU/h · 2 stages · breaker included

Fujitsu brochure and submittal sheets. LogisVert pays nothing for a heater kit.

07 · Dual energy or all-electric

Electric back-up is not dual energy.

Hydro-Québec’s Rate DT requires a fuel back-up. Pick your back-up to see what applies.

Your back-up: dual energy or all-electric?

Fujitsu electric kit

System typeAll-electric
Rate DT (dual energy)No: it requires a fuel back-up
LogisVertThe heat pump only; $0 for the back-up

Hydro-Québec rates and LogisVert guide.

Electric baseboards

System typeAll-electric
Rate DT (dual energy)No: it requires a fuel back-up
LogisVertThe heat pump only; $0 for the back-up

Hydro-Québec suggests keeping a back-up, for example existing baseboards (user guide, 2026).

Natural gas furnace

System typeDual energy possible
Rate DT (dual energy)Possible if the central heat pump is the main source and the fuel (natural gas) takes over below -12 °C or -15 °C depending on the region
FujitsuThe Fujitsu documents read do not describe the Centauri with a fuel furnace: we discuss it during the visit.
ÉnergirÉnergir gas customers have their own dual-energy program, separate from this product.

Oil

System typeDual energy possible
Rate DT (dual energy)Possible if the central heat pump is the main source and the fuel (oil) takes over below -12 °C or -15 °C depending on the region
FujitsuThe Fujitsu documents read do not describe the Centauri with a fuel furnace: we discuss it during the visit.

Propane

System typeDual energy possible
Rate DT (dual energy)Possible if the central heat pump is the main source and the fuel (propane) takes over below -12 °C or -15 °C depending on the region
FujitsuThe Fujitsu documents read do not describe the Centauri with a fuel furnace: we discuss it during the visit.

Wood pellets

System typeDual energy possible
Rate DT (dual energy)Possible if the central heat pump is the main source and the fuel (pellets) takes over below -12 °C or -15 °C depending on the region
FujitsuThe Fujitsu documents read do not describe the Centauri with a fuel furnace: we discuss it during the visit.
08 · Hydro-Québec LogisVert

From $1,272 to $4,464 in R-32.

All nine R-32 systems are ENERGY STAR cold climate: $120 per 1,000 BTU/h at -8 °C. For a central system, the unit and the ducts must stay inside the insulated envelope.

ModelIndicative amountCalculation
Centauri 12,000$1,27210,600 BTU/h ÷ 1,000 × $120 = $1,272
Centauri 18,000$1,93216,100 BTU/h ÷ 1,000 × $120 = $1,932
Centauri 24,000$2,18418,200 BTU/h ÷ 1,000 × $120 = $2,184
Centauri 30,000$2,66422,200 BTU/h ÷ 1,000 × $120 = $2,664
Centauri 36,000$3,28827,400 BTU/h ÷ 1,000 × $120 = $3,288
Centauri 48,000$4,46437,200 BTU/h ÷ 1,000 × $120 = $4,464
Centauri XLTH 30,000$2,52021,000 BTU/h ÷ 1,000 × $120 = $2,520
Centauri XLTH 36,000$3,02425,200 BTU/h ÷ 1,000 × $120 = $3,024
Centauri XLTH 48,000$4,08034,000 BTU/h ÷ 1,000 × $120 = $4,080
ENERGY STAR required

Since November 26, 2025, only ENERGY STAR certified heat pumps qualify.

12,000 BTU/h minimum

The outdoor unit must be at least 12,000 BTU/h nominal in cooling.

Ducts inside the envelope

For a central system, the indoor unit must not be in the attic or outside the insulation plane.

9 months to apply

You apply no later than nine months after installation.

Apply for LogisVert no later than
July 8, 2027
All about LogisVert

Four questions before counting on LogisVert

Is your project eligible?
  • Will the indoor unit or the ducts be in the attic or roof space? No
  • Does the house already have a geothermal system? No
  • Are you replacing only the outdoor unit, the indoor unit or a coil? No
  • Does the replacement follow a breakdown covered by a warranty or insurance? No
09 · The previous generation

Seven R-410A systems, retired by Fujitsu.

They stay in AirGreen’s catalogue. Only two are on the ENERGY STAR list; the others get no LogisVert.

ProductUnitsENERGY STARIndicative LogisVertSame size in R-32
24LAMS1
Fujitsu name: 24RGLXM
AMUG24LMAS + AOU24RGLXnot listed$0Centauri 24 000
30LAMS1
Fujitsu name: 30RGLXM
AMUG30LMAS + AOU30RGLXnot listed$0Centauri 30 000 / Centauri XLTH 30 000
36LAMS1
Fujitsu name: 36LMAS1
AMUG36LMAS + AOUG36LMAS1cold climate$3,528Centauri 36 000 / Centauri XLTH 36 000
48LAMS1
Fujitsu name: 48LMAS1
AMUG48LMAS + AOUG48LMAS1not listed$0Centauri 48 000 / Centauri XLTH 48 000
30LUAH1M
Fujitsu name: 30LUAH1M
AMUG30LMAS + AOUH30LUAH1cold climate$2,592Centauri 30 000 / Centauri XLTH 30 000
36LMAH1M
Fujitsu name: 36LMAH1M
AMUG36LMAS + AOUH36LMAH1not listed$0Centauri 36 000 / Centauri XLTH 36 000
48LMAH1M
Fujitsu name: 48LMAH1M
AMUG48LMAS + AOUH48LMAH1not listed$0Centauri 48 000 / Centauri XLTH 48 000

Fujitsu lists these systems among its retired models. The store names (24LAMS1, 30LAMS1…) are not Fujitsu’s. The R-32 match is made by AirGreen at equal size; Fujitsu publishes none.

10 · Controls

Wall controller, Wi-Fi or your 24 V thermostat.

TypeModelRole
Wired wall controllerUTY-RVRUKAGAMI touch-panel wired controller
Wired wall controllerUTY-RNRUZ5touch-panel wired remote
Wired wall controllerUTY-RSRYsimple wired remote, with mode
Wired wall controllerUTY-RHRYsimple wired remote, no mode
WirelessUTY-LBTUMIR receiver kit with wireless remote
24 V thermostatUTY-TTRXZ1Interface for a 24 V thermostat; used with no other control, according to Fujitsu.
SensorUTY-XSZXZ1Remote temperature sensor

Controls listed by Fujitsu for these units. The exact Wi-Fi adapter is confirmed at quote time (Fujitsu’s brochure and web page name different ones).

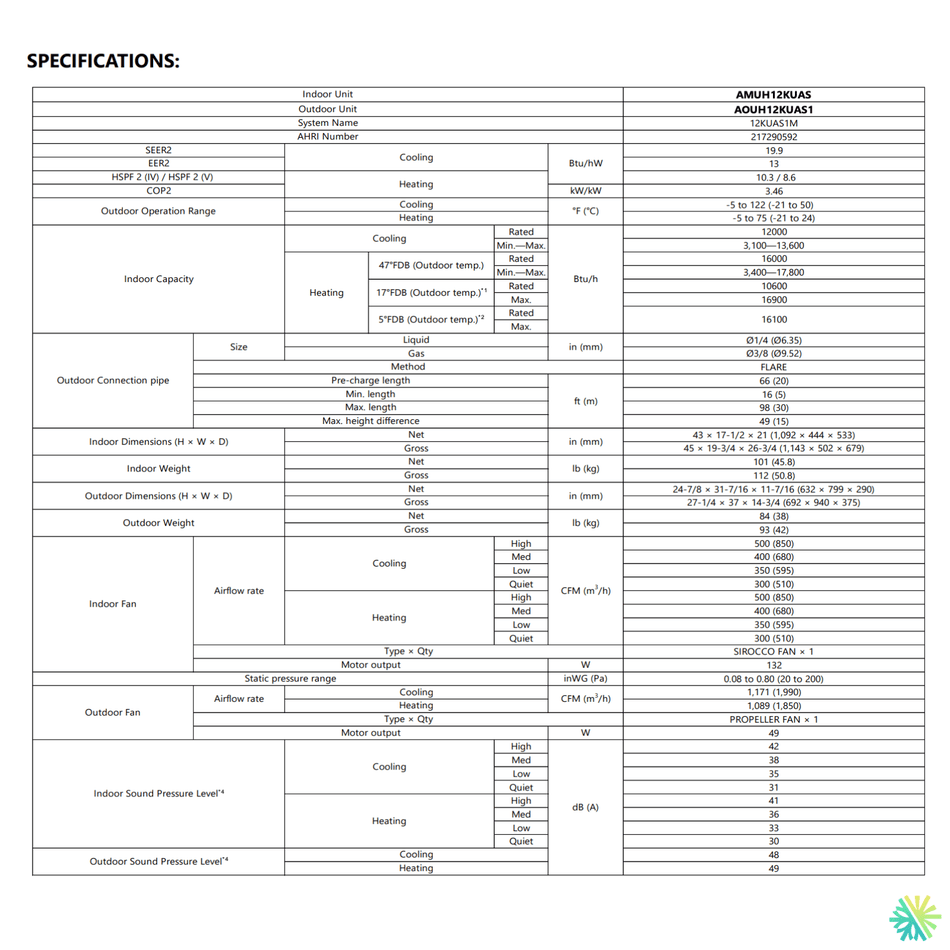

11 · The spec sheet

The nine R-32 systems, line by line.

A dash: value not verified in the Fujitsu sheets consulted, so not shown.

Centauri 12,000Centauri 18,000Centauri 24,000Centauri 30,000Centauri 36,000Centauri 48,000Centauri XLTH 30,000Centauri XLTH 36,000Centauri XLTH 48,000
Indoor unitAMUH12KUASAMUH18KUASAMUH24KUASAMUH30KUASAMUH36KUASAMUH48KUASAMUH30KUASAMUH36KUASAMUH48KUAS
Outdoor unitAOUH12KUAS1AOUH18KUAS1AOUH24KUAS1AOUH30KUAS1AOUH36KUAS1AOUH48KUAS1AOUH30KUAH1AOUH36KUAH1AOUH48KUAH1
AHRI number217290592217290593217290594217290595217290596217290597217895716217895717217895718
Heats down to-21 °C-21 °C-21 °C-21 °C-21 °C-21 °C-26 °C-26 °C-26 °C
Rated heating16,000 BTU/h21,600 BTU/h27,000 BTU/h32,000 BTU/h38,000 BTU/h51,000 BTU/h32,000 BTU/h38,000 BTU/h51,000 BTU/h
Rated cooling12,000 BTU/h18,000 BTU/h24,000 BTU/h30,000 BTU/h36,000 BTU/h45,500 BTU/h30,000 BTU/h36,000 BTU/h45,500 BTU/h
SEER219.919.217.71917.61718.818.319
EER21312.211.811.710.69.512.211.411.2
HSPF210.310.510.1109.89.61010.210.2
Indoor sound (min / max)31 / 42 dB(A)33 / 44 dB(A)29 / 42 dB(A)32 / 42 dB(A)31 / 44 dB(A)34 / 49 dB(A)32 / 42 dB(A)31 / 44 dB(A)34 / 49 dB(A)
Outdoor sound49 dB(A)55 dB(A)54 dB(A)55 dB(A)56 dB(A)59 dB(A)–––
Indoor, w×h×d444×1,092×533 mm444×1,092×533 mm444×1,092×533 mm533×1,219×533 mm533×1,219×533 mm533×1,219×533 mm533×1,219×533 mm533×1,219×533 mm533×1,219×533 mm
Outdoor, w×h×d799×632×290 mm799×632×290 mm940×788×320 mm940×998×320 mm940×998×320 mm940×998×320 mm–––
Weight in / out45.8 / 38 kg48.5 / 38 kg49.9 / 52 kg62.1 / 62 kg62.1 / 62 kg62.1 / 71 kg62.1 / – kg62.1 / – kg62.1 / – kg
Max line set / height30 / 15 m30 / 15 m50 / 30 m50 / 30 m50 / 30 m75 / 30 m– / – m– / – m– / – m
Breaker15 A20 A20 A25 A25 A30 A–––
Refrigerant charge1.0 kg1.2 kg1.5 kg2 kg2 kg2.7 kg–––
ENERGY STARENERGY STAR cold climateENERGY STAR cold climateENERGY STAR cold climateENERGY STAR cold climateENERGY STAR cold climateENERGY STAR cold climateENERGY STAR cold climateENERGY STAR cold climateENERGY STAR cold climate
Indicative LogisVert$1,272$1,932$2,184$2,664$3,288$4,464$2,520$3,024$4,080
12 · Did you know

What Fujitsu’s sheets tell.

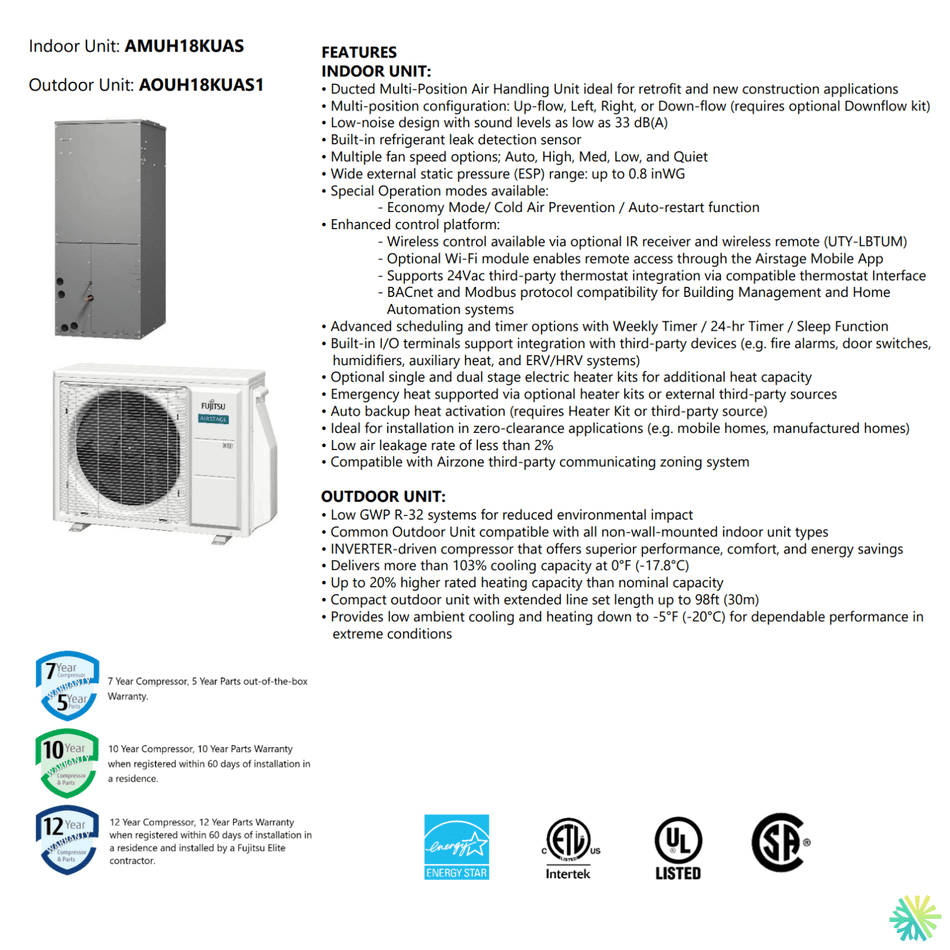

The same FUJITSU outdoor unit can serve several types of non-wall indoor units.

Source: Fujitsu

Fujitsu’s largest back-up kit, 16 kW, gives about 54,600 BTU/h, more than the rated heating output of the 4-ton heat pump.

Source: Fujitsu, U.S. EIA, ENERGY STAR

Fujitsu’s minimum heat mode holds the home at 10 °C to keep it above freezing.

Source: Fujitsu

Moving from R-410A to R-32 cuts the global warming potential from 2,088 to 675.

Source: ENERGY STAR

ENERGY STAR files these systems as "Mini or Multi Split", while Hydro-Québec calls them central split heat pumps.

Source: ENERGY STAR, Hydro-Québec

Fujitsu states an air leakage rate of less than 2% for its 36,000 BTU/h multi-position indoor unit.

Source: Fujitsu

Fujitsu’s R-32 lines carry sky names: Altair, Orion, Aquila and Centauri.

Source: Fujitsu, NASA, IAU
13 · The Fujitsu warranty

Up to 12 years on parts and compressor.

The longest tier needs online registration within 60 days and a Fujitsu Elite contractor. At AirGreen, both are done for you.

12 yearsparts and compressor, on eligible models
Basic warranty5 years parts, 7 years compressor
7 yrs
Registered onlineWithin 60 days
10 yrs
Elite contractor + registeredThe AirGreen tier
12 yrs

In Québec, the basic warranty needs no registration; the 10- and 12-year tiers do. Source: Fujitsu limited warranty statement (R-32).

Online registration, 60 days

We register your unit with Fujitsu, free, on time.

Fujitsu Elite contractor

The condition for the 12-year tier. AirGreen is Elite Plus.

Licensed installer

The warranty requires a licensed contractor. RBQ 5645-9605-01.

Bought online: not covered.

Fujitsu’s text excludes systems bought from an online retailer.

AirGreen × FUJITSU AIRSTAGE

Fujitsu’s central systems, AirGreen’s ducts.

A central system heats the whole house if the ducts can carry it. AirGreen inspects the duct system, picks the series, the size and the back-up, installs and registers the warranty.

FUJITSUAIRSTAGE

What FUJITSU AIRSTAGE brings

  • Two R-32 seriesCentauri and Centauri XLTH.
  • Down to -26 °CWith the Centauri XLTH.
  • ENERGY STAR cold climateAll nine R-32 systems.
  • Up to 12 yearsParts and compressor, on Fujitsu’s conditions.
AirGreen

What AirGreen brings

  • Elite Plus dealerThe highest level of the AIRSTAGE Elite program.
  • Free home estimateWe measure and check the insulation and the location.
  • Warranty registered for youWith Fujitsu, within 60 days.
  • RBQ 5645-9605-01Subclasses 15.8, 15.10 and 16.

The result: a central system of the right size and series for your winter.

14 · Our installations

Recent installations, in photos.

Each article on our blog tells a real installation: the place, the constraint and the solution.

15 · FUJITSU AIRSTAGE dealer – ELITE PLUS

Elite Plus: the highest level of the AIRSTAGE Elite program.

Fujitsu’s Japanese engineering, installed by an Elite Plus team across Montreal, Laval, Longueuil, the North Shore, the South Shore and Montérégie.

Elite Plus partnership

The highest level of the AIRSTAGE Elite program.

Advanced Fujitsu training

Our technicians take the manufacturer’s training on AIRSTAGE systems.

Careful commissioning

Vacuum, refrigerant settings, electrical hookup, set up for winter.

Genuine parts and Fujitsu support

Manufacturer parts and Fujitsu technical support, wherever we install.

1Home estimate

Free. We measure and check the insulation and the location.

2Clear quote

The model, the size and the indicative LogisVert amount, in writing.

3Installation and commissioning

Vacuum, refrigerant, electrical, winter settings.

4Warranty registered

We register the unit with Fujitsu and help you with LogisVert.

16 · Frequently asked questions

What people ask us about Fujitsu central systems.

An inverter outdoor unit connected to a multi-position air handler (AMUH) that delivers heating and cooling to the whole home through the ducts.

17 · See also

Related collections.

AirGreen × FUJITSU AIRSTAGEFree home estimateWarranty registered for youElite Plus dealerMontreal · Laval · Longueuil · South Shore · North Shore

Sources checked on October 8, 2026

33 sources · show
  1. Fujitsu AIRSTAGE, airstagehvac.com/r32/kuas1m
  2. Fujitsu, product or archive page AS-MIRROR
  3. Fujitsu AIRSTAGE, airstagehvac.com/technology/xlth-low-temp-heating
  4. Fujitsu AIRSTAGE, airstagehvac.com/split/featureicon
  5. Fujitsu, brochure FG8161C
  6. Fujitsu, submittal sheet 12KUAS1M
  7. Fujitsu, submittal sheet 18KUAS1M
  8. Fujitsu, submittal sheet 24KUAS1M
  9. Fujitsu, submittal sheet 30KUAS1M
  10. Fujitsu, submittal sheet 36KUAS1M
  11. Fujitsu, submittal sheet 48KUAS1M
  12. Fujitsu AIRSTAGE, document pdf-fcus-h-series-warranty-r32-202606
  13. Fujitsu AIRSTAGE, airstagehvac.com/contractor/elite-contractor-program
  14. Fujitsu, product or archive page LEG-IDX
  15. Fujitsu, product or archive page LEG-RET
  16. Fujitsu, product or archive page LEG-PAGES
  17. ENERGY STAR, certified air-source heat pump list (dataset w7cv-9xjt)
  18. NEEP, cold-climate heat pump list
  19. Hydro-Québec, logisvert guide participation residentiel fr
  20. Hydro-Québec, logisvert energy star heat pumps
  21. Hydro-Québec, LogisVert residential participation guide, version 1.10
  22. Hydro-Québec, rate DT (dual energy)
  23. Government of Québec, quebec adopte un reglement afin deliminer le recours au mazout pour le chauffage residentiel 36186
  24. Government of Canada, closed canada greener homes grant
  25. Government of Canada, climate_normals
  26. U.S. EIA, british thermal units.php
  27. U.S. NIH, NIDCD, noise induced hearing loss
  28. International Astronomical Union, star and constellation names
  29. NASA, nearest_star_info
  30. NASA, proxima centauri b
  31. Trade press, buildings.com
  32. airgreen.ca product sheets, read October 8, 2026
  33. AirGreen, “Nos réalisations” projects blog

Amounts shown are estimates; only Hydro-Québec confirms the grant. Manufacturer data is quoted “according to Fujitsu”.

Price on quote. Every installation is different: we give you a free, detailed quote before any commitment.
The FUJITSU AIRSTAGE shop · Central

Every central system, right below.

Each product sheet gives the AHRI number, the rated capacity and the indicative LogisVert amount.

FUJITSUAIRSTAGE
