Does my wall unit need a kit for a wired controller?

Yes. The Altair 500 and Orion XLTH need the UTY-TWRXZ2 communication kit. For the Orion XLTH+, Fujitsu’s spec sheet lists the UTY-TWRXZ4; we confirm from your model number.

Can I keep my Nest or Honeywell thermostat?

Yes, with the UTY-TTRXZ1 24 V interface. It must be the only control, though: no remote, Wi-Fi adapter or building system at the same time.

Does my unit have built-in Wi-Fi?

The Orion XLTH and Orion XLTH+ wall units do. The Altair 500 uses the UTY-TFSXH4 USB adapter. Cassettes, ducted units and air handlers use the UTY-TFSXJ4.

AIRSTAGE Mobile or FGLair: which app?

Check your adapter’s Wi-Fi network name. If it starts with AP-WH or AP-WJ and ends with E, it’s AIRSTAGE Mobile. Otherwise, it’s FGLair.

Can I control the heat pump by voice?

Yes. FGLair and AIRSTAGE Mobile both work with Amazon Alexa and Google Assistant.

How many people can control the unit in the app?

Up to five accounts per indoor unit in AIRSTAGE Mobile, including the main user.

How many units can one wall controller run?

Up to 16 indoor units with the UTY-RNRUZ6, UTY-RSRYZ1 and UTY-RHRYZ1.

RSRYZ1 or RHRYZ1: what’s the difference?

The RSRYZ1 lets you pick the mode: heat, cool and the rest. The RHRYZ1 doesn’t: occupants only set the temperature, which suits hotels and common areas.

Is the UTY-RNRUZ5 still current?

Fujitsu replaced it with the UTY-RNRUZ6, which adds refrigerant-leak alerts and a sensor-replacement notice.

What’s Fujitsu’s warranty on controls?

Three years for wired controls, including the KAGAMI. Ninety days for wireless controls and Wi-Fi adapters.

Does a Wi-Fi control qualify for a rebate?

No. LogisVert funds the heat pump itself, not controls or thermostats.

FUJITSU AIRSTAGE · COMMANDES · WI-FI · INTERFACESFUJITSU controls at AirGreenAuthorized dealer at the highest level of the AIRSTAGE Elite program.

Elite Plus

Controls and Wi-Fi17 genuine parts

Fujitsu controls · updated October 8, 2026

FUJITSU thermostats and controls: run your heat pump from the wall or your phone.

Fujitsu doesn’t make “thermostats” in the usual sense: these are wall controllers, Wi-Fi adapters and interfaces built for its heat pumps. The right part depends on your indoor unit. Find it below.

Find my control Book my free estimate

3 yearsof Fujitsu warranty on wired controls, KAGAMI included.

5accounts per indoor unit in the AIRSTAGE Mobile app.

24 Vkeep your thermostat, with the UTY-TTRXZ1 interface, if it is the only control.

The right control, for the right unit

Wall controllers, Wi-Fi adapters and interfaces, designed by Fujitsu for its heat pumps.

17controls, adapters and kits in the catalogue

4colours on the KAGAMI ring

3wall controllers replaced by a model with leak alerts

90 daysof Fujitsu warranty on Wi-Fi adapters

AirGreen × FUJITSU AIRSTAGEKAGAMI controllerAIRSTAGE Mobile24 V thermostatR-32 leak alertsGenuine Fujitsu partsElite Plus dealer

01 · What to know

A control is a choice.

Seven facts from Fujitsu’s sheets, pages and warranty. Sources are at the bottom of the page.

Controls

Fujitsu doesn’t make "thermostats" in the usual sense: these are wall controllers, remotes and Wi-Fi adapters built for its heat pumps.

SSID

Your adapter’s Wi-Fi network name tells you the app: AP-WH or AP-WJ ending in E means AIRSTAGE Mobile; otherwise it’s FGLair.

Kit

The Altair 500 and Orion XLTH wall units need a communication kit for any wired controller.

24 V

The UTY-TTRXZ1 interface lets you keep your 24 V thermostat, as long as it’s the only control.

3 years

Fujitsu warrants its wired controls for three years and its Wi-Fi adapters for 90 days.

Successors

Three wall controllers have a successor with refrigerant-leak alerts: RSRY to RSRYZ1, RHRY to RHRYZ1, RNRUZ5 to RNRUZ6.

J-7S

The KAGAMI controller isn’t listed for the J-7S VRF, according to Fujitsu.

02 · Find your control

Pick your unit.

The indoor unit’s model is on its nameplate. Pick its family: you see the controls Fujitsu names for it, and the kit if one is needed.

Find the control for your unit

Item	What it does
UTY-RVRU	Wired wall controller with a colour touch screen and a light ring that changes colour with the mode. It’s set up over Bluetooth with the AIRSTAGE Remo Set app.
UTY-RNRUZ5	Wired wall controller with a backlit touch screen and a weekly schedule. Fujitsu replaced it with the UTY-RNRUZ6, which adds refrigerant-leak alerts.
UTY-RSRYZ1	Simple wall controller that lets you pick the mode, with refrigerant-leak alerts. It replaces the UTY-RSRY.
UTY-RHRYZ1	Simple wall controller where occupants set the temperature without changing the mode. It suits hotels and common areas, and it replaces the UTY-RHRY.
UTY-RSNUM	Simple wall controller for previous-generation Fujitsu units with 3-wire communication.

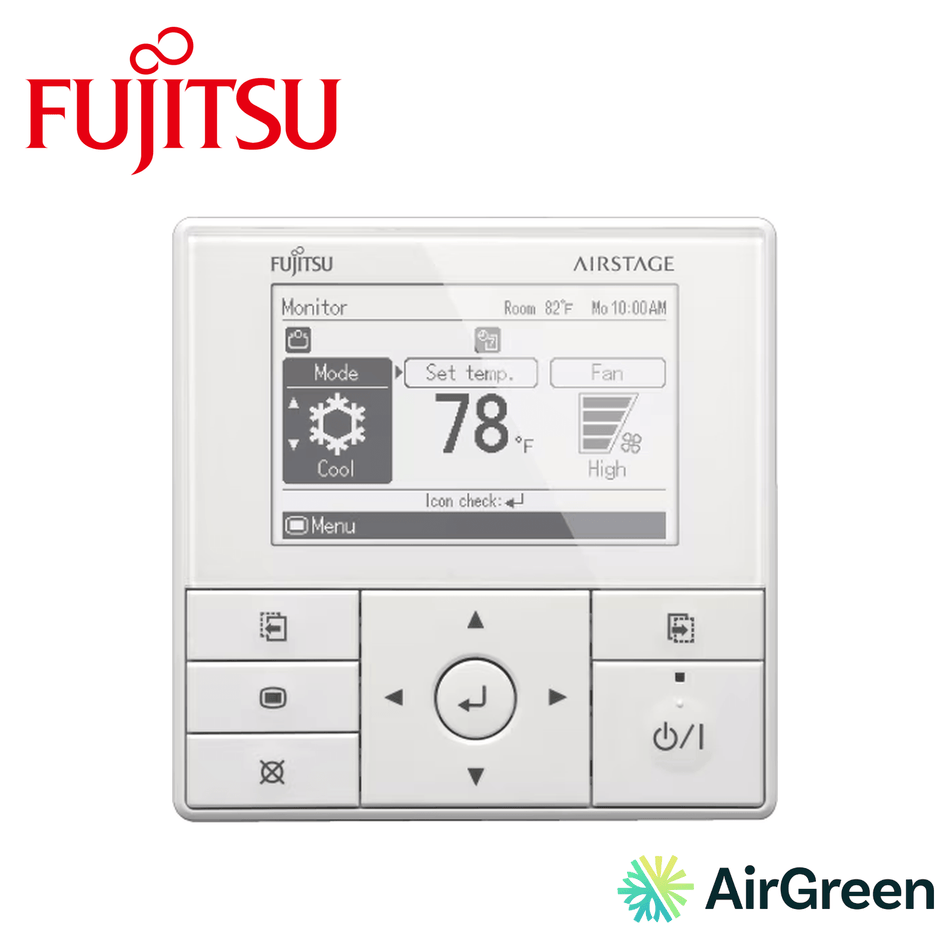

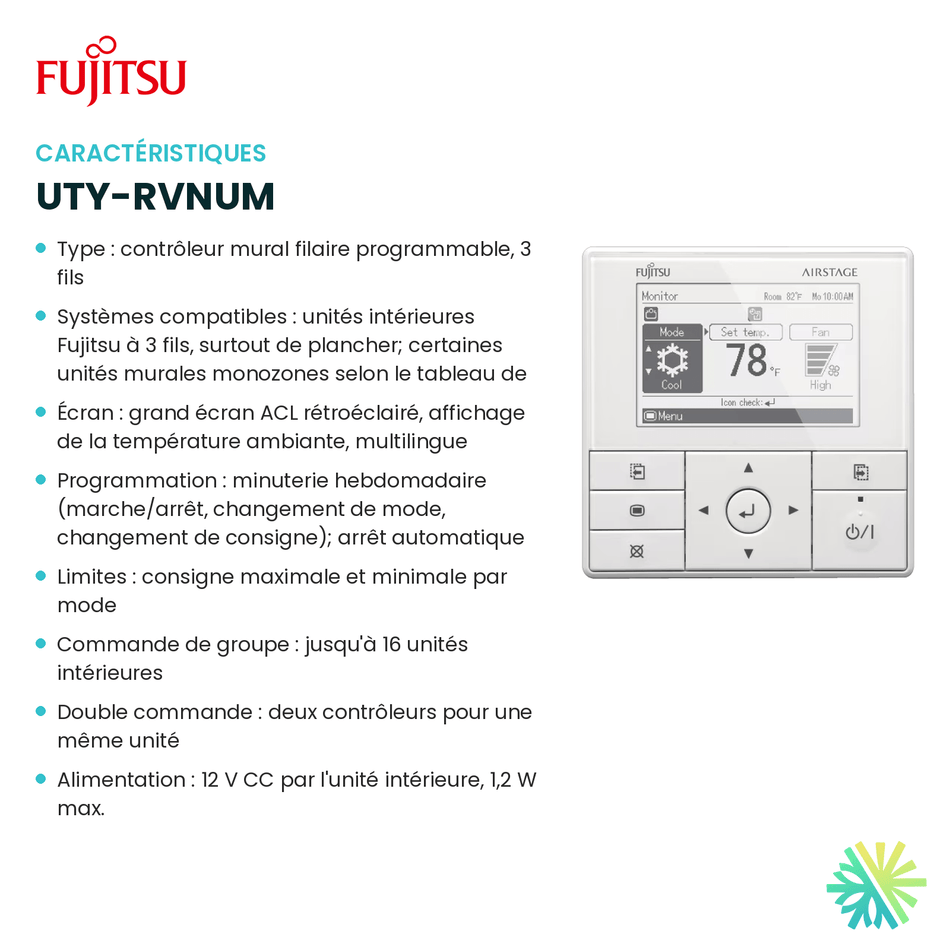

UTY-RVNUM	Programmable wall controller for previous-generation Fujitsu units with 3-wire communication.
UTY-RNBYU	Programmable wall controller for previous-generation Fujitsu units with 3-wire communication.
UTY-TFSXH4	Wi-Fi adapter that plugs into a wall unit’s USB port. You control the unit with the AIRSTAGE Mobile app.
UTY-TFSXJ4	Wi-Fi adapter for Fujitsu cassettes, ducted units and air handlers. You control the unit with the AIRSTAGE Mobile app.

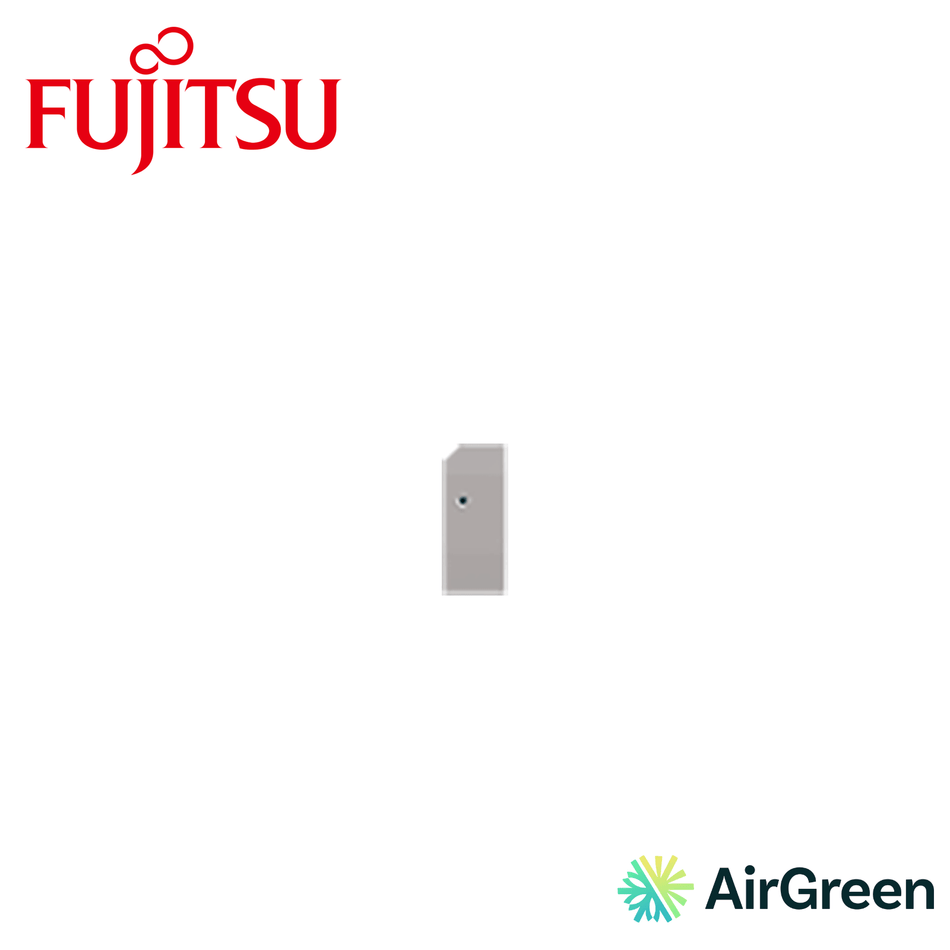

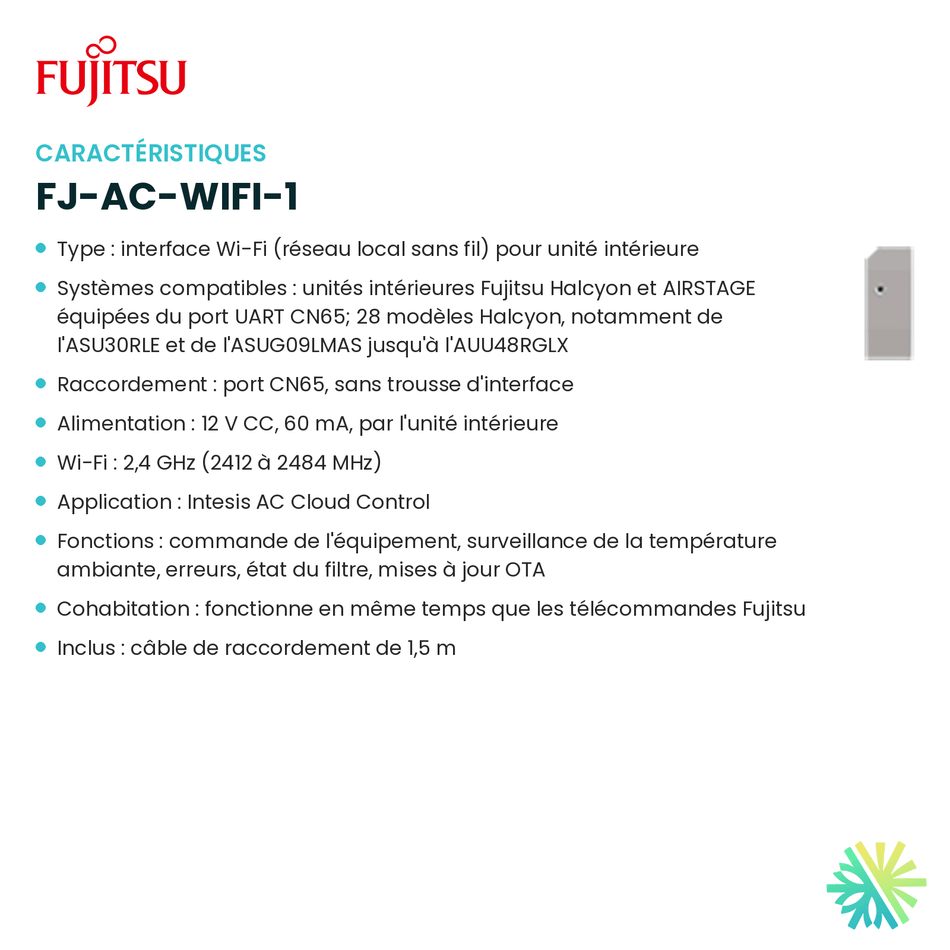

FJ-AC-WIFI-1	Intesis Wi-Fi module wired straight to the indoor unit, so you can run the heat pump from an app.
FJ-IR-WIFI-1NA	Small wall module that talks to the heat pump by infrared, with no wiring into the unit. You control it with the Intesis Home app.

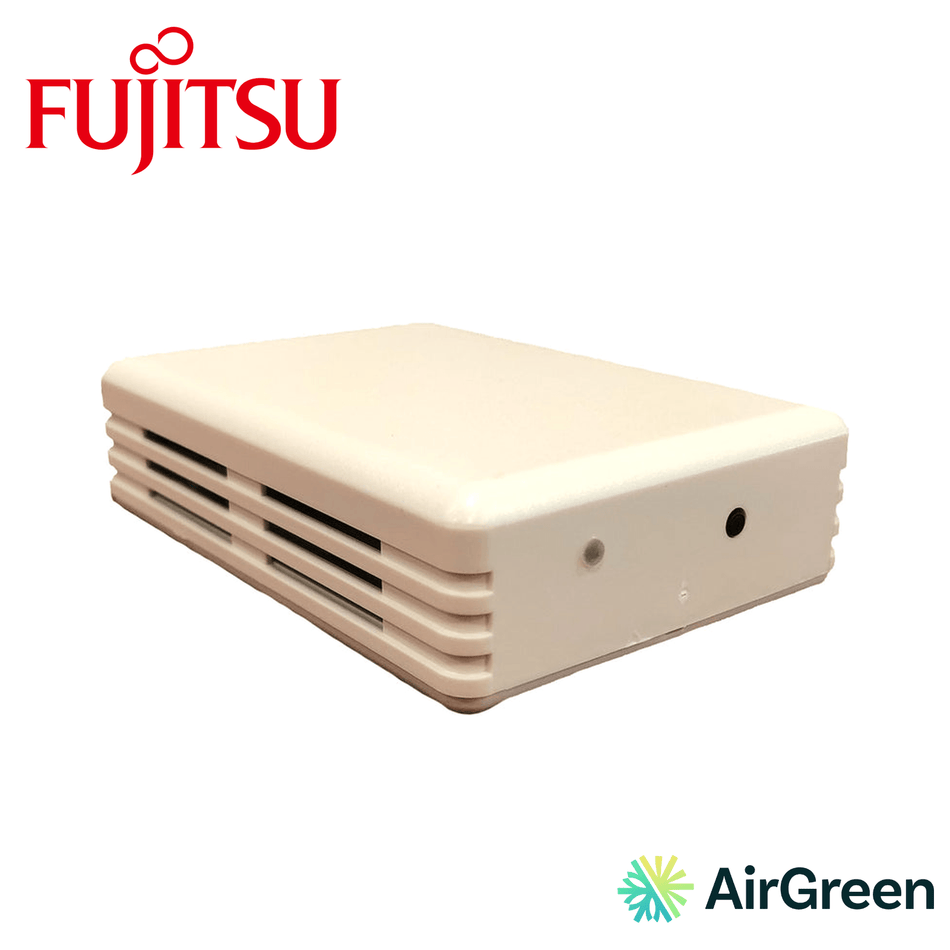

FJ-RC-WIFI-1BT	Intesis Wi-Fi module that connects to the indoor unit’s remote-control port.
UTY-TTRXZ1	Interface that lets your 24 V thermostat, such as a Nest or Honeywell, run a Fujitsu heat pump. It must be the only control on the system.

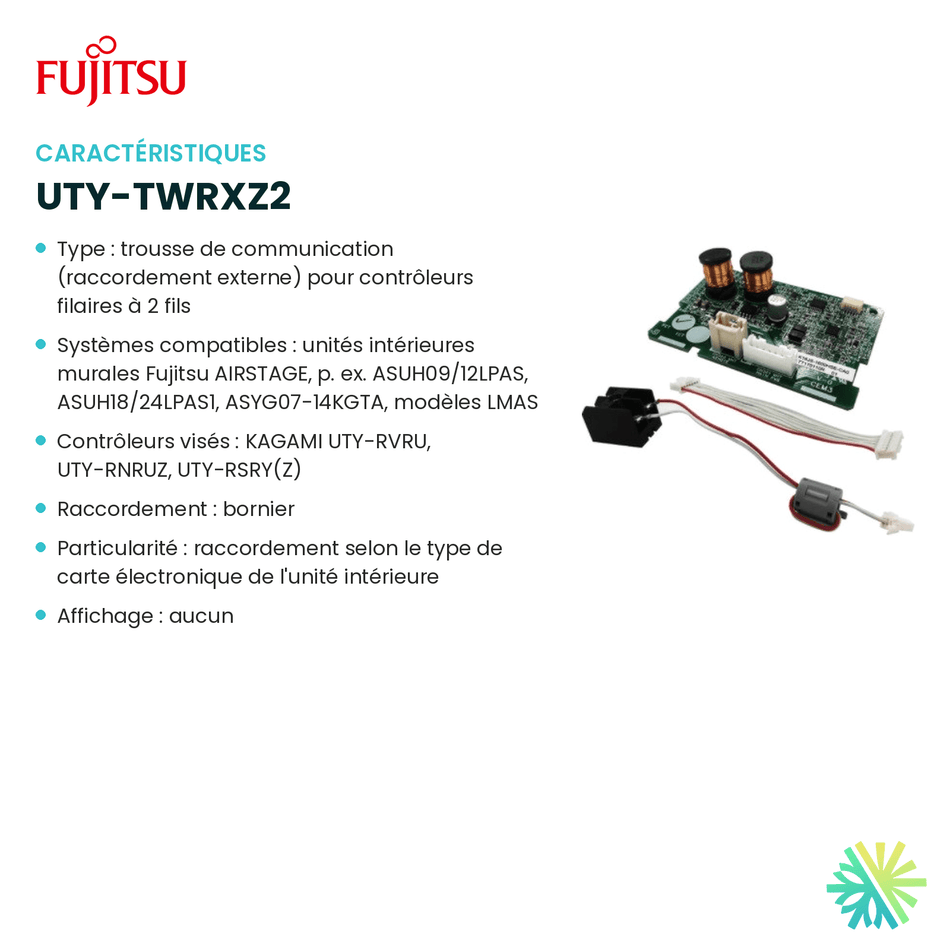

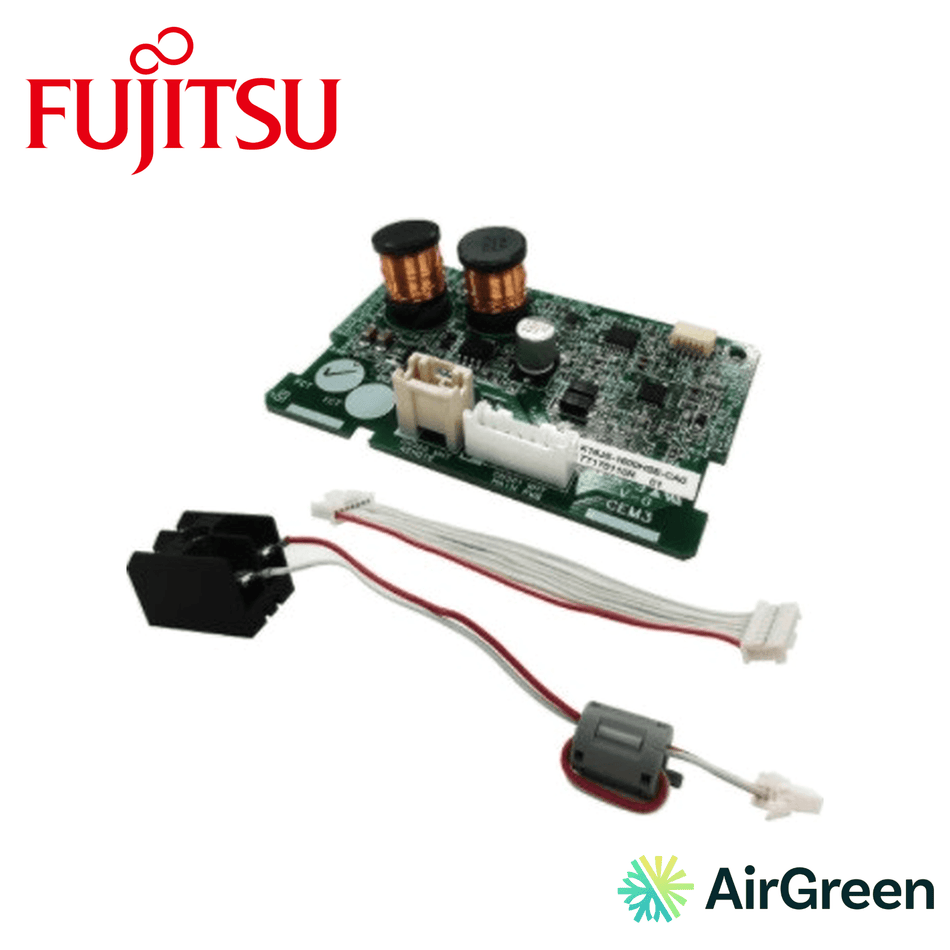

UTY-TWRXZ2	Kit installed in a wall unit so a wired controller can connect to it.
UTY-TWBXF1	Interface kit to connect a wired controller to some previous-generation Fujitsu wall units.

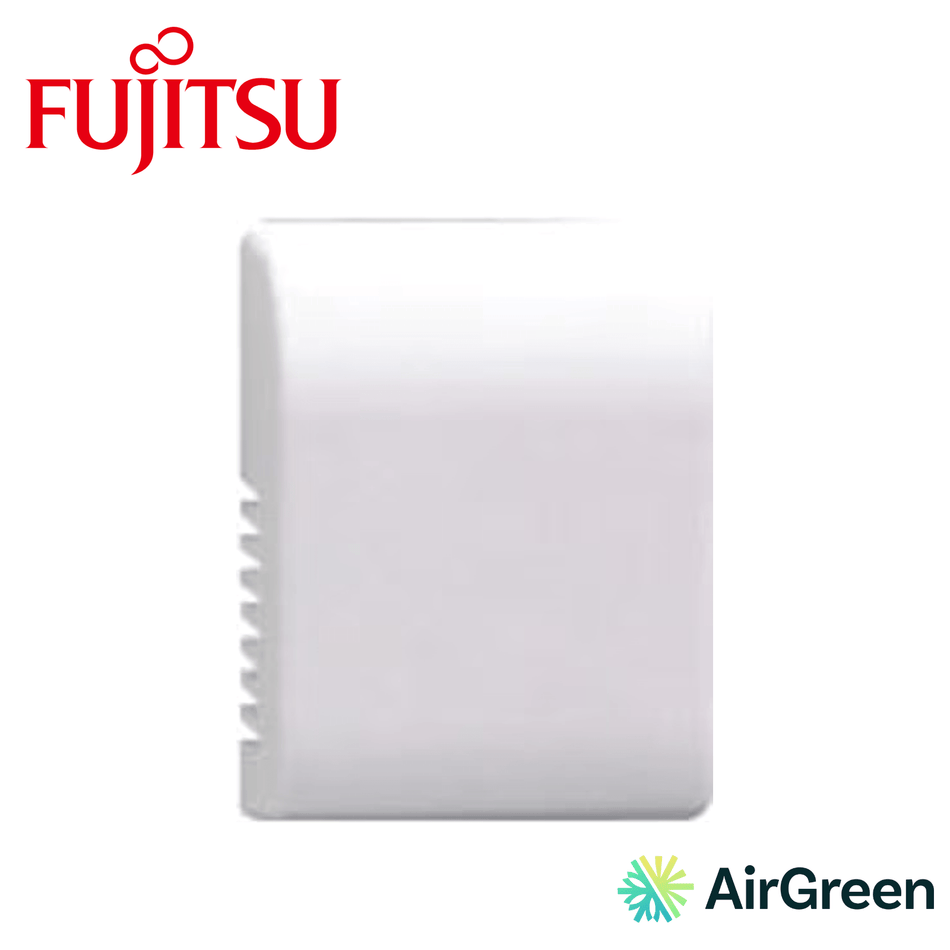

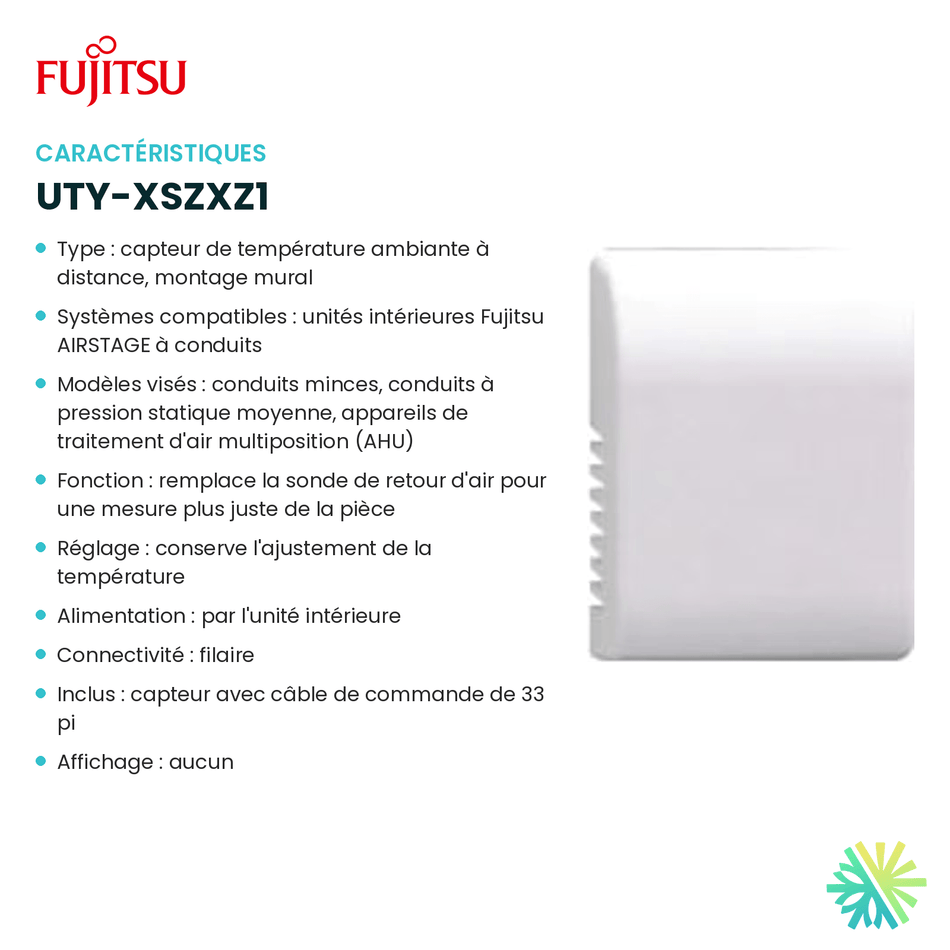

UTY-XSZXZ1	Wall sensor that reads the temperature in the room rather than in the return air of a ducted unit.
UTY-XWZXZ5	Dry contact wire kit: remote on/off, plus run and error signals to another system.

Per Fujitsu’s sheets, unit by unit. A part missing from a list is not necessarily incompatible: Fujitsu just does not name it for that unit.

03 · Which app?

The network name tells you.

Your adapter’s Wi-Fi network name tells you which app to download.

Which app? Look at the adapter’s Wi-Fi network name

The network starts with AP-WH or AP-WJ and ends with E


Your app	AIRSTAGE Mobile
Accounts	5 per indoor unit
Features	Weekly timer, mode, fan speed, groups by building, floor or room
Voice assistants	Amazon Alexa, Google Assistant

UTY-TFSXH4 and UTY-TFSXJ4 adapters, and the built-in Wi-Fi of the Orion XLTH and XLTH+.

Another network name


Your app	FGLair
Voice assistants	Amazon Alexa, Google Assistant

Fujitsu’s rule: any other Fujitsu adapter network name means FGLair.

Intesis IR module


Your app	Intesis Home
Connection	None: it talks to the unit by infrared

FJ-IR-WIFI-1NA module.

KAGAMI controller


Your app	AIRSTAGE Remo Set
What it is for	Setting up and servicing the controller, over Bluetooth
Link	1 phone to 1 controller

It is not an app to run the heat pump remotely.

Good to know: a Wi-Fi adapter does not make the system “ENERGY STAR connected.” No Fujitsu heat-pump ENERGY STAR record read today carries that mention.

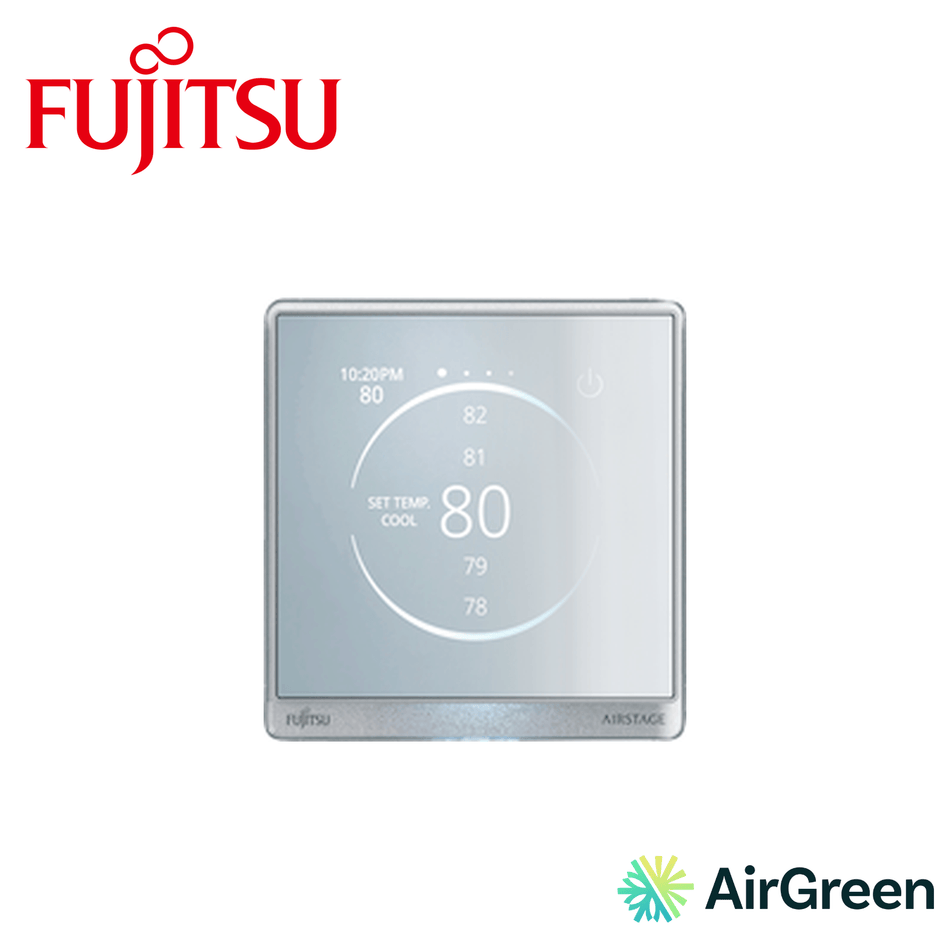

04 · The KAGAMI

Four colours, four modes.

The ring changes colour with the mode

Blue: cooling
Red: heating
Green: dry
Purple: auto

UTY-RVRU wired controller with a colour touch screen, set up over Bluetooth. Fujitsu does not list it for the J-7S VRF.

05 · From remote to building

Five ways to control.

Remote

The wireless remote, or a UTY-LBTUM, UTY-LBTUC or UTY-LNTU receiver depending on the unit.

Wall control

UTY-RHRYZ1, UTY-RSRYZ1, UTY-RNRUZ6 or the KAGAMI UTY-RVRU.

App

UTY-TFSXH4 or UTY-TFSXJ4 adapters, Intesis modules, or built-in Wi-Fi.

Central control

Several units in one building, on one Fujitsu controller.

Building system

Modbus and BACnet gateways. Integration is planned at quote time.

06 · The new models

Three controls, with leak alerts.

With R-32, Fujitsu added refrigerant-leak alerts to its wall controllers.

UTY-RSRY → UTY-RSRYZ1

Adds: refrigerant-leak alerts.

UTY-RHRY → UTY-RHRYZ1

Adds: refrigerant-leak alerts.

UTY-RNRUZ5 → UTY-RNRUZ6

Adds: refrigerant-leak alerts, sensor-replacement notice, emergency heat control, occupancy-sensor setting.

According to Fujitsu. The UTY-RNRUZ5 in our shop is replaced by the UTY-RNRUZ6: we offer the current model at quote time.

07 · Keeping your thermostat

Possible, if it is alone.

UTY-TTRXZ1: according to Fujitsu, this interface “may not be used with any other type of controls”: central controller, wired or wireless remote, Wi-Fi adapter or building interface. The TTRXZ1-KIT includes the interface, a plug and a 24 V transformer.

08 · The parts

The 17 parts, line by line.

Model	Part	Fujitsu warranty	Status
UTY-RVRU	KAGAMI wall controller	3 years	Current
UTY-RNRUZ5	UTY-RNRUZ5 touch wall controller	3 years	Replaced by the UTY-RNRUZ6
UTY-RSRYZ1	UTY-RSRYZ1 simple wall controller	3 years	Current, replaces the UTY-RSRY
UTY-RHRYZ1	UTY-RHRYZ1 simple wall controller, no mode choice	3 years	Current, replaces the UTY-RHRY
UTY-RSNUM	UTY-RSNUM simple wall controller (3-wire)	3 years	Listed by Fujitsu
UTY-RVNUM	UTY-RVNUM programmable wall controller (3-wire)	3 years	Listed by Fujitsu
UTY-RNBYU	UTY-RNBYU programmable wall controller (3-wire)	3 years	Listed by Fujitsu
UTY-TFSXH4	UTY-TFSXH4 Wi-Fi adapter for wall units	90 days	Current
UTY-TFSXJ4	UTY-TFSXJ4 Wi-Fi adapter for non-wall units	90 days	Current
FJ-AC-WIFI-1	Intesis wired Wi-Fi module	to confirm	Current
FJ-IR-WIFI-1NA	Intesis infrared Wi-Fi module	to confirm	Current
FJ-RC-WIFI-1BT	Intesis wired Wi-Fi module	to confirm	Listed by Fujitsu
UTY-TTRXZ1	UTY-TTRXZ1 24 V thermostat interface	90 days	Current
UTY-TWRXZ2	UTY-TWRXZ2 communication kit	90 days	Current
UTY-TWBXF1	UTY-TWBXF1 interface kit	90 days	Listed by Fujitsu
UTY-XSZXZ1	UTY-XSZXZ1 remote temperature sensor	90 days	Current
UTY-XWZXZ5	UTY-XWZXZ5 dry contact kit	90 days	Current

Warranty per Fujitsu’s limited warranty statement. For the Intesis modules, the period is confirmed with the distributor.

09 · Did you know

What Fujitsu’s sheets tell.

The KAGAMI’s light ring changes colour with the mode: blue, red, green or purple.

Source: Fujitsu

Your adapter’s Wi-Fi network name tells you which app to use.

Source: Fujitsu

One wall controller can run up to 16 indoor units.

Source: Fujitsu

The KAGAMI is set up over Bluetooth with the free AIRSTAGE Remo Set app.

Source: Fujitsu

The Orion XLTH and XLTH+ have built-in Wi-Fi: no adapter needed.

Source: Fujitsu

Fujitsu’s newest wall controllers sound an alarm if refrigerant leaks.

Source: Fujitsu

Fujitsu warrants its wired controls for three years.

Source: Fujitsu

10 · The controls warranty

3 years for wired, 90 days for Wi-Fi.

Controls have their own Fujitsu warranty, shorter than the heat pumps’.

3 years: wired controls

Simple remote, wired remote, group remote, central remote and KAGAMI, as named by Fujitsu.

90 days: wireless and accessories

Wi-Fi adapters, IR receiver and external drain pump, as named by Fujitsu.

Intesis modules

Fujitsu stated 2 years in 2016; the current period is confirmed with the distributor.

Installed by AirGreen

We wire it, set it up and show you the app.

AirGreen × FUJITSU AIRSTAGE

Fujitsu’s control, AirGreen’s wiring.

A wired control sometimes needs a kit, a Wi-Fi adapter needs setting up, a 24 V interface rules out other controls. AirGreen picks the right part, wires it and sets it up with you.

What FUJITSU AIRSTAGE brings

The right partBased on your indoor unit.
The kit, if neededOn wall units, for wired controls.
The appSet up with you.
Genuine partsFujitsu-made, Fujitsu-warranted.

What AirGreen brings

Elite Plus dealerThe highest level of the AIRSTAGE Elite program.
Free home estimateWe measure and check the insulation and the location.
Warranty registered for youWith Fujitsu, within 60 days.
RBQ 5645-9605-01Subclasses 15.8, 15.10 and 16.

The result: a heat pump you control the way you want.

Book my free estimate Book my free estimate

11 · FUJITSU AIRSTAGE dealer – ELITE PLUS

Elite Plus: the highest level of the AIRSTAGE Elite program.

Fujitsu’s Japanese engineering, installed by an Elite Plus team across Montreal, Laval, Longueuil, the North Shore, the South Shore and Montérégie.

Elite Plus partnership

The highest level of the AIRSTAGE Elite program.

Advanced Fujitsu training

Our technicians take the manufacturer’s training on AIRSTAGE systems.

Careful commissioning

Vacuum, refrigerant settings, electrical hookup, set up for winter.

Genuine parts and Fujitsu support

Manufacturer parts and Fujitsu technical support, wherever we install.

Our FUJITSU AIRSTAGE page

1Home estimate

Free. We measure and check the insulation and the location.

2Clear quote

The model, the size and the indicative LogisVert amount, in writing.

3Installation and commissioning

Vacuum, refrigerant, electrical, winter settings.

4Warranty registered

We register the unit with Fujitsu and help you with LogisVert.

12 · Frequently asked questions

What people ask us about controls.

Fujitsu makes wall controllers, remotes and Wi-Fi adapters built for its heat pumps. If you want to keep your 24 V thermostat, a Fujitsu interface lets you do that.
