FUJITSU Aquila XLTH R32 Triple Zone Heat Pump | 24,000 BTU | Montreal, Laval, South Shore, North Shore
The Fujitsu Aquila XLTH R32 24 000 multi-zone heat pump heats and cools 3 rooms with a single outdoor unit. it delivers 16,200 BTU/h at −8 °C, heats down to −26 °C and qualifies for a $1,944 LogisVert grant. Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.
3 rooms, one outdoor unit.
Compared with the 59 multi-zone systems of 24,000 BTU we sell. Every number on this page carries its source.
Before the numbers, watch it run.
Turn rooms on and off. Watch the power being shared.
One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.
Tell us your rooms. We tell you if this size is enough.
Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.
The whole series at a glance: find the box that fits you.
Each box is a product: the outdoor unit’s size, and the number of heads.
At −15 °C, it still delivers 105 % of its rated capacity.
Tap a temperature: certified capacity, efficiency and the cost of one hour of heating.
It slows down, it speeds up: the certified modulation range
Light bar: from minimum to maximum capacity. Dark mark: the rated value.
At every temperature, cheaper than baseboards.
Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.
The official ratings, on the same scales as before.
SEER2, HSPF2 and EER2 come from the AHRI certification. The mark shows the median of the same-size multi-zone systems we sell.
A grant you can calculate, not guess.
The capacity at −8 °C comes from Hydro-Québec’s list of October 1, 2026. $120 per 1,000 BTU/h is the rate for ENERGY STAR cold-climate heat pumps (guide v1.10).
Where it ranks among same-size multi-zone systems.
Compared with the 59 multi-zone systems of 24,000 BTU we sell, using the LogisVert list figures. Weaknesses too, said plainly.
Against three other brands in its class.
Same rated size, other manufacturers. Pick the opponent.
One multi-zone or several wall units? Both sides, honestly.
We compare both options on your floor plan during the estimate.
What to know before installing a multi-zone system.
Dimensions, wiring and lines, drawn. Then our six steps.
The outdoor unit, dimensioned
One circuit for the whole house
Published sound levels, on one scale.
We use the outdoor figure to choose where the unit goes.
What is particular about this machine.
Only facts published by ENERGY STAR, NEEP or the manufacturer.
Every number, and where it comes from.
Each line carries its source; a line with no published value is not shown.
The manufacturer’s documentation, as PDF.
Everything we have written about this system.
A multisplit solution designed for the comfort of each room
At AirGreen, we offer the FUJITSU Aquila XLTH R32 TripleZone heat pump to provide an optimized level of comfort in three distinct spaces. With a total capacity of 24,000 BTUs , this system is designed to serve a wide range of needs, from a multi-story single-family home to a large condo. By relying on INVERTER technology and R-32 refrigerant gas, this equipment ensures a significant reduction in energy consumption while respecting the environment. In addition, the TripleZone design ensures an adjusted temperature setting for each zone to satisfy individual preferences, thus avoiding the disadvantages of a single centralized heat pump.
The AirGreen team offers its expertise to homeowners living in Montreal , Laval , Longueuil , the North Shore and the South Shore , to provide HVAC (heating, ventilation and air conditioning) installation without compromising on quality. Our professionals analyze the layout of each home or business premises to determine the ideal positioning of the indoor units. We take into account key factors such as insulation, room distribution and the volume of air to be treated. The interventions are carried out with specialized equipment, in compliance with current safety standards, while ensuring to reduce inconvenience for occupants during installation.
Reliable performance despite the Quebec climate
The FUJITSU Aquila XLTH R32 TripleZone heat pump stands out for its ability to maintain a stable heating level down to -26°C . This feature is crucial, especially in the Montreal and North Shore regions, where winters can be harsh. To maintain reliability in low temperatures, the unit is equipped with a protection system including a heating element in the drain pan (base pan heater). This prevents ice buildup and ensures continuous, uninterrupted operation. Data from our customer feedback confirms that even in intense cold, the indoor temperature remains pleasant.
The ENERGY STAR® (Cold Climate) designation confirms this equipment's ability to deliver high performance in challenging climate conditions. Its coefficient of performance (HSPF2) of 11.5 (in wall-mounted configuration) illustrates energy efficiency in heating mode. Homeowners thus benefit from significant savings on their electricity bills, compared to older or less efficient systems. At AirGreen, we also take care to optimize the installation to maintain smooth air circulation and quiet operation, often measured around 52 dB(A) for the outdoor unit.

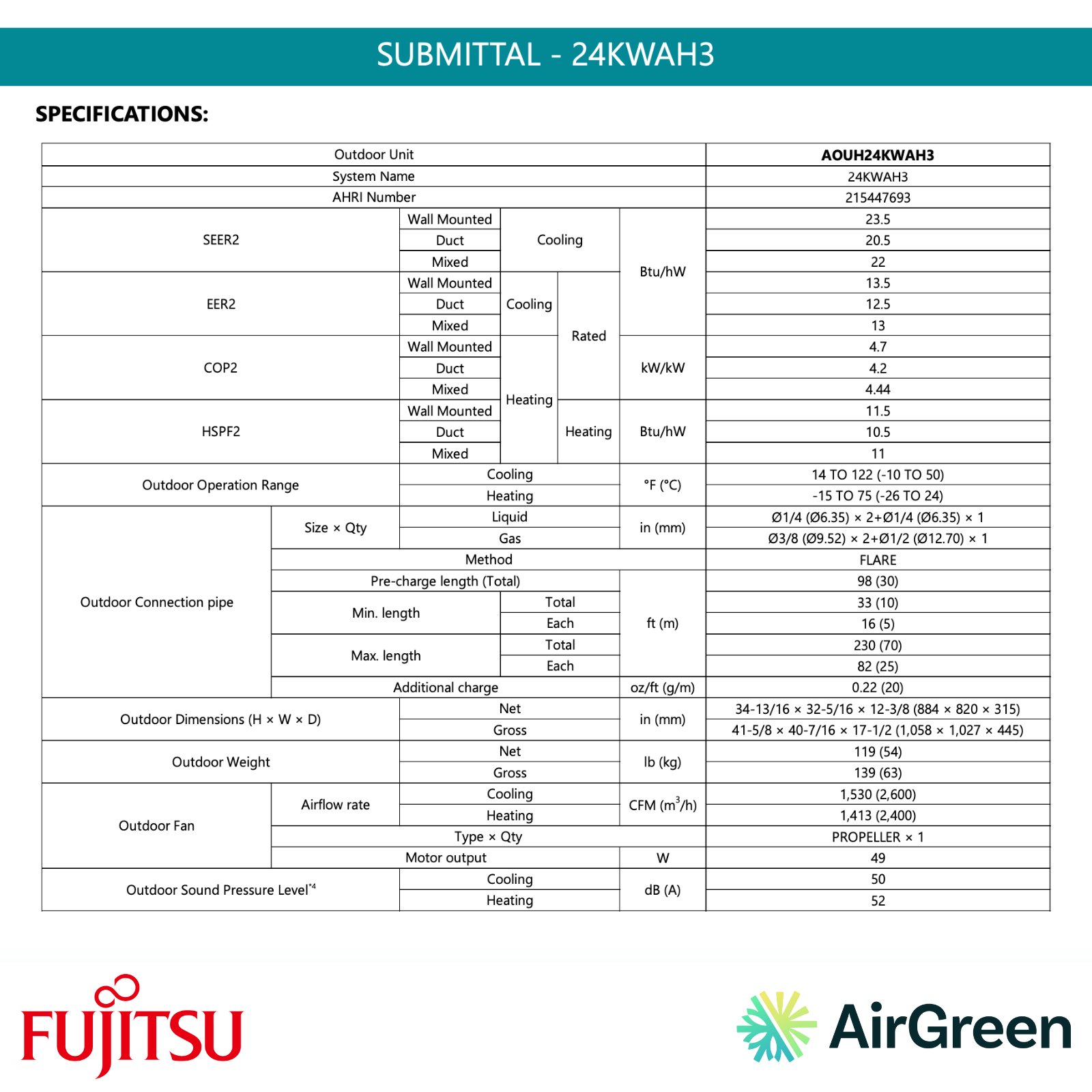

Technical specifications of the FUJITSU Aquila XLTH R32 TripleZone
-
Connectable up to 130% of nominal capacity: possibility of configuring multiple indoor units to meet varying needs.
-
R-32 gas : low environmental impact and better energy efficiency than traditional refrigerants.
-
Total capacity: 24,000 BTU : simultaneously manages three separate zones (three wall units, mini-duct, compact cassette or a mixture as needed).
-
SEER2: 23.5 (wall-mounted version): guarantees low energy consumption in air conditioning mode.
-
HSPF2: 11.5 (wall-mounted): excellent energy efficiency in heating mode.
-
EER2: 13.5 (wall): reflects the ratio between the power supplied in air conditioning and the energy consumed.
-
INVERTER compressor : adjusts operating speed according to demand, ensuring greater comfort precision and energy savings.
-
Heating down to -26°C : suitable for Quebec winter conditions.
-
Low noise levels : approximately 50 to 52 dB(A) for the outdoor unit, depending on the configuration.
-
Compact exterior dimensions (32.31 x 12.38 x 34.81 in): easily integrates into various residential or commercial environments.
HVAC installation: AirGreen expertise at your service
Our team has extensive experience in HVAC installation . Based on feedback from projects in Montreal , Boucherville , Laval , and the South Shore , we have developed processes to ensure the reliability and longevity of each heat pump. Before any project, we conduct a 100% free on-site estimate to provide you with a customized solution. Our technicians evaluate, among other things:
-
Room layout : to determine the ideal location for each indoor unit of the heat pump.
-
Insulation and orientation : to confirm the winter performance of the equipment and to avoid heat loss.
-
Thermal load : calculated to verify that the FUJITSU Aquila XLTH R32 TripleZone Heat Pump adequately meets needs, even during peaks of heat or cold.
-
Routing of refrigerant pipes : to ensure the best possible integration into your home, reducing the risk of leaks or pressure losses.
We then proceed to install the outdoor unit, often positioned on a stable base or on wall brackets, depending on the available space. The three indoor units are connected in strict accordance with the Fujitsu manufacturer's recommendations (reference AOUH24KWAH3 ). The connections are checked and tested, then a leak test is carried out before commissioning. Finally, we explain to the owners how the remote control works, the maintenance instructions and the ideal temperature ranges for air conditioning and heating.
Case study: successful installation in Longueuil
Recently, a duplex owner in Longueuil was looking for a system capable of efficiently cooling and heating three zones: the living room, the master bedroom, and the finished basement. Harsh winters were straining his old heat pump, and his electricity bill was constantly rising. After an analysis, our team installed the FUJITSU Aquila XLTH R32 TripleZone heat pump and three indoor wall units. Thanks to the high SEER2 and the stability of the inverter compressor, this owner reduced his energy bill by approximately 20% during the first heating season compared to his old system. Furthermore, outside noise was kept to a minimum, creating a comfortable and peaceful indoor environment.
Maintenance tips and best practices
-
Check and clean the internal filters : Clean filters ensure smooth air circulation and prevent coil clogging.
-
Schedule regular HVAC maintenance : At AirGreen, we offer service contracts that include refrigerant pressure testing, early leak detection, and coil cleaning.
-
Monitor the outdoor unit : Clear the area around the unit to prevent debris buildup or excessive frost formation in winter.
-
Avoid moving or handling refrigerant lines yourself : work must be carried out by a qualified technician with a refrigeration license.
These preventative actions extend the life of the FUJITSU Aquila XLTH R32 TripleZone heat pump and maintain high efficiency year-round.
Concrete benefits for residents of the region
-
Improved indoor comfort : three separate units allow you to set the ideal temperature in each space.
-
Energy saving : the high HSPF2 and INVERTER technology help limit electricity consumption, especially in winter.
-
Added value to the property : installing a high-performance heat pump provides real added value when reselling a house or condo.
-
Compressor protection : Integrated devices (protection circuit, fan motor protection) ensure increased reliability, a point appreciated in the demanding climate of Montreal and its surroundings.
Warranty and after-sales service
FUJITSU equipment is backed by a 10-year warranty on the compressor and a 10-year warranty on parts . A labor warranty can be added (10-10-10) for complete peace of mind. At AirGreen, we do not require a deposit before the work is completed and always provide you with a clear final offer to avoid unpleasant surprises. This approach guarantees a relationship of trust and transparency with our customers.
We also ensure that the heat pump operates according to factory specifications by conducting performance tests. Once installation is complete, we remain available to answer questions, manage after-sales service, and schedule maintenance visits. If an adjustment or repair is necessary, our teams will quickly respond to resolve the issue.
Grants and funding
In Quebec, there are several assistance and financing programs that encourage the adoption of energy-efficient equipment. The Provincial Grant (LogisVert) , listed at $1,944 for this model (updated: May 1, 2025), can represent an interesting aid to reduce the cost of purchase and installation. Thanks to our in-depth knowledge of these programs, we support owners in their efforts, whether on the South Shore or the North Shore . We thus facilitate the obtaining of subsidies and financing solutions at preferential rates to make the investment more affordable.
Testimonial from a satisfied customer in Laval
A couple who owned a house in Laval had a specific goal: to properly heat a large basement while avoiding overheating the main floor. Installing a TripleZone heat pump allowed them to independently control the temperature in their three living spaces. According to them, the energy savings achieved in the first year quickly validated their decision. One of the units, located in a room converted into an office, remained comfortable throughout the winter, creating a pleasant workspace.
AirGreen know-how
Our company has been present on the Quebec market for several years. We have developed a reliable methodology for the installation, maintenance and troubleshooting of HVAC systems. We handle each project with rigor:
-
Free and precise assessment of thermal needs.
-
Targeted recommendations for choosing the required power, the appropriate configuration and the optimal location.
-
Professional installation carried out by certified technicians trained in FUJITSU specifications.
-
Responsive after-sales service , with rapid interventions in the event of a malfunction.
Our showroom in Boucherville (South Shore) is available to showcase various heat pump and air conditioning options. We promote transparent customer service and an approach based on long-term satisfaction. Residents of Montreal and the North Shore can also schedule an appointment at our Montreal office for an on-site evaluation.
Conclusion
The FUJITSU Aquila XLTH R32 | 24,000 BTU TripleZone heat pump is a solid solution for optimizing indoor comfort across three distinct zones. Its performance in cold weather, compact design and energy-efficient operation make this model a highly relevant choice for the Montreal , Laval , Longueuil , North Shore and South Shore regions. The AirGreen team, with extensive experience in HVAC installation , remains the ideal partner for implementing and maintaining this type of system.
For more information or a complete estimate for your project, contact AirGreen today . Our specialists will guide you from preliminary analysis to commissioning, ensuring optimal comfort throughout all seasons.
What people ask us about multi-zone systems.
Can I heat one room and cool another at the same time?
No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.
What happens when every room calls for heat?
They share the outdoor unit’s capacity: 16,200 BTU/h at −8 °C, 25,200 at −15 °C.
How many heads can I connect?
Up to 3 on this outdoor unit. This product is configured for 3 heads.
Can I mix head sizes?
Yes. The “Zones” menu offers 11 combinations, from 7+7+7 to 9+9+12 (in thousands of BTU). Each head is sized for its room.
How much is the LogisVert grant?
$1,944 according to Hydro-Québec’s list of October 1, 2026. The grant never exceeds 100 % of the cost before taxes; apply within 9 months of installation.
Is it ENERGY STAR certified?
Yes, cold climate, ID 3627398. It also meets the ENERGY STAR Most Efficient criteria, according to the ENERGY STAR database.
Down to what temperature does it heat?
Down to −26 °C.
Is it noisy?
Indoors, the reference head goes down to 19 dB(A). Outdoors, 52 dB(A): we place the unit away from bedroom windows.
Why a multi-zone instead of several wall units?
One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.
What does the warranty cover?
Our sheet lists 12 years on the compressor and 12 years on parts; labour is not included by the manufacturer. AirGreen extended warranty: possible.
A multi-zone system is planned room by room. At your home.
We measure every room, draw the line route and choose the right head for each zone. The on-site estimate is free and the quote arrives within 24 h.
