FUJITSU Aquila XLTH R32 2-Zone Heat Pump | 24,000 BTU | Montreal, Laval, South Shore, North Shore
The Fujitsu Aquila XLTH R32 24 000 multi-zone heat pump heats and cools 2 rooms with a single outdoor unit. it delivers 16,200 BTU/h at −8 °C, heats down to −26 °C and qualifies for a $1,944 LogisVert grant. Installed by AirGreen in Montréal, Laval, Longueuil, the North Shore and the South Shore.
2 rooms, one outdoor unit.
Compared with the 59 multi-zone systems of 24,000 BTU we sell. Every number on this page carries its source.
Before the numbers, watch it run.
Turn rooms on and off. Watch the power being shared.
One outdoor unit supplies every head: when several rooms call at once, they share its capacity. Pick an outdoor temperature.
Tell us your rooms. We tell you if this size is enough.
Pick the number of rooms and their size. The estimate targets a −15 °C day; it is a guide, the real calculation is done room by room at your home.
The whole series at a glance: find the box that fits you.
Each box is a product: the outdoor unit’s size, and the number of heads.
At −15 °C, it still delivers 105 % of its rated capacity.
Tap a temperature: certified capacity, efficiency and the cost of one hour of heating.
It slows down, it speeds up: the certified modulation range
Light bar: from minimum to maximum capacity. Dark mark: the rated value.
At every temperature, cheaper than baseboards.
Cost of one hour at full output, for the same heat delivered. Hydro-Québec Rate D, second tier: 11.142 ¢/kWh.
The official ratings, on the same scales as before.
SEER2, HSPF2 and EER2 come from the AHRI certification. The mark shows the median of the same-size multi-zone systems we sell.
A grant you can calculate, not guess.
The capacity at −8 °C comes from Hydro-Québec’s list of October 1, 2026. $120 per 1,000 BTU/h is the rate for ENERGY STAR cold-climate heat pumps (guide v1.10).
Where it ranks among same-size multi-zone systems.
Compared with the 59 multi-zone systems of 24,000 BTU we sell, using the LogisVert list figures. Weaknesses too, said plainly.
Against three other brands in its class.
Same rated size, other manufacturers. Pick the opponent.
One multi-zone or several wall units? Both sides, honestly.
We compare both options on your floor plan during the estimate.
What to know before installing a multi-zone system.
Dimensions, wiring and lines, drawn. Then our six steps.
The outdoor unit, dimensioned
One circuit for the whole house
Published sound levels, on one scale.
We use the outdoor figure to choose where the unit goes.
What is particular about this machine.
Only facts published by ENERGY STAR, NEEP or the manufacturer.
Every number, and where it comes from.
Each line carries its source; a line with no published value is not shown.
The manufacturer’s documentation, as PDF.
Everything we have written about this system.
A dual-zone solution designed for the Quebec climate and demanding residential needs
In an environment where winters are harsh and summers are increasingly hot, the FUJITSU Aquila XLTH R32 | 24,000 BTU 2-Zone heat pump is positioned as an essential solution for homeowners concerned about their comfort, their energy consumption and the sustainability of their HVAC heating and air conditioning system. At AirGreen, we have successfully installed it in several residences in Montreal , Laval , on the South Shore and the North Shore , and our customers' feedback confirms what the technical specifications announce: performance, reliability and efficiency.
AOUH24KWAH3 outdoor unit: the technological heart of a high-performance system
The FUJITSU Aquila XLTH R32 heat pump is equipped with the AOUH24KWAH3 outdoor unit, designed to support up to three indoor zones, while maintaining optimal performance in extreme conditions. Thanks to its INVERTER technology compressor and low GWP R-32 refrigerant gas , it offers excellent energy efficiency while reducing its environmental footprint.
Key features of the outdoor unit:
-
Cooling capacity: 24,000 BTU
-
Efficient heating capacity down to -26°C
-
SEER2: 23.5 | HSPF2: 11.5 | EER2: 13.5
-
Exterior noise level: 52 dB(A)
-
Blue Fin technology for increased corrosion resistance
-
Current limit function to adapt to the electrical constraints of the building
-
Built-in pan warmer to prevent ice formation in winter
-
Maximum conduit length: 70 meters
Thanks to these advantages, the heat pump works even during periods of extreme cold, an imperative for owners in Greater Montreal .
Flexible combinations for distinct comfort zones
The versatility of this 2-zone heat pump allows for custom configuration depending on the rooms to be served. Possible combinations include pairs of wall-mounted units from 7,000 to 18,000 BTU , such as:
-
9,000 + 9,000 BTU
-
12,000 + 12,000 BTU
-
7,000 + 15,000 BTU
-
9,000 + 15,000 BTU
These configurations allow independent temperature control in each zone, promoting personalized comfort and significant energy savings.
Professional installation by AirGreen: the assurance of optimal performance
At AirGreen, each installation is preceded by a free on-site assessment , which allows us to:
-
Identify the actual heating/air conditioning needs for each zone
-
Optimize HVAC system sizing
-
Choosing the right locations for wall units to avoid efficiency losses
-
Prepare the refrigeration ducts and the electrical supply according to RBQ standards
We recently installed this model in a single-family home in Boucherville , where the clients wanted to air condition their master bedroom and living room. Thanks to our expertise, the system was installed in one day, without any inconvenience, and the clients now enjoy consistent comfort all year round.
A heat pump eligible for the LogisVert subsidy
This model is ENERGY STAR® certified , including for cold climates. This makes the FUJITSU Aquila XLTH R32 heat pump eligible for the $1,944 provincial LogisVert grant (updated May 1, 2025), which significantly reduces the initial investment. Our teams can assist you with all the administrative procedures to maximize your grants .
Advantages of R-32 refrigerant: performance and ecology
The R-32 gas used in this heat pump is known for its reduced global warming potential (GWP) compared to R-410A. It allows:
-
Better energy efficiency
-
Reduced refrigerant load
-
Less environmental impact in the event of a leak
It is a forward-looking choice, in compliance with the new environmental standards for residential HVAC in Quebec .

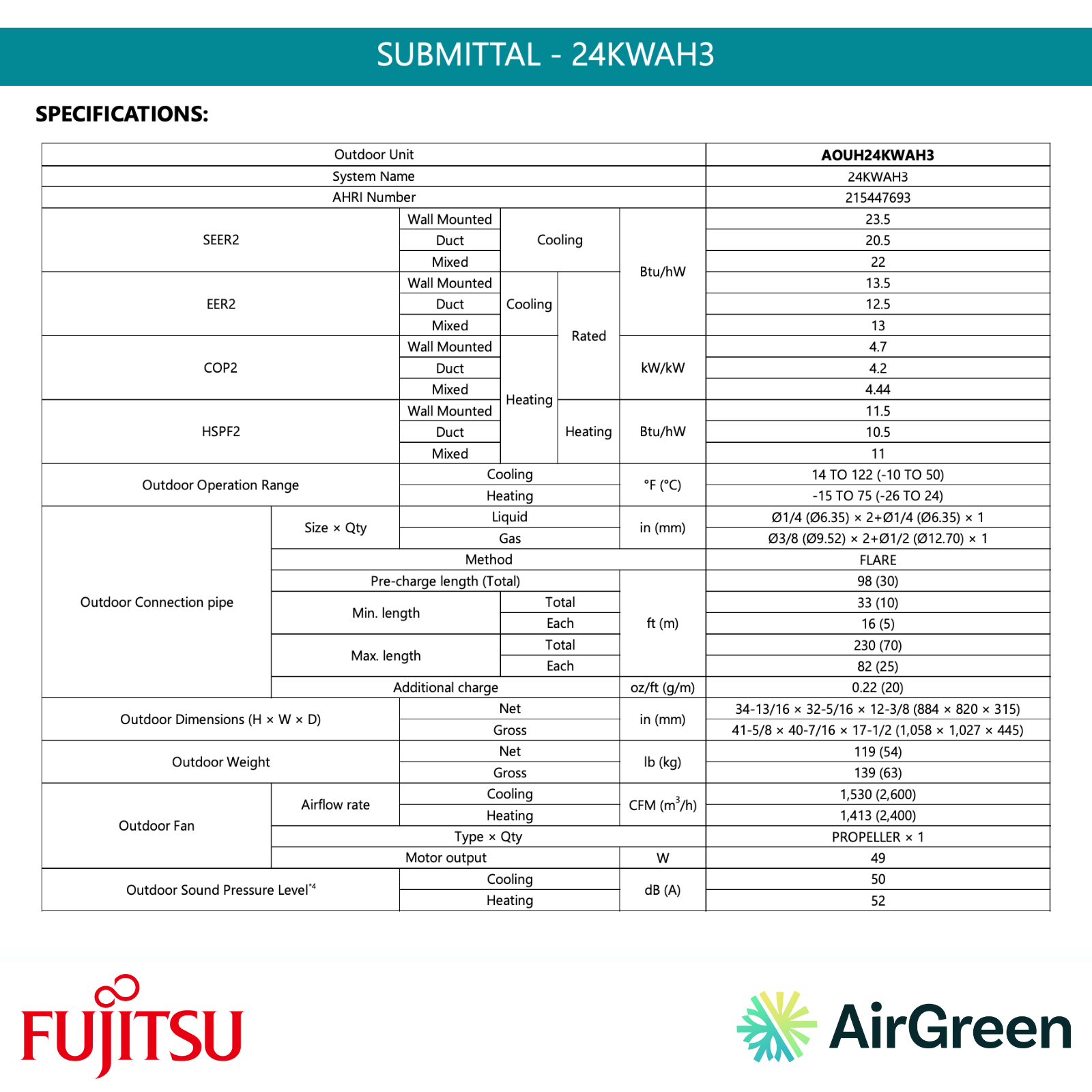

Technical characteristics to remember
| Key specifications | Values |
|---|---|
| Exterior model | AOUH24KWAH3 |
| Voltage / Power Supply | 220V / 1 Phase / 60Hz |
| Refrigerant | R-32 |
| Certifications | ENERGY STAR®, ENERGY STAR Cold Climate |
| Dimensions (L x W x H) | 32.31" x 12.38" x 34.81" |
| Weight | 54 kg (net) / 63 kg (gross) |
| External sound pressure | 52 dB(A) |
| Maximum number of zones | 3 zones (currently used in duplicate) |
| Heating operating range | Up to -26°C |
Warranty, Wi-Fi and long-term comfort
The system is backed by a 10-year warranty on the compressor and parts , with the option to add a full 10-10-10 warranty extension (including labor). The Wi-Fi module is available as an option , ideal for customers who want to control their system via a mobile app.
This flexibility makes all the difference for those who want to integrate their HVAC system into a smart home .
Why choose AirGreen for your FUJITSU heat pump?
Our customers from Longueuil , Laval or Repentigny trust us for the following reasons:
-
No deposit required : you only pay upon completion, once the work is completed to your complete satisfaction.
-
Certified and experienced technicians : our refrigeration engineers are used to handling complex multi-zone installations.
-
Transparent quote : we provide a final price before the work begins, with no surprises.
-
Fast and local after-sales service : our teams are present in Montreal and on the South Shore to respond to all requests quickly.
Customer testimonial – Sainte-Thérèse
“The AirGreen team installed a FUJITSU 2-Zone for our ground floor and upstairs. Even in -20°C this winter, we had stable and quiet heat. The installation was quick and clean. A truly professional service.”
Things to Avoid: Common Mistakes When Installing Multi-Zones
-
Choosing oversized or mismatched indoor units
-
Failure to provide access for future cleaning of wall units
-
Install without accurate thermal assessment
-
Ignore refrigerant pipe length constraints
This is why calling on HVAC experts like AirGreen is essential to ensure the sustainability of your system.
Conclusion: An ideal two-zone solution for Quebec winters
The FUJITSU Aquila XLTH R32 | 24,000 BTU 2-Zone heat pump is the ideal choice for those looking for reliable performance, high energy efficiency, and perfect adaptation to Quebec's climate. At AirGreen , we put our expertise and professionalism at the service of your comfort.
Call us today for a free on-site quote or to discuss your HVAC installation project in Montreal , Laval , on the North Shore or the South Shore .
What people ask us about multi-zone systems.
Can I heat one room and cool another at the same time?
No. On a multi-zone system like this one, every head works in the same mode, heating or cooling. Each room still keeps its own set temperature.
What happens when every room calls for heat?
They share the outdoor unit’s capacity: 16,200 BTU/h at −8 °C, 25,200 at −15 °C.
How many heads can I connect?
Up to 3 on this outdoor unit. This product is configured for 2 heads.
Can I mix head sizes?
Yes. The “Zones” menu offers 13 combinations, from 7+7 to 15+15 (in thousands of BTU). Each head is sized for its room.
How much is the LogisVert grant?
$1,944 according to Hydro-Québec’s list of October 1, 2026. The grant never exceeds 100 % of the cost before taxes; apply within 9 months of installation.
Is it ENERGY STAR certified?
Yes, cold climate, ID 3627398. It also meets the ENERGY STAR Most Efficient criteria, according to the ENERGY STAR database.
Down to what temperature does it heat?
Down to −26 °C.
Is it noisy?
Indoors, the reference head goes down to 19 dB(A). Outdoors, 52 dB(A): we place the unit away from bedroom windows.
Why a multi-zone instead of several wall units?
One outdoor unit on the wall and one circuit. In return, the rooms share the capacity, and if the outdoor unit stops, every zone stops.
What does the warranty cover?
Our sheet lists 12 years on the compressor and 12 years on parts; labour is not included by the manufacturer. AirGreen extended warranty: possible.
A multi-zone system is planned room by room. At your home.
We measure every room, draw the line route and choose the right head for each zone. The on-site estimate is free and the quote arrives within 24 h.
