Three comfort zones brought together around a single Fujitsu heat pump adapted to the realities of a Quebec home
At Saint-Bernard-de-Michaudville, we completed an installation that perfectly illustrates the benefits of a Fujitsu AIRSTAGE Aquila XLTH triple-zone heat pump when a residence has several spaces with different heating and cooling needs.
The principle seems simple at first glance: a single outdoor unit serves three indoor units. The installation itself requires much greater precision. Each zone must receive the appropriate capacity, the refrigerant lines must be properly planned, drainage must be reliable, and the placement of the wall-mounted units must promote good air circulation without interfering with the layout of the rooms.

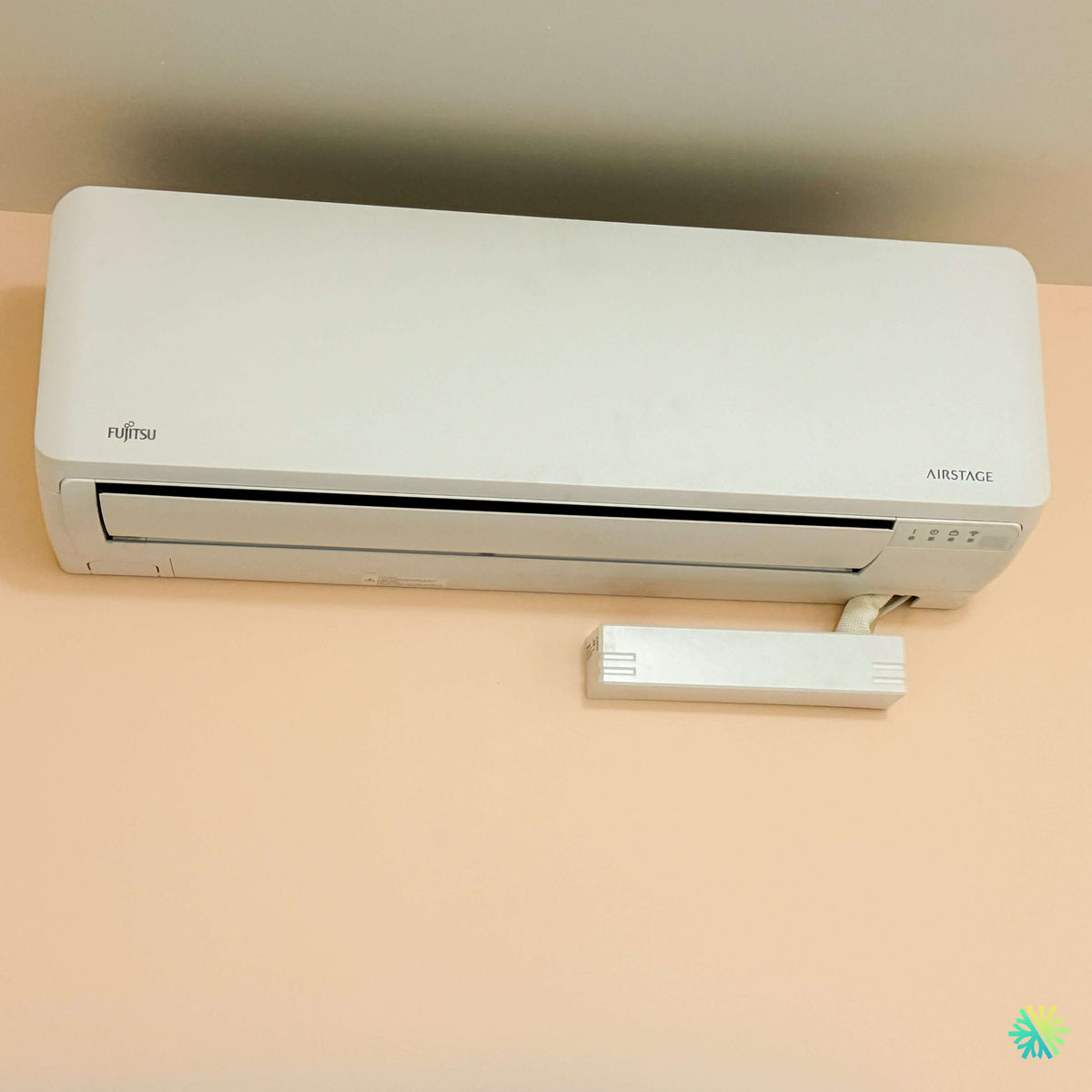

The photo taken inside this residence shows one of the Fujitsu AIRSTAGE wall-mounted units installed as part of this project. Its position near the ceiling frees up living space while promoting efficient air distribution. We also completed a clean finish for the connection routing, with a short line set cover positioned immediately below the unit rather than leaving the piping or wiring exposed.
It is precisely these details that turn the installation of an HVAC unit into a truly integrated building project.
Why choose a triple-zone heat pump instead of three separate systems?
In a home with several bedrooms, a main living area, and sometimes levels with different exposures, the temperature is almost never uniform.
A room that receives a great deal of sunlight may require more cooling in the afternoon. A bedroom that is more isolated from the rest of the house may need less heating. A large common area may, on its own, represent a significantly greater heat load than the other rooms.
With this Fujitsu triple-zone heat pump, we can condition three separate spaces with three indoor units while using a single outdoor unit.
The Fujitsu technical documentation for the AIRSTAGE H Series Aquila range specifically provides this flexibility. Depending on the selected outdoor unit, Fujitsu allows the use of several types of indoor units: wall-mounted models, Slim Duct, compact cassettes, and Mid Static Duct units. The range includes, among others, 18,000, 24,000, 36,000, and 45,000 BTU/h outdoor units that can serve varying numbers of indoor units, respectively.
For a three-zone configuration, the documentation shows, among others, the AOUH24KWAS3 / AOUH24KWAH3 outdoor unit, designed to accommodate up to three indoor units. Higher-capacity outdoor units can also be configured with three units when room loads warrant it.
In other words, “triple zone” describes the number of zones served, but does not by itself determine the system’s capacity.
The visible detail in the photo: a discreet and functional indoor installation
The Fujitsu wall-mounted unit photographed in Saint-Bernard-de-Michaudville is installed very close to the ceiling, with sufficient clearance to allow the appliance to operate and provide access for future HVAC maintenance.
The choice of this location serves several purposes.
First, a wall-mounted unit must be able to project air far enough into the room. An installation that is too low or behind a large piece of furniture can hinder air circulation and create areas where the temperature remains less uniform.
Next, we must consider the routing of the refrigerant piping and the condensate drain. A wall-mounted air conditioner or heat pump produces water in cooling mode. This water must be drained reliably.
Finally, the visual aspect remains important. In this installation, the small section of white line-hide visible beneath the right side of the unit groups the connections together and provides a clean finish on the interior wall.
We always seek this balance: technical performance, accessibility, and aesthetic integration.
Fujitsu AIRSTAGE Aquila: the flexibility of multi-zone systems
One of the strengths of an Aquila system is the ability to combine multiple indoor unit capacities according to the building’s needs.
Fujitsu tables include, among others, wall-mounted units of:
- 7,000 BTU/h;
- 9,000 BTU/h;
- 12,000 BTU/h;
- 15,000 BTU/h;
- 18,000 BTU/h;
- 24,000 BTU/h.
These capacities can be combined in different ways, within the limits permitted by the selected outdoor unit.
This is a particularly useful feature in a three-zone installation. We do not have to install three units with the same capacity simply because they are connected to the same heat pump.
For example, a large open-plan area may require a larger unit than a bedroom. Two bedrooms may also require different capacities if their floor areas, windows, or insulation are not comparable.
Beware of a common mistake: simply adding up the BTUs
Multi-zone systems require a more careful reading of capacity.
Fujitsu documentation indicates that the connected capacity ratio of a multi-zone outdoor unit can reach 130% for permitted combinations. However, it specifies an essential point: exceeding 100% connected capacity does not increase the actual capacity produced by the outdoor unit.
Consider the principle of an installation where the three indoor units have a combined nominal BTU rating greater than that of the outdoor unit. This may be a combination permitted by Fujitsu, but it does not mean that the outdoor heat pump suddenly produces the combined maximum output of all three units when they all demand their full capacity simultaneously.
The system distributes the available capacity.
This is an important nuance when a homeowner compares several multi-zone heat pumps. You should not simply look at the number listed on each indoor unit and add them together. The outdoor unit's capacity, design conditions, and permitted combination must also be verified.
Fujitsu also states in its own tables that they should not be used alone to select system capacity and recommends using its Design Simulator tool to select equipment for AIRSTAGE H Series systems.
Three remote controls, three temperatures, but one shared operating mode
Each Fujitsu indoor unit can be adjusted independently using its controller.
In practice, this allows, for example:
- to set a bedroom to 20 °C;
- to maintain a second zone at 21 °C;
- to request 22 °C in the main living area;
- to reduce the use of a room when it is less occupied.
However, there is one fundamental point that must be clearly explained to the homeowner before purchase: the system can heat or cool, but it cannot heat one zone while another simultaneously requires cooling. Fujitsu states this explicitly for its multi-zone systems.
Setpoints may vary from room to room, but the overall mode must remain compatible among the units connected to the same outdoor unit.
For a Quebec residence, this limitation is rarely a major issue in the middle of winter or summer, since most zones then require the same mode. Nevertheless, it should be understood before choosing a multi-zone system.
The technical decisions that really matter for a three-zone installation in Saint-Bernard-de-Michaudville
Sizing must begin with the rooms, not the catalog
When a homeowner asks us how many BTUs are needed, floor area is only a starting point.
We also consider:
the building's insulation, windows, solar orientation, ceilings, the number of exterior walls, room layout, floors, openings between zones, and the actual use of each space.
A 150-square-foot bedroom located in the center of a well-insulated home may have a very different load from a bedroom of the same size with several exterior walls.
For a multi-zone HVAC installation, sizing errors can also multiply. An oversized head in each of the three rooms does not necessarily produce better results. On the contrary, a properly selected system must be able to modulate and operate steadily.
Inverter technology is particularly valuable in a multi-zone installation
Fujitsu indicates that the Aquila series uses an inverter-driven compressor, in other words, an Inverter compressor.
In a three-zone home, this technology has very practical value.
Needs are constantly changing. One zone reaches its setpoint while another continues to call for heat. In the morning, certain rooms may require more capacity. A few hours later, sunlight may reduce or reverse the heating load in another zone.
A variable-speed compressor can adjust its operation according to demand instead of operating solely according to a full-power/on-off logic.
When the system is properly selected and installed, this modulation helps maintain a more consistent temperature and limit unnecessary cycling.
Cold-weather performance: an essential criterion in Quebec
Fujitsu documentation associated with the Aquila and Aquila CTEB systems mentions cold-climate heating solutions that can operate down to -26 °C, with CTEB units specifically indicated for heating down to that temperature.
In Saint-Bernard-de-Michaudville, this feature is much more relevant than simple summer cooling capacity.
A heat pump installed in Quebec must be evaluated based on its performance when the temperature actually drops. However, it is important not to confuse:
Minimum operating temperature
It indicates the lowest outdoor temperature at which the unit is designed to operate.
Available capacity in extreme cold
A heat pump does not necessarily deliver its full rated capacity at all temperatures.
Building heating requirement
As the outdoor temperature drops, the building's heat loss increases.
Our work therefore consists of bringing these three elements together rather than choosing the unit solely based on the advertised minimum temperature.
Integrated protections and a design focused on longevity
Fujitsu also identifies several technical features integrated into this family of systems, including protections designed to protect:
- the circuits;
- the fan motor;
- the compressor.
The manufacturer also mentions a heat exchanger with treated fins to improve corrosion resistance and coil durability.
These features obviously do not eliminate the need for maintenance. A Fujitsu wall-mounted heat pump must have clean filters, good airflow, and a clear outdoor heat exchanger.
We also recommend never allowing vegetation, leaves, snow, or other obstacles to block the outdoor unit.
A clean indoor installation also makes future maintenance easier.
The visible aesthetics shown in the photo from Saint-Bernard-de-Michaudville also have a practical dimension.
A well-organized installation makes it easier to identify the piping routes, maintain access to the unit, and avoid unnecessary modifications during future maintenance or repairs.
For each indoor unit, we specifically check:
- its location in relation to the room;
- air circulation;
- the stability of the wall mounting;
- the refrigerant circuit;
- drainage;
- the finish of the line-set cover;
- communication with the outdoor unit;
- response to commands;
- damper operation;
- consistency with the other zones in the system.
A multi-zone installation should never be treated as three independent systems assembled quickly. Every component is part of a single refrigeration system.
Why we like this configuration for certain homes
A Fujitsu AIRSTAGE Aquila XLTH triple-zone heat pump is particularly well suited to certain projects where homeowners want to control multiple rooms without installing three outdoor units around the house.
A single outdoor unit can reduce visual clutter, free up space around the building, and concentrate outdoor maintenance in one location.
Indoors, each zone retains its own wall-mounted unit and its own temperature setting.
This can be especially relevant in:
- a multilevel home;
- a residence with bedrooms far from the main living area;
- a property without a central duct network;
- an addition;
- a renovation where installing ductwork would be too intrusive;
- a building requiring more precise room-by-room control.
However, the best solution is not always a multi-zone system. In some projects in Montreal, Laval, Longueuil, the North Shore, and the South Shore, several single-split systems may offer other advantages. In other cases, a central heat pump makes more sense.
That is precisely why we assess the building’s configuration before recommending equipment.
This Saint-Bernard-de-Michaudville project perfectly reflects our approach at AirGreen.
This installation is based on several decisions that are not immediately visible when simply looking at the Fujitsu wall-mounted unit in the photo.
Behind this finished result are the selection of a triple-zone system, sizing the different spaces, positioning the indoor units, routing the lines, drainage, connections, and commissioning the entire system.
This consistency is what matters.
An excellent heat pump that is improperly sized or installed will not deliver the expected results. Conversely, thoughtful design makes it possible to take much better advantage of the benefits of the Fujitsu AIRSTAGE Aquila XLTH: individual zoning, Inverter modulation, flexible indoor unit capacities, and heating adapted to cold conditions according to the selected configuration.
For homeowners looking for a heat pump installation in Saint-Bernard-de-Michaudville, or comparing Fujitsu systems in Montreal, Laval, Longueuil, the North Shore, or the South Shore, we therefore recommend looking beyond the number of BTUs and the equipment price.
The actual result depends on how the system is designed for the home where it will be installed.
