Installation of a Fujitsu AIRSTAGE Aquila XLTH triple-zone heat pump in Upton, Montérégie

A Fujitsu triple-zone installation designed to heat three spaces with a single outdoor unit

At Upton, in Montérégie, our AirGreen team completed an installation that particularly well illustrates the value of a multizone heat pump when a home contains several spaces with different comfort needs. The project involved installing a Fujitsu AIRSTAGE Aquila XLTH triple-zone heat pump, with a single outdoor unit supplying three distinct indoor zones.

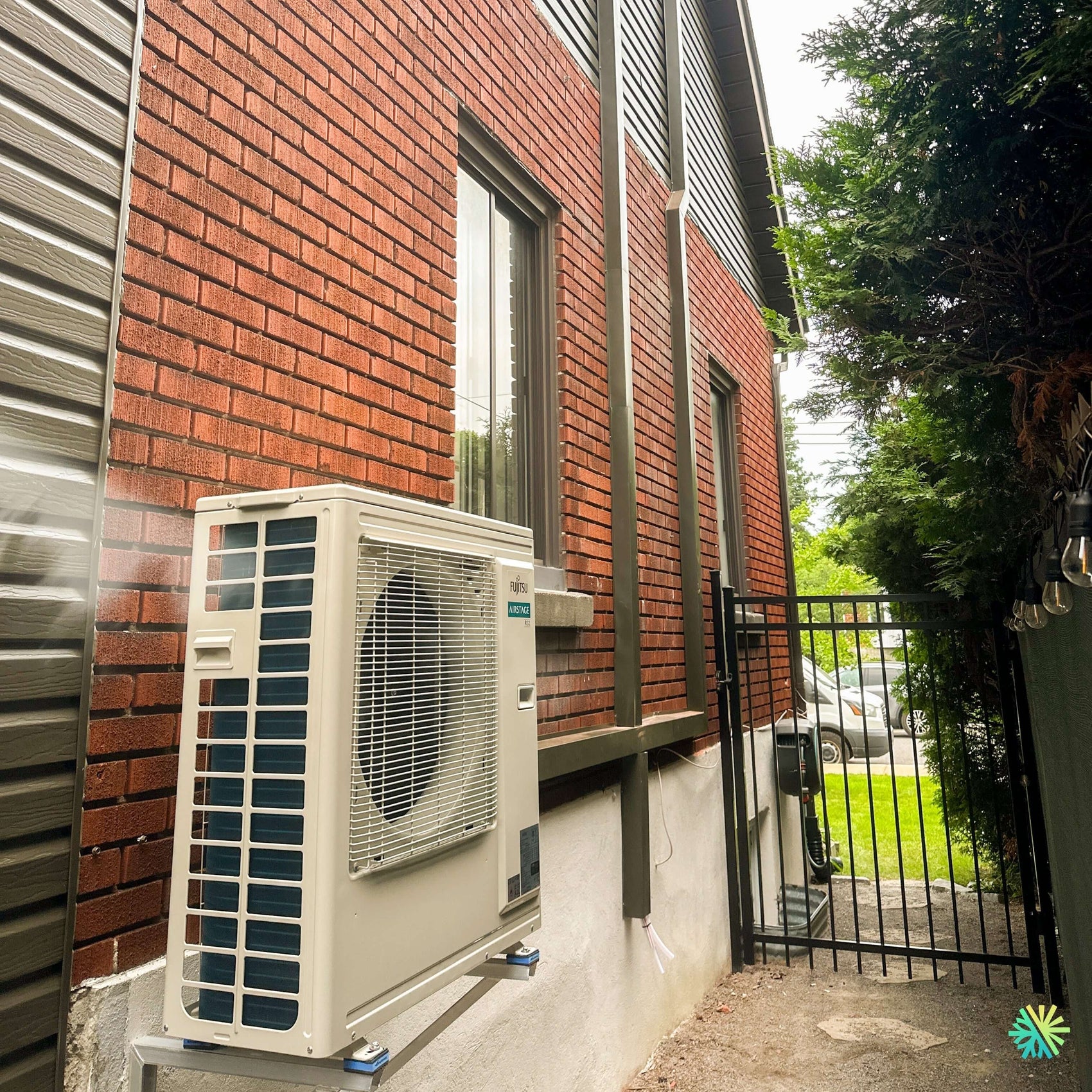

In the photo of this installation, one element immediately stands out: the outdoor integration is extremely compact. The Fujitsu unit is installed on a metal wall bracket, along the brick wall, in a relatively narrow passage between the house and the property’s side boundary. The refrigerant lines and connections are grouped inside a vertical line-set cover, avoiding several exposed lines running across the façade.

This type of configuration requires more than simply selecting equipment. In a triple-zone system, we must consider the outdoor unit’s capacity, the needs of each room, line-set lengths, indoor unit locations, condensate drainage, and future accessibility for HVAC maintenance simultaneously.

Why a triple-zone heat pump made sense in Upton

A home is almost never thermally uniform. A bedroom exposed to the sun, an open living area, an upper floor, and a room on the shaded side of the house may have very different needs at the same time.

This is precisely where the Fujitsu multizone concept becomes interesting.

According to the Fujitsu technical documentation provided for the AIRSTAGE H Series Aquila range, a single outdoor unit can power multiple indoor units. The range includes outdoor units that can connect up to two, three, four, or five indoor units, depending on the model selected. For a three-zone application, Fujitsu offers an outdoor configuration designed to accommodate up to three indoor units.

The principle is particularly well suited to a home where we want to:

• control several spaces individually;
• avoid installing three separate outdoor units;
• reduce clutter around the building;
• adjust the temperature according to the actual use of the rooms;
• maintain a cleaner, more structured outdoor installation.

In the Upton project, the last point was particularly important because the space available beside the residence was limited.

An outdoor unit installed in a narrow passage without sacrificing accessibility

The project photograph clearly shows the physical constraint encountered on site. The side façade combines a brick wall, windows, a downspout, a fence, and vegetation, while leaving a relatively narrow passageway.

Installing a heat pump directly on the ground would have taken up more of this useful space. We therefore chose an installation on a sturdy wall bracket, secured at foundation level.

This arrangement offers several practical advantages in the Quebec context.

Keep the outdoor unit above ground

A heat pump used for heating must continue operating when outdoor conditions become difficult. Properly raising the unit helps, among other things, prevent snow accumulation around the base from unnecessarily interfering with its operation.

The clearance underneath also facilitates the drainage of water produced during defrost cycles.

For this installation, we used anti-vibration components between the unit and its metal support. This detail is subtle in a photo but important in our daily work: an outdoor unit mounted to a structure must be installed carefully to limit the transmission of vibrations to the building.

Keep the passage clear

The unit remains close to the building rather than unnecessarily encroaching on the side passage. On a property where every centimetre counts, choosing the right support makes a real difference.

We regularly encounter this issue during our heat pump installations in Montréal, Laval, Longueuil, on the North Shore and the South Shore: narrow driveways, closely spaced houses, access to the shed, passages to the backyard, or shared spaces. Upton presents a situation different from very densely populated urban neighbourhoods, but the principle remains the same: the heat pump’s location must be determined based on the building, not simply according to the easiest place for the installer.

A clean exterior finish thanks to the line-hide cover

Another detail visible in the photo is worth highlighting: the connections are not left exposed along the brick wall.

We grouped the lines in a vertical outdoor line-hide cover whose color blends discreetly with the immediate surroundings. The lines rise neatly toward the zones they serve rather than forming a scattered collection of pipes across the façade.

In a triple-zone installation, this step becomes particularly important. It is no longer a single connection between an indoor unit and an outdoor unit. Multiple circuits must be properly planned, routed, and identified.

Poor planning can result in unnecessarily long runs, oversized line-hide covers, poorly placed wall penetrations, or a disappointing visual finish.

At AirGreen, we therefore plan the piping route at the same time as the equipment locations.

What the Fujitsu AIRSTAGE Aquila series brings to a multi-zone installation in Quebec

Fujitsu’s H Aquila series documentation emphasizes individual zoning: each indoor unit can be controlled independently using its remote control. The system provides heating and cooling, but not both modes simultaneously across different zones.

This distinction is important.

Three independent zones do not mean three completely separate systems

In a triple-zone heat pump, users can adjust the temperature in each room. However, the indoor units share the same outdoor unit.

It is therefore important to distinguish individual zone control from the operation of three completely independent heat pumps.

For example, a bedroom may require less heating than a living area. The settings can be different. However, one zone should not intentionally be used for cooling while the others are simultaneously calling for heat.

This is a detail we explain to homeowners because it affects how to use a multi-zone system optimally.

Inverter compressor technology

Fujitsu also states that these systems use an inverter-driven compressor, commonly known as inverter technology.

Unlike strictly on-off operation, modulation allows the system to adapt its operation to the varying demands of different zones.

In a three-zone installation, this feature is particularly relevant. The three rooms do not necessarily reach their set temperatures at the same time, and their heating and cooling loads change throughout the day.

A range designed for cold-weather heating

For the CTEB versions presented in Fujitsu’s documentation, the manufacturer specifies heating operation down to -26 °C (-15 °F) and cooling operation up to 50 °C (122 °F).

This low-temperature operating capacity explains why cold-climate heat pumps have become particularly relevant in Quebec.

Nevertheless, it is important to distinguish the minimum operating temperature from the capacity actually available at a given temperature. To properly select a system, we never rely solely on the BTU figure listed in the product name.

Selecting a triple-zone system does not consist of adding three BTU figures together

This is probably one of the most important technical points of this project.

Fujitsu’s documentation includes detailed tables of permitted combinations of outdoor and indoor units with different capacities. For the series presented, the available indoor units include nominal capacities of 7,000, 9,000, 12,000, 15,000, 18,000, and 24,000 BTU/h, depending on the unit type. Fujitsu also offers various indoor formats: wall-mounted units, Slim Duct, compact cassettes, and Mid Static Duct.

However, Fujitsu explicitly states that these combination tables must not be used to select the system capacity. The manufacturer recommends its Design Simulator software for selecting AIRSTAGE H Series equipment.

This is an essential distinction for a homeowner comparing multiple quotes.

A combination exceeding 100% does not create additional capacity

Multizone systems may allow the combined nominal capacity of the indoor units to exceed the outdoor unit’s nominal capacity. The documentation indicates a connection capacity of up to 130%, depending on the configuration. However, it specifies that exceeding 100% of connected capacity does not increase the system’s output capacity.

In other words, connecting several indoor units whose combined nominal capacities exceed that of the outdoor unit does not magically turn the latter into a larger machine.

That is why sizing must take into account the rooms’ actual loads and the likelihood that all zones will demand their maximum capacity simultaneously.

What we check before installing a triple-zone heat pump

An installation like the one in Upton begins well before the first wall is drilled.

We examine the rooms’ floor area and layout, insulation, the number and size of windows, sun exposure, floors, internal heat sources, and the occupants’ expectations.

We then verify the mechanical feasibility:

Position of the three indoor units

An indoor unit must be able to distribute air properly. Simply placing it where the piping will be shortest is not always a good decision.

We instead seek a compromise between:

• air distribution;
• comfort;
• aesthetics;
• accessibility;
• drainage;
• pipe length;
• structural constraints.

Refrigerant piping route

With three zones, the routes must be planned from the outset. In this installation, the visible vertical exterior finish shown in the photo allows the connections to be routed in an orderly manner.

Condensate drainage

Each indoor unit produces water during cooling. Insufficient drainage slope, an improper termination, or an unnecessarily complex route can eventually cause problems.

The HVAC installation should therefore never be evaluated solely based on the appearance of the outdoor unit.

Mistakes we recommend avoiding with a multi-zone system

The first is oversizing. A larger heat pump is not automatically better. The system must match the building’s needs.

The second is choosing the capacities of the three heads solely based on floor area. Two rooms of the same size can have very different loads because of their windows, orientation, and insulation.

The third mistake is overlooking the outdoor location. You need to consider snow, defrosting, future servicing, airflow clearance, and access around the unit.

Finally, it is important not to view the three zones as three completely independent heat pumps. They offer excellent individual control, but share their outdoor unit and the same general heating or cooling mode.

Why a wall-mounted support was particularly logical for this Upton home

By observing the final result, the choice becomes obvious.

The unit is:

elevated, to maintain clearance from the ground;

attached to the building, to preserve the passage;

stabilized on a metal support with vibration-damping elements;

positioned near the line-set route;

and integrated with a clean line-set cover along the masonry.

These are precisely the small choices that distinguish a merely functional installation from one designed to remain practical for years.

A single outdoor unit for comfort throughout the home

Fujitsu documentation clearly summarizes the logic behind its AIRSTAGE multizone systems: one outdoor unit can power several indoor units simultaneously, with each zone having its own controller. The manufacturer also incorporates a heat exchanger with corrosion-protection fins, along with various protections for the circuits, fan motor, and compressor.

In this Fujitsu Aquila XLTH installation in Upton, however, the most visible advantage is the exterior simplicity: rather than multiplying condensers around the house, we can serve three zones from a single properly positioned unit.

For homeowners hesitating between several single-zone heat pumps and a triple-zone heat pump, the best choice always depends on the home's architecture, the rooms' needs, and the possibilities for routing the lines.

Our AirGreen approach to multizone installations

At AirGreen, our work does not stop at choosing a brand or nominal capacity. We seek a coherent configuration combining sizing, placement, performance, finish, and ease of maintenance.

We carry out this type of multizone heat pump installation in Montreal, Laval, Longueuil, the North Shore, the South Shore, and several areas of the Greater Metropolitan Region, adapting each project to the building's actual constraints.

The Upton project is a good example: a relatively narrow outdoor space, a masonry façade we wanted to preserve visually, three zones to serve, and the need to maintain practical access around the house.

The result is a compact, well-structured Fujitsu AIRSTAGE Aquila XLTH triple-zone installation suited to the home's daily use.

For a homeowner considering a multizone system, our advice remains simple: do not choose solely based on the advertised BTU rating. First, have the needs of the different zones, the combinations permitted by the manufacturer, and the best way to physically integrate the system into the building determined. This planning is what allows a good heat pump to become a good HVAC installation.
