Installation of a Samsung Premium FJM dual-zone heat pump in Saint-Eustache on the North Shore

A multizone installation adapted to a protected and particularly restricted outdoor space

At Saint-Eustache, on the North Shore of Montreal, we installed a Samsung Premium FJM dual-zone heat pump designed to heat and cool two distinct areas of the property. The project had an immediately visible particularity: the outdoor unit had to be installed in a protected space, beneath a wooden structure, between masonry foundation walls, with limited available height.

In this type of configuration, simply mounting the heat pump in the indicated location is not enough. We must assess airflow, the strength of the support, future access for maintenance, clearance around the unit, drainage of the water produced during defrost cycles, and the potential transmission of vibrations to the building’s structure.

The selected solution combines a Samsung multizone heat pump, a metal wall bracket anchored into the foundation, and anti-vibration support pads. The result is a compact, clean installation that aligns with the building’s physical constraints.

Why choose a Samsung Premium FJM dual-zone heat pump?

A dual-zone heat pump connects two indoor units to a single outdoor unit. Each indoor unit serves a specific zone of the home and has its own temperature control.

This configuration is particularly suitable for properties where:

• two floors need to be treated separately;
• a living area and a bedroom have different needs;
• an extension, basement, or adjacent dwelling needs to be cooled;
• installing two separate outdoor units would be impractical;
• the space available around the building is limited;
• the homeowner wants to reduce the visual clutter outside.

The Samsung FJM range, which stands for “Free Joint Multi,” is designed for multizone installations. Depending on the selected configuration, one outdoor unit can power several compatible indoor units. For this Saint-Eustache project, the system was configured as a dual-zone system to meet the building’s actual needs without unnecessarily multiplying the number of outdoor units.

The main advantage is the ability to adjust each zone independently. A room exposed to the sun may require more cooling, while another, more shaded area needs less operation. In heating mode, occupancy patterns may also vary from one space to another.

However, one important point should be kept in mind: indoor units connected to the same multizone system generally need to operate in a compatible mode. One unit normally cannot provide heating while the other simultaneously provides cooling. This must be explained before installation so that the homeowner can choose their system with a full understanding of the implications.

An outdoor unit installed in a demanding environment

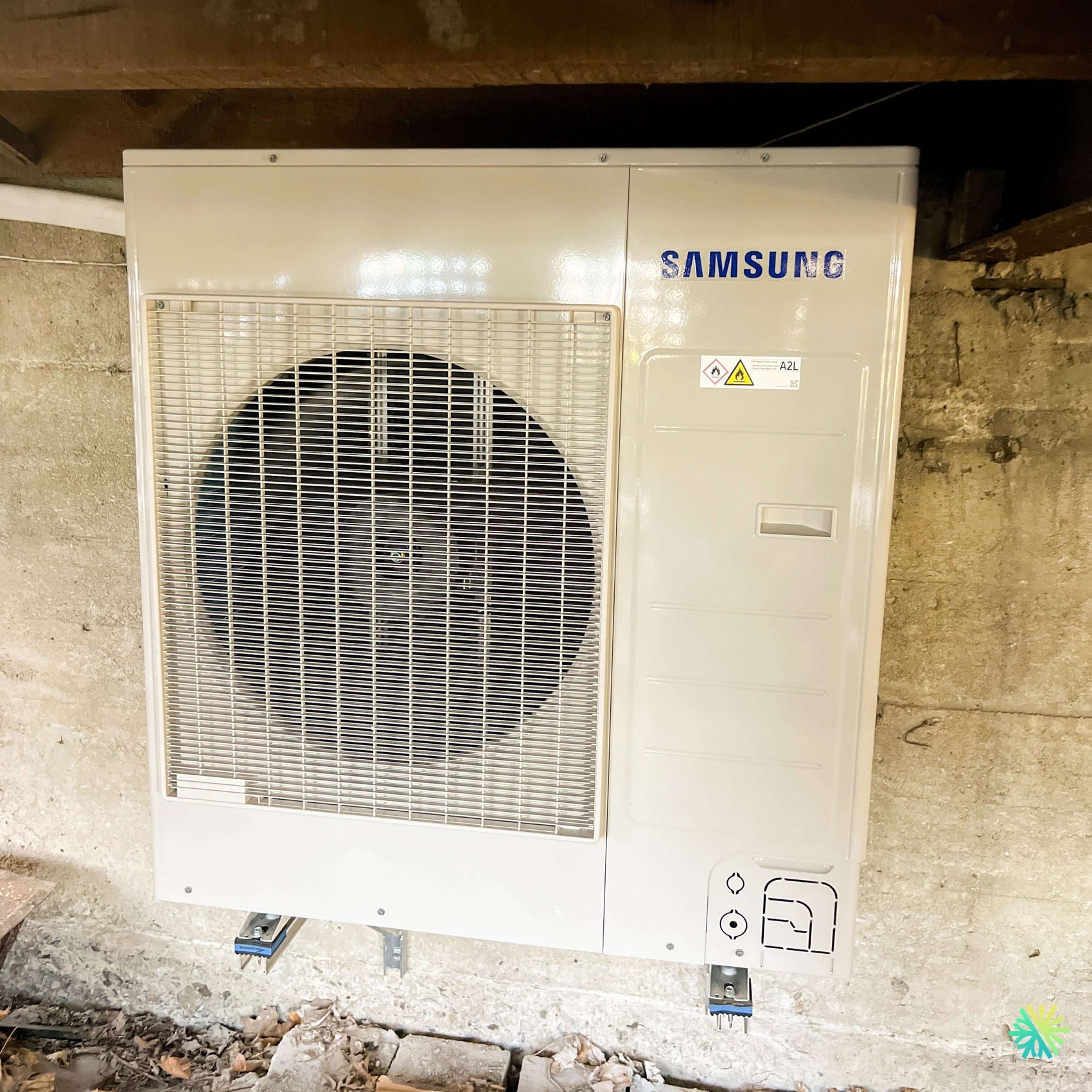

The installation photo clearly shows the site constraints. The Samsung outdoor unit was positioned against a foundation wall, beneath a structure made of wooden beams. The space is sheltered, but it remains sufficiently open at the front to allow the fan to discharge air.

This natural protection can be beneficial. The appliance is less exposed to direct snowfall, rain, and certain debris. However, a covered location must be assessed very carefully. A heat pump moves a significant amount of air. If this air becomes trapped or is drawn back into the appliance, its performance may decrease and the system may work unnecessarily hard.

Before securing it, we check in particular:

• the clearance in front of the fan;
• the space above and on the sides;
• the ability to freely discharge the expelled air;
• the absence of any obstacle that could cause recirculation;
• the accessibility of the service panels;
• the available height for future service work;
• the routing of the refrigerant lines and wiring;
• the stability of the foundation wall.

The visible surroundings of this installation are uneven, as is often the case in open basements, spaces beneath decks, and older foundation sections. The support therefore cannot be installed based solely on appearance. It must be precisely leveled so that the unit remains stable and operates mechanically as intended.

A sturdy wall mount with vibration isolation

The outdoor unit is installed on two metal brackets attached to the wall. This method keeps the appliance above the ground and prevents direct contact with soil, leaves, and accumulated moisture.

Anti-vibration components are visible beneath the appliance’s feet. Their purpose is to limit vibration transmission between the compressor, the metal support, and the foundation.

Poor vibration management can lead to:

• a noticeable humming sound indoors;
• resonance in the joists or walls;
• the gradual loosening of certain fasteners;
• premature wear of the contact points;
• noise complaints despite a normally quiet appliance.

We therefore pay particular attention to the support's alignment, bolt tightening, anchor capacity, and the condition of the material in which they are installed. An old, friable, or uneven foundation may sometimes require adjusting the anchoring point or using more suitable fasteners.

The often-overlooked challenge: defrost water

A heat pump does not produce only hot or cold air. When operating in heating mode in cold weather, frost may form on the outdoor heat exchanger. The appliance then initiates a defrost cycle to melt this buildup.

The water produced during defrosting must be able to drain away without causing problems. In a covered location or beneath a structure, this step is particularly important. Accumulated water can freeze beneath the unit, reach the support, or form a sheet of ice in a passageway.

To prevent these problems, we analyze:

• the natural slope of the ground;
• the height between the unit and the lower surface;
• areas where water may accumulate;
• the presence of moisture-sensitive materials;
• the risk of freezing around the support legs;
• the possibility of keeping the underside of the unit clear.

An installation completed in summer may appear perfect but reveal its weaknesses during the first winter. In Saint-Eustache, as elsewhere on the North Shore, the system's behavior under snow, freezing conditions, and defrost cycles must be anticipated from the design stage.

The presence of A2L refrigerant: what the label indicates

The photographed outdoor unit bears a label A2L accompanied by safety pictograms. This indication corresponds to a category of refrigerants with low flammability that require appropriate work methods.

For the owner, this label does not mean that the appliance is dangerous when installed and used correctly. Rather, it indicates that installation, repair, and maintenance must be carried out using the tools, procedures, and knowledge appropriate for the refrigerant used.

Depending on the exact appliance model, we must comply in particular with:

• the manufacturer's requirements for refrigerant fittings;
• the line-length and elevation-difference limits;
• the prescribed pipe diameters;
• the pressure-testing procedures;
• the vacuum-pumping procedure;
• the additional refrigerant quantities, when required;
• the applicable safety practices for A2L refrigerants.

The complete nameplate remains the reference for confirming the model number, rated capacity, electrical supply, minimum circuit ampacity, and exact pipe dimensions. These data must never be determined solely from the appearance of the outdoor unit.

Sizing a dual-zone system is not simply a matter of adding two numbers

One of the most common mistakes in a multi-zone project is to choose two indoor units based on the size of the rooms, then add their rated capacities without conducting any further analysis.

Sizing a Samsung Premium FJM heat pump must take several factors into account:

• the area and volume of each zone;
• the insulation level;
• the number and orientation of the windows;
• heat loss;
• sun exposure;
• ceiling height;
• communication between the rooms;
• the outdoor unit’s actual capacity at low temperatures;
• the different operating requirements of the two zones.

In a multi-zone system, the available capacity may vary depending on the number of indoor units operating and the outdoor conditions. It is therefore essential to consult the Samsung combination tables applicable to the exact model.

An oversized unit may short-cycle, create uneven temperatures, and dehumidify less effectively in summer. An undersized unit may run continuously without reaching the desired comfort level during the coldest periods.

At AirGreen, we do not limit ourselves to recommending capacity based on a general BTU-per-square-foot rule. We examine the building’s actual layout before proposing a combination.

Two zones, two indoor locations to plan correctly

The performance of a dual-zone system also depends on the positioning of the indoor units. A wall-mounted unit should not be chosen simply because a wall is available.

We assess the direction of the airflow, movement between rooms, occupants’ proximity, the presence of doors, installation height, and the necessary route for the lines.

A poor location can cause:

• a draft directly over a bed or sofa;
• an area that is too cold near the unit;
• a neighboring room that remains uncomfortable;
• an inaccurate temperature reading;
• excessive piping length;
• a condensate pump that could have been avoided.

In a dual-zone system, each indoor head must be considered as part of a whole. We must balance the comfort of both areas while maintaining an orderly outdoor installation.

A discreet installation without sacrificing technical access

The outdoor unit for this project is visually unobtrusive from outside the property. Its placement beneath the structure helps preserve the appearance of the property, which is often sought in the residential areas of Saint-Eustache.

Discretion must never prevent maintenance. Technicians must be able to access the connections, electrical components, service panel, and heat exchanger.

Before accepting a compact location, we verify that it will be possible to carry out:

• cleaning the heat exchanger;
• checking the electrical connections;
• diagnosing the compressor;
• checking pressures and temperatures;
• a leak search;
• the possible replacement of a part;
• removing debris around the unit.

An inaccessible location can increase maintenance costs and complicate a repair that would otherwise be simple.

Key points to remember before installing a multi-zone heat pump in Saint-Eustache

The errors we systematically aim to avoid

Installing a dual-zone heat pump requires more planning than installing a single-zone unit. Among the most common errors, we find:

1. Choosing the outdoor unit solely based on the sum of the advertised BTUs.
   The combination tables and actual capacities must be consulted.
2. Installing the unit in a covered space without checking airflow.
   A protected space can become problematic if discharged air flows back toward the heat exchanger.
3. Neglecting defrost water.
   Winter drainage must be planned even when the ground appears dry during the work.
4. Securing the support to a weakened section of the foundation.
   The quality of the anchoring is just as important as the support’s capacity.
5. Omitting vibration isolators.
   A small vibration outdoors can become significant noise indoors.
6. Positioning the indoor units according to the shortest route rather than comfort.
   Reducing the piping by a few feet must not compromise air distribution.
7. Assuming that the two zones can operate in opposite modes.
   The shared operation of a multi-zone system must be explained clearly.
8. Confirming a rebate without verifying the exact AHRI number.
   Eligibility depends on the complete combination, the current program criteria, and the available documentation.

Energy Rebates and Eligibility

Some multi-zone heat pumps may be eligible for financial assistance programs when the complete combination meets the established criteria. However, eligibility must not be determined solely based on the Samsung brand or the Premium FJM name.

Verification generally requires:

• the exact outdoor unit number;
• the exact models of both indoor units;
• the certificate or reference number for the combination;
• the system’s recognized performance;
• the type of building;
• the existing heating system;
• the purchase and installation date;
• the current program criteria.

Before presenting a price to the owner, we validate the complete combination. This step prevents a customer from choosing a unit expecting to receive financial assistance that would not apply to their specific configuration.

Our approach to HVAC installations in Saint-Eustache and Greater Montreal

Every project begins with an assessment of the building’s needs and constraints. For a multi-zone HVAC installation, we examine both the interior and exterior.

Our work notably includes:

• analyzing the two zones to be treated;
• choosing the appropriate capacities;
• validating compatible combinations;
• studying the piping route;
• planning the drainage;
• checking the electrical supply;
• selecting the outdoor location;
• installing and levelling the support;
• refrigerant piping connections;
• the leak test;
• vacuuming the system;
• commissioning;
• checking the heating and cooling;
• explaining how the system works to the owner.

We carry out this type of project in Saint-Eustache, as well as in Montreal, Laval, Longueuil, the North Shore, and the South Shore. Buildings vary greatly from one area to another: older homes with irregular foundations, newer construction, condominiums, duplexes, finished basements, and residences with additions.

Our approach remains the same: adapt the equipment to the building rather than forcing the building to accept a standardized installation.

The result of this Samsung installation in Saint-Eustache

This installation demonstrates that a properly sized outdoor unit can be integrated into a restricted space when a technical analysis is carried out before the work begins.

The Samsung Premium FJM dual-zone heat pump is securely supported above the ground. Anti-vibration supports reduce mechanical transmission to the foundation. The front area remains open to allow air discharge, while the upper structure provides some protection from precipitation and debris.

The owner now benefits from a system capable of serving two distinct zones from a single outdoor unit, while maintaining a discreet outdoor layout.

This project in Saint-Eustache reminds us that a proper installation is not simply a matter of choosing a brand or capacity. The final quality depends on the location, clearances, piping, drainage, support, sizing, and commissioning.

At AirGreen, we treat each of these steps as an essential part of the system. It is this attention to detail that ensures stable, quiet operation suited to Quebec winters as well as the hot and humid periods of summer.
