Oval 90° Vertical Elbow (Oval Duct)
The 90° oval elbow that takes the duct from horizontal to vertical, at the bottom or top of a riser.
AirGreen codeAG-VC-01901
514 316-2973 · sales@airgreen.ca
Quick facts

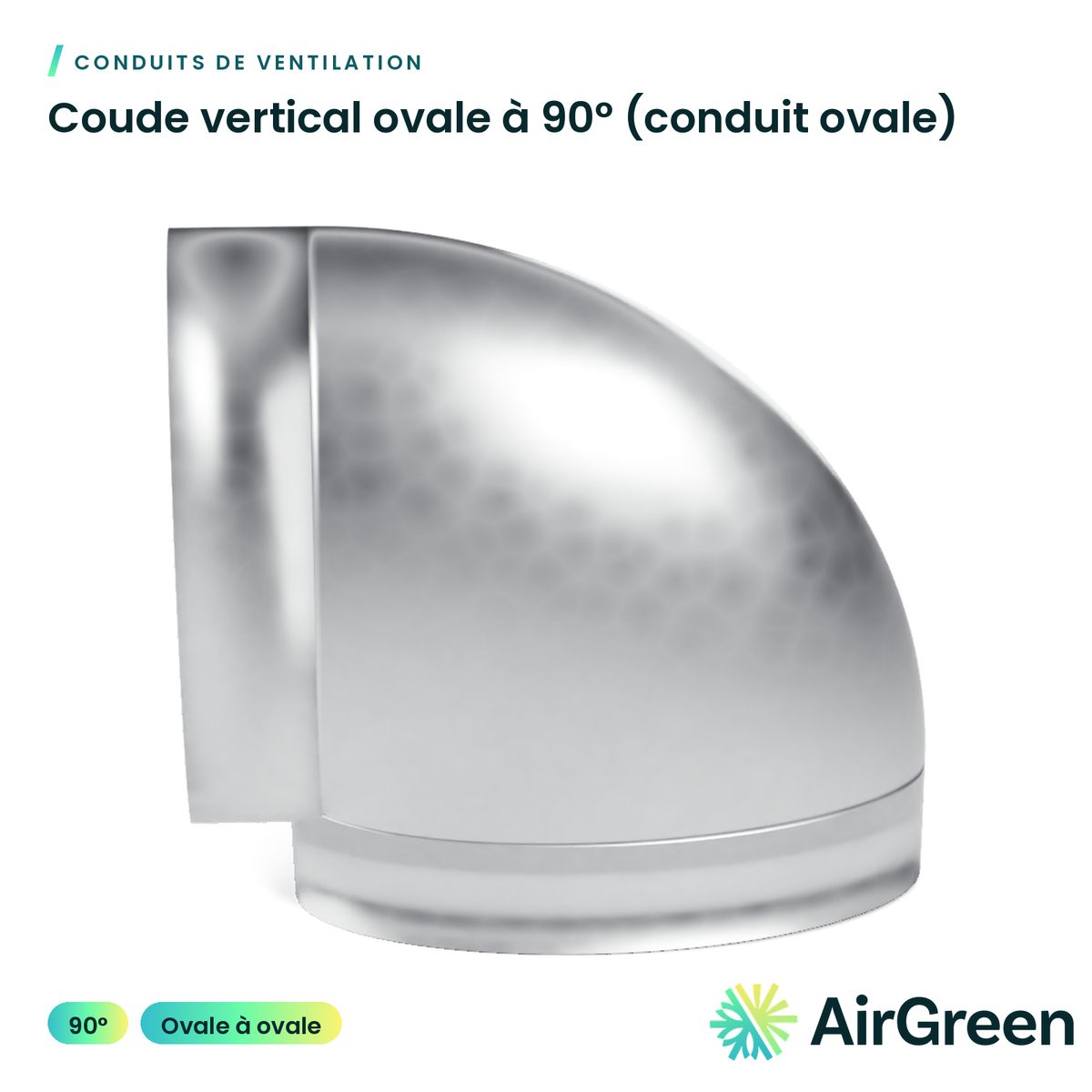

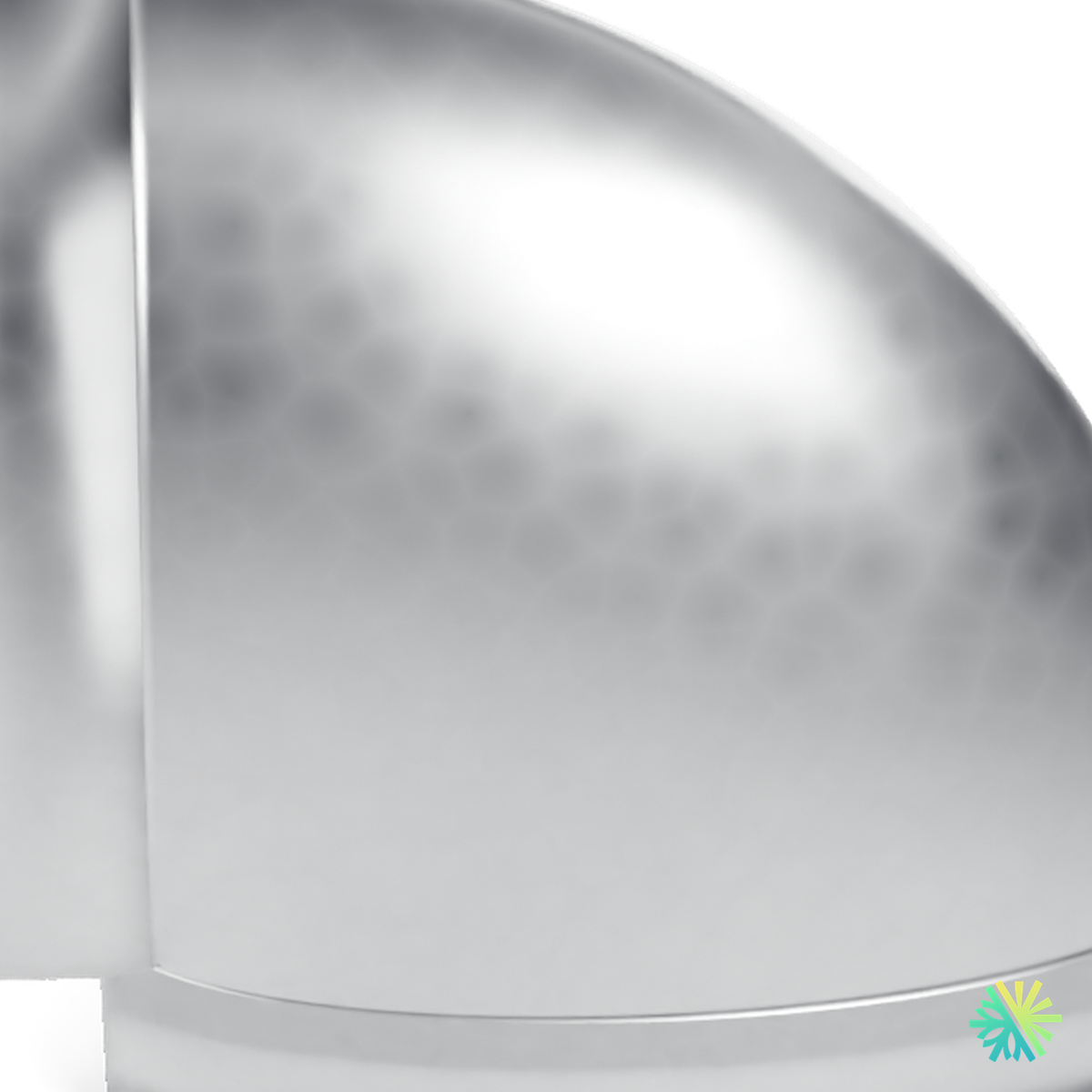

The 90° oval vertical elbow changes the direction of an oval duct in the vertical plane: it takes the duct from horizontal to vertical, or the other way around. Both ends are oval, the same size as the duct, in 5 or 6 in.
The bottom and top of a riser in a wall
A riser to the upper floor often starts in the basement, between the joists, then enters a wall cavity. At the bottom of the riser, the duct has to turn upward; at the top, it often has to go back to horizontal between the joists of the upper floor. The vertical elbow makes both turns without leaving the oval format, where a round elbow would take up too much room.
Choosing the right oval elbow
- 90° vertical elbow: to go up or down at a right angle

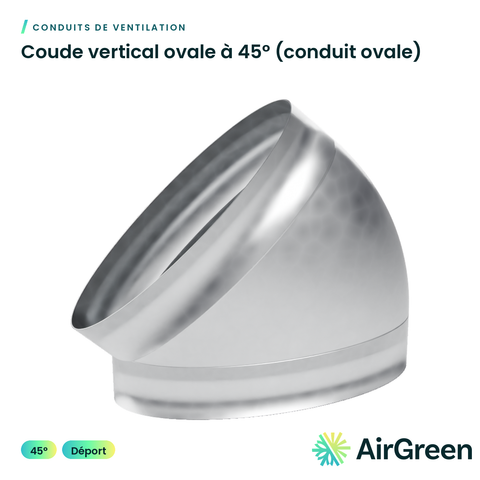

- 45° vertical elbow: for an angled offset in the same vertical plane

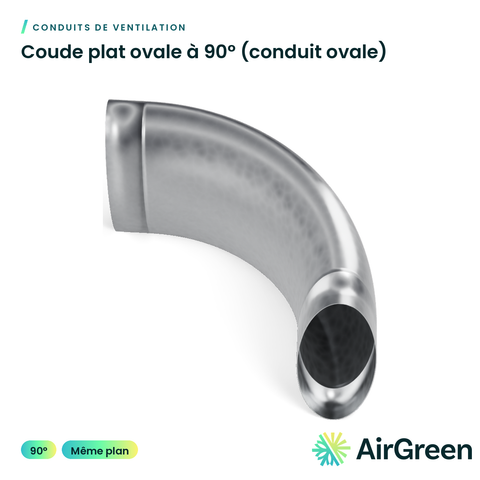

- Flat elbow: to turn while staying in the same plane, for example in a ceiling
- Oval-to-round elbow: when the duct has to turn and become round at the same spot
Installation
Dry-fit the elbow in the cavity before cutting the plate or the subfloor, to check the clearance. Screw both joints and seal them with aluminum tape or mastic; once the wall is closed, the joints are no longer accessible.
Installed by AirGreen in Greater Montréal
We build oval duct risers to upper floors in Montréal, Laval, Longueuil, on the South Shore and the North Shore. RBQ licence 5645-9605-01, subcategory 15.8 Ventilation. For availability or a quote, call us at 514 316-2973 or email sales@airgreen.ca with the size and the quantity.

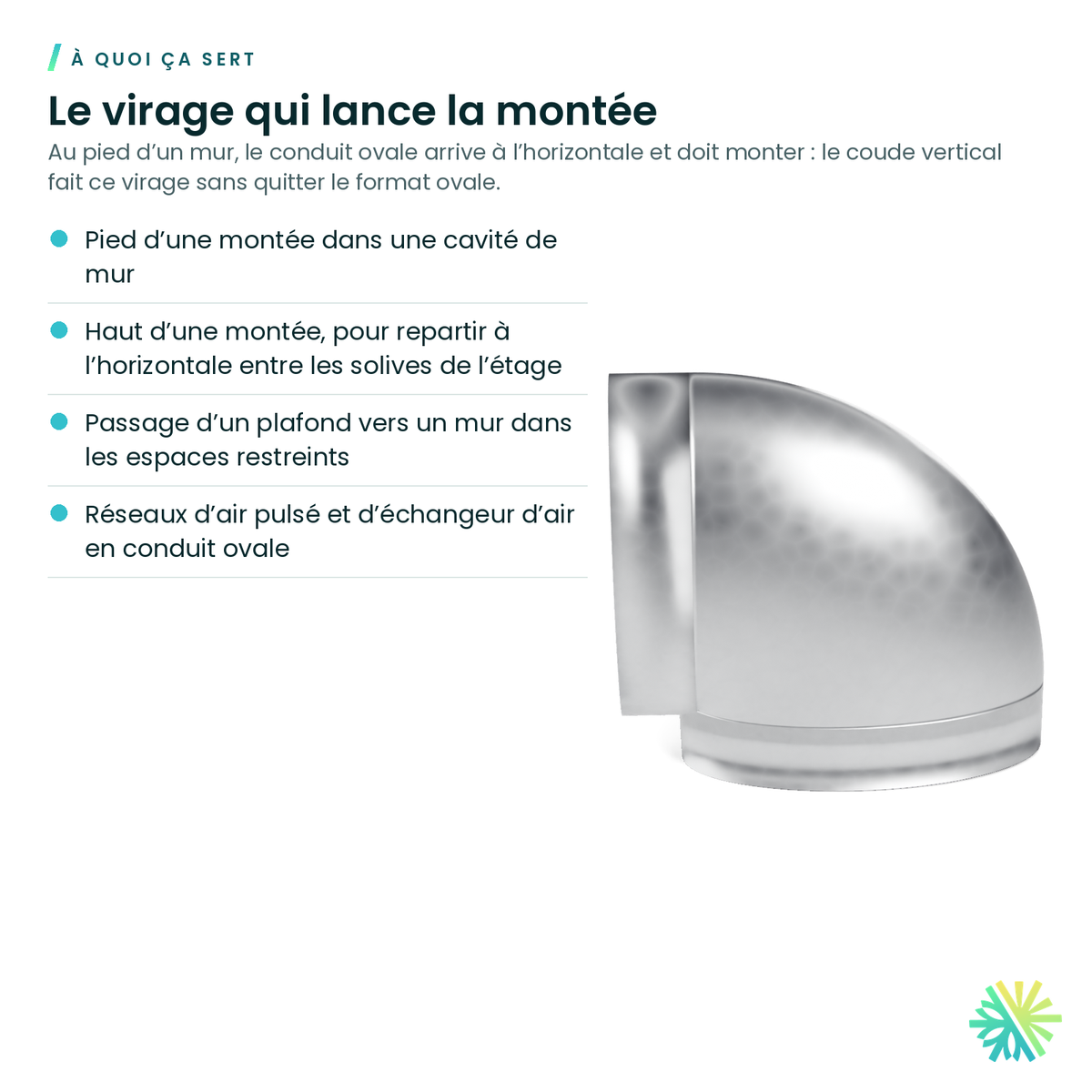

The turn that starts the riser
At the bottom of a wall, the oval duct arrives horizontally and has to rise: the vertical elbow makes that turn without leaving the oval format.
- Bottom of a riser inside a wall cavity
- Top of a riser, to run horizontally between the upper-floor joists
- Going from a ceiling into a wall in tight spaces
- Forced-air and air exchanger systems in oval duct

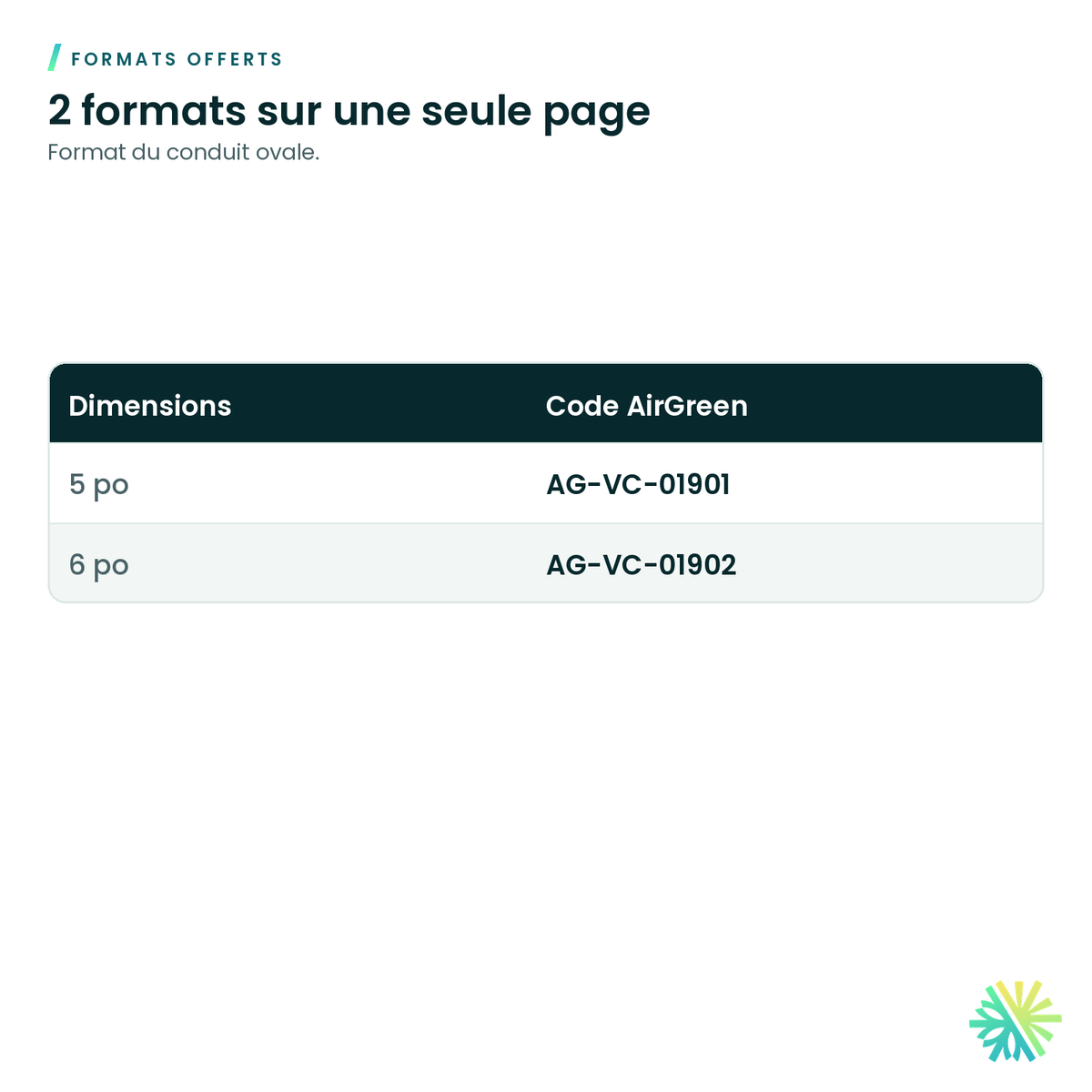

2 sizes, one page
Each size has its own AirGreen code. Tap a row to select it.
Oval duct size.

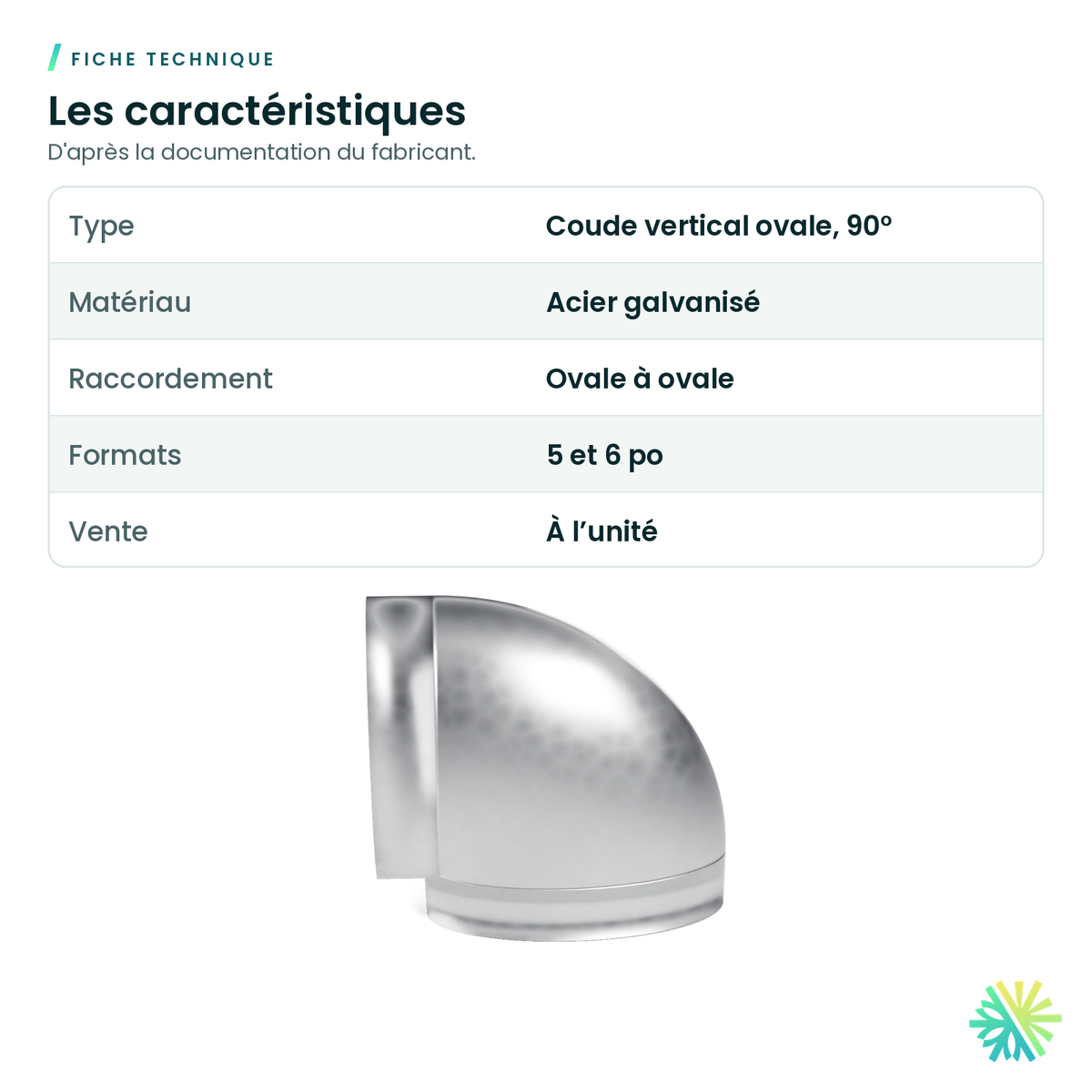

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.
What to know before installing
- Choose the same size as the oval duct (5 or 6 in).
- For a turn in the same plane, without rising or dropping, see the flat elbow.
- Dry-fit the elbow in the cavity before cutting the plate or the floor.
- Screw and seal both joints.
