Air Exchanger VENMAR AVS® K8 SERIES 44153 Greater Montreal

• Energy Star®: Non
• Warranty (Core-Motor-Parts): ∞-5-5
• Voltage: 115 V
• PCM/CFM - @ 0.2”:
• Maximum sensible recovery efficiency:
• Defrost cycle:

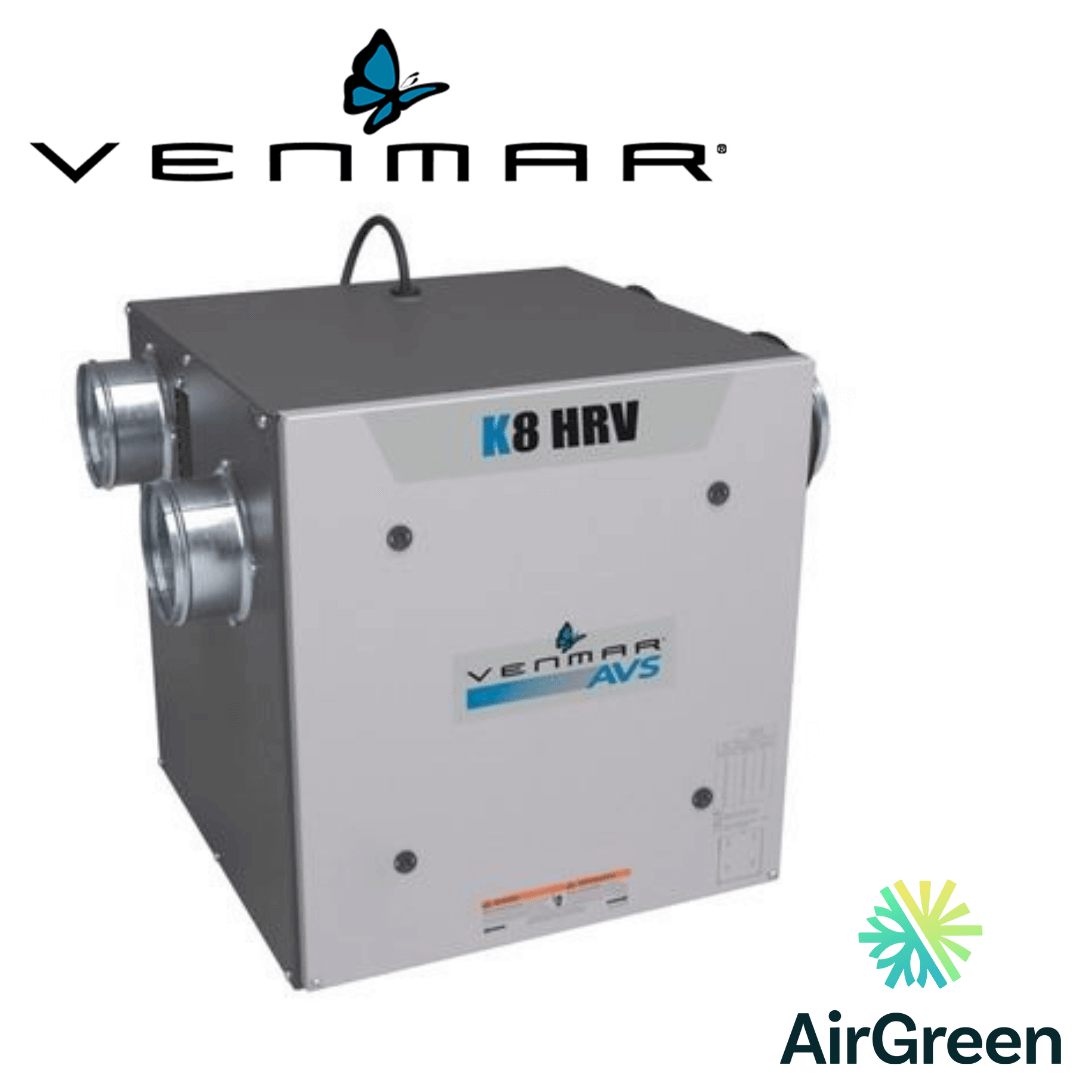

Presenting the VENMAR AVS® K SERIES™ HRV 79 CFM 66% SRE K8 44153

AirGreen, your premier HVAC company based in Montreal, is delighted to bring you the best in HVAC solutions, sales, and installations spanning Greater Montreal, Laval, Longueuil, South Shore, and North Shore. One of our exceptional offerings found in our Air Exchanger section is the line of Venmar Air Exchangers. Among these stellar products, we feature the VENMAR AVS® K SERIES™ HRV 79 CFM 66% SRE K8 44153.

Designed for limited space applications like condominiums, apartments, and spaces demanding up to 71 CFM of continuous ventilation, the K8 HRV is the optimal choice. Despite its power, its compact size and 4-inch vertical or horizontal ports allow for installation in tight spaces like a closet or mechanical room above a hot water tank.

Key Features

• Easy Installation: Weighing just 30 lb. (13.6 kg), the K8 HRV can be installed without the need to open the unit. It comes equipped with pressure taps, balancing dampers, integrated hooks, and port straps for an easier installation process. Furthermore, the removable terminal block expedites wall control connections.
• Single Blower System: The K8 HRV includes a unique, patent-pending single blower system, ensuring quieter operation compared to other similar HRVs on the market.
• Convenient Warranty: The K8 HRV is protected by a 5-year warranty on parts only. Furthermore, the heat recovery core is covered by a limited lifetime warranty, provided the original proof of purchase is available.

The K8 HRV: Excellence in a Compact Cube!

The K8 HRV is your ultimate choice for continuous ventilation of up to 71 CFM in limited spaces like apartments and condominiums. Despite its compact size and 4-inch vertical ports, this HRV ensures powerful performance and comes equipped with features that simplify the installation process, including pressure taps, balancing dampers, integrated hooks, and port straps.

Maintenance and Repairs

All parts of the K8 HRV that could require maintenance can be removed in less than five minutes, providing direct access for easy repairs. The PSC motor comes permanently lubricated for reduced maintenance needs.

Warranty

The K8 HRV comes with a 5-year warranty on parts only. The heat recovery core is covered by a limited lifetime warranty, provided the original proof of purchase is available.

Controls

Operating the K8 HRV is a breeze. Once installed, simply press the push button located on the unit's top left side to select high speed, low speed, or to stop it. The LED, located under the push button, will indicate the mode the unit is in. For added convenience, this unit can also be controlled by an optional main control.

Options

The K8 HRV offers a complete line of registers and diffusers, as well as an electrical duct heater. It also features an exclusive wall mounting bracket (no. 19255).

Heat Recovery Core

The K8 HRV features a heat recovery core measuring 10” x 10” x 5.5" and weighing only 4 lbs. This crossflow core is made of polypropylene, ensuring durability and efficient heat transfer. The heat recovery core is covered by a limited lifetime warranty.

Requirements and Standards

The K8 HRV complies with several important requirements and standards. It meets the UL 1812 requirements for Heat Recovery Ventilators, the CSA C22.2 no. 113 Standard applicable to ventilators, and CSA F326 requirements for the installation of Heat Recovery Ventilators. The unit's performance has been tested according to CSA C439 Standards, and it is HVI certified.

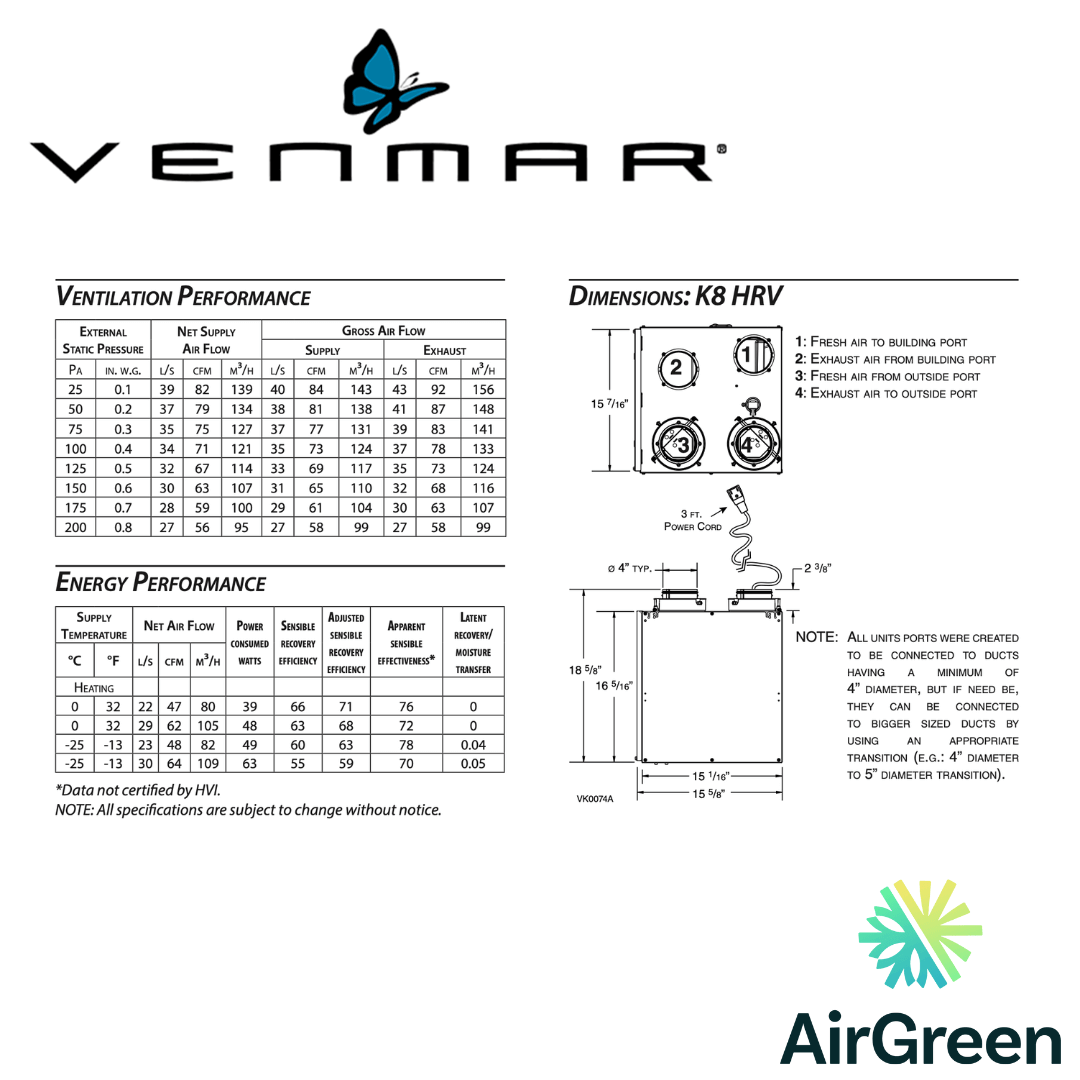

Model: K8 HRV • Housing: Pre-painted steel • Speed Control on Unit: • Part Number: 44153 • Insulation: Expanded polystyrene - Low speed and high speed

• Other modes available with optional wall controls
• Total Assembled Weight (including polypropylene core): 30 lb. (13.6 kg) • Round 4” ports
• Drain: 1/2” (1.2 cm) fitting with 10 ft. (3 m) PVC drain hose
• Core Filters: 2 washable foam filters, 30 ppi, 9.2” x 5.75” x 0.38"
• Supply and Exhaust Blower Motor: 1 motor
• Protection type: Thermally protected • Heat Recovery Core:
• Heat Exchange Surface Area: 42.3 ft.2 (3.9 m2)
• Type: Crossflow
• Material: Polypropylene

AirGreen is committed to bringing you unparalleled HVAC solutions designed for your comfort and well-being. Choose AirGreen for an unmatched HVAC experience.
