Air Exchanger VENMAR AVS® S SERIES 41701 Greater Montreal
Is it the right size for your home?
It delivers 100 cfm net, enough to ventilate 1,200 to 1,900 sq ft. Choose your home's living area.
It's the right size.
For a 900 to 1,500 sq ft home, about 63 cfm of air needs to be renewed continuously. This unit delivers 100 cfm net — enough for the house, with extra capacity to boost ventilation for the bathroom and kitchen.
Calculation: 0.35 air changes per hour over the living volume, with 9 ft ceilings. Our estimator sets the exact airflow room by room, following CSA F326.
What it does, in numbers
$39.04
Electricity per year
Less than a 60 W light bulb
Bulbs left on day and night. Same calculation for every line: wattage × 8,760 h × 11.142 ¢/kWh.
Below the Code threshold for a new home. The Code requires 54% at −25 °C below 6,000 degree-days (Montréal, Laval, Longueuil and both shores) and 60% above that. This unit is rated at 51% at 50 cfm. The requirement applies to new buildings and major renovations: for a replacement, talk to us about your project before choosing.
Airflow and efficiency: manufacturer's published data. Cost: 40 W over 8,760 h at Hydro-Québec's Rate D second tier (11.142 ¢/kWh).
What you should know about this one
Published, verifiable facts, not brochure claims.
24 × 30 in3-step ceiling mount; 24 × 30 in access opening
Screw the brackets to the ceiling, bend the built-in hooks to hang one side, then clip the other side to the brackets. Plan an access opening of at least 24 × 30 in below the door for servicing.
2 speedsBuilt-in button: 2 speeds, each adjustable
Without a wall control, the built-in button runs low speed (50 cfm) or high speed (100 cfm), and an LED shows the mode. The installer can swap these factory speeds for 65 and 85 cfm to suit the dwelling.
51%What it still recovers at −25 °C
The only efficiency figure that matters for a Québec winter, and the one the Code uses. An efficiency quoted without its temperature means nothing; this one is measured at a test airflow of 50 cfm.
ExhaustIt defrosts by pausing the fresh air for a few minutes
In cold weather, the supply fan stops for a few minutes while the exhaust keeps running, so warm indoor air thaws the core. During the cycle the house is briefly under negative pressure; if you have a fireplace or a naturally vented combustion appliance, mention it to our estimator.
ERVIt moves moisture too, not just heat
An ERV transfers some moisture between the two airstreams. Useful in a house that gets too dry in winter or takes on a lot of humidity in summer. The trade-off: it generally recovers less heat than a comparable HRV.
−8 cfmWhat the ducts cost it
Between a nearly unrestricted test bench (0.2 in) and a real duct system (0.4 in), it drops from 108 to 100 cfm. Most spec sheets show only the first number, precisely because it looks better.
40 WMeasured at the airflow it actually runs at
Its 67% at 0 °C is measured at 48 cfm, the continuous airflow of a typical home. At that setting it draws 40 W, or about 350 kWh a year.
5 yearsThe core warranty
The core does the work and is the most expensive part to replace. Motors and parts: 5 years. We register the warranty in your name at commissioning.
5 inWhat it needs on site
5 in ducts, side connection. It weighs 32 lb, and it needs enough clearance to slide the core out once a year.
What it needs on site
In a condo with no floor drain, or with little ceiling clearance, we usually look at a side-port model instead. Our estimator checks the location, the drain and the duct route before ordering.

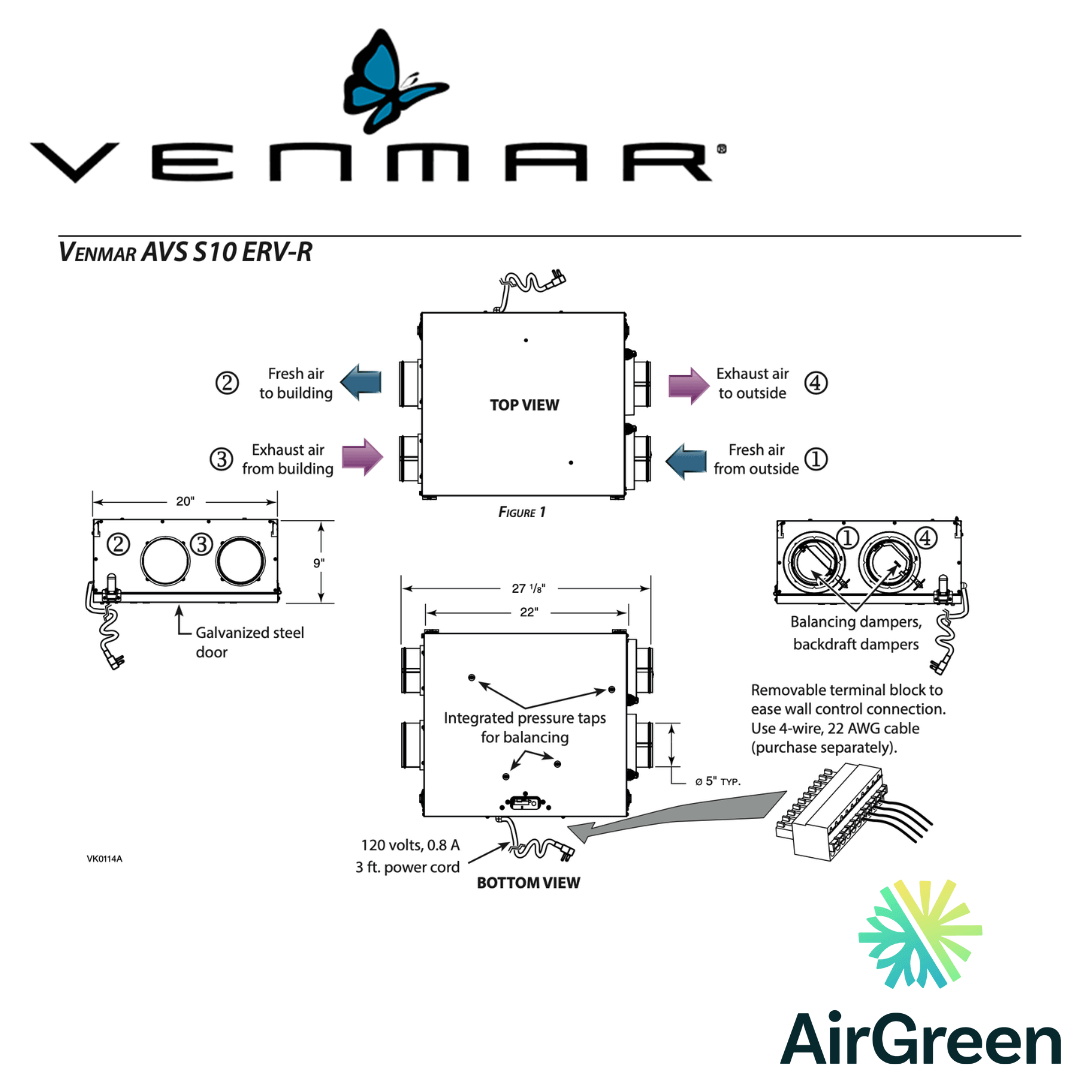

Complete spec sheetData and cited sources
- Net airflow at 0.2 in. w.g.
- 108 cfm
- Net airflow at 0.4 in. w.g.
- 100 cfm
- SRE at 0 °C (48 cfm)
- 67%
- SRE at −25 °C (50 cfm)
- 51%
- ASE at 0 °C
- 75%
- Power draw
- 40 W
- Efficacy
- 1.2 cfm/W
- Type
- ERV
- Connection
- Side ports
- Duct collars
- 5 in
- Defrost cycle
- Exhaust only (supply fan off)
- Filters
- 2 washable 20 ppi reticulated polyurethane foam filters; optional MERV 8 kit no. 21030
- Dimensions (L × D × H)
- 27.13 × 20 × 9 in
- Weight
- 32 lb
- Power supply
- 120 V
- Warranty — core
- 5 years
- Warranty — motors
- 5 years
- Warranty — parts
- 5 years
Airflow and efficiency: manufacturer's published data. Annual consumption calculated at 40 W running continuously for 8,760 h, at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The next model down and up
Talk to an HVAC technician before you choose
We calculate the airflow room by room, check the location and the drain, and give you an installed price. Balancing is measured at commissioning, not estimated.

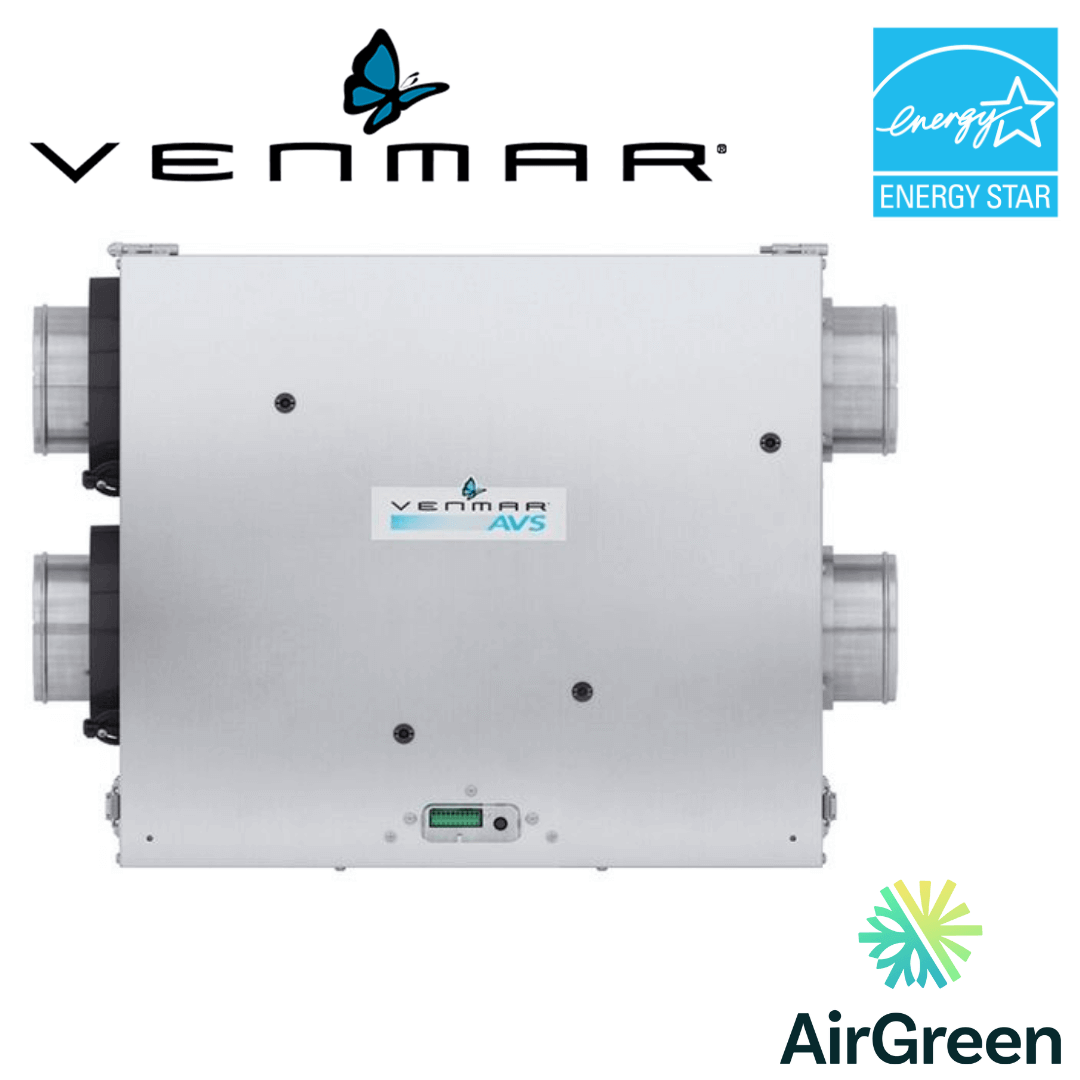

Superior Air Quality with the VENMAR AVS® S SERIES™ ERV 108 CFM 65% SRE SIDE PORTS 41701
Welcome to AirGreen, your trusted HVAC partner in Montreal. We are your go-to source for top-of-the-line HVAC sales and installation services all across Greater Montreal, Laval, Longueuil, South Shore, and North Shore. Among our offerings, we are excited to feature Venmar Air Exchangers on our website, each designed with state-of-the-art technology to ensure superior air quality in your home or office.
Today, we would like to introduce you to a standout product from our Air Exchanger lineup: The VENMAR AVS® S SERIES™ ERV 108 CFM 65% SRE SIDE PORTS 41701, also known as the S10 ERV-R.
Designed with precision and manufactured for performance, the VENMAR AVS® S SERIES™ ERV 108 CFM 65% SRE SIDE PORTS 41701 is a powerful Energy Recovery Ventilator (ERV) that will revolutionize your living or working space. With a broad range of exceptional features, the S10 ERV-R is a top choice for buildings with back-to-back dwellings and is especially suitable for condominiums and other residential units.
Key Features and Benefits of the VENMAR S10 ERV-R
- Reverse Unit for Enhanced Installation Flexibility: The S10 ERV-R comes with reversed cold side and warm side ports that offer better installation flexibility, making the installation process easier and more convenient. This symmetrical configuration simplifies installations in buildings having back-to-back dwellings.
- Superior Airflow Delivery: Capable of providing an airflow rate of up to 108 CFM, the S10 ERV-R operates with impressive efficiency. The high static pressure backward blowers perform a minimum of 74 CFM @ 1.0 in. w.g, offering optional high and low speeds for better control of air ventilation.
- Innovative Design: The S10 ERV-R showcases a galvanized steel housing and door for added durability. The one-piece molded insulation shell made of expanded polystyrene (UL 94 HF-1 certified) ensures superior insulation. Also, with its 5" diameter ports made of galvanized steel, door hinges, and latches made of steel, the S10 ERV-R demonstrates a commitment to quality construction.
- High-Reliability Motors: The unit houses two high reliability, external rotor PSC motors, totally enclosed and thermally protected. The backward blowers can support high static pressure environments, further enhancing the unit’s performance.
- Effective ERV Core: At the heart of the S10 ERV-R is a crossflow aluminum-polymerized paper core. This UL723 certified core utilizes a hydroscopic polymer to exchange water by direct vapor transfer, employing molecular transport without the need for condensation. Constructed of alternate layers of corrugated aluminum material and polymeric bactericide dessiccant impregnated media, the ERV core design inhibits the growth of mold or bacteria.
- Integrated Push-Button Control: For ease of operation, the S10 ERV-R features an integrated push-button control for Low or High-speed operation. A LED indicator provides visual cues for operating modes and error codes.
- Option for MERV 8 Filtration: For those who require a higher degree of air purity, the S10 ERV-R comes with the option of a MERV 8 filter kit.
- ColdShield™ Protection: One of the standout features of the S10 ERV-R is the inclusion of the ColdShield™ Protection system. This electronic supplemental protection stops air distribution in the dwelling if the air distribution temperature drops below the freezing point due to abnormal conditions.
Quality Assurance and Certification
Rest assured, the VENMAR AVS S10 ERV-R is protected by a 5-year warranty on parts only, with the original proof of purchase. It is HVI certified, UL 1812 certified for ducted heat recovery ventilators, CSA C22.2 No. 113 certified for fans and ventilators, and complies with CSA C444 requirements regulating the installation of Energy Recovery Ventilators.
At AirGreen, we strive to provide you with products that guarantee better air, better life. With the VENMAR AVS® S SERIES™ ERV 108 CFM 65% SRE SIDE PORTS 41701, we offer a top-of-the-line ERV designed to meet your HVAC needs. Trust us for the best in HVAC solutions. We don't just promise quality, we deliver it.
