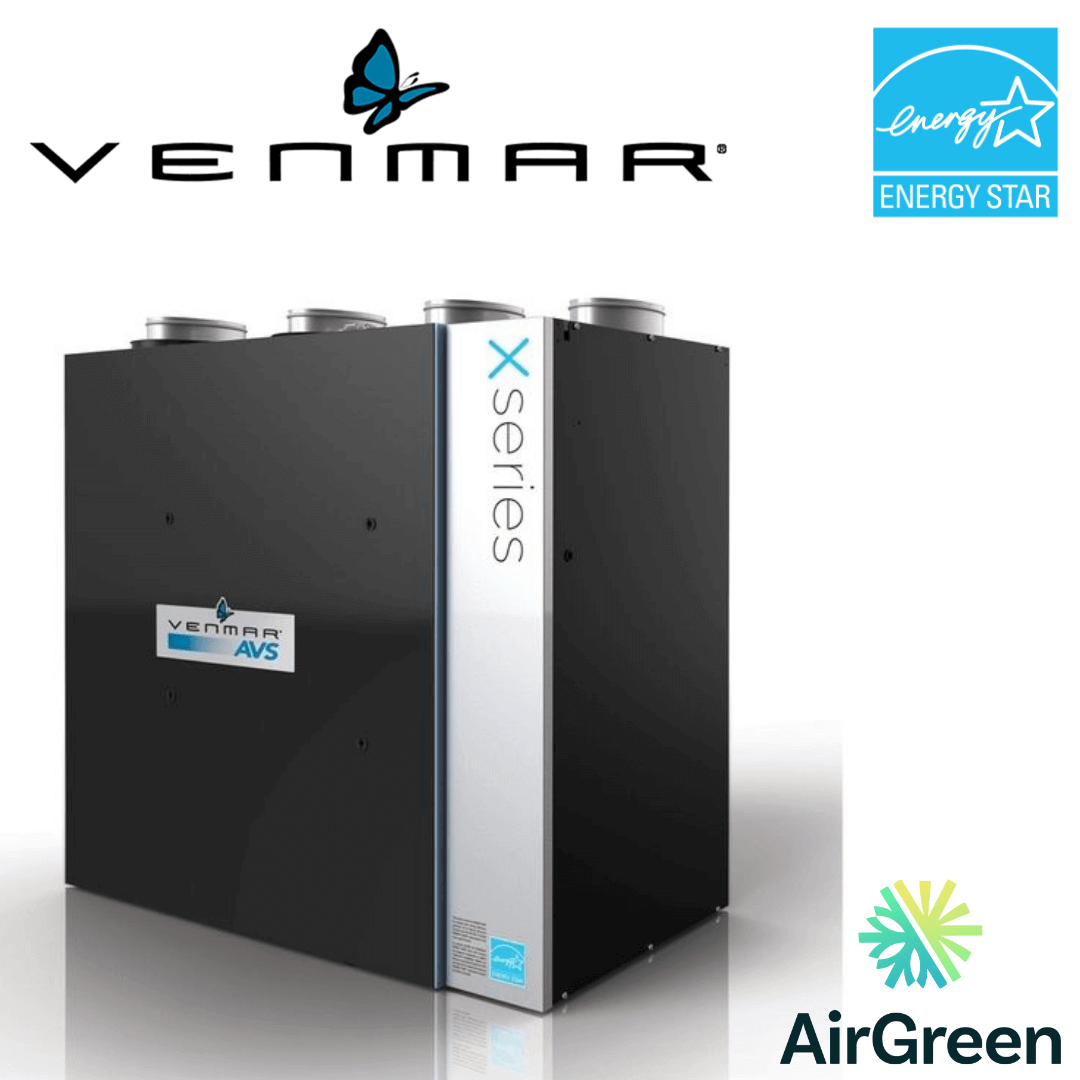

Air Exchanger VENMAR AVS® X SERIES X24ERVE Greater Montreal
Is it the right size for your home?
It delivers 210 cfm net, enough to ventilate 2,500 to 4,000 sq ft. Choose your home's living area.
It's the right size.
For a 2,500 to 3,200 sq ft home, about 150 cfm of air needs to be renewed continuously. This unit delivers 210 cfm net — enough for the house, with extra capacity to boost ventilation for the bathroom and kitchen.
Calculation: 0.35 air changes per hour over the living volume, with 9 ft ceilings. Our estimator sets the exact airflow room by room, following CSA F326.
What it does, in numbers
$20.50
Electricity per year
Less than a 60 W light bulb
Bulbs left on day and night. Same calculation for every line: wattage × 8,760 h × 11.142 ¢/kWh.
Meets the Québec Construction Code everywhere in the province. The Code requires 54% at −25 °C below 6,000 degree-days (Montréal, Laval, Longueuil and both shores) and 60% above that. This unit is rated at 65% at 64 cfm.
Airflow and efficiency: manufacturer's published data. Cost: 21 W over 8,760 h at Hydro-Québec's Rate D second tier (11.142 ¢/kWh).
What you should know about this one
Published, verifiable facts, not brochure claims.
14.25 in14.25 in counterflow energy recovery core
Of the four X Series models, the X24ERV is the only one with a counterflow core, larger (14.25 in) than the X30ERV's (12 in, crossflow). Its sheet lists 83% sensible recovery at 0 °C, versus 75% for the X30ERV.
−10 °CNo defrost as long as it is above −10 °C
Per its defrost table, the X24ERV runs no defrost cycle above −10 °C, while the X24HRV starts at −5 °C. Between −5 and −10 °C, ventilation therefore carries on without defrost interruptions.
65%What it still recovers at −25 °C
The only efficiency figure that matters for a Québec winter, and the one the Code uses. An efficiency quoted without its temperature means nothing; this one is measured at a test airflow of 64 cfm.
DamperIt defrosts without depressurizing the house
In cold weather, a motorized damper closes the outdoor air intake and recirculates indoor air through the core to thaw it. The house doesn't go into negative pressure during the cycle: no cold air drawn in through leaks, and none of the imbalance manufacturers warn about when there's a fireplace or a combustion appliance.
ERVIt moves moisture too, not just heat
An ERV transfers some moisture between the two airstreams. Useful in a house that gets too dry in winter or takes on a lot of humidity in summer. The trade-off: it generally recovers less heat than a comparable HRV.
−17 cfmWhat the ducts cost it
Between a nearly unrestricted test bench (0.2 in) and a real duct system (0.4 in), it drops from 227 to 210 cfm. Most spec sheets show only the first number, precisely because it looks better.
21 WMeasured at the airflow it actually runs at
Its 83% at 0 °C is measured at 64 cfm, the continuous airflow of a typical home. At that setting it draws 21 W, or about 184 kWh a year.
10 yearsThe core warranty
The core does the work and is the most expensive part to replace. Motors and parts: 5 years. We register the warranty in your name at commissioning.
6 inWhat it needs on site
6 in (oval) ducts, top connection. It weighs 108 lb, and it needs enough clearance to slide the core out once a year.
What it needs on site
In a condo with no floor drain, or with little ceiling clearance, we usually look at a side-port model instead. Our estimator checks the location, the drain and the duct route before ordering.

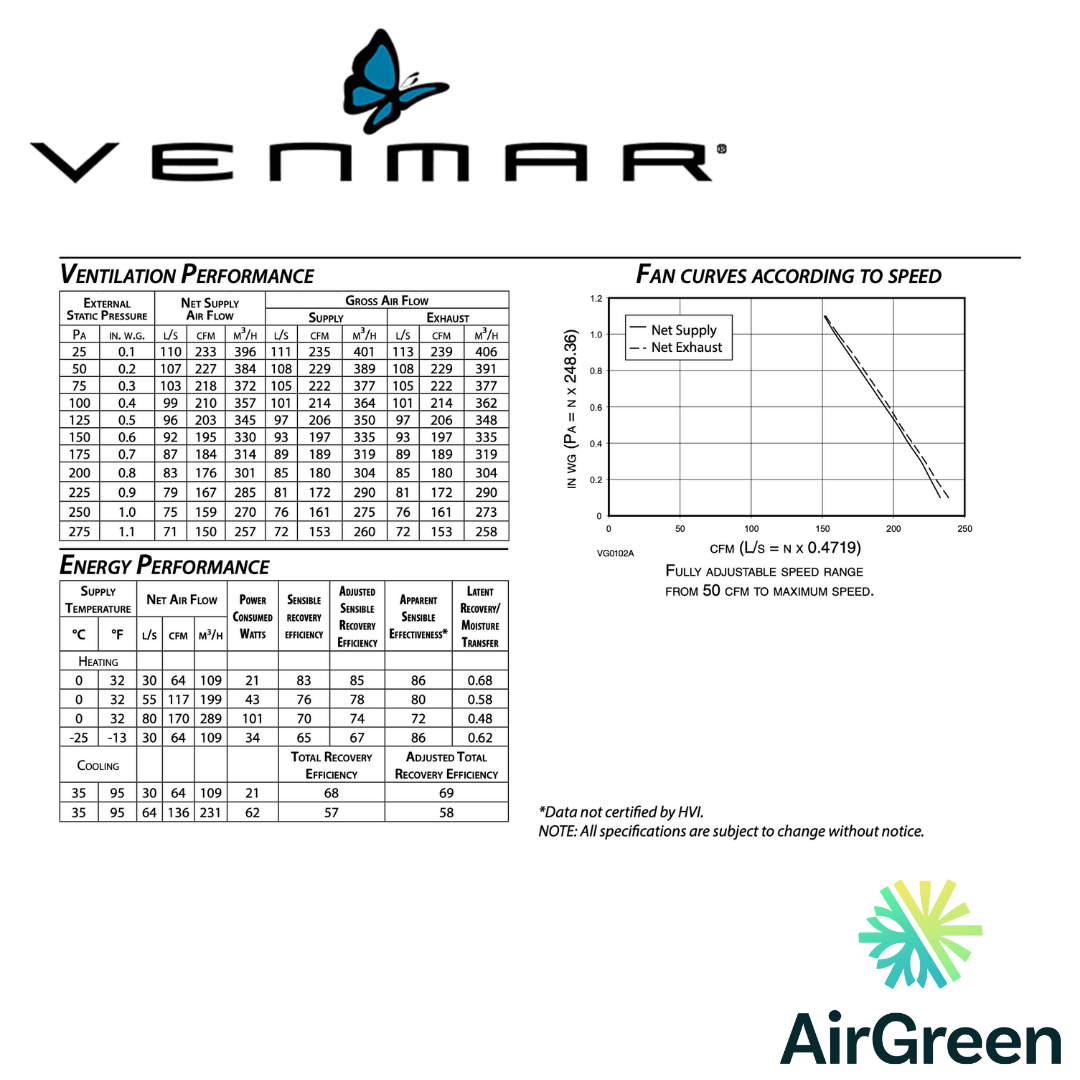

Complete spec sheetData and cited sources
- Net airflow at 0.2 in. w.g.
- 227 cfm
- Net airflow at 0.4 in. w.g.
- 210 cfm
- SRE at 0 °C (64 cfm)
- 83%
- SRE at −25 °C (64 cfm)
- 65%
- ASE at 0 °C
- 86%
- Power draw
- 21 W
- Efficacy
- 3.0 cfm/W
- Type
- ERV
- Connection
- Top ports
- Duct collars
- 6 in (oval)
- Defrost cycle
- Recirculation (motorized damper)
- Filters
- 2 washable MERV 6 filters; optional HEPA filter no. 22528
- Dimensions (L × D × H)
- 32.19 × 20.06 × 33.19 in
- Weight
- 108 lb
- Power supply
- 120 V
- Warranty — core
- 10 years
- Warranty — motors
- 5 years
- Warranty — parts
- 5 years
Airflow and efficiency: manufacturer's published data. Annual consumption calculated at 21 W running continuously for 8,760 h, at Hydro-Québec's Rate D second tier (11.142 ¢/kWh), in effect since April 1, 2026.
The next model down and up
Talk to an HVAC technician before you choose
We calculate the airflow room by room, check the location and the drain, and give you an installed price. Balancing is measured at commissioning, not estimated.
Introducing the VENMAR AVS® X SERIES™ ERV 227 CFM 84% SRE TOP PORTS X24ERVE
Welcome to AirGreen, Montreal's leading HVAC solutions provider. At AirGreen, we're committed to enhancing the comfort and health of your home through innovative, high-quality HVAC solutions. In our extensive Air Exchanger range, we're proud to showcase Venmar Air Exchangers. Today, we're delighted to introduce you to one of our most popular and efficient units, the VENMAR AVS® X SERIES™ ERV 227 CFM 84% SRE TOP PORTS X24ERVE.
Let's explore the revolutionary features, unparalleled benefits, and why this product is the key to enhancing the quality of air in your home.
Reimagining Fresh Air with Advanced Technology
The whole home ventilation system is now a cornerstone of today's energy-efficient homes. The X Series represents Venmar AVS' breakthrough in the industry, setting a new benchmark in both performance and energy efficiency. The VENMAR AVS® X SERIES™ ERV 227 CFM 84% SRE TOP PORTS X24ERVE, often referred to as the X24ERVE, offers a unique blend of superior ventilation and efficient energy consumption. This combination results in a fresher, purer atmosphere in your home while minimizing operational costs. In essence, it is the embodiment of Pure Efficiency.
Perfect Solution for Mid to Large Sized Homes
The X24ERVE is specifically designed to meet the ventilation needs of mid to large-sized homes. It can deliver up to 210 CFM at 0.4 in. w.g., ensuring effective and efficient ventilation throughout your living space. In addition to residential use, the high fresh air supply makes it a suitable option for light commercial applications as well.
Energy Recovery Core
The high efficiency energy recovery core is one of the standout features of the X24ERVE. It boasts a sensible recovery efficiency of 84% at 0°C and 65% at -25°C. This efficiency ensures maximum energy conservation while delivering optimal performance.
German-made ECM Motors
The X24ERVE utilizes German-made ECM motors, world-renowned for their outstanding quality and performance. The utilization of such high-grade motors ensures longevity, reliability, and superior performance of your air exchanger unit.
Energy Efficiency at its Best
The X24ERVE is an emblem of energy conservation, with a minimal power consumption of 22W and 2.9 CFM/Watt at 64 CFM. Its highly efficient performance translates to lower energy costs, making it the most cost-effective ventilation solution for your home.
Exceptional Filtration Capabilities
The X24ERVE isn't just about ventilation; it's about delivering purified air. It comes equipped with MERV 6 grade filters, ensuring the circulated air is clean and healthy. For those who desire an even higher level of filtration, the unit offers optional HEPA filtration.
Electronic Balancing: Simplifying the Complex
One of the notable features of the X24ERVE is its electronic balancing feature. Unlike other units, the X24ERVE does not rely on balancing dampers. The balancing is accomplished using the X-Touch Wall Control, simplifying the process and increasing overall efficiency.
Easy Repairs and Maintenance
The X24ERVE is designed for easy maintenance. Its high output ECM motors are permanently lubricated, promising a long service life. Moreover, the unit's electronic circuit board minimizes electromechanical parts, which significantly reduces repair time.
Industry-leading Warranty
Your peace of mind matters to us. That's why the X24ERVE comes with a 5-year warranty on parts and a 10-year warranty on the energy recovery core. We stand behind our products, and this extended warranty is proof of our confidence in the quality and durability of our units.
Advanced Controls
To make operation as simple and efficient as possible, the X24ERVE comes with the exclusive X-Touch Wall Control. This unit is the only one compatible with the X Series and offers electronic balancing for ease of operation.
Additional Options for Enhanced Performance
Beyond its core features, the X24ERVE provides additional options to boost its performance and cater to your specific needs. This includes an optional HEPA filter 22528, which adds an extra layer of filtration for the cleanest possible air. Please note that this feature involves an additional 0.3 in. w.g. static pressure at the highest speed.
Compliance with Standards
The X24ERVE is fully compliant with the CSA C22.2 no. 113 Standard applicable to ventilators and the CSA F326 requirements regulating the installation of Energy Recovery Ventilators. Its technical data has been obtained from published test results related to CSA C439 Standards. Furthermore, it is HVI certified and ENERGY STAR® qualified.
Why Choose AirGreen?
At AirGreen, our mission is to provide high-quality HVAC solutions that enhance the comfort and health of your home. The VENMAR AVS® X SERIES™ ERV 227 CFM 84% SRE TOP PORTS X24ERVE is just one of the many premium products we offer in our commitment to improving indoor air quality. As we continue to innovate and improve, we remain steadfast in our dedication to delivering reliable, efficient, and affordable HVAC solutions.
Our expertise in HVAC sales and installation, coupled with our commitment to customer satisfaction, makes us the go-to choice for HVAC services in Greater Montreal, Laval, Longueuil, South Shore, and North Shore. When you choose AirGreen, you choose quality, reliability, and peace of mind. Contact us today to learn more about the VENMAR AVS® X SERIES™ ERV 227 CFM 84% SRE TOP PORTS X24ERVE and how it can transform your home's air quality.
