ARCOAIRE D5FUHAH Electric Furnace | 5 Tons - 60000 BTU - R454B

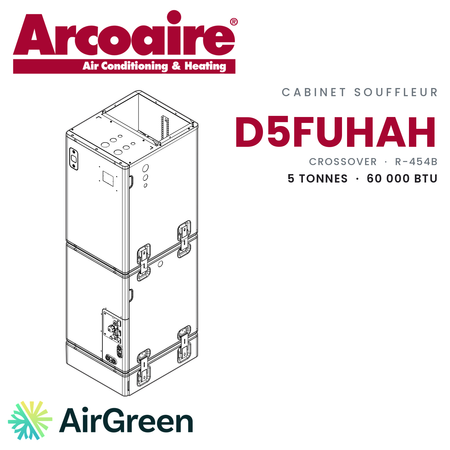

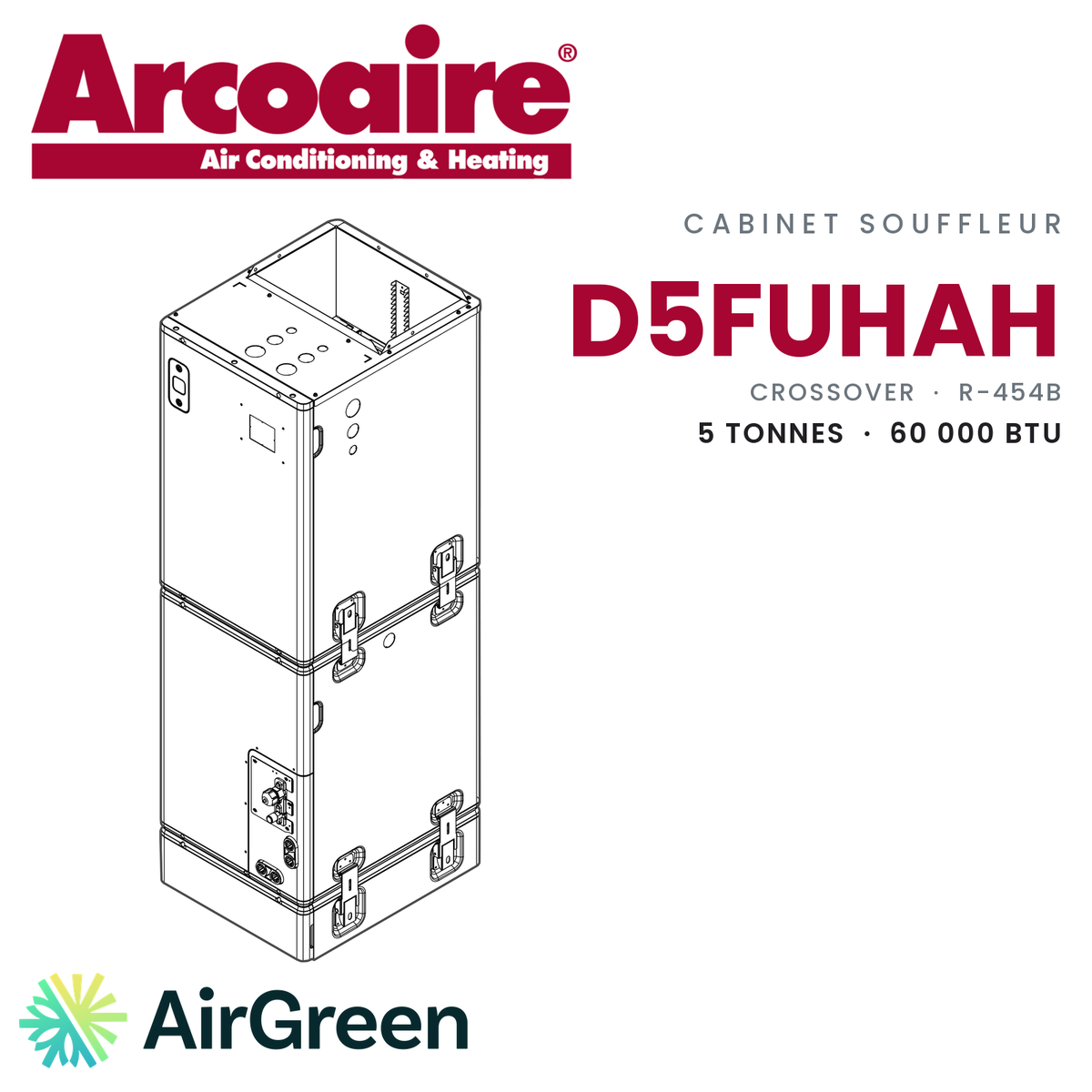

Arcoaire’s 5-ton D5FUHAH air handler: 1,648.1 CFM at high speed, R-454B, on a 21.5 x 21.5 in footprint.
Model numberD5FUHAH60XAK
514 316-2973 · sales@airgreen.ca
Quick facts
Five tons on R-454B on a square 21.5 in footprint
The air handler for large Crossover systems

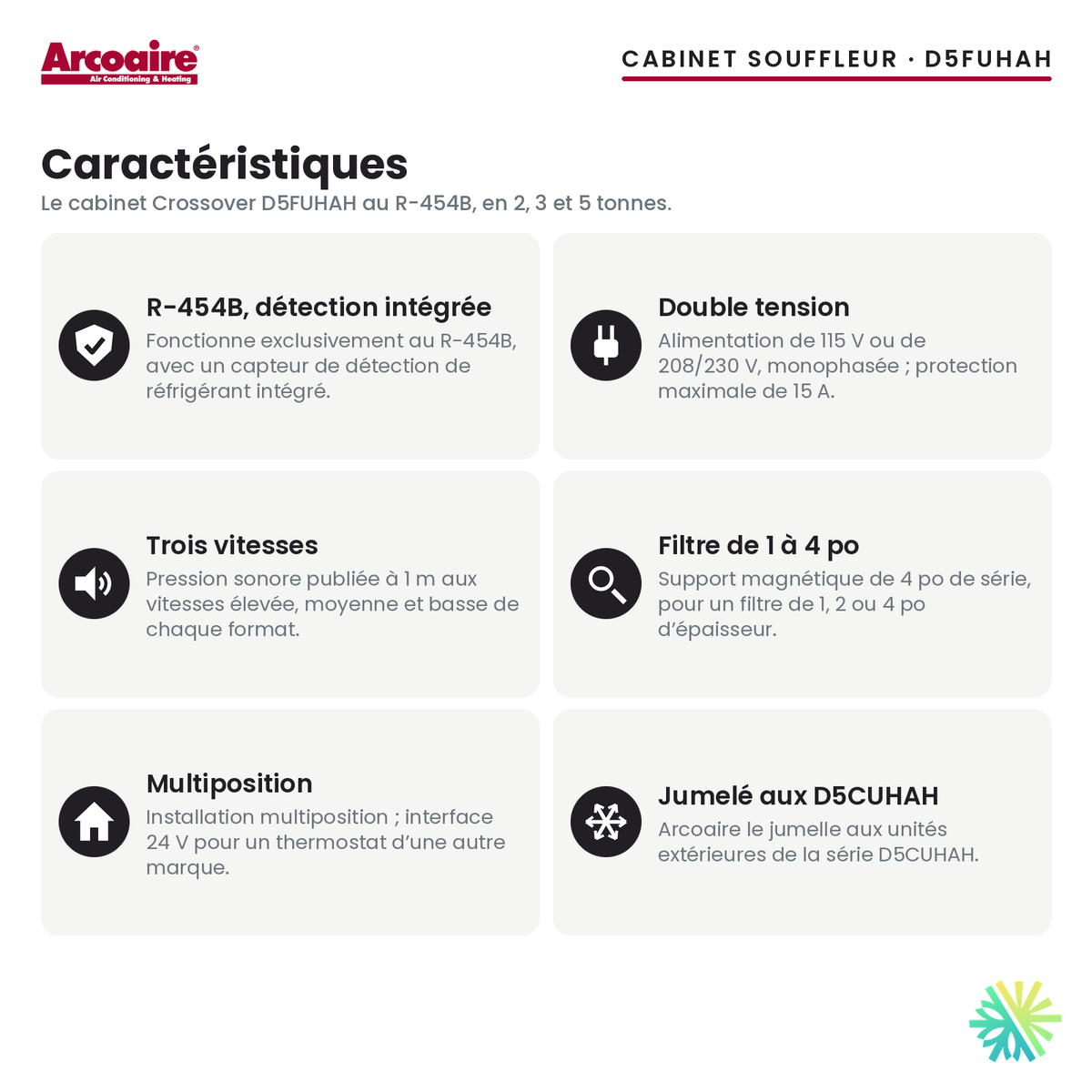

When a home needs a 5-ton central system, the indoor cabinet has to move a lot of air. Arcoaire’s D5FUHAH60XAK moves 1,648.1 CFM at high speed, under AHRI 210/240 rating conditions. It is the indoor unit of Crossover systems, matched with the D5CUHAH outdoor units, and runs exclusively on R-454B with a built-in refrigerant detection sensor.
It is for large multi-storey homes, properties with a finished basement and contractors installing a complete Crossover system. It does not connect to an outdoor unit that uses another refrigerant.
Placing it well in the house
The cabinet sits on a 21.5 x 21.5 in footprint and weighs 188.05 lb. Its natural place is a basement mechanical room, where service access is easy. That choice also matters for acoustic comfort: Arcoaire publishes 37 dB(A) at 1 m at low speed, but 57 dB(A) at high speed. That is why we prefer a location away from the bedrooms.
The cabinet is multiposition, and its refrigerant connections are 3/8 in for the liquid line and 3/4 in for suction, like the other sizes in the D5FUHAH series.
The standard 4 in magnetic rack takes a 1, 2 or 4 in thick filter, up to 20 x 20 in. For a large home, a thick, large-format filter offers a generous filtering surface.
On the electrical side, the cabinet accepts 115 V or 208/230 V. At 115 V, the minimum circuit ampacity reaches 14.5 A for a 15 A maximum overcurrent protection; at 208/230 V, it drops to 10 A. We look at your panel before choosing.
What AirGreen’s installation covers
The free on-site estimate is used to validate the location, the ductwork and the power supply. Because the cabinet height is confirmed with the installation documentation, we measure the space and the access route before reserving the location. You then receive a written quote.
Our technicians set the cabinet, connect the refrigerant line set, the drain and the electrical supply, then commission the system and check the airflow in the rooms. Our RBQ licence 5645-9605-01 covers ventilation, refrigeration and electrical work. AirGreen is a family business established in Montreal for more than fifteen years, also working in Longueuil, on the South Shore, in Laval and on the North Shore.
Your 5-ton project
Sold alone, this air handler does not qualify for the LogisVert grant, which follows a certified outdoor unit + air handler pair. For a complete D5CUHAH + D5FUHAH system, we take that into account in the quote.
Ask for your free on-site estimate and receive a written quote. Financing is available for your project.
The largest R-454B Crossover size
The D5FUHAH60XAK is the indoor unit of Arcoaire’s 5-ton Crossover systems, matched with the D5CUHAH outdoor units. It runs exclusively on R-454B and moves 1,648.1 CFM at high speed.
- Large homes and properties whose ductwork serves several floors
- 5-ton Arcoaire central systems with a D5CUHAH outdoor unit
- Basement mechanical rooms, away from the bedrooms
- Projects that want thick filtration: 4 in magnetic rack

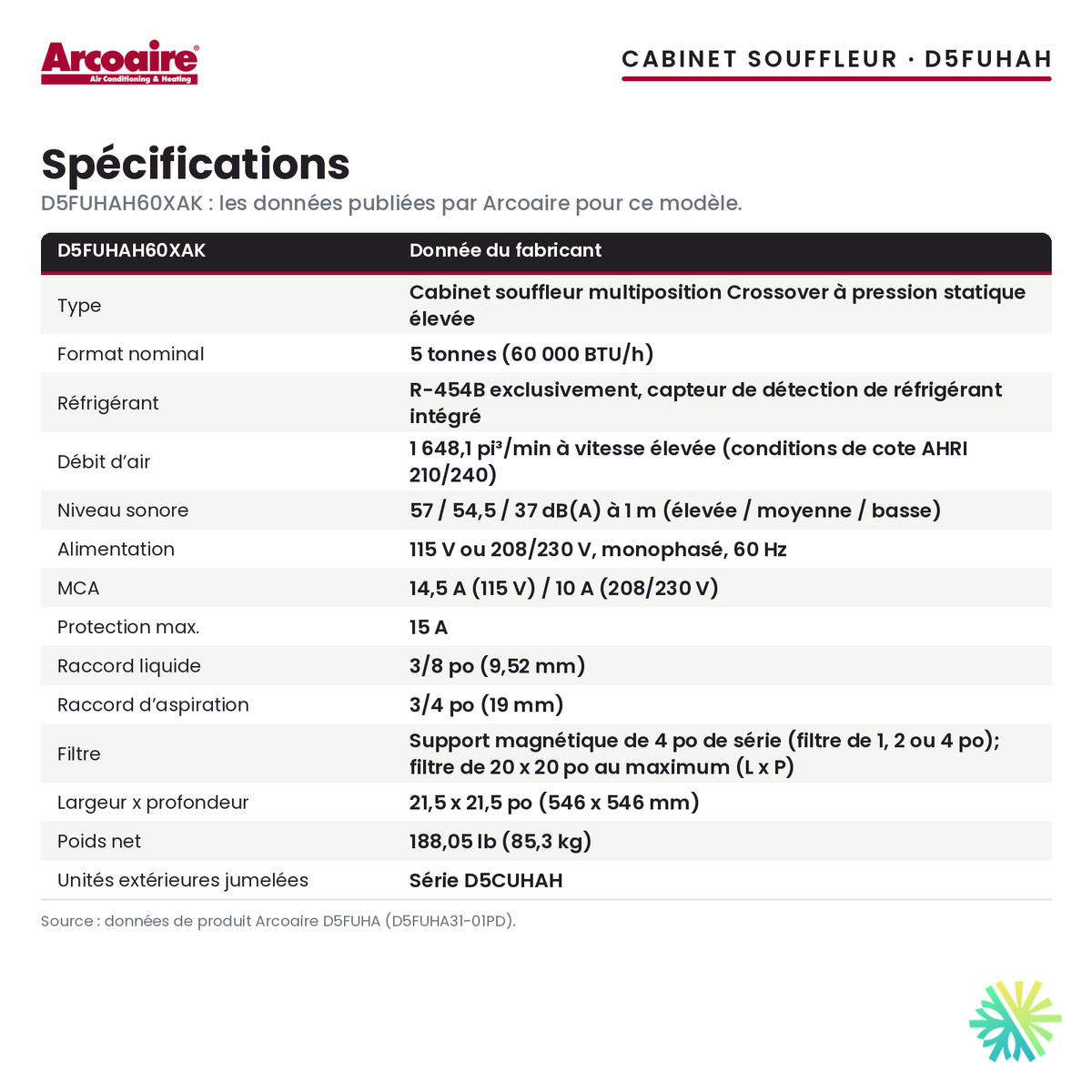

Specifications
From the manufacturer’s documentation. A value the manufacturer does not publish is not listed.

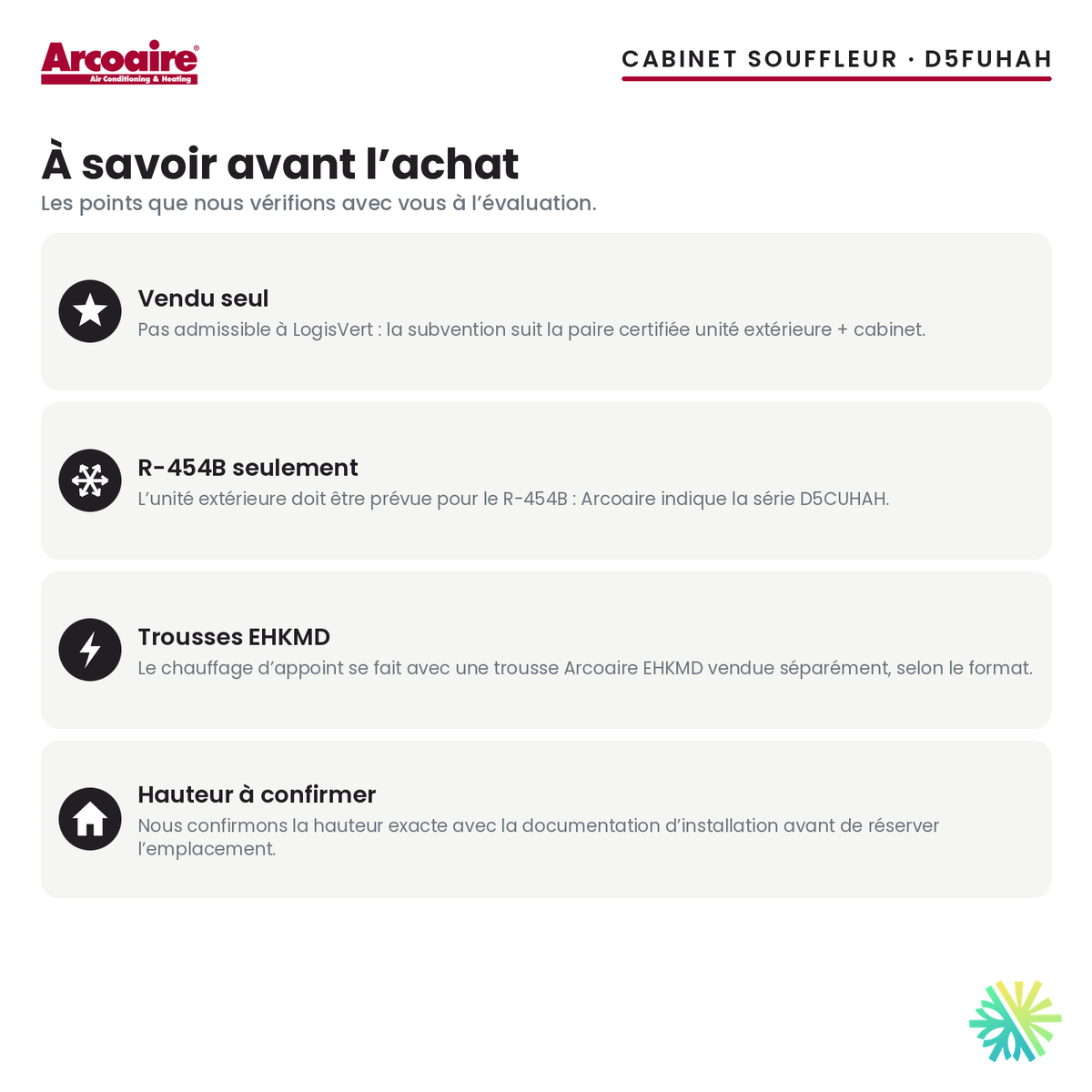

What to know before installing
- Sold alone: not eligible for the LogisVert grant. The grant follows the certified outdoor unit + air handler pair.
- Runs exclusively on R-454B; Arcoaire matches it with the D5CUHAH outdoor units.
- Published sound level at 1 m: 57 dB(A) at high speed, 54.5 at medium speed, 37 at low speed. A location away from the bedrooms is preferable.
- At 115 V, the minimum circuit ampacity is 14.5 A for a 15 A maximum overcurrent protection; at 208/230 V, it is 10 A. We check the panel capacity.
- Width x depth: 21.5 x 21.5 in (546 x 546 mm). We confirm the exact height with the installation documentation before reserving the location.
- Net weight of 188.05 lb (85.3 kg): plan for access and handling. Electric backup heat is not in the confirmed data for this model.
Manufacturer documents
Explore the range
Electric furnaces – air handlersSee allSame brand
ARCOAIRESee all
Frequently asked questions
How does it differ from the other 5-ton air handler in the range?
The D5FUHAH60XAK is the 5-ton air handler designed for R-454B, on a 21.5 x 21.5 in footprint. The other 5-ton air handler in the range uses another refrigerant: the right choice depends on your outdoor unit, which we check.
Can it run on 115 V?
Yes, but the minimum circuit ampacity then reaches 14.5 A for a 15 A maximum overcurrent protection. At 208/230 V, it is 10 A. We choose the voltage based on your electrical panel.
Is it loud at full speed?
Arcoaire publishes 57 dB(A) at 1 m at high speed, 54.5 at medium speed and 37 at low speed. We prefer to place it in a mechanical room away from the bedrooms.
Does this air handler qualify for a grant?
Not when it is sold alone. Hydro-Québec’s LogisVert grant follows a certified outdoor unit + air handler pair. For a complete system, ask us for a quote.
Can you install it?
Yes. Our technicians set the cabinet, connect it to the ductwork, the refrigerant line set, the drain and the power supply, then commission the system.
A 5-ton Arcoaire D5FUHAH air handler, installed by AirGreen
Tell us about your project: we check the sizing, confirm availability and send you a quote. Or let our technicians install it for you.
Specifications from the manufacturer’s documentation, checked on October 19, 2026.
