Honeywell HE100C1001/U Humidifier | Installation in Montreal, Laval, Longueuil, South Shore, and North Shore
Is it the right size for your home?
It puts 12 gallons of water a day into the air (with 49 °C (120 °F) furnace air), enough to humidify about 1,400 sq ft (our estimate). Pick your home's living area.
It's the right size.
For a condo or house under 900 sq ft, it's within its range. It will run at part load on ordinary days and keep a reserve for the coldest days.
AirGreen estimate. Honeywell (Resideo) publishes no area in sq ft for this model, only a volume of 16,000 cu ft. For an average-construction home, we count 120 sq ft per gallon a day, the ratio in AprilAire's and Lennox's tables. Older or leaky house: go one size up; our estimator confirms it on site.
What it does, in numbers
Output: manufacturer's spec (12 gal/day, with 49 °C (120 °F) furnace air).
What you should know about this one
Published, verifiable figures, not brochure claims.
12 galWhat it produces per day, at full output
About 45 litres of water turned into humidity in 24 hours. The control runs it to match the humidity you set: it rarely runs flat out, except in very cold weather.
Heat pumpBehind a heat pump, it produces less
It evaporates water from a pad using the heat of the air coming off the furnace. A heat pump blows cooler air, so it evaporates less. With a heat pump, talk to our estimator: depending on the manufacturer, we connect it to hot water or suggest a steam model instead.
BasicManual bypass damper
A TrueEASE 'Basic' model: the bypass damper is opened and closed by hand with the seasons. The HE150 and HE250 have a motorized damper that closes on its own.
CThe Canadian version
C is the Canadian model, shipped with the installation hardware.
9 5/16 in.The opening it needs
A 9 5/16 × 9 7/16 in. opening in the plenum and a 6 in. bypass duct.
ControlThe control that comes with it
Honeywell H8908 manual humidistat.
UpkeepWhat gets replaced, and when
HC22A1007 pad (or HC22E1003 antimicrobial), replace at least once a year.
35%The humidity to aim for in winter, at most
At −7 °C, no more than 35%; at −18 °C, no more than 25%. Above that, the moisture condenses on the windows. The control adjusts for you if it has an outdoor sensor.
5 yearsThe parts warranty
Parts are covered for 5 years by the manufacturer. We register the warranty in your name at start-up.
What it needs on site
Our estimator checks the ducts, the water supply and the drain before ordering.
Complete spec sheetData and cited sources
- Brand
- Honeywell
- Model
- HE100C1001/U
- Type
- Bypass
- Output
- 12 US gal/day (with 49 °C (120 °F) furnace air)
- Control included
- Honeywell H8908 manual humidistat.
- Upkeep
- HC22A1007 pad (or HC22E1003 antimicrobial), replace at least once a year.
- Living area
- 1,400 sq ft (AirGreen estimate)
- Dimensions (L × D × H)
- 14.5 × 10.1 × 14 in
- Power supply
- 24 V
- Current
- 0.5 A
- Warranty — parts
- 5 years
Output, dimensions, electrical data and warranty: Honeywell manufacturer's data. Living area: AirGreen estimate, explained under « Your home ».
The next model down and up
Talk to an HVAC technician before you choose
We look at your heating system, the electrical panel, the water supply and the drain, and give you an installed price.

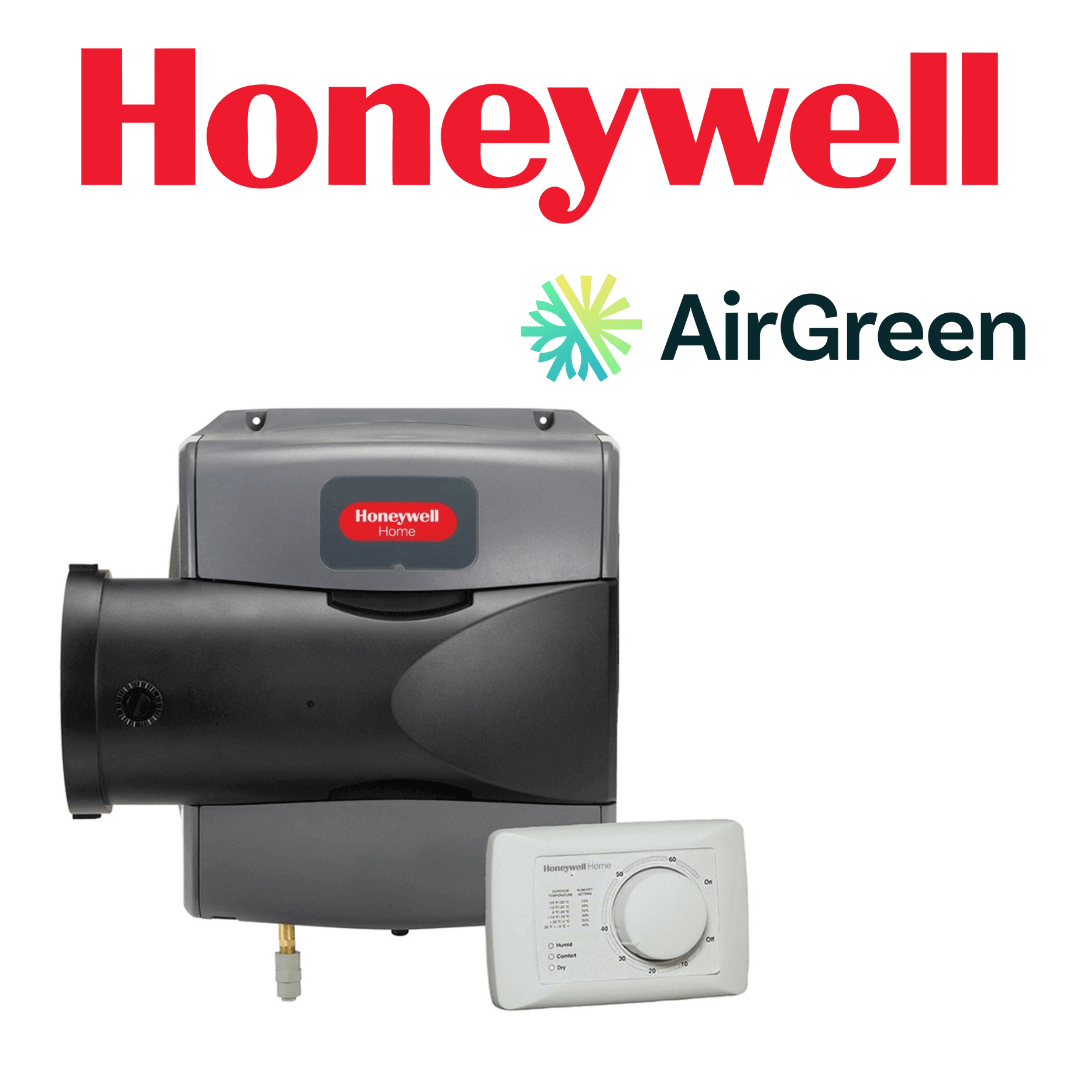

Honeywell HE100C1001/U: the small TrueEASE with a manual damper
The HE100C1001/U is a bypass humidifier from Honeywell's TrueEASE line. It delivers 12 gal/day with 49 °C (120 °F) furnace air. It suits a home of about 1,400 sq ft by our estimate. It's the simplest and most compact TrueEASE.
'Basic': a damper you set by hand
Its bypass damper is opened and closed by hand with the seasons: open in winter, closed in summer. The HE150, in the same cabinet, has a motorized damper that closes on its own. C is the Canadian version, shipped with the installation hardware. The control supplied is the Honeywell H8908 manual humidistat.
On site
It needs a 9 5/16 × 9 7/16 in. opening in the plenum and a 6 in. bypass duct. The solenoid valve runs on 24 V. A water supply and a drain complete the hookup. The HC22A1007 pad, or the HC22E1003 antimicrobial pad, is replaced at least once a year. Its output is rated with 49 °C (120 °F) air: behind a heat pump it produces less, and a steam model is the safer choice.
Installation in Montréal and the surrounding area
AirGreen, a family business, sells and installs humidifiers in Montréal, Laval, Longueuil, the South Shore and the North Shore. Before the quote, our estimator checks the heating, the electrical panel, the water and the drain on site. Reach us at 514 316-2973.
