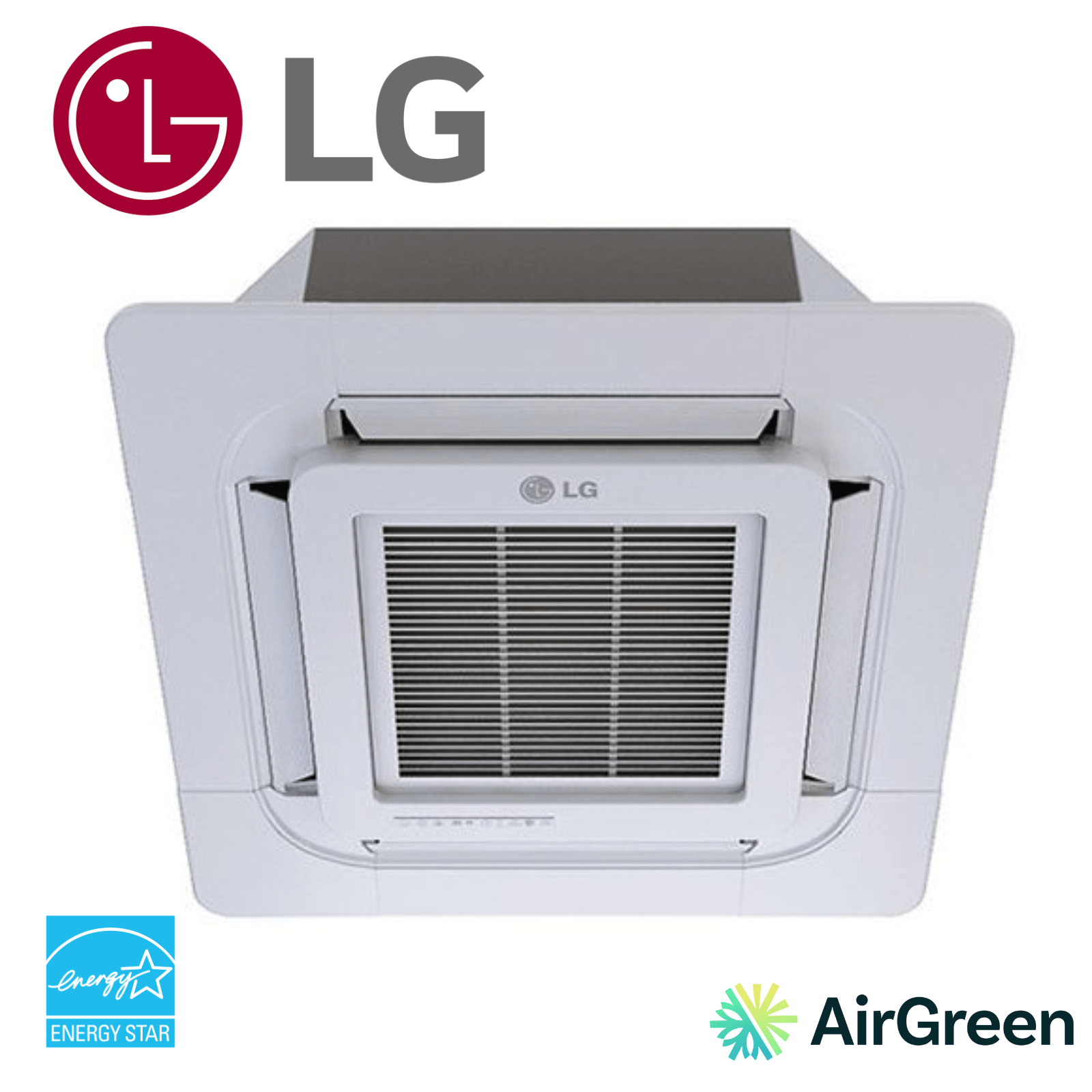

LG: Cassette Type Ceiling Mounted | 12,000 BTU

A compact cassette heat pump to free up walls and distribute air precisely

The LG 2x2 Cassette Type Ceiling Unit | 12,000 BTU is for homeowners, building managers, and contractors who want to air condition and heat an area without installing a visible wall unit. In an open-plan condo in Montreal, a renovated family room in Laval, a glass office in Longueuil, or a commercial space on the South Shore, the problem often arises: the walls are already occupied by windows, cabinets, shelves, artworks, screens, or architectural constraints. The 2x2 cassette allows comfort to be placed on the ceiling, in the center of the room, with four-way air distribution.

At AirGreen, we recommend this type of HVAC installation when the desired comfort is not limited to a simple temperature drop. A well-positioned cassette can reduce cold zones near the floor in winter, better distribute air conditioning in summer, and preserve the aesthetic of a finished space. The indoor model KNUDB121A, paired with the outdoor unit KUSXB121A, forms an LG 12,000 BTU class single-zone system, using R-32 refrigerant and certified ENERGY STAR® as well as ENERGY STAR® Cold Climate according to available technical data. The following technical data is based on the AirGreen datasheet and the LG R32 Single-Zone Four-Way Cassette engineering manual, particularly the sections on matching, performance, accessories, electrical data, and acoustics.

What "12,000 BTU" actually means for this LG model

In common parlance, we speak of a 12,000 BTU unit. In practice, the LG KSUDB121A system operates with capacity modulation. This means that the unit does not always operate at the same level: it adjusts its output according to the room's thermal load, outdoor temperature, humidity, sunlight, and building losses.

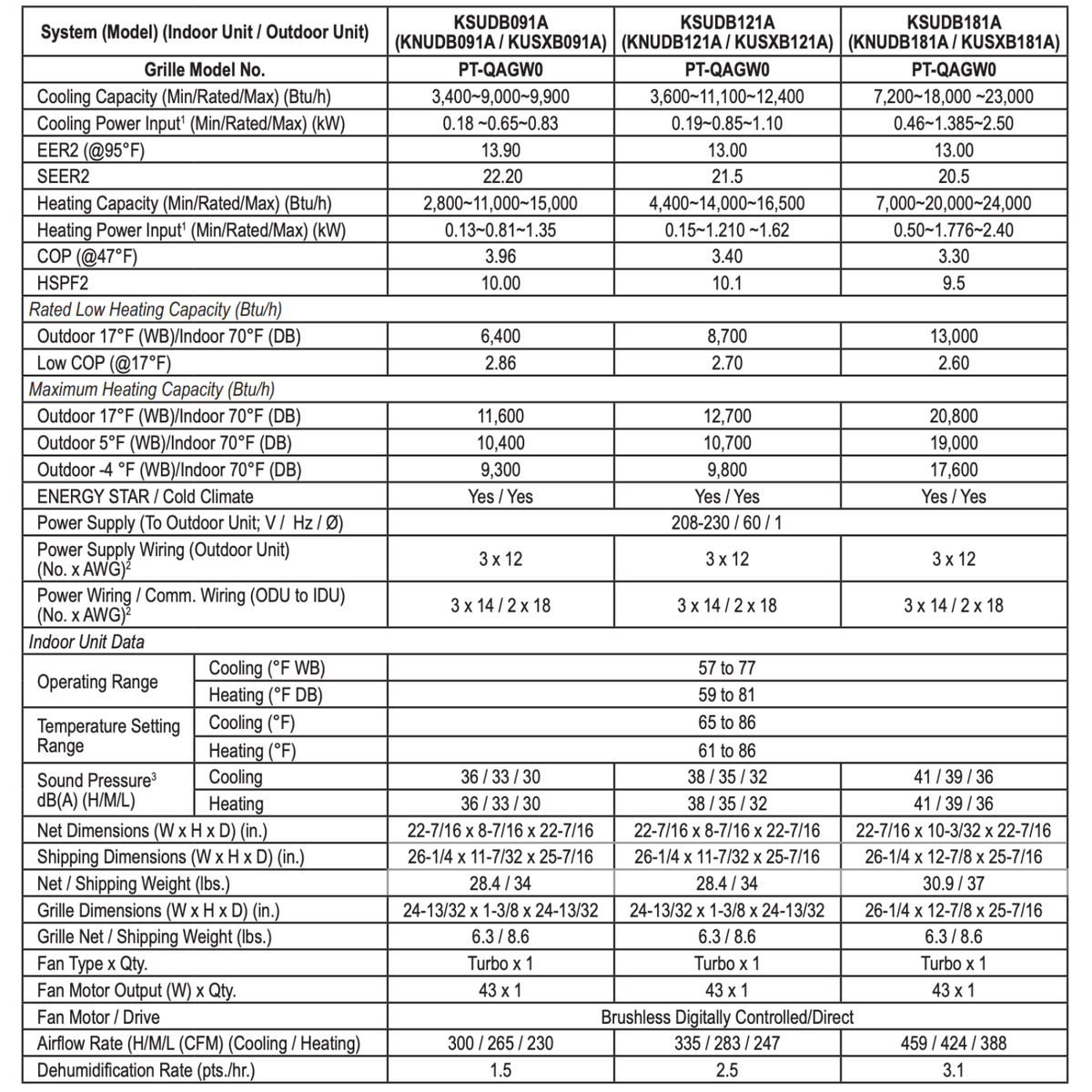

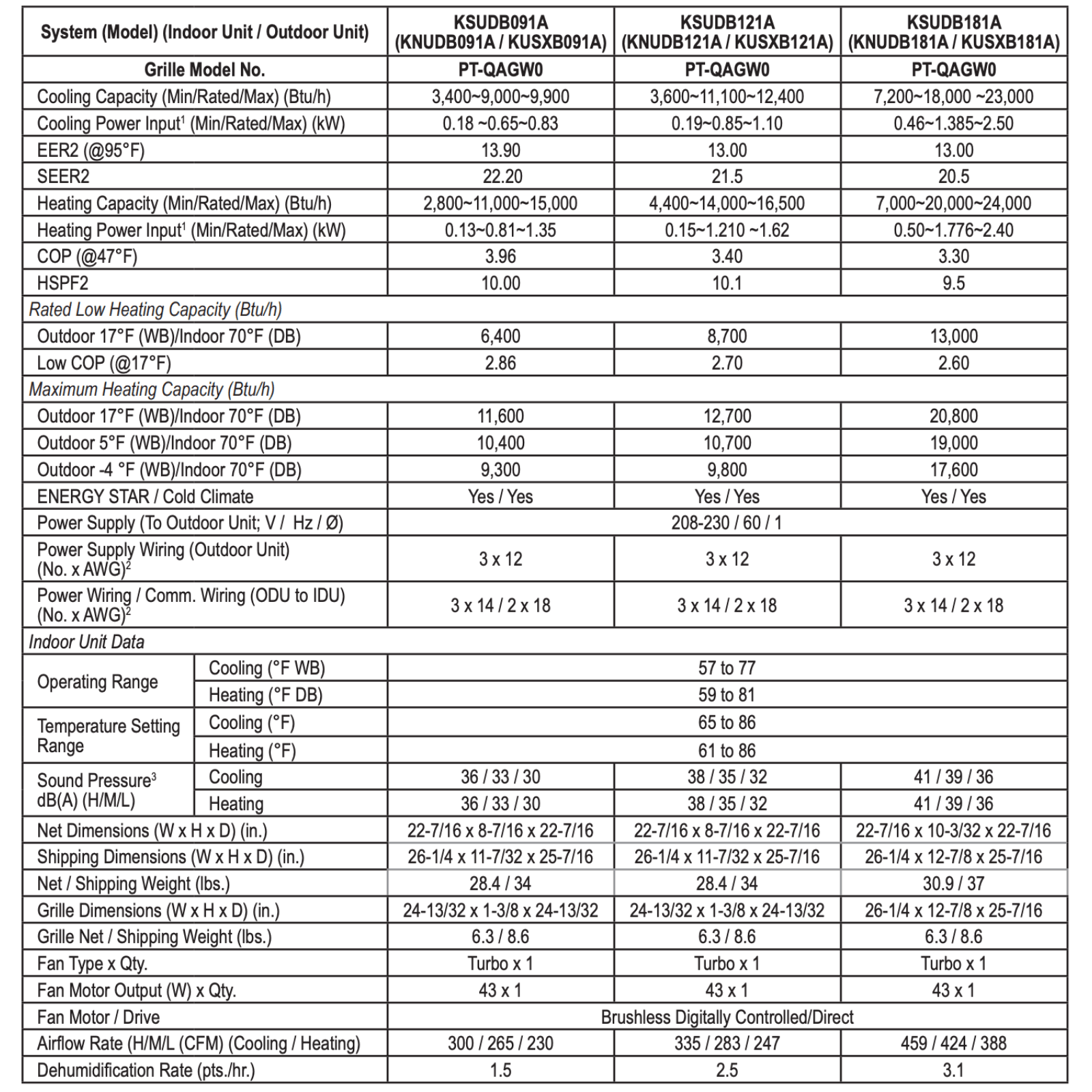

LG data notably indicates:

• Cooling Capacity: from 3,600 to 12,400 BTU/h, with a nominal value of 11,100 BTU/h.
• Heating Capacity: from 4,400 to 16,500 BTU/h, with a nominal value of 14,000 BTU/h.
• SEER2: 21.5, an excellent indicator for seasonal air conditioning.
• HSPF2: 10.1, relevant for heating performance.
• EER2: 13.0.
• COP at 47°F: 3.40 under reference conditions.
• Maximum Heating Capacity at 5°F / approximately -15°C: 10,700 BTU/h.
• Maximum Heating Capacity at -4°F / approximately -20°C: 9,800 BTU/h.
• AHRI: 214826533.
• Provincial LogisVert Subsidy indicated on the sheet: $0.

This distinction is important. A 12,000 BTU cassette should not be chosen solely based on area. In a recent 650 sq ft condo with a good envelope, an open zone can sometimes be effectively served. In a smaller but very glazed room, south-west facing, on the top floor, with high ceilings, the needs may exceed what the area suggests. This is why our team always checks the actual configuration before confirming a quote.

Four-way air distribution: the real advantage of the 2x2 cassette

The indoor unit KNUDB121A is designed for four-way distribution. Unlike a wall unit that projects air from only one side of the room, this cassette distributes air in multiple directions from the ceiling. For square rooms, open areas, meeting rooms, businesses, and finished basements, this approach reduces direct draft sensations when properly adjusted.

The advertised airflow for this model is 335 / 283 / 247 CFM depending on fan speed. This provides a good adjustment margin to adapt comfort to the room's uses. In a consultation room or home office, a lower speed is often preferred to limit noise. In a family room occupied by several people, a higher speed can stabilize the temperature faster.

The indoor sound level is also a strong argument: 38 / 35 / 32 dB(A) in high, medium, and low modes. In practice, this is very suitable for environments where you want to avoid the noise of a wall unit placed near a workstation, conference table, or sofa. The outdoor unit KUSXB121A shows 49 dB(A) in cooling and 52 dB(A) in heating, according to the manufacturer's test conditions.

2x2 format: compact, discreet, and demanding to install

The indoor cassette measures approximately 22.44 x 22.44 x 8.44 in. Its compatible grille PT-QAGW0, required for installation, fits into a 2x2 ceiling format with a white finish. This format is particularly popular in finished basements with suspended ceilings, offices, widened corridors, small businesses, and some condos where wall space is limited.

However, installation requires more planning than a wall unit. Before proposing this LG cassette, we validate several points:

• the clear ceiling height;
• access to joists, suspended ceiling, or structure;
• the piping route to the exterior;
• condensate drainage management;
• the space required for filter maintenance;
• the location of the outdoor unit according to building regulations;
• electrical compatibility with a 208-230 V / 60 Hz / 1 phase power supply;
• the required circuit, with MCA of approximately 13.4 to 14 A and MOP of 15 A.

A ceiling cassette can offer a very clean visual result, but only if the preparation is rigorous. Poor alignment, incorrectly calculated drainage slope, or neglected service access can turn a beautiful installation into a source of problems. At AirGreen, we plan these elements before starting work, which limits rework and surprises.

Heating in Montreal, Laval, and the North Shore: what to expect

The Greater Montreal climate demands more than good cooling performance. Heating must remain reliable during cold, humid, and windy January days. The LG 2x2 cassette KSUDB121A is Cold Climate certified, making it attractive for several residential and commercial projects.

At -15°C, the sheet indicates a heating capacity of 10,700 BTU/h. At approximately -20°C, the manual indicates a maximum heating capacity of 9,800 BTU/h under reference conditions. These figures are important for owners who want to know if the cassette can become their primary heating source in a given area. Our answer always depends on the building envelope, insulation, orientation, air infiltration level, and room usage.

In a well-insulated house on the North Shore, a 12,000 BTU cassette can very well cover an office, a family room, or a targeted living area. In an older duplex in Montreal, with less insulated walls and original windows, we often recommend keeping a supplementary heat source or re-evaluating the necessary capacity. Our team's role is not to sell the simplest model to install, but to choose a solution that will maintain stable comfort in real conditions.

R-32, efficiency, and technical design

The R-32 refrigerant used by this system is now common in several new-generation HVAC equipment. It offers a better environmental profile than R-410A, with a lower global warming potential, while requiring professional handling. Work must be carried out by qualified refrigeration technicians, with particular attention to connections, sealing, vacuum drawing, and refrigerant charge.

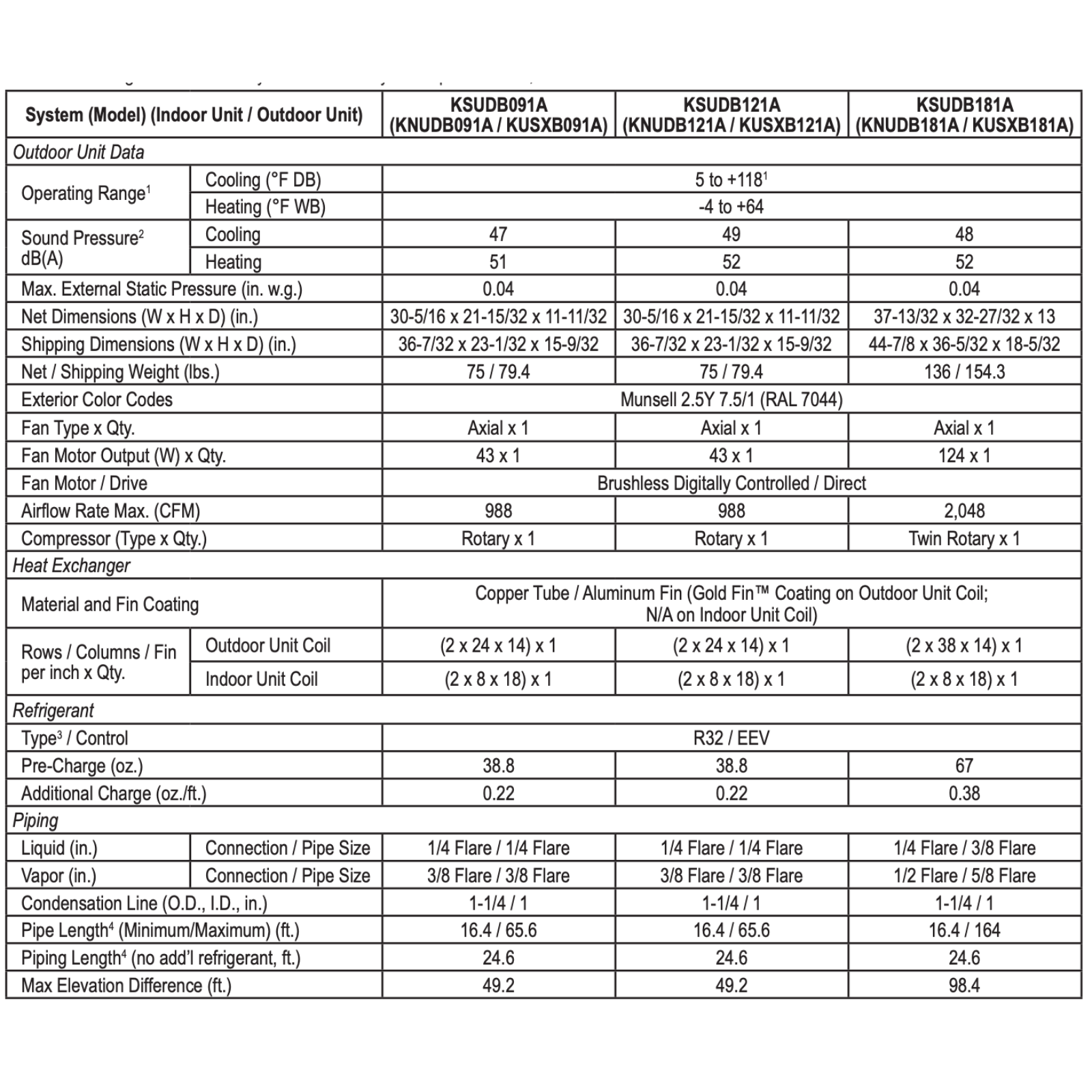

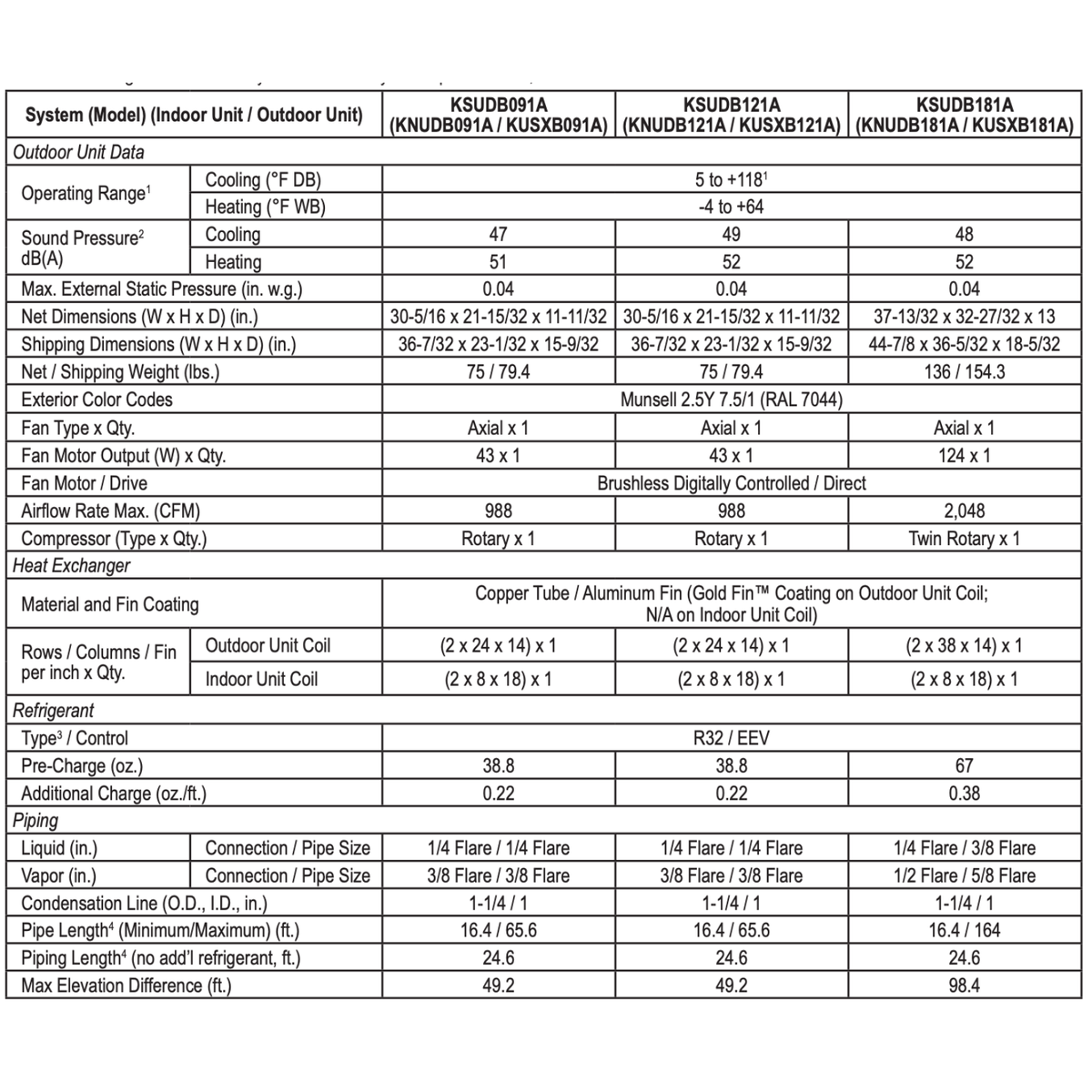

For this model, the indicated piping is 1/4 inch for the liquid line and 3/8 inch for the vapor line. The minimum equivalent length is 16.4 ft, the maximum length is 65.6 ft, and the length without refrigerant addition is 24.6 ft. Beyond that, the addition must be calculated correctly, i.e., 0.22 oz/ft according to LG data. The maximum indicated height difference is 49.2 ft.

These figures may seem very technical, but they have a direct impact on performance. A line that is too long, poorly insulated, or improperly charged can reduce capacity, increase consumption, and cause service calls. During a cassette heat pump installation in Montreal, we pay particular attention to line routes that cross unheated spaces, finished ceilings, or wind-exposed areas.

AirGreen installation: a discreet cassette does not forgive approximations

Field case: a free ceiling, but a condensate drainage issue to solve

In a typical renovated condo project in Longueuil, the client wanted to air condition an open area without a wall unit above the sofa. The 2x2 cassette made visual sense, but the ceiling did not allow for a simple gravity slope to the drain. The LG model integrates a condensate pump with a maximum lift of 27-9/16 inches, which allowed the drainage to be directed to a more appropriate point. Our team still provided access for inspection, as a condensate pump must remain accessible for maintenance.

The desired result was not just aesthetic. The four-way distribution made it possible to avoid projecting cold air directly onto occupants. The louvers were adjusted to favor a gentle lateral diffusion, with a fan speed adapted to teleworking periods.

Field case: a commercial room on the South Shore with acoustic constraints

In a small service commercial space on the South Shore, the challenge was different. The client wanted to maintain a stable temperature in a reception area without dominant noise. A wall unit would have been placed too close to the counter, which would have created an uncomfortable draft for staff. The 2x2 cassette allowed for centralized distribution and kept the walls free for displays and furniture.

In this type of commercial project, we also consider future maintenance. The washable filter of the 2x2 unit, measuring 14 x 14 x 1 inch, must be removable without moving furniture or disassembling part of the ceiling. This is a simple detail, but it often makes the difference between a well-maintained system and a unit that gradually loses performance.

Mistakes to avoid before buying a ceiling cassette

The LG 2x2 cassette is an excellent choice in several contexts, but it is not suitable for all ceilings or all rooms. Here are the most common mistakes we see during HVAC evaluations:

1. Choosing capacity based solely on area. A very glazed or poorly insulated room may require more than a simple square footage estimate.
2. Ignoring ceiling structure. A cassette must be suspended correctly, with stable support on its anchor points.
3. Underestimating drainage. Condensate must be properly evacuated, with access to the pump and prevention of water backflow.
4. Placing the unit in the wrong location. A cassette too close to a wall, beam, or obstruction loses part of its diffusion advantage.
5. Forgetting maintenance access. The filter, pump, connections, and components must remain accessible.
6. Neglecting outdoor noise. Even with a relatively quiet outdoor unit, positioning near a terrace, bedroom window, or property line must be carefully considered.
7. Installing without full commissioning. Pressure, vacuum, communication, drainage, louvers, controller, and heating/cooling cycles must be checked.

Control, WiFi, and useful options

The system comes with a compatible wireless controller, and WiFi is available as an option with the appropriate LG module. For many customers in Laval, Montreal, and in Montérégie, this option becomes useful when the cassette serves a space used at variable times: home office, professional premises, rental unit, or basement family room.

The LG ThinQ application allows, with the required module and a compatible network, to adjust temperature, ventilation, and certain schedules. This is not mandatory, but it is an interesting addition for those who want to manage their comfort remotely.

Other accessories may also be relevant depending on the project:

• PT-QAGW0: white panel required for the 2x2 cassette.
• PWFMDD200: Optional WiFi module.
• PQSH1202: Drain pan heater for certain cold outdoor conditions.
• ZLABGP01A: Low-temperature baffle for certain cold-weather air conditioning needs.
• PRHPZ010A: Single-port shut-off valve.
• PTVK430: Ventilation flange for outdoor air intake where the project allows.

We do not automatically recommend these accessories. We offer them when the building configuration, usage, or outdoor conditions justify it.

HVAC Maintenance: Keeping the Cassette Performing Year After Year

Properly performed HVAC maintenance extends the lifespan of a cassette and maintains its performance. For this LG model, we recommend regular attention to the following elements:

• cleaning of the washable filter;
• inspection of the drain and condensate pump;
• checking the motorized louvers;
• cleaning of the indoor coil;
• inspection of the outdoor unit, especially after winter;
• checking for unusual noise levels;
• performance check in heating mode before the cold season.

In commercial environments or homes with pets, dust, or prolonged use, maintenance should be more frequent. A clogged filter reduces airflow, increases system effort, and can negatively impact comfort. A neglected condensate pump can also cause interruptions or water damage. At AirGreen, we integrate these checks into our service calls to prevent small anomalies from becoming costly repairs.

For which projects is this LG cassette particularly relevant?

The LG 2x2 12,000 BTU Cassette Ceiling Unit is very well suited for several types of spaces:

• condo with open concept and few available walls;
• closed office or meeting room;
• finished basement;
• small business;
• reception or waiting room;
• high-end rental property;
• home extension;
• room where wall aesthetics are a priority.

It is less suitable if the ceiling is too low, if no service access is possible, if proper drainage cannot be achieved, or if the thermal load clearly exceeds the system's capacity. In these cases, AirGreen can propose a wall-mounted unit, a ducted system, a multi-zone heat pump, or another more suitable HVAC configuration.

Why entrust AirGreen with the installation

A ceiling cassette is not installed like a standard wall-mounted unit. It requires coordination between structure, refrigeration, electricity, drainage, and finishing. At AirGreen, we serve Montreal, Laval, Longueuil, the North Shore, the South Shore, and Montérégie with an approach focused on technical precision and transparency.

Our clients receive a clear offer before work begins. We validate visible and hidden constraints: ceiling, piping route, outdoor location, electrical supply, maintenance access, and heating needs. Our refrigeration technicians are familiar with the realities of Montreal plexes, recent condos, suburban homes, and commercial premises in the region. This field experience helps avoid compromises that may seem minor at first but affect comfort for years to come.

The specifications indicate a 10-year compressor, 10-year parts, 0-year labor warranty, with additional warranty possible. AirGreen can explain the available options at the time of quotation, as well as the applicable conditions based on installation, registration, and maintenance.

A discreet, technical, and durable choice for a well-defined area

The LG 2x2 12,000 BTU Cassette Ceiling Unit is a serious solution for owners who want a discreet, efficient, and well-integrated ceiling system. Its four-way diffusion, low noise level, seasonal efficiency, R-32 operation, and compatibility with practical accessories make it a solid option for many residential and commercial projects in Greater Montreal.

To achieve the best result, the initial assessment remains essential. A high-performing cassette that is poorly placed or drained will never provide the expected comfort. A well-selected, well-installed, and well-maintained cassette can transform a difficult-to-condition room into a stable, comfortable, and visually uncluttered space.

For a quote, technical validation, or comparison with a wall-mounted unit, a ducted system, or a multi-zone heat pump, contact AirGreen. We will help you choose the right HVAC solution for your building in Montreal, Laval, Longueuil, on the North Shore, or on the South Shore.
