LG: 3X3 LGRED Cassette Ceiling Unit | 48,000 BTU
SEER2 (Seasonal Air Conditioning Efficiency)
HSPF2 (Seasonal heating efficiency)
EER2 (Instantaneous efficiency in air conditioning)
COP at -8 °C (Heating energy efficiency)
CFM (Airflow)
A high-performance commercial HVAC solution designed for Quebec's climate

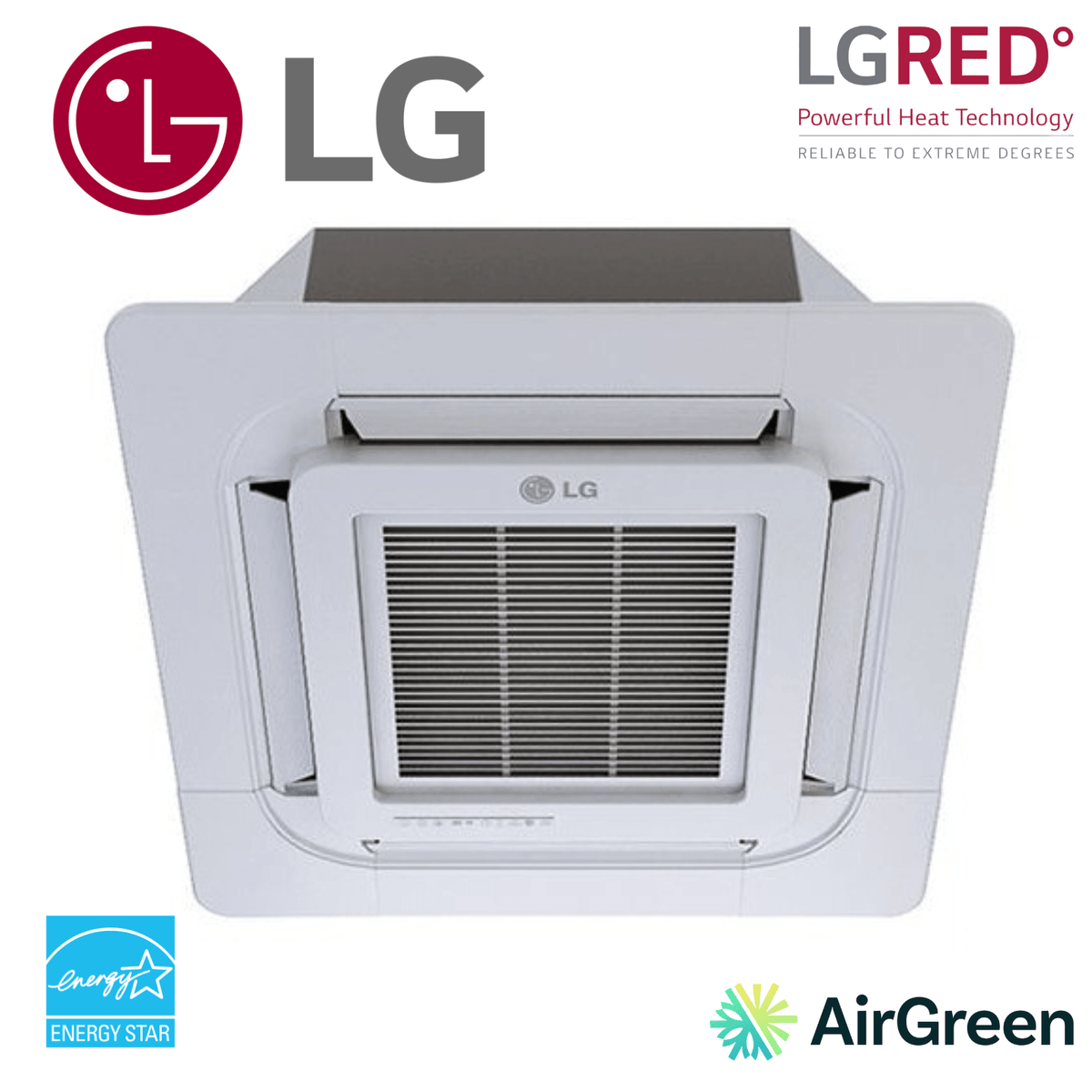

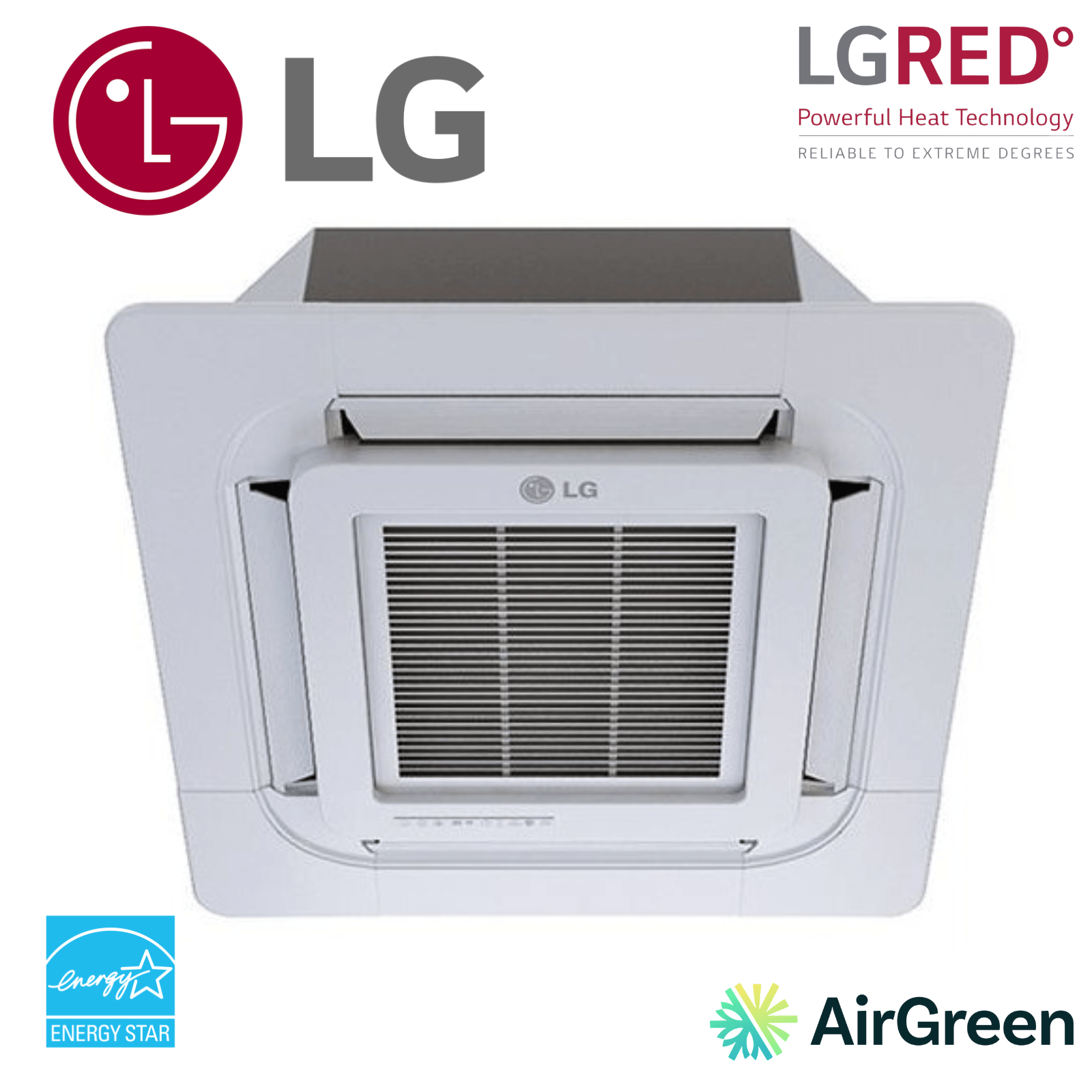

At AirGreen, we regularly install LGRED 3x3 cassette ceiling systems in demanding commercial environments in Montreal, Laval, Longueuil, on the North Shore, and the South Shore. This 48,000 BTU model stands out for its ability to provide uniform comfort, high energy efficiency, and reliability adapted to harsh winters.
This type of unit is particularly popular in offices, shops, restaurants, and open spaces where homogeneous air distribution is essential. Unlike wall-mounted systems, the ceiling cassette integrates discreetly into the ceiling while distributing air in four directions.
Why choose an LGRED 48,000 BTU ceiling cassette?
Truly effective 360° air distribution
One of the major advantages of this unit is its 4-independent-direction distribution system. Each motorized louver can be adjusted individually to optimize airflow according to the room's configuration.
In our installations in Montreal and Montérégie, we find that this type of distribution allows for:
- Uniform temperature without cold or hot spots
- Reduced occupant complaints
- Better overall energy efficiency
Performance adapted to Quebec's climate
This LGRED model is designed to operate efficiently down to -25°C for heating, making it a reliable solution for the region's winters.
According to the manufacturer's technical data, LGRED systems use an inverter compressor that precisely modulates capacity according to actual demand. This means:
- Fewer start/stop cycles
- Optimized energy consumption
- Extended lifespan

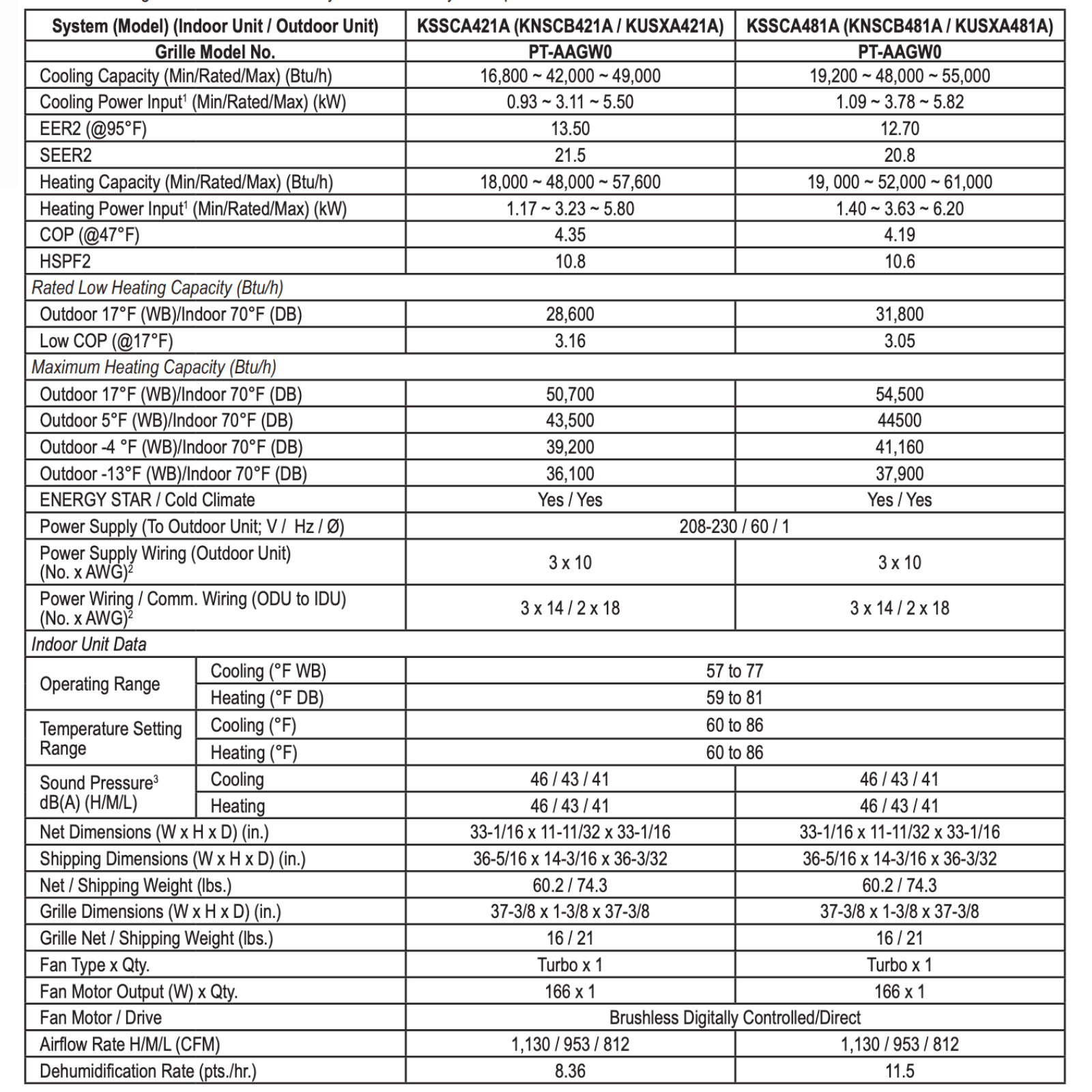

Detailed technical specifications
Power and efficiency
- Cooling Capacity: 48,000 BTU
- Heating Capacity: stable performance down to -25°C
- High SEER2 (seasonal efficiency)
- Efficient HSPF2 for heating
This power level is ideal for:
- Large open-plan areas
- Businesses with suspended ceilings
- Multi-station workspaces
R-32 refrigerant: efficiency and environment
The system uses R-32 gas, known for:
- Its low environmental impact
- Its superior energy efficiency
- Its better thermal performance
The technical manual confirms that R-32 has a lower global warming potential than R410A while improving the overall system performance.
HVAC installation: what we do differently at AirGreen
Comprehensive technical study before installation
Unlike many installers, we analyze:
- The actual thermal load
- Ceiling height
- Zone layout
- Structural constraints
This is crucial, as poor system design (piping length, sizing) can directly affect performance.
Real-life installation example in Laval
In a recent project in Laval, we installed this model in a 2,800 sq ft commercial space:
Initial problem:
- Old, improperly sized system
- Hot zones near windows
- Excessive noise
AirGreen Solution:
- Strategic repositioning of the cassette
- Adjustment of directional louvers
- Improved pipe insulation
Result:
- Uniform temperature throughout the space
- Reduced perceived noise
- Measurable decrease in energy consumption
Advanced features that make a difference
Smart control and WiFi (optional)
With the WiFi module, you can:
- Control temperature remotely
- Program schedules
- Monitor consumption
Sensors and automation
The system includes:
- Thermistors for temperature measurement
- Intelligent control algorithms
- Automatic airflow adjustment
These elements allow for precise regulation of indoor comfort.
High-performance dehumidification function
With a capacity of 11.5 pints/hour, this unit is particularly effective in environments that are:
- Humid
- Highly trafficked
- Subject to temperature variations
Installation: common mistakes to avoid
At AirGreen, we often correct mistakes made by other installers:
1. Incorrect positioning in the ceiling
A misplaced cassette leads to:
- Poor air circulation
- Uncomfortable zones
2. Poorly designed piping
The manufacturer emphasizes the importance of refrigerant circuit design to avoid:
- Loss of performance
- Pressure problems
- Premature failure
3. Improper drainage management
Improper drain installation can cause:
- Water leaks
- Ceiling damage
HVAC maintenance: essential for preserving performance
To ensure system longevity, we recommend:
- Filter cleaning (washable MERV 6)
- Drain inspection
- Full annual inspection
The system includes a filter easily accessible from below, simplifying regular maintenance.
Why choose AirGreen for this type of project?
Real expertise in commercial HVAC
We have installed this type of system in:
- Restaurants in Montreal
- Offices in Longueuil
- Commercial premises on the North Shore
Our concrete advantages
- Transparent pricing with no surprises
- Certified and experienced technicians
- 5M$ liability insurance
- Prompt after-sales service
Rigorous approach
Each installation includes:
- Pressure test
- Complete vacuuming
- Parameter calibration
Conclusion: an ideal solution for modern commercial spaces
The LGRED 3x3 48,000 BTU cassette ceiling unit is a robust, high-performance solution perfectly adapted to Quebec's climatic realities. It offers an excellent balance between comfort, energy efficiency, and architectural discretion.
At AirGreen, we recommend this model for clients seeking a reliable, durable, and optimized solution for commercial or professional spaces.
